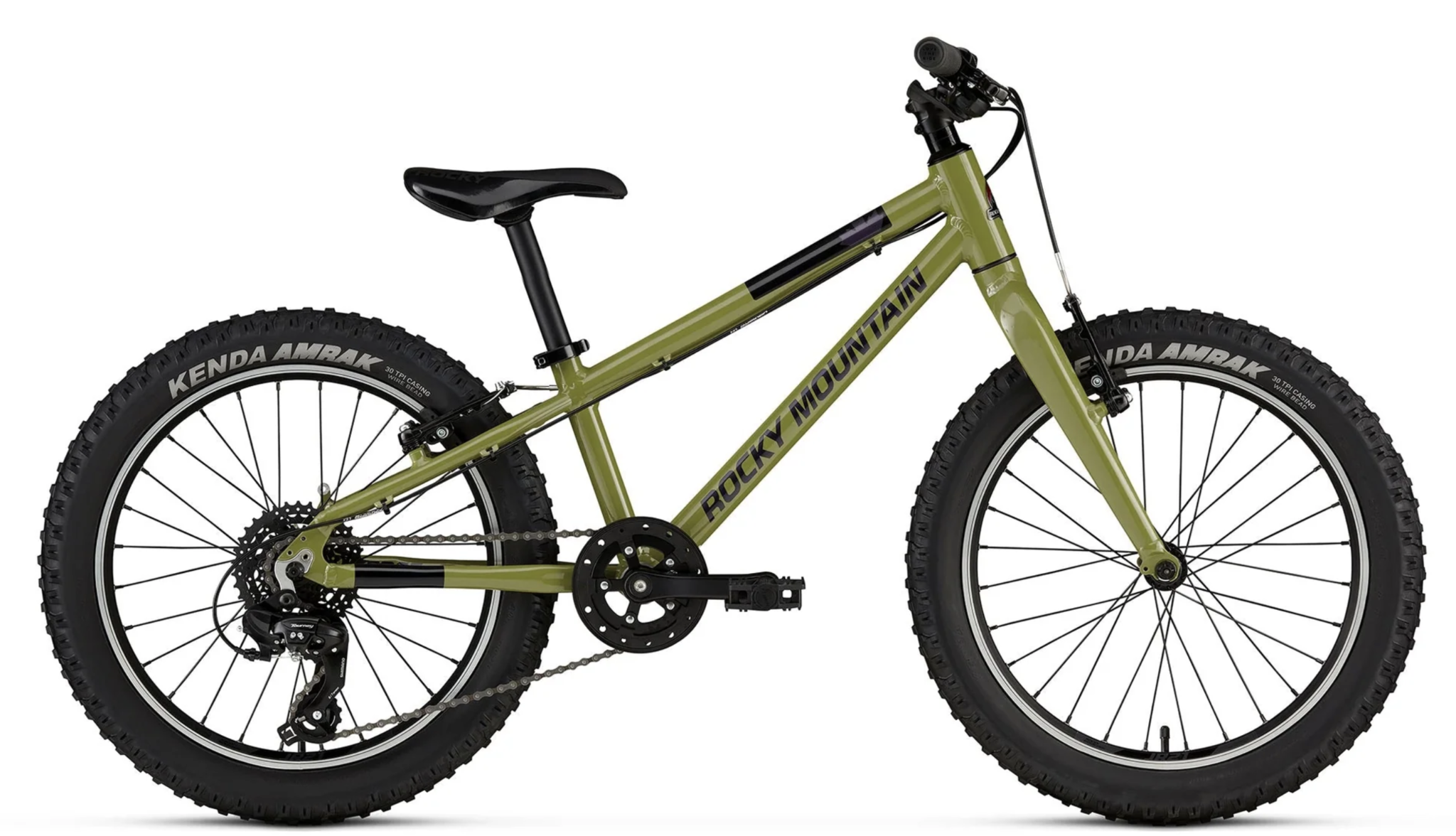

Rocky Mountain Edge Jr 20

Name: Rocky Mountain Edge Jr 20
Brand: Rocky Mountain
SKU: B0256OS4
Price: 559.0 CAD
Availability: OutOfStock

By Rocky Mountain

$559.00 CAD

Starting at $47/mo with Affirm.

This item is in stock at the warehouse, and will require additional time to process before shipping. Learn more

B0256OS4

Color: Green / Purple

Product variants

View details

Description
SPECS
Geometry

Description

Available in five wheel sizes and multiple frame sizes, there’s an Edge model ready to get them set up right for the ride ahead. Every Edge model is best for kids of any age learning to ride and for mastering the basics.

SPECS

Frame: Rocky Mountain 6061 SL Alloy | Threaded BB | Zero Stack Headtube | 20" Kid's Geometry Rear Triangle
Fork: Rocky Mountain Alloy JR
Headset: Rocky Mountain | Loose Ball Bearings | 1-1/8" Crown Race
Stem: Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm
Handlebar: Rocky Mountain XC | 600mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: Rocky Mountain Slide On Kids
Brakes: V Brake TX-121 | F: | R:
Shifters: SunRace DLM403 Trigger
Rear Derailleur: Shimano TY300
Cranks & Chainring: Rocky Mountain Jr Alloy 3PC | 28T | Crank Length: 127mm
Bottom Bracket: Sealed Cartridge Bearing
Cassette: SunRace CSM40 11-34T
Chain: KMC Z7
Front Hub: Rocky Mountain QR
Rear Hub: Rocky Mountain QR
Spokes: 2.0 Stainless
Rims: Rocky Mountain JR21 | 28H |
Tires: F: Kenda Amrak 20 x 2.4 // R: Kenda Amrak 20 x 2.4
Seatpost: Rocky Mountain Pivotal 27.2mm
Saddle: Rocky Mountain Pivotal Kids
Weight: This information isn't available yet. We will update the weight of this model as soon as possible.
Notes: We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.

Geometry

	KIDS
Top Tube Horizontal (mm)	470
Head Tube Angle (deg)	68
Head Tube Length (mm)	115
Seat Tube Angle (deg)	71
Seat Tube Length (mm)	255
Rear Centre (mm)	350
Bottom Bracket Drop (mm)	15
Reach (mm)	315
Stack (mm)	450
Standover Height (mm)	560
Wheelbase (mm)	883

Standover height is measured 200 mm in front of the bottom bracket.

Product Variants SKU/UPC

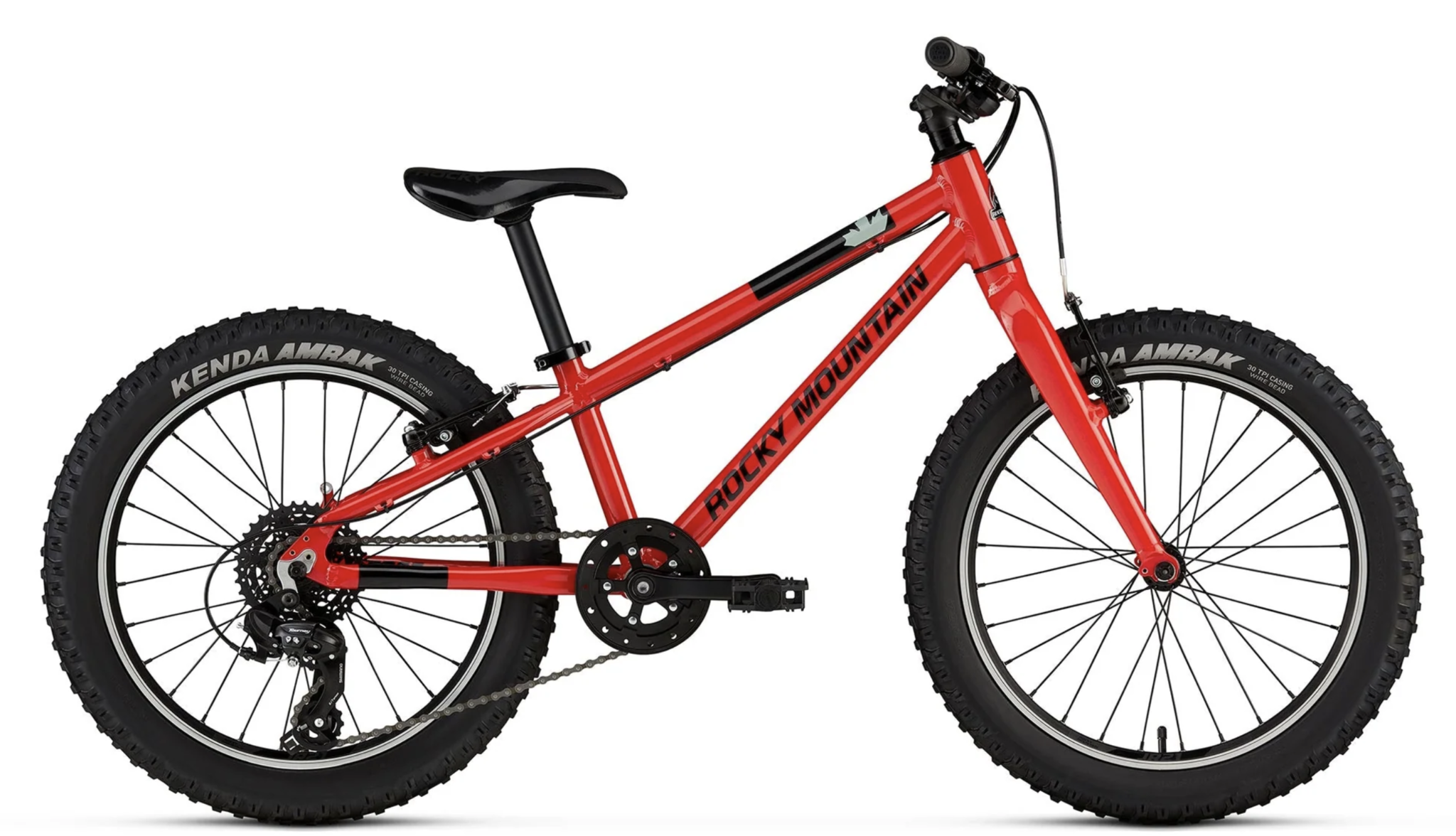

Rocky Mountain Edge Jr 20: Red / Black / : SKU: B0256OS3 - UPC: 770416430394
Rocky Mountain Edge Jr 20: Green / Purple / : SKU: B0256OS4 - UPC: 770416430400
