Intended use: Trail
Rear travel: 145
The Instinct Powerplay SL Carbon packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, this bike rides like a trail bike with the power to explore further than ever before. With adjustable geometry, refined suspension kinematics, and MX compatibility, the Carbon Instinct Powerplay SL delivers unreal levels of playfulness and agility, lap after lap… after lap.
Frame: SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Fork:Fox 36 Float EVOL GRIP X2 Factory Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front Travel:150
Rear Shock:SM-XL: Fox Float X Factory Series | 230x57.5mm |XS: Fox Float Factory Series | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ
Rear Travel:145
Headset:FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem:Race Face Turbine R | 0° Rise | All Sizes = 40mm

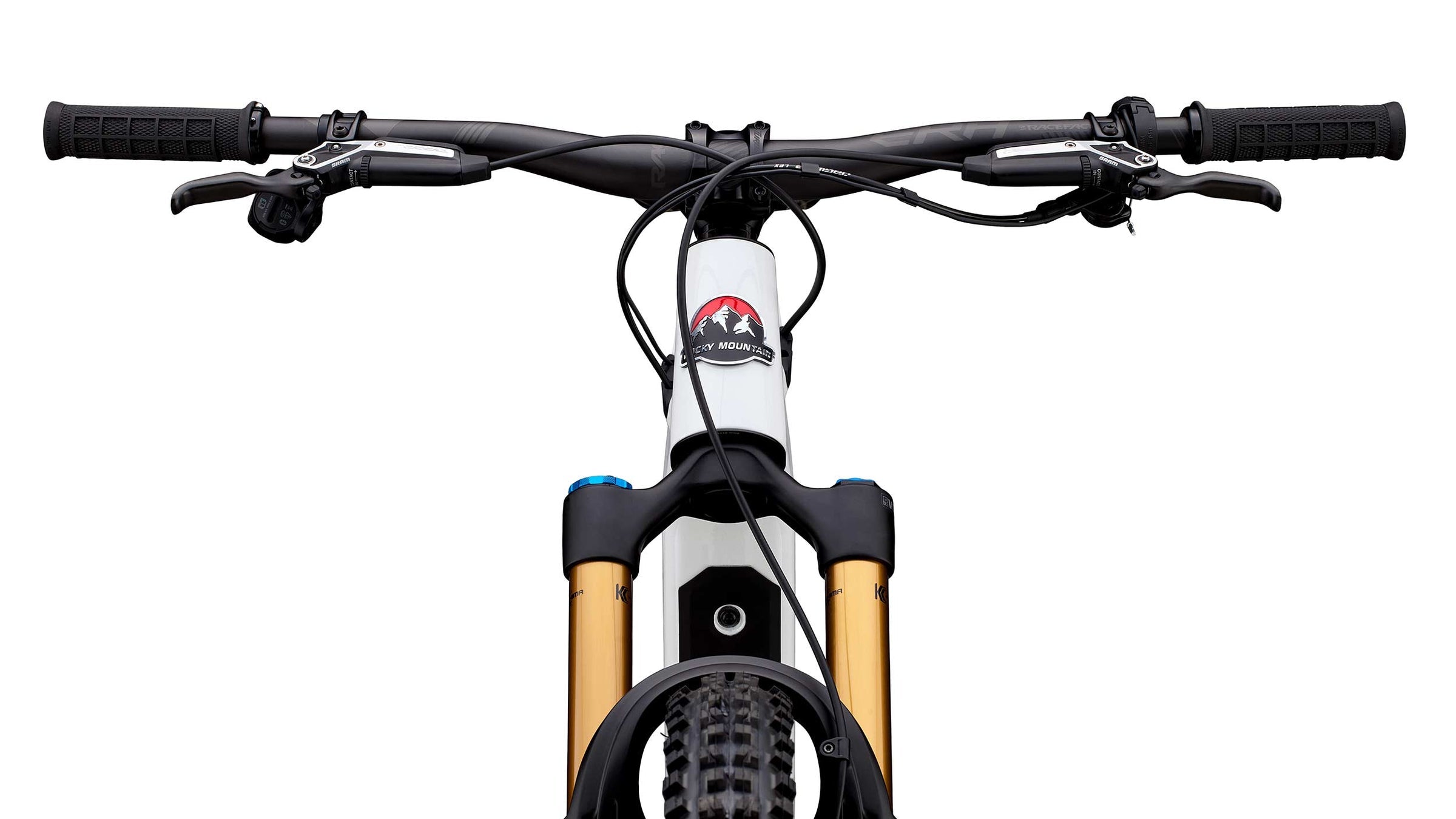

Handelbar:Race Face ERA | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp
Grips:ODI Elite Pro Lock On
Brakes:Sram Code Ultimate Stealth 4 Piston | Metal Pads
Shifters:Sram AXS Pod Ultimate Controller

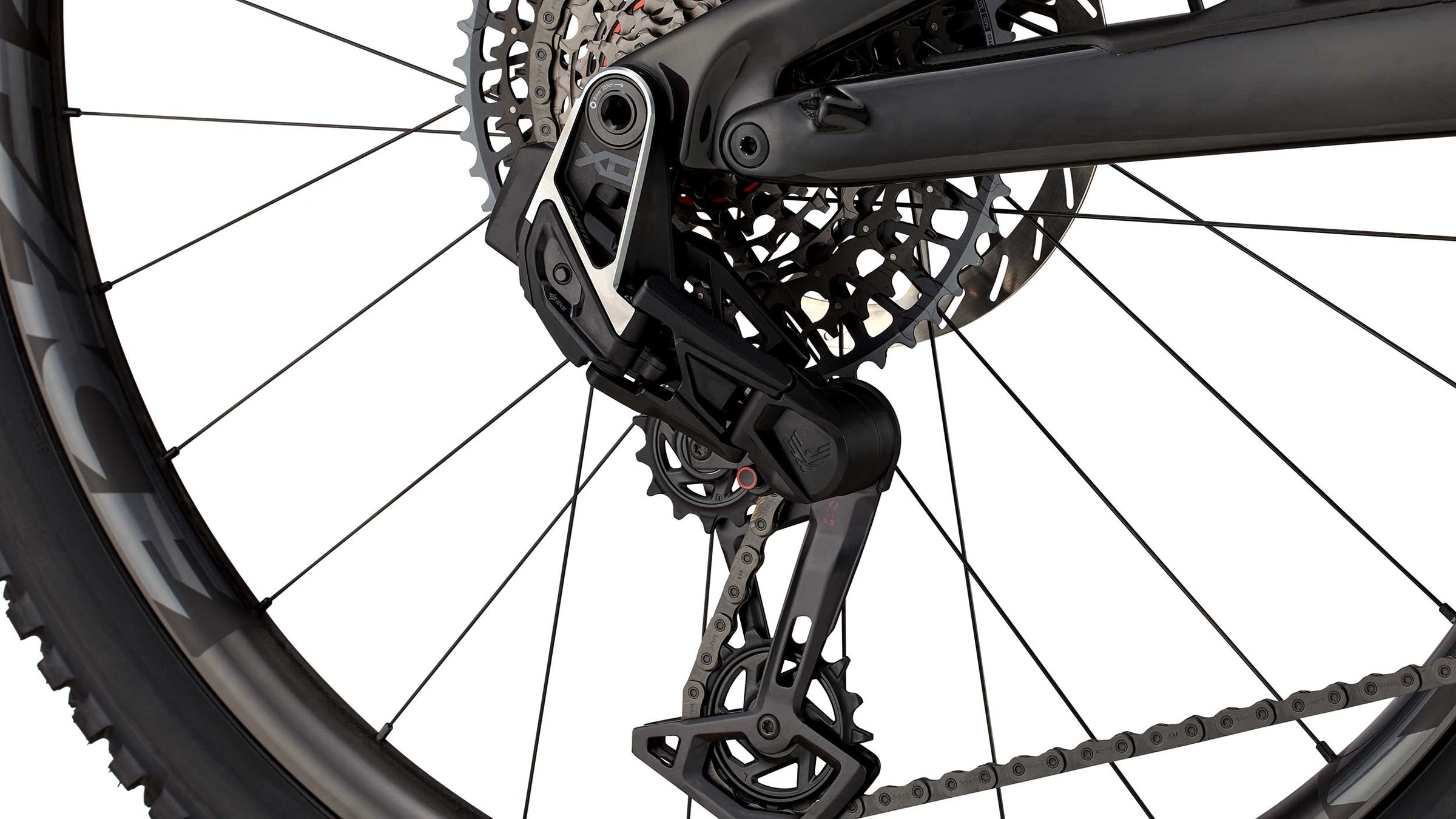

Rear Derailleur:Sram X0 Eagle Transmission Wireless
Cranks & Chainring:Race Face ERA Cinch | 34T T-Type Ring | 30mm Spindle | XS - XL = 165mm
Bottom Bracket:Race Face BB92 30mm
Cassette:Sram X0 Eagle Transmission 10-52T
Chain:Sram X0 Transmission
Tires:Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl
Seatpost:Fox Transfer Factory Series 30.9mm | XS = 120mm | SM = 150mm | MD = 180mm | LG - XL = 210mm
Saddle:WTB Volt Fusion Form 142 | Titanium Rails

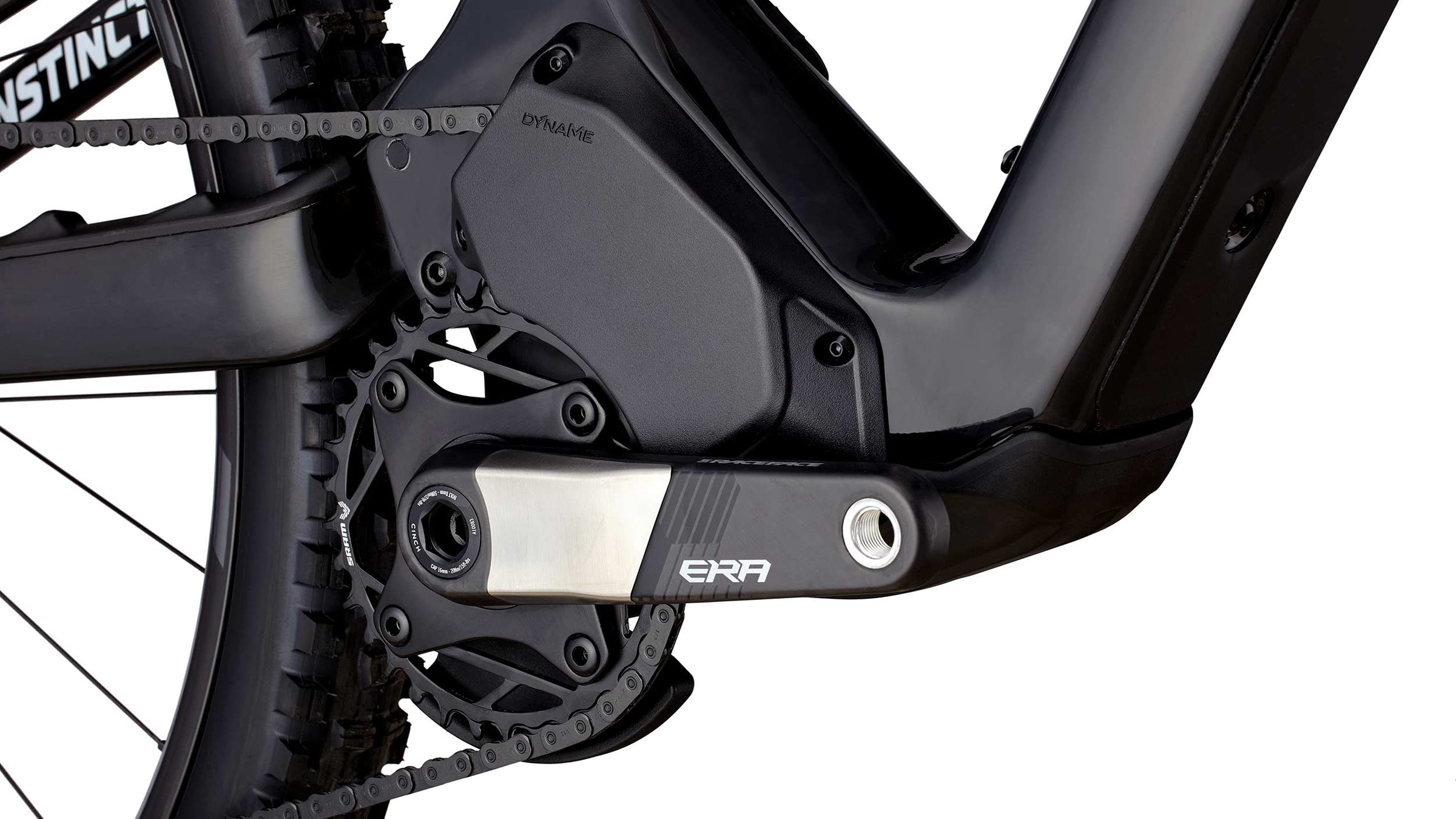

Drive System:Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery:480 Wh Removable Integrated Li-Ion
Display:Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger:Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector
