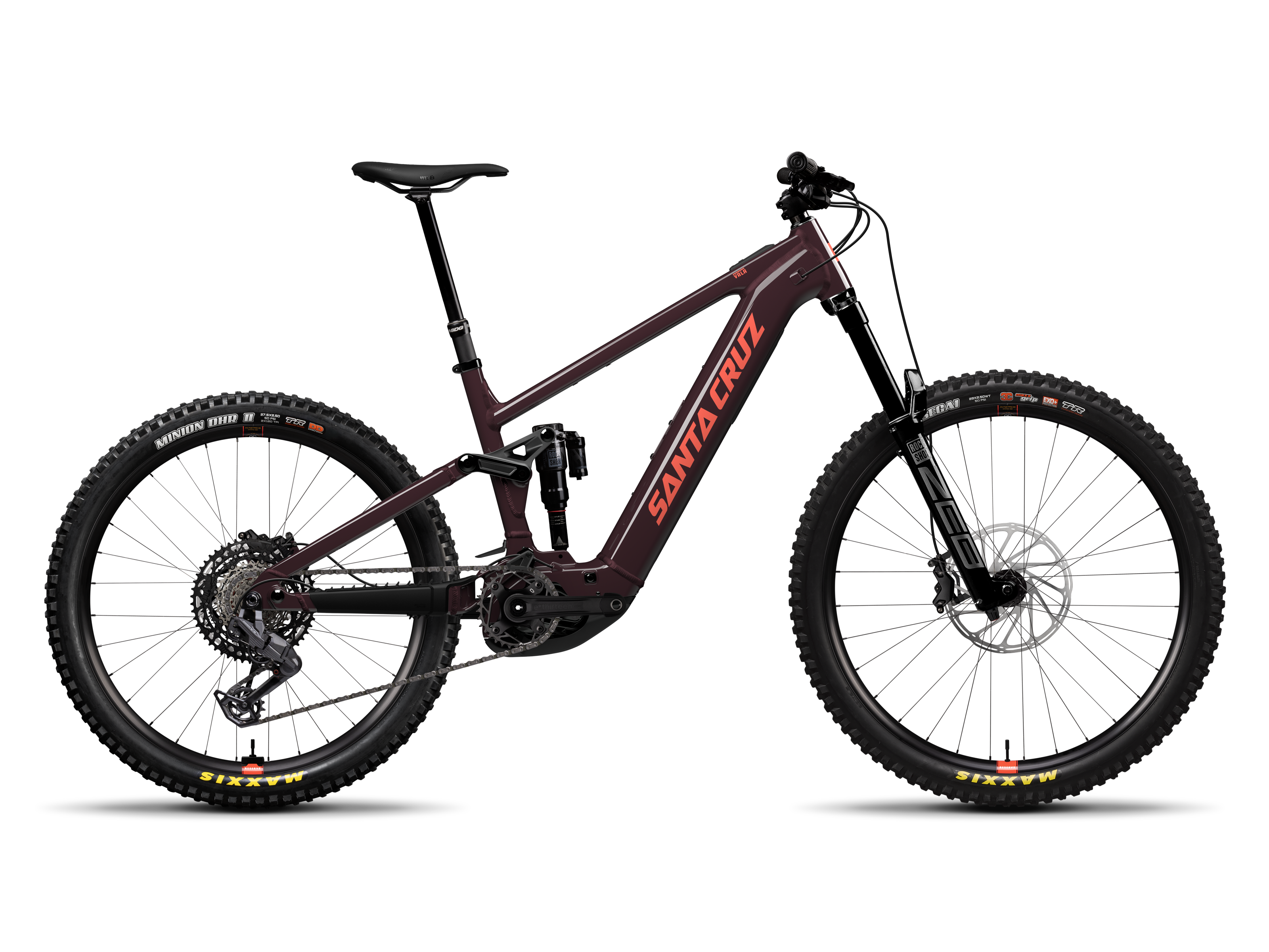

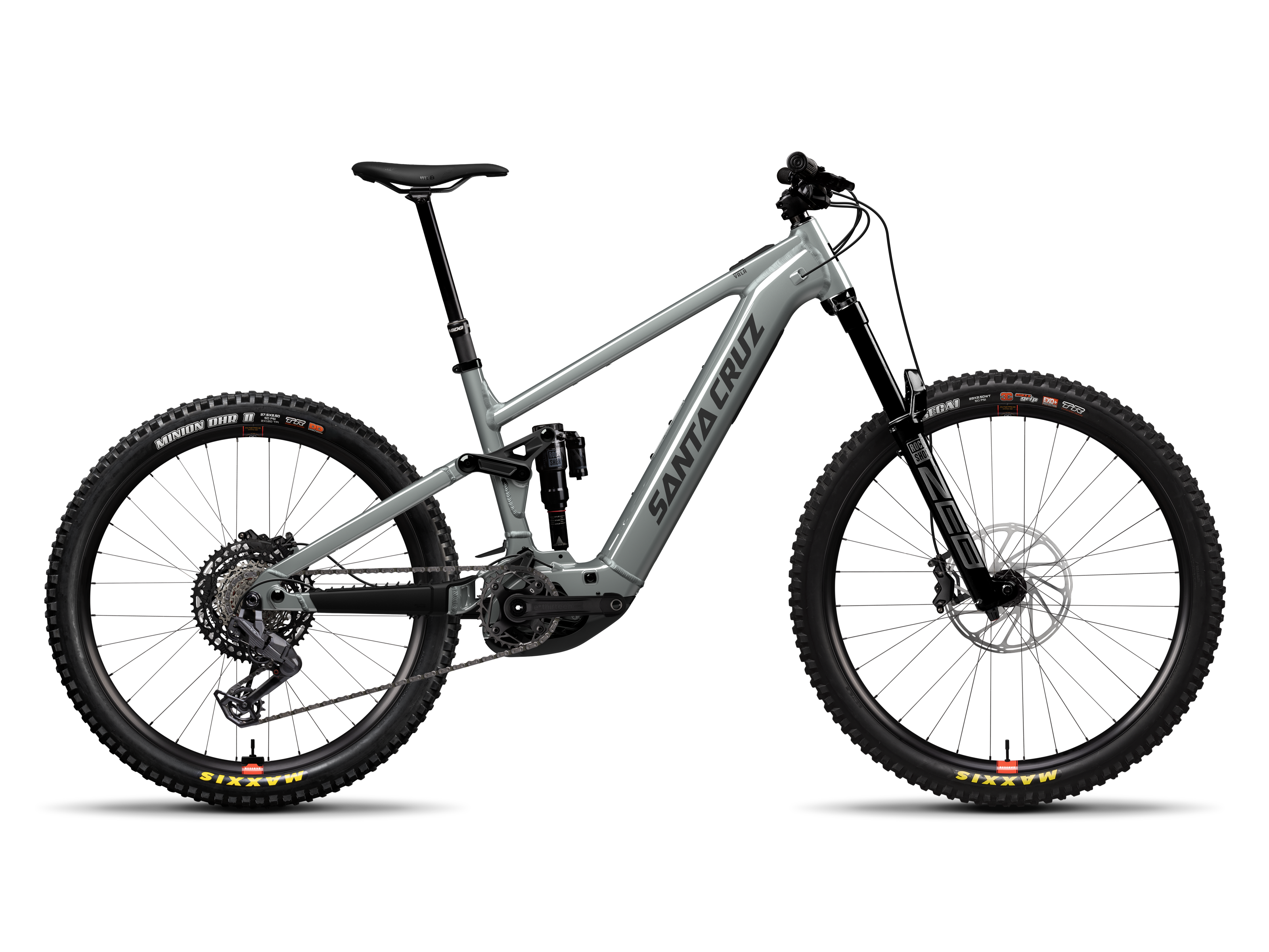

2026 Santa Cruz Vala AL 70-Kit

By Santa Cruz
$8,599.00 CAD

This product is only available for in-store pickup.

In stock at supplier warehouse - Usually ships within 5 business days. More info

58-26315-451-2-918-304001-01
Color: Gloss Lunar Gray
Size
View details
Description

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Aluminum
Frame Aluminum MX 150mm Travel, 4-Bar
Travel 150mm
Weight 53.68lbs / 24.35kg
Wheel Size MX
Suspension
Fork RockShox Zeb Base, 160mm
Shock RockShox Super Deluxe Base, 205x60
Drivetrain
Bottom Bracket N/A
Cassette SRAM XS 1270 Eagle T-Type, 10-52t
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset E13 Helix eSpec, 160mm
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Brakes
Brakes SRAM DB8
Front Rotor SRAM Centerline, 220mm
Rear Rotor SRAM Centerline, 200mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise
Headset FSA IS-2/47/42 ACB
Saddle WTB Silverado Medium, Steel
Seatpost SDG Tellis Dropper, 31.6
Stem OneUp Enduro Stem, 42mm
Wheels
Front Rim Reserve 30|HD AL
Front Hub SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim Reserve 30|HD AL
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Tire Maxxis Minion DHRII, 27.5"x2.5", DoubleDown
Valves Reserve Fillmore Valves
Ebike
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance CX BDU38
Specs
Bottom Bracket Shell EMTB
Rear Brake Mount 200mm PM
Shock Length 205mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No Compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 150mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Stroke 60mm
Suspension System Four-bar
UDH Compatible Yes
Water Bottle Mounts 1



Geometry
All units are in millimeters or degrees.
S M L XL
Reach 433 458 478 498
Stack 625 634 643 656
Head tube angle 64.1° 64.1° 64.1° 64.1°
Head Tube Length 110 120 130 145
Rear Center 440 440 445 445
Front Center 771 800 825 851
BB Height 342 342 342 342
BB Drop Front 30 30 30 30
BB Drop Rear 13 13 13 13
Wheelbase 1211 1241 1270 1297
Top Tube Length 578 606 628 652
Seat Tube Length 380 400 420 460
Seat Tube Angle 76.9° 76.9° 76.8° 76.8°
Sizing
 Small 5'1"-5'5"Reach: 435mm

Medium

5'5"-5'9"Reach: 460mm

Large

5'9"-6'1"Reach: 480mm

X-Large

6'0"-6'4"Reach: 500mm
Product Variants SKU/UPC
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Lunar Gray / SM: SKU: 58-26315-451-2-918-304001-01 - UPC: 192219520629
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Stormbringer Purple / SM: SKU: 58-26315-451-2-919-304001-01 - UPC: 192219520667
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Lunar Gray / MD: SKU: 58-26315-451-3-918-304001-01 - UPC: 192219520704
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Stormbringer Purple / MD: SKU: 58-26315-451-3-919-304001-01 - UPC: 192219520742
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Lunar Gray / LG: SKU: 58-26315-451-4-918-304001-01 - UPC: 192219520780
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Stormbringer Purple / LG: SKU: 58-26315-451-4-919-304001-01 - UPC: 192219520827
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Lunar Gray / XL: SKU: 58-26315-451-5-918-304001-01 - UPC: 192219520865
  • 2026 Santa Cruz Vala AL 70-Kit: Gloss Stormbringer Purple / XL: SKU: 58-26315-451-5-919-304001-01 - UPC: 192219520902
