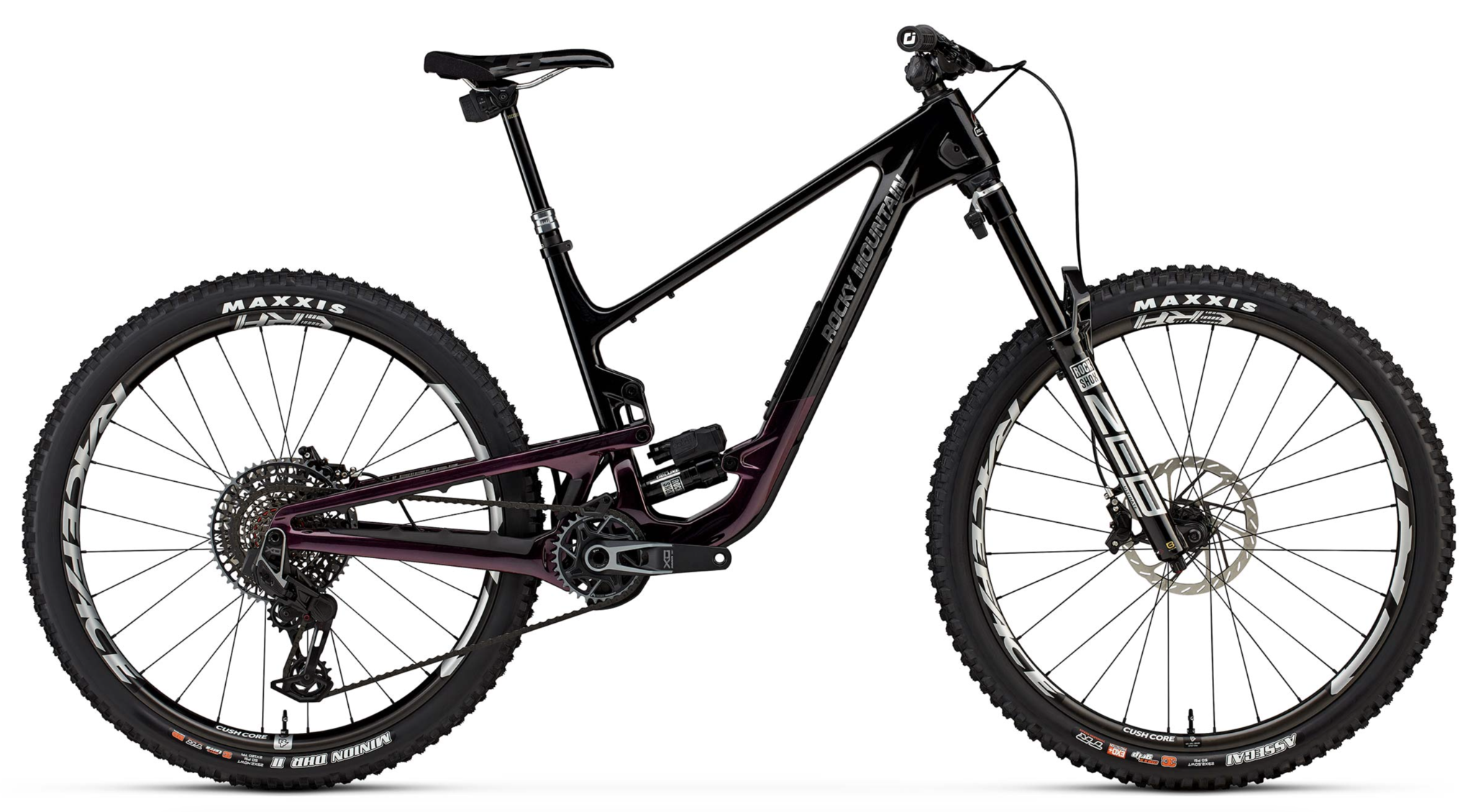

2024 Rocky Mountain Altitude C99 SRAM

Rocky Mountain Altitude C99 SRAM

By Rocky Mountain
$15,499.00 CAD
SKU: B0393SM1

loading inventory counts ...
Color: Black / Purple / Silver
Size

This item is in stock at the warehouse, and may take an additional 3 to 10 business days to process before shipping.

View details

Intended use: Enduro

Rear travel: 160

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4™ with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox™ 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.

  • Frame: SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
  • Fork:RockShox Zeb Ultimate Flight Attendant 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset
  • Front Travel:170
  • Rear Shock:RockShox Super Deluxe Ultimate Flight Attendant HBO | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
  • Rear Travel:160
  • Headset:FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
  • Stem:Race Face Turbine R | 0° Rise | All Sizes = 40mm
  • Handelbar:Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
  • Grips:ODI Elite Pro Lock On
  • Brakes:Sram Code RSC 4 Piston | Metal Pads
  • Shifters:Sram AXS Pod Wireless Controller
  • Rear Derailleur:Sram X01 Eagle AXS Wireless
  • Cranks & Chainring:Sram X0 Transmission Alloy | 32T | DUB Spindle | Power Meter Sensor | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm
  • Bottom Bracket:Sram DUB BSA 73 Wide
  • Cassette:Sram XG-1295 10-52T
  • Chain:Sram XO Flattop T-Type
  • Front Hub:Race Face ERA Carbon
  • Rear Hub:Race Face ERA Carbon
  • Spokes:Race Face ERA Carbon
  • Rims:Race Face ERA Carbon
  • Tires:F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
  • Seatpost:Rock Shox Reverb AXS Wireless Post | SM = 150mm | MD - XL = 170mm
  • Saddle:WTB Volt Race 142

LC2R™ suspension systemm

LC2R™ (Low Centre Counter Rotating) is our unique take on a virtual pivot suspension design, delivering a smooth and predictable ride on challenging terrain.

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

Reach adjust headsets

Fine tune your ride with center, +/- 5mm offset options.

PenaltyBox™ 2.0

The new PenaltyBox™ 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.

29” / MX

Ability to mullet MD-XL via built-in flip chip. No need to buy a separate link or mount.

Size Specific Tune

Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real-world field testing and adjusts each tune for specific frame sizes. The new Altitude also has size-specific chainstay lengths to offer a balanced ride across all frame sizes.

SMOOTHWALL™ Carbon

Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
  MD LG XL
Top Tube Horizontal (mm) 584 610 642
Head Tube Angle (deg) 63 63 63
Head Tube Length (mm) 105 115 130
Seat Tube Angle (deg) 77 77 77
Seat Tube Length (mm) 410 440 470
Rear Centre (mm) 440 450 450
Bottom Bracket Drop (mm) 38 38 38
Reach (mm) 450 475 505
Stack (mm) 630 639 653
Standover Height (mm) 792 798 809
Wheelbase (mm) 1244 1283 1319





















Standover height is measured 200 mm in front of the bottom bracket.

  SM
Top Tube Horizontal (mm) 553
Head Tube Angle (deg) 63
Head Tube Length (mm) 100
Seat Tube Angle (deg) 77
Seat Tube Length (mm) 365
Rear Centre (mm) 430
Bottom Bracket Drop (mm) 24
Reach (mm) 424
Stack (mm) 599
Standover Height (mm) 760
Wheelbase (mm) 1189





















Standover height is measured 200 mm in front of the bottom bracket.
Product Variants SKU/UPC
  • Rocky Mountain Altitude C99 SRAM: Black / Purple / Silver / SM (27.5): SKU: B0393SM1 - UPC: 770416526363
  • Rocky Mountain Altitude C99 SRAM: Black / Purple / Silver / MD (29): SKU: B0393MD1 - UPC: 770416526325
  • Rocky Mountain Altitude C99 SRAM: Black / Purple / Silver / LG (29): SKU: B0393LG1 - UPC: 770416526288
  • Rocky Mountain Altitude C99 SRAM: Black / Purple / Silver / XL (29): SKU: B0393XL1 - UPC: 770416526400
