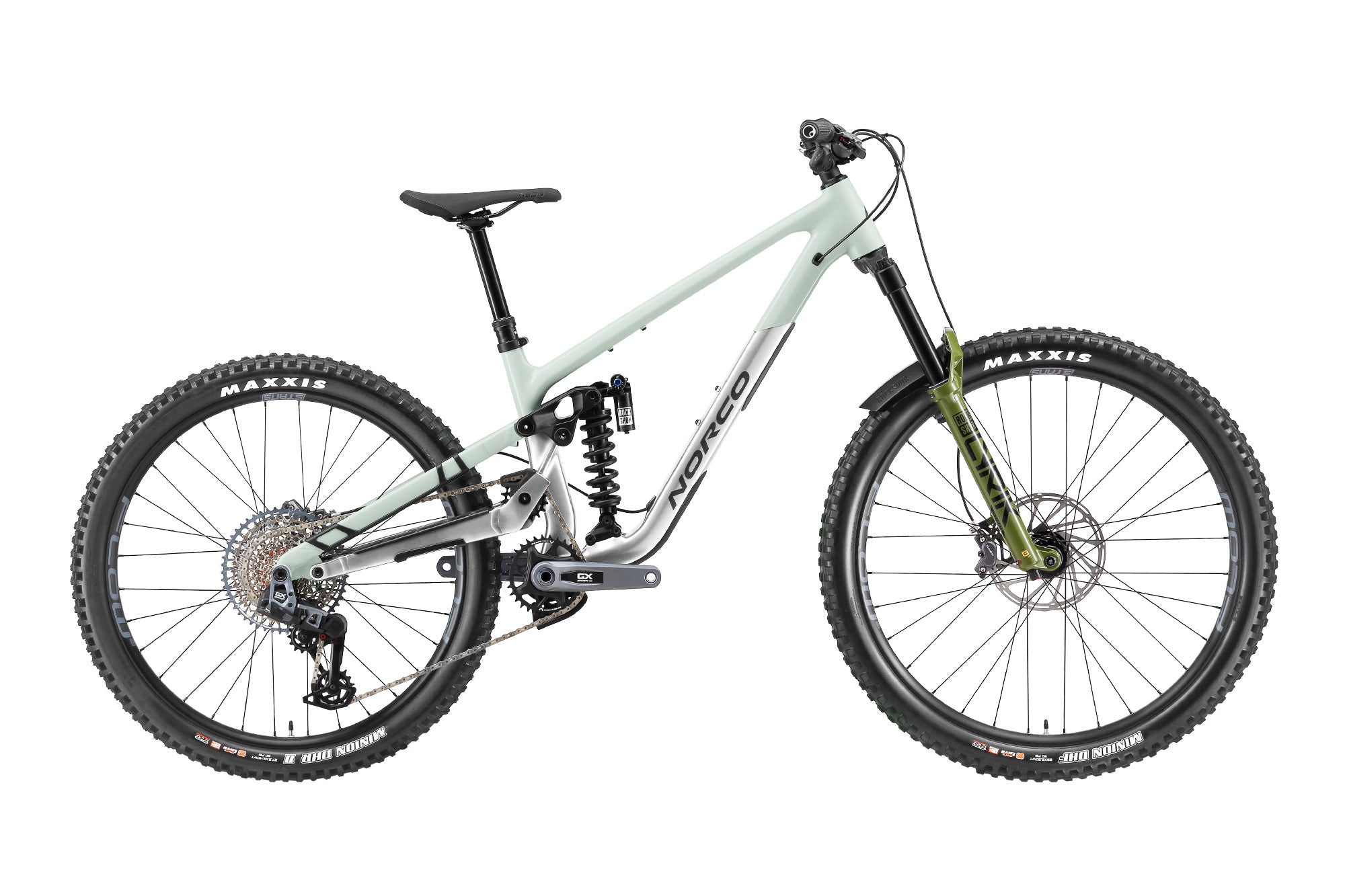

Norco Sight A1 MX

By Norco
$7,899.00 CAD

SKU: 0623014114

loading inventory counts ...
Color: Silver / Green
Size

This item is in stock at the warehouse, and may take an additional 2 to 7 business days to process before shipping.

Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.

  • 160mm/150mm of travel with 29" and MX options
  • 29" and mixed wheelsizes
  • Available in carbon and aluminum.
  • VPSHP suspension platform.
  • Norco Design Technology
  • Exactly the speed you need when you need it.
  • Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
  • No Other Way Limited Lifetime Warranty.

Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, it increases rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic and responsive feel that riders expect from a do-it-all All-Mountain bike.

Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages chain growth and pedal-kickback.

Swapping the linkarm and lower shock mount with our “Missing Link Kit” converts between 27.5” and 29” to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.

Frameset

  • FRAME: Sight Aluminum, VPSHP, 150mm Travel, UDH Compatible
  • FORK: RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm offset, Fender Included
  • REAR SHOCK: RockShox Super Deluxe Ultimate Coil, 205x60mm Trunnion, Sprindex Spring

Drivetrain

  • REAR SHIFTER: SRAM Pod Ultimate Controller
  • REAR DERAILLEUR: SRAM GX Eagle AXS T-Type
  • CRANKSET: SRAM GX Eagle T-Type, 32T, 170mm
  • BOTTOM BRACKET: SRAM DUB BSA Threaded
  • CASSETTE: SRAM CS 1275 Eagle T-Type 10-52T
  • CHAIN: SRAM GX Eagle T-Type
  • CHAIN GUIDE: Norco Idler Guide and Lower Guide

Brakes

  • FRONT BRAKE: SRAM Code Bronze Stealth
  • FRONT BRAKE ROTOR: SRAM Centerline 200mm
  • REAR BRAKE: SRAM Code Bronze Stealth, 4-Piston, Sintered Pads
  • REAR BRAKE ROTOR: SRAM Centerline 180mm
  • BRAKE LEVERS: SRAM Code Bronze Stealth

Components

  • HANDLEBAR: 6061 Alloy, 800mm 25mm Rise
  • STEM: CNC Alloy 40mm Length, 35mm Clamp
  • SEATPOST: TranzX YS108 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
  • HEADSET: FSA #57 E Sealed Bearing
  • SADDLE: SDG Bel Air V3
  • GRIPS: WTB Wavelength Lock-On
  • SEATPOST CLAMP: Norco Alloy Nutted Clamp

Wheels

  • FRONT HUB: Race Face Vault, 15x110mm Boost, 6-Bolt
  • REAR HUB: Race Face Vault 12x148mm Boost, XD, 6-Bolt
  • RIMS: Stan's Flow S2, Black 32H, 29"/27.5"
  • FRONT TIRE: Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding
  • REAR TIRE: Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding
  • SPOKES/NIPPLES: DT Competition Butted Black Stainless

Product Variants SKU/UPC
  • Norco Sight A1 MX: Silver / Green / SZ1: SKU: 0623014114 - UPC: 058817623493
  • Norco Sight A1 MX: Silver / Green / SZ2: SKU: 0623014115 - UPC: 058817623509
  • Norco Sight A1 MX: Silver / Green / SZ3: SKU: 0623014116 - UPC: 058817623516
  • Norco Sight A1 MX: Silver / Green / SZ4: SKU: 0623014117 - UPC: 058817623523
  • Norco Sight A1 MX: Silver / Green / SZ5: SKU: 0623014118 - UPC: 058817623530
