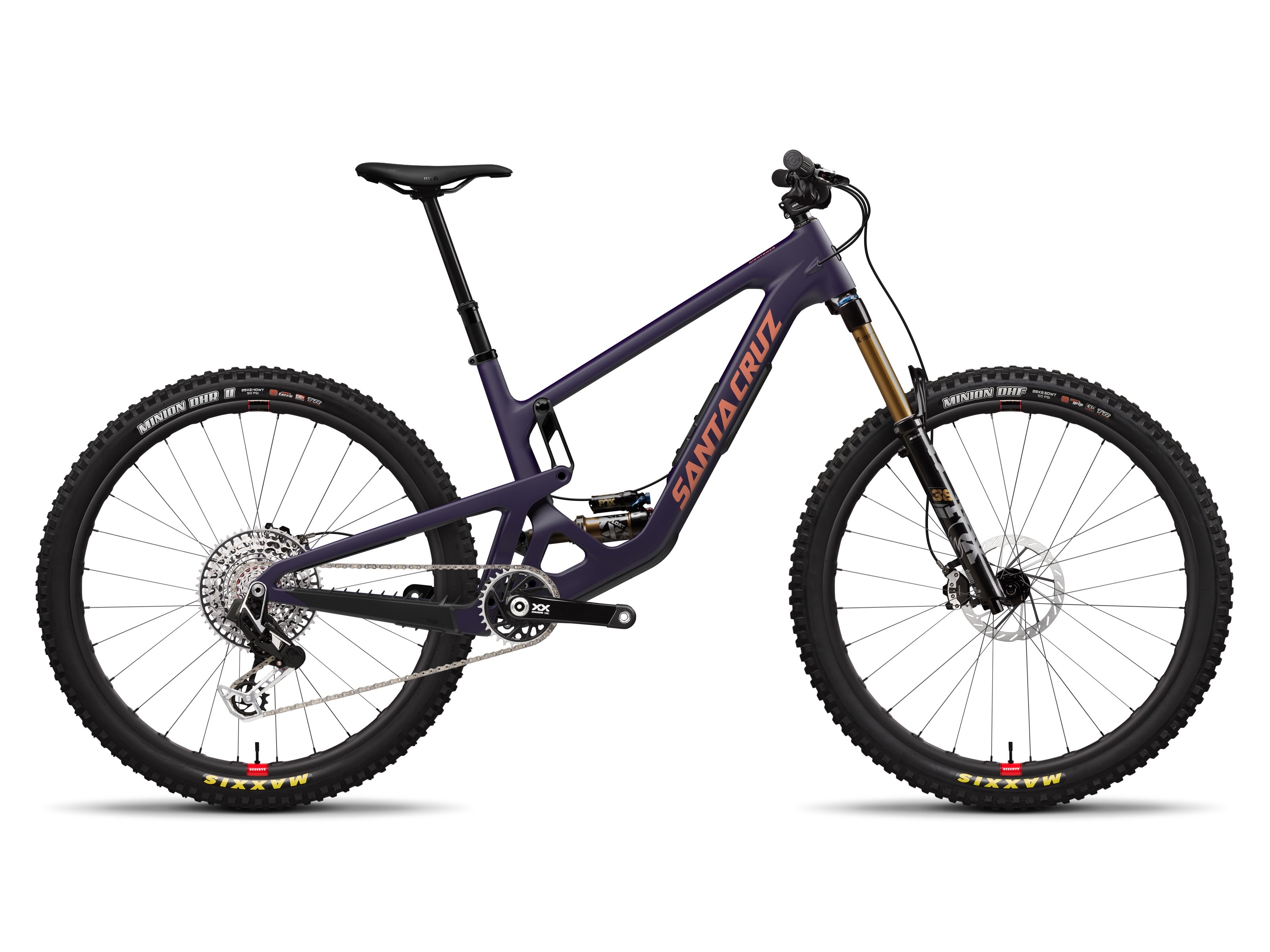

2025 Santa Cruz Hightower CC XX AXS-Kit RSV

Name: 2025 Santa Cruz Hightower CC XX AXS-Kit RSV
Brand: Santa Cruz
SKU: 58-25312-366-2-865-714402
Price: 14399.0 CAD
Availability: InStock

By Santa Cruz

$14,399.00 CAD

Starting at $600/mo with Affirm.

This product is only available for in-store pickup.

This item is in stock at the warehouse, and will require additional time to process before shipping. Learn more

58-25312-366-2-865-714402

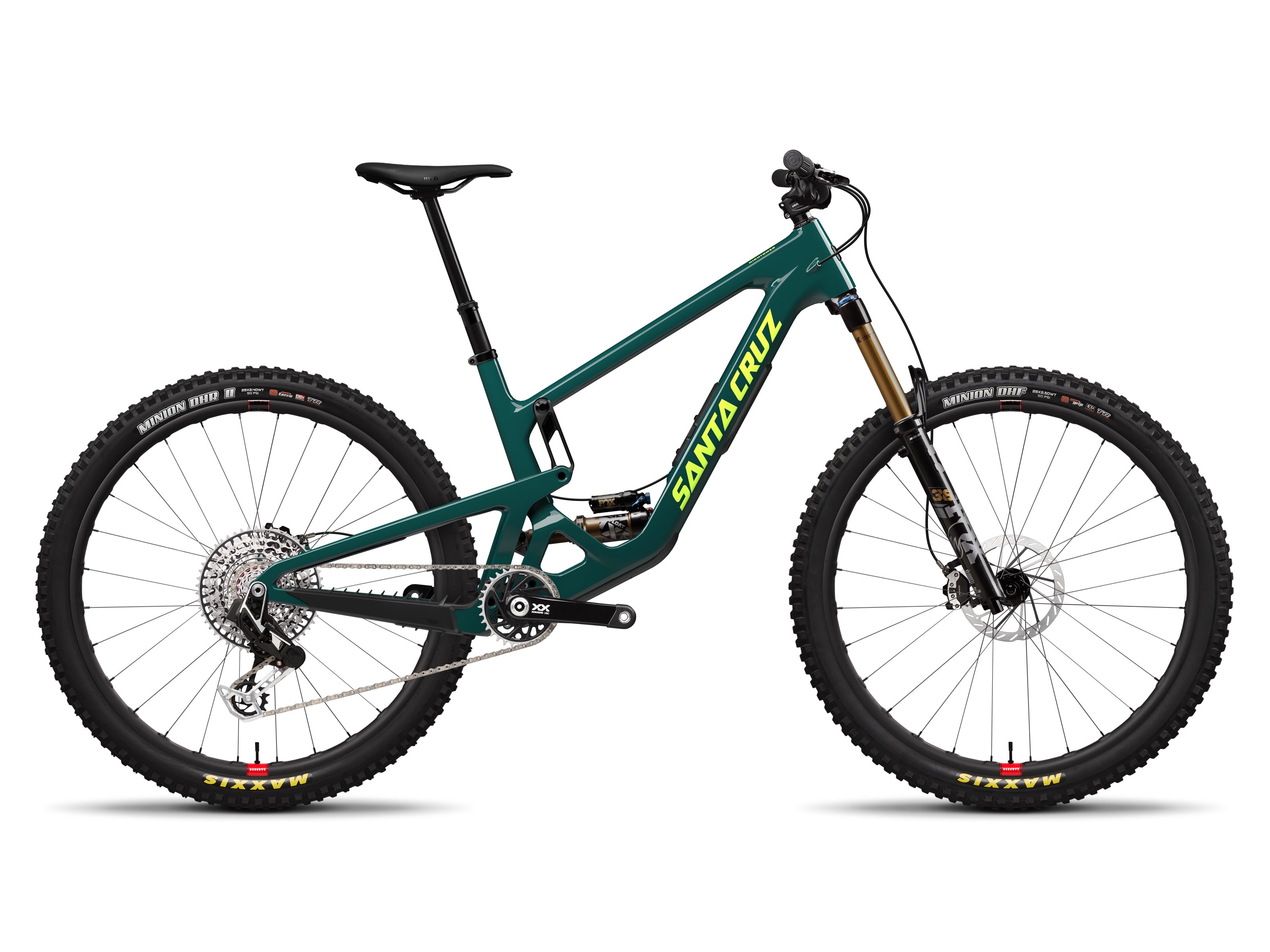

Color: Gloss Green Day

2025 Santa Cruz Hightower CC XX AXS-Kit RSV

Size

SM MD LG XL XXL

Product variants

View details

Description
SPECS
Geometry

Description

The Hightower trail bike was always a distillation of the best of the genre. But now it has a little more brawn and attitude to take on even higher, badder mountains.

Bumping up slightly from its fence-straddling positioning, the High-tower now sits in the meat of the market: the 150/160mm do-every-thing bike. A true quiver of one, it is equally at home on lunch laps, road trips, or the occasional enduro race.

FEATURES:

Internal cable routing (drivetrain) on C Carbon frames. Only dropper and rear brake on CC Carbon frames.
Millimeters matter: The lower VPPTM link is forward and low to optimize anti-squat. Resulting is a plush, open ride feel.
Chainstays are longer. But is also matched to frame size so every rider, no matter their height, gets the same balanced geometry
Glovebox - Place your ride essentials securely beneath a new high-quality latch and panel in the Bronson’s downtube

SPECS

Geometry

All units are in millimeters or degrees.

	S	M	L	XL	XXL
Reach \| hi/lo	435/432	460/457	480/477	500/497	525/522
Stack \| hi/lo	623/625	632/634	641/643	659/661	668/670
Head Tube Angle \| hi/lo	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°
Seat Tube Length \| hi/lo	380	405	430	460	500
Front Center \| hi/lo	771	800	825	853	883
BB Height \| hi/lo	344/341	344/341	344/341	344/341	344/341
BB Drop (front) \| hi/lo	29/32	29/32	29/32	29/32	29/32
BB Drop (rear) \| hi/lo	29/32	29/32	29/32	29/32	29/32
Wheelbase \| hi/lo	1176	1237	1264	1296	1328
Rear Center \| hi/lo	434	436	439	442	445
Head Tube Length \| hi/lo	110	120	130	150	160
Top Tube Length \| hi/lo	572	595	614	636	662
Seat Tube Angle \| hi/lo	77.6°/77.3°	77.9°/77.6°	78.2°/77.9°	78.3°/78°	78.4/°78.1°
Standover Height \| hi/lo	721	723	725	727	731

Product Variants SKU/UPC

2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Gloss Green Day / SM: SKU: 58-25312-366-2-865-714402 - UPC: 192219485850
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Gloss Green Day / MD: SKU: 58-25312-366-3-865-714402 - UPC: 192219485874
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Gloss Green Day / LG: SKU: 58-25312-366-4-865-714402 - UPC: 192219485898
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Gloss Green Day / XL: SKU: 58-25312-366-5-865-714402 - UPC: 192219485911
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Gloss Green Day / XXL: SKU: 58-25312-366-6-865-714402 - UPC: 192219485935
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Matte Deep Purple / SM: SKU: 58-25312-366-2-866-714402 - UPC: 192219485867
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Matte Deep Purple / MD: SKU: 58-25312-366-3-866-714402 - UPC: 192219485881
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Matte Deep Purple / LG: SKU: 58-25312-366-4-866-714402 - UPC: 192219485904
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Matte Deep Purple / XL: SKU: 58-25312-366-5-866-714402 - UPC: 192219485928
2025 Santa Cruz Hightower CC XX AXS-Kit RSV: Matte Deep Purple / XXL: SKU: 58-25312-366-6-866-714402 - UPC: 192219485942
