33% off

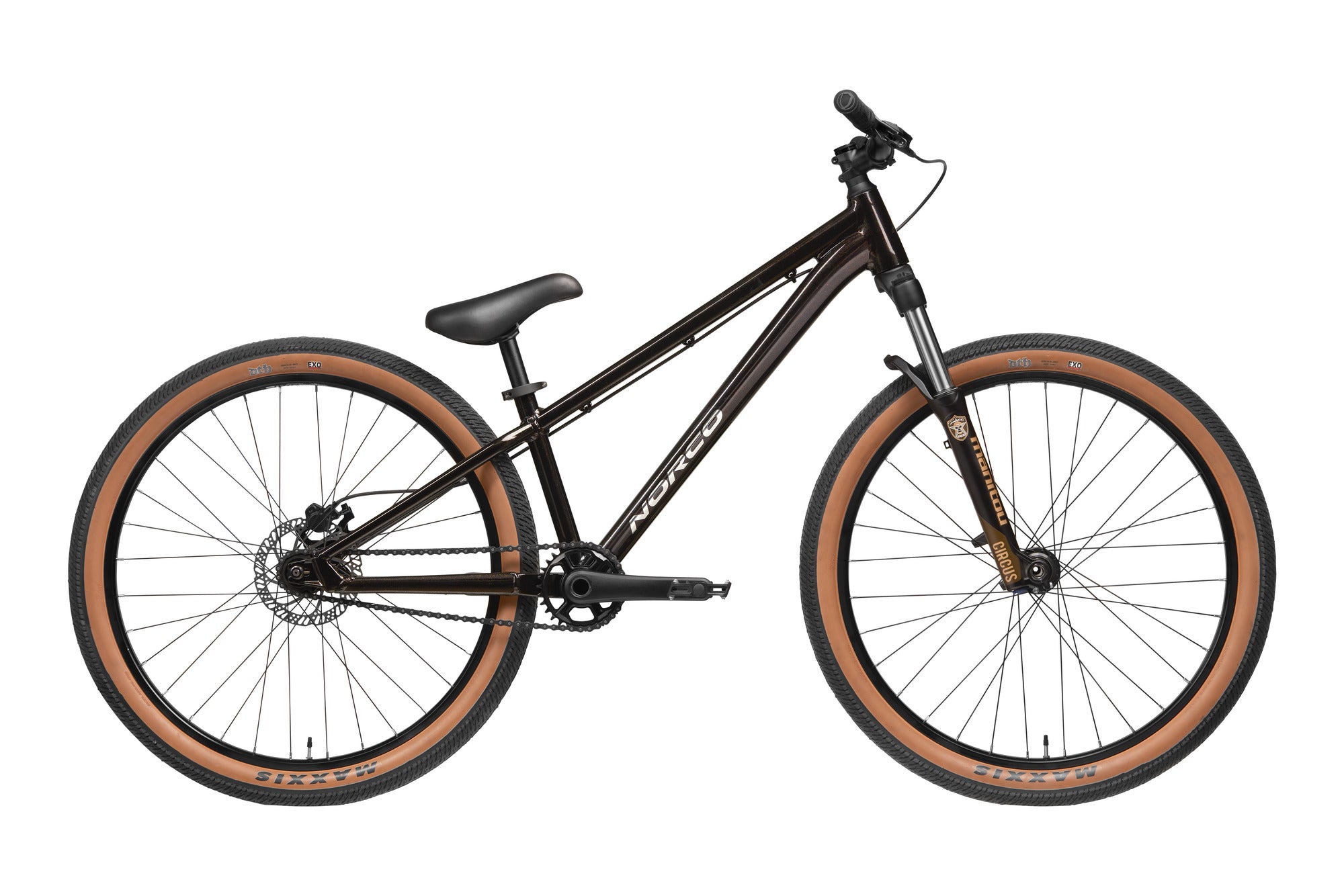

Norco Rampage 1 26

By Norco Bikes Canada
$1,151.85 CAD $1,709.00
0800312655
Color: Black/Chrome
Size
View details
Description

The Rampage 1 is the ultimate evolution in Dirt Jumpers with a light frame that gets up to speed fast with the perfect mix of agility and stability.

The Rampage 1 is Dirt Jump hungry

It’s purpose-built for big air and features components hand-selected to rip. 

REASONS IT'S RAD
  • How your bike looks is just as important as how it rides.
  • Lightweight aluminum frame built to last.
  • Hand-picked components for function and reliability.
  • Evolved frame features push the potential.
  • Find your perfect ride.
SPECS
  • FRAME - X6 Aluminum DJ 26"
  • FORK - Manitou Circus Comp, 100mm Travel
  • CRANKSET - Forged Aluminum, 2 Piece, 30T, 170mm
  • CASSETTE - 14T Single Speed
  • CHAIN - KMC Z1, Black
  • FRONT BRAKE - Tektro MD-280 Mechanical
  • FRONT BRAKE ROTOR - Tektro 160mm
  • REAR BRAKE - Tektro HD-M286 Hydraulic
  • REAR BRAKE ROTOR - Tektro 160mm
  • BRAKE LEVERS - Tektro Hydro Rear, Cable Front
  • HANDLEBAR - X6 Alloy, 785mm, 30mm Rise
  • STEM - Alloy, 45mm Length, 31.8mm Clamp
  • SEATPOST - Pivotal Stealth II, 6061 Aluminum, 27.2 x 200mm
  • HEADSET - FSA Sealed Bearing, Tapered
  • SADDLE - Norco/Pivotal thick padded, grip cover
  • GRIPS - Norco, Small Flange
  • PEDALS - Resin flat with metal pins
  • FRONT HUB - Novatec Sealed Bearing 15x100mm, 6 Bolt
  • REAR HUB - Novatec Sealed Bearing Single Speed Cassette, 14T, 135mm, 6 Bolt
  • RIMS - Alex MUS 30, 26", 32H
  • FRONT TIRE - Maxxis DHT folding 2.3
  • REAR TIRE - Maxxis DHT folding 2.3
  • SPOKES/NIPPLES - Stainless, Black
GEOMETRY
L M S
Wheel Size 26" 26" 26"
Travel (mm front) 100
Reach 430 405 380
Stack 569 564 559
Head Tube Angle 69
Fork Offset 40
Seat Tube Length 300
Effective Seat Tube Angle 73
Rear Centre Length 389
Bottom Bracket Rise/Drop -20
Bottom Bracket Height 322
Horizontal Top Tube 604 577 551
Wheelbase 1072 1045 1018
Standover 577 576 581
Head Tube Length 120 115 110
Trail 88
Stem Length 35
Crank Length 170
Tire Size 2.0-2.3"
Product Variants SKU/UPC
  • Norco Rampage 1 26: Black/Chrome / MD: SKU: 0800312655 - UPC: 058817584541
