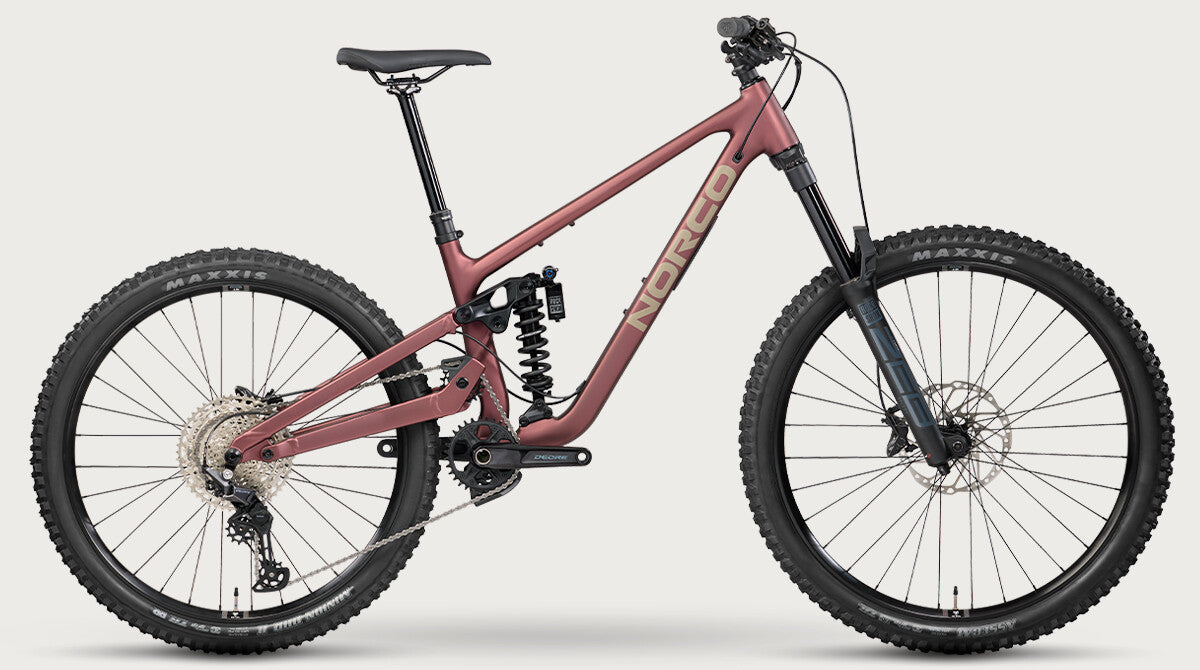

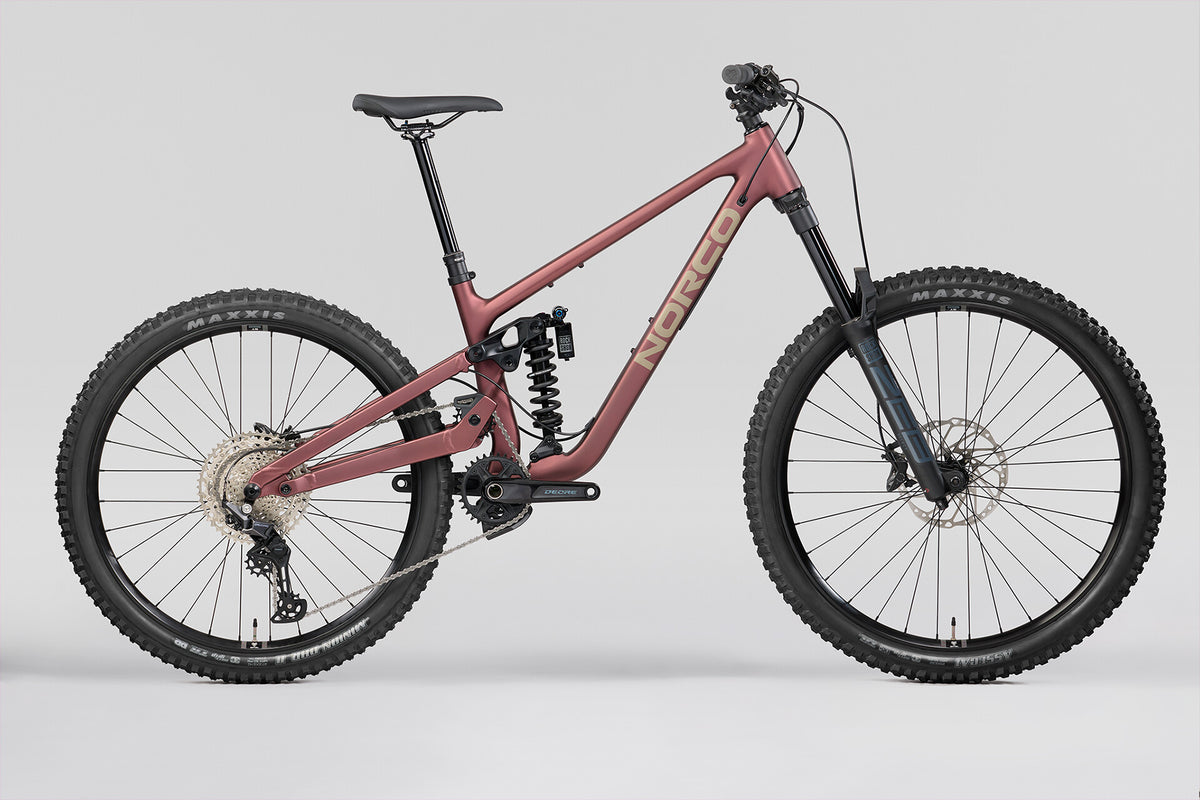

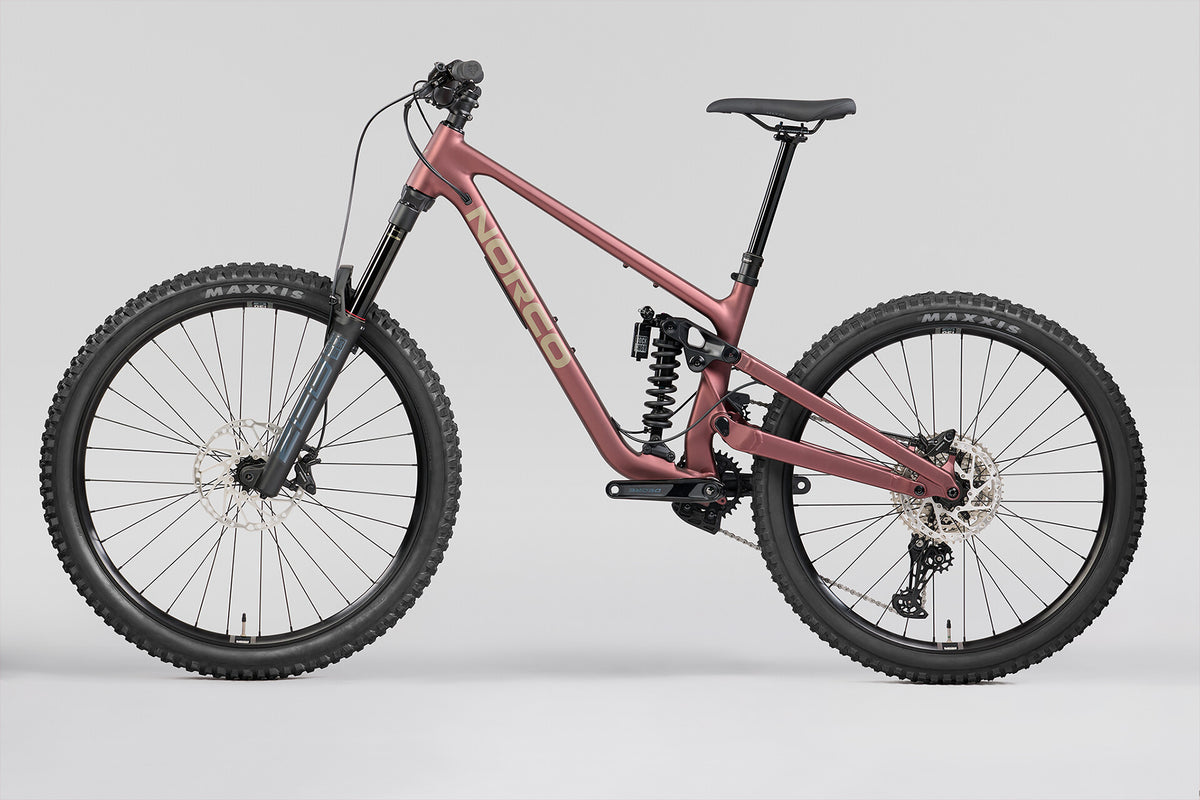

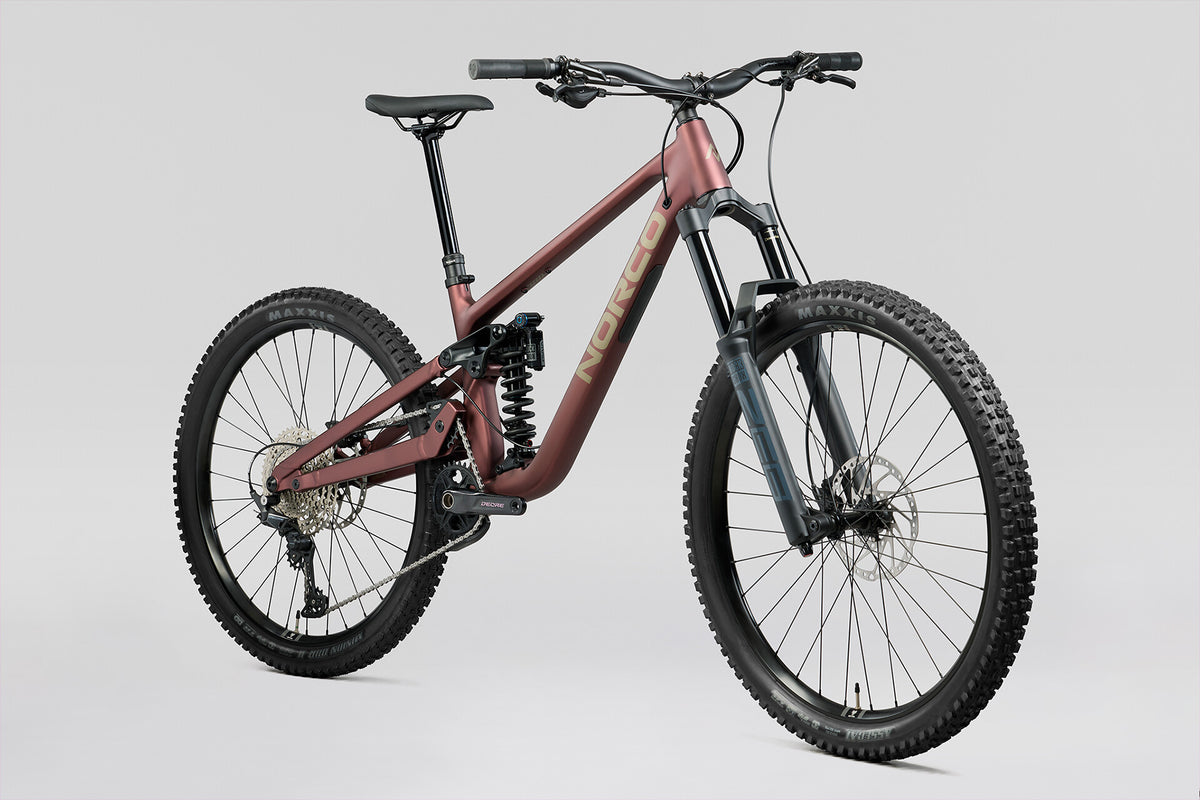

The Sight 160 is next level - big travel, big spec, and ready for big mountain riding. Whether you're out racing an enduro or love going fast on technical trails, this is your bike to blow through the chunder. Inspired by the gnarliest trails in the backwoods of BC, built for riders living in areas where the terrain demands more out of the bike they ride.
An all-round beefier build to handle everything you throw down. We've stepped up on spec to help you handle more; a 35mm rise bar, big name brakes with metallic pads, Double Down rear tire casing, and coil rear shock with Sprindex spring to ride hard.
All Sight models now include the One Up EDC lite tool to have you covered on the trail.
Frame
Aluminum Frame, 160mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™

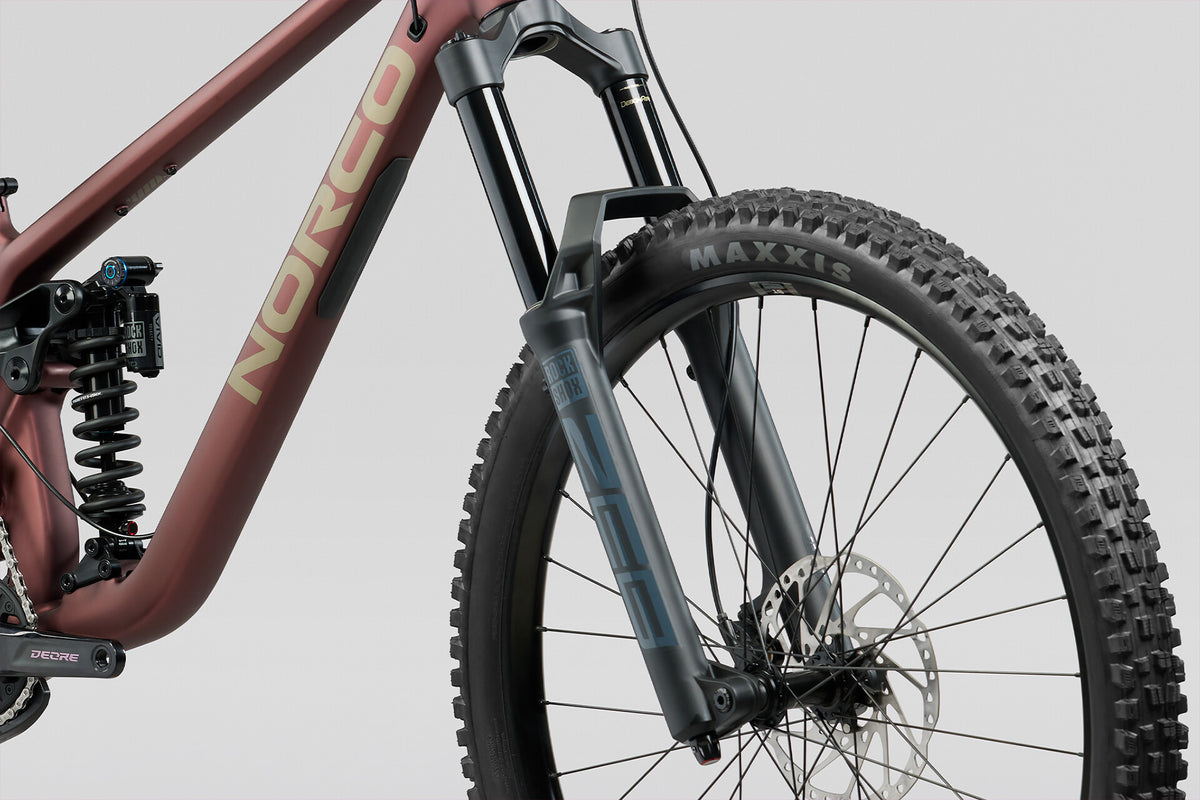

Fork
Rockshox Zeb Select Charger RC, 170mm travel, 44mm offset, Fender Included
Rear Shock
Rockshox Vivid Coil Select +, 205x65mm TR
Rear Shifter
Shimano Deore SL-M6100-R, 12sp

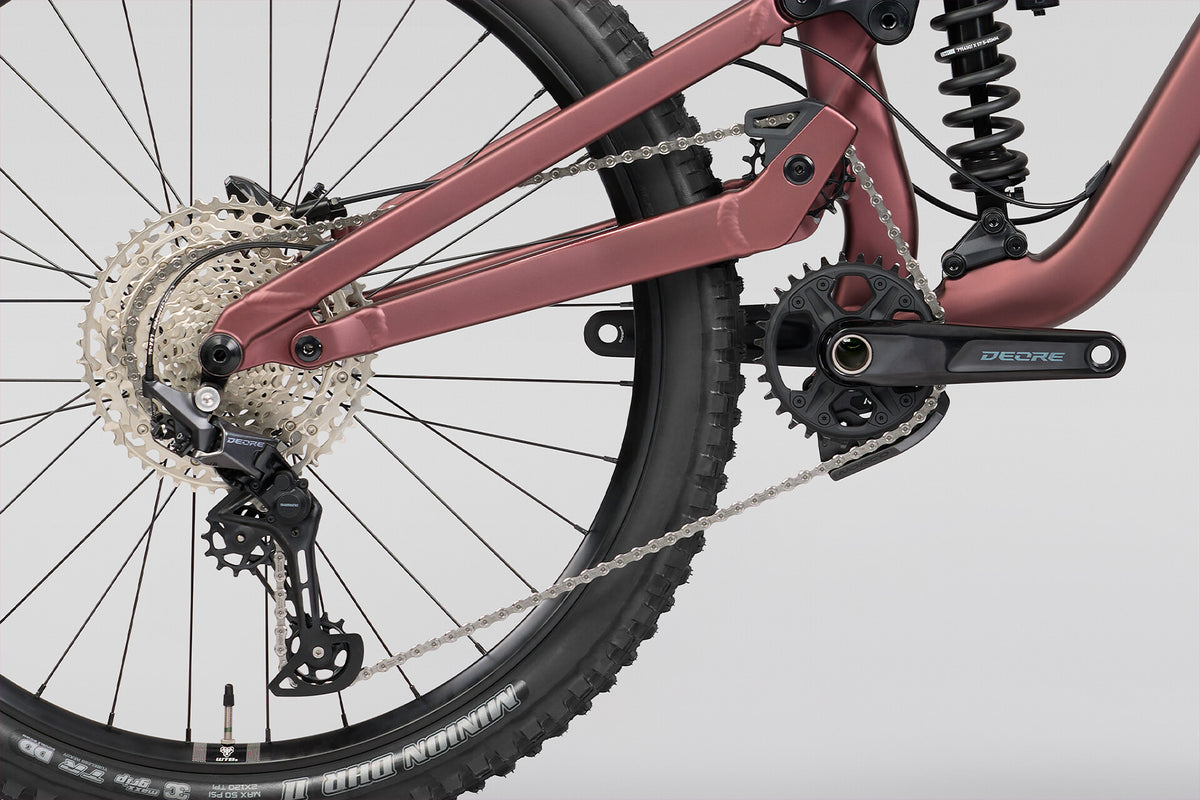

Rear Derailleur
Shimano Deore RD-M6100, SGS, 12sp
Crankset
Shimano Deore FC-MT6120-1, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
Bottom Bracket
Shimano, BSA 73mm
Cassette
Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain
Shimano Deore CN-M6100, 12sp
Chain Guide
Norco Idler Guide and Lower Guide

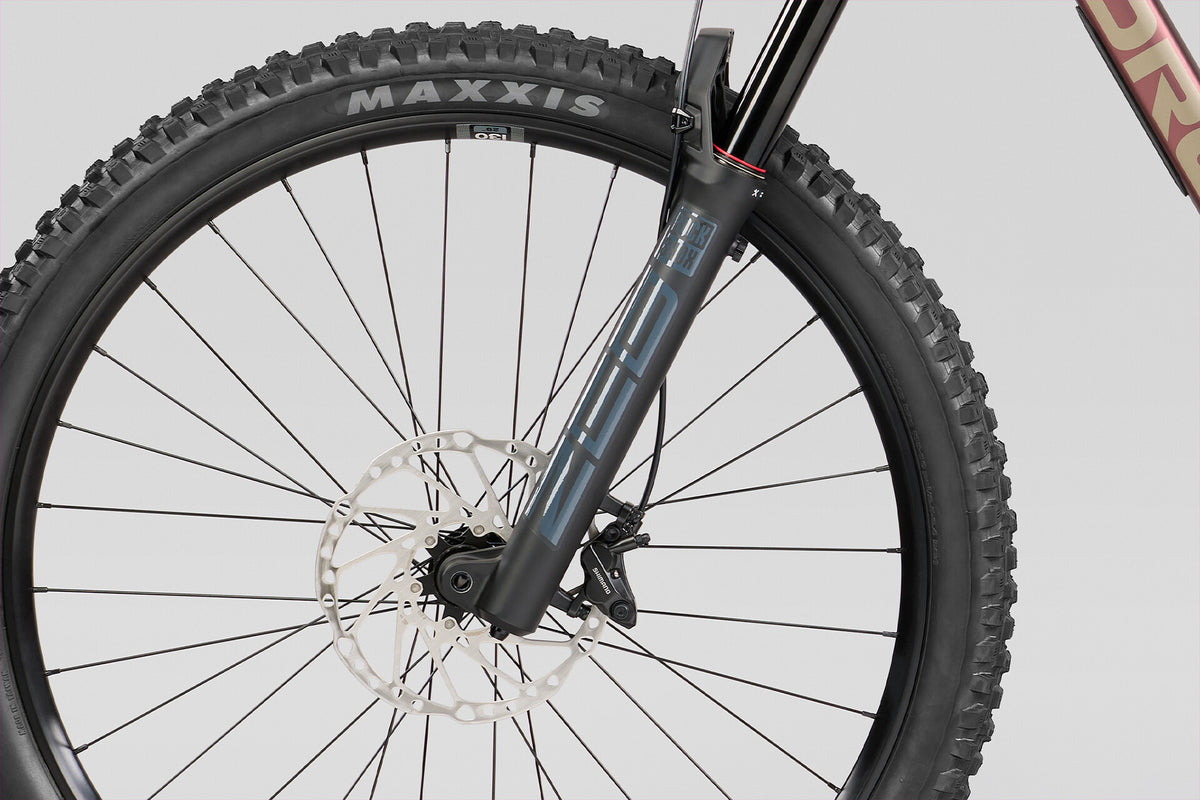

Front Brake
Shimano Deore BL-MT501 4-P, Metallic pads
Front Brake Rotor
Shimano RT-64, 203mm, C-lock
Rear Brake
Shimano BR-MT520 4-P, Metallic pads
Rear Brake Rotor
Shimano RT-64, 180mm, C-lock
Brake Levers
Shimano Deore BR-MT520

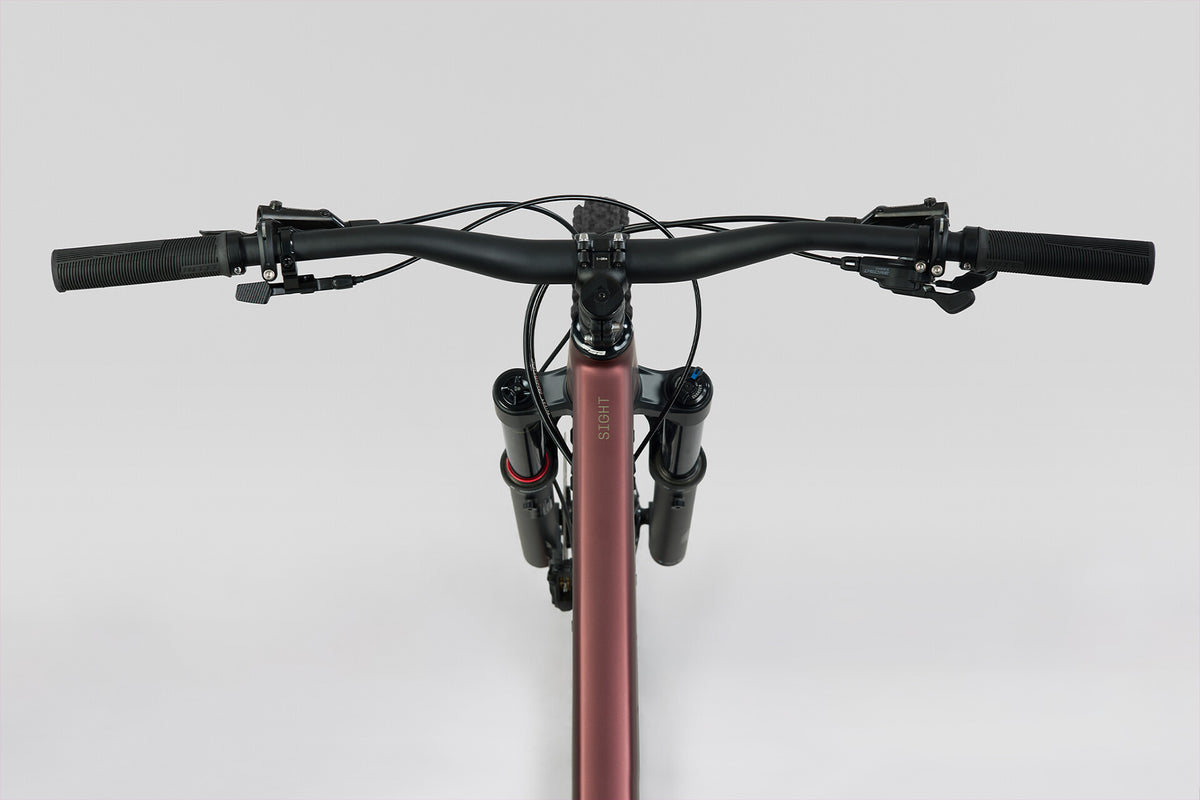

Handlebar
Norco 6061 DB Alloy, 760mm - 20mm rise (S1), 780mm - 20mm rise (S2), 800mm- 30mm rise (S3,S4,S5)
Stem
6060 Alloy, 40mm Length, 35mm Clamp
Seatpost
TranzX YSI160 RAD+, 34.9mm, 150 (S1) -170mm (S2) -200mm (S3,S4) -230mm (S5)
Headset
FSA No. 57 ZS, Sealed Bearing, Tapered 1-1/8" - 1.5", ( ZS44/28.6 | ZS56/40 )
Saddle
WTB Volt Med, 142x265 mm, Steel Rails
Grips
WTB Wavelenght, 140mm Length
Seatpost Clamp
Norco Alloy Nutted Clamp, 38.5 ID
Front Hub
Shimano HB-MTC500-15-B, 15x110mm Boost, 32H, C-lock
Rear Hub
Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Rims
WTB ST tough i30 TCS 2.0, 32h, 29"-27.5 F/R, 30mm ID
Front Tire
Maxxis Assegai, 3C MaxxGrip new EXO+, 29x2.5", Folding
Rear Tire
Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
Rear Hub Skewer
148mm x 12mm TA, L174, TL13, M12x1.0
Spokes/Nipples
Sapim Race butted 2.0/1.8/2.0 14G black stainless steel
Valves
WTB TCS 34mm Tubeless Valves Stem
| 1 | 2 | 3 | 4 | 5 | 1 | 2 | 4 | 3 | 5 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) | 170/160 | 170/160 | 170/160 | 170/160 | 170/160 | 170/160 | 170/160 | 170/160 | 170/160 | 170/160 |
| Reach | 416 | 441 | 466 | 491 | 516 | 416 | 441 | 491 | 466 | 516 |
| Stack | 622 | 631 | 640 | 650 | 659 | 622 | 631 | 650 | 640 | 659 |
| Head Tube Angle | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Seat Tube Length | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 430 | 385 | 445 |
| Effective Seat Tube Angle | 76.25 | 76.50 | 77.00 | 77.25 | 77.50 | 76.25 | 76.50 | 77.25 | 77.00 | 77.50 |
| Rear Centre Length | 420 | 424 | 428 | 432 | 436 | 426 | 430 | 438 | 434 | 442 |
| Bottom Bracket Drop (Front/Rear) | 20.5/0 | 20.5/0 | 20.5/0 | 20.5/0 | 20.5/0 | 20.5/20.5 | 20.5/20.5 | 20.5/20.5 | 20.5/20.5 | 20.5/20.5 |
| Bottom Bracket Height | 353 | 353 | 353 | 353 | 353 | 353 | 353 | 353 | 353 | 353 |
| Horizontal Top Tube | 567 | 591 | 615 | 639 | 663 | 567 | 591 | 639 | 615 | 663 |
| Wheelbase | 1187 | 1220 | 1253 | 1287 | 1320 | 1192 | 1225 | 1292 | 1259 | 1326 |
| Standover | 671 | 685 | 694 | 715 | 725 | 671 | 685 | 715 | 694 | 725 |
| Head Tube Length | 105 | 115 | 125 | 135 | 145 | 105 | 115 | 135 | 125 | 145 |
| Trail | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Recommended Seatpost Drop | 150 | 170 | 200 | 200 | 230 | 150 | 170 | 200 | 200 | 230 |
| Maximum Post Insertion | 250 | 270 | 300 | 300 | 330 | 250 | 270 | 300 | 300 | 330 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Crank Length | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
| Tire Size | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
| Water Bottle Compatible | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
