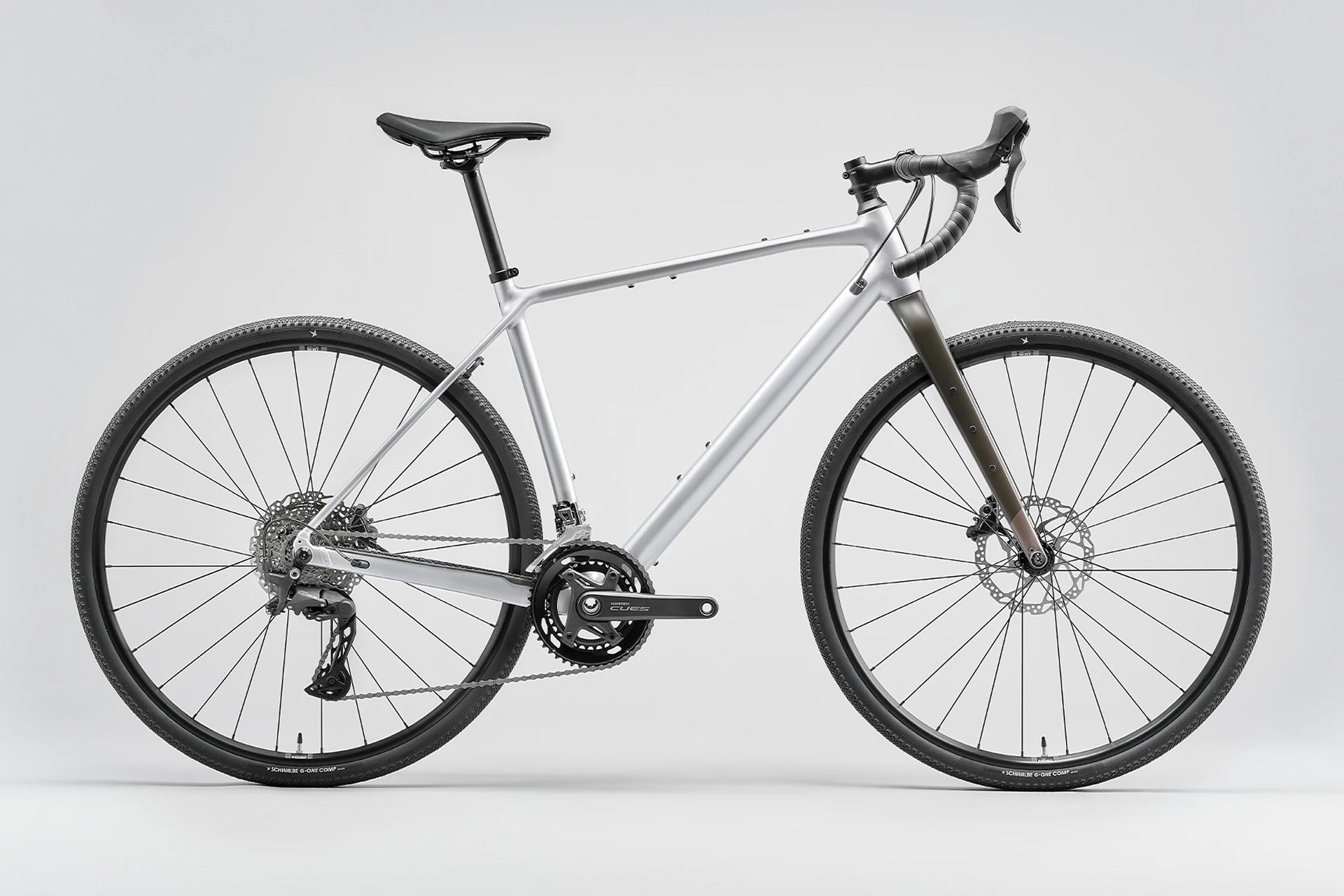

2025 Search A CUES
Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A CUES is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 2x10 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.
A progressive, modern gravel bike.
Search A CUES features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.
The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.
Details
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
Frameset
Frame: Search Butted Aluminum w/Smooth Welds
Fork: Search Carbon, 51mm Offset, 12x100mm TA
Drivetrain
Rear Shifter: Shimano CUES ST-U6030, 11sp
Rear Derailleur: Shimano CUES RD-U6020, Shadow, 10sp
Front Shifter: Shimano CUES ST-U6030, 2sp
Front Derailleur: Shimano CUES FD-U6030, 9/10sp, Down Swing
Crankset: Shimano CUES FC-U6030, 46-32T, 170mm
Bottom Bracket: Shimano Cartridge Bearing, 68mm BSA
Cassette: Shimano LG-400, 11-39T, 10sp
Chain: KMC XGlide
Brakes
Front Brake: Shimano CUES BR-U6030, Resin Pads
Front Brake Rotor: Shimano SM-RT54, 160mm, C-lock
Rear Brake: Shimano CUES BR-U6030, Resin Pads
Rear Brake Rotor: Shimano SM-RT54, 160mm, C-lock
Brake Levers: Shimano CUES ST-U6030
Components
Handlebar: Norco Super Flare Aluminum Compact, 40cm (S1, S2), 42cm (S3), 44cm (S4), 46cm (S5), 16°
Stem: Norco SL Alloy, 70mm Length, 31.8mm Clamp
Seatpost: Norco Alloy, 27.2mm, 12° Offset, 300mm Length
Headset: FSA Integrated Sealed Bearings No. 42, Tapered 1-1/8"–1.5" (IS42/28.6 | IS52/40)
Saddle: Selle Royale SRX Gravel, 148mm
Grips: Griptacular Shockproof Tape, 3mm
Seatpost Clamp: Norco Aluminum, 31.8mm ID
Wheels
Front Hub: Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
Rear Hub: Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H
Rims: WTB ST i25 2.0, 28H, 25mm ID
Front Tire: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Rear Tire: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Spokes/Nipples: Sapim Leader 2.0mm – Black w/Black Brass Nipples
Valves: WTB TCS Tubeless Valve, Brass
Sealant: WTB TCS Tubeless Tire Sealant, 8oz / 236ml
Rim Tape: WTB TCS 2.0 Solid Strip
| 5 | 4 | 3 | 2 | 1 | ||
|---|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c | |
| Reach | 445 | 430 | 415 | 400 | 385 | |
| Stack | 634 | 611 | 587 | 564 | 554 | |
| HTA | Head Tube Angle | 69.5 | ||||
| OS | Fork Offset | 51 | ||||
| ST | Seat Tube Length | 580 | 545 | 510 | 475 | 440 |
| STA | Effective Seat Tube Angle | 73.5 | 73.75 | 74 | 74.25 | 74.5 |
| RC | Rear Centre Length | 430 | 427.5 | 425 | ||
| BB | Bottom Bracket Drop | 75 | ||||
| BBH | Bottom Bracket Height | 285 | ||||
| HTT | Horizontal Top Tube | 633 | 608 | 583 | 559 | 539 |
| WB | Wheelbase | 1132 | 1108 | 1082 | 1056 | 1037 |
| SOH | Standover | 814 | 781 | 748 | 715 | 682 |
| HT | Head Tube Length | 185 | 160 | 135 | 110 | 100 |
| Trail | 80 | |||||
| Maximum Post Insertion | 345 | 310 | 240 | 210 | ||
| Stem Length | 70 | |||||
| Crank Length | 172.5 | 170 | 165 | |||
| Tire Size | 40c — 50c | |||||
| Water Bottle Compatible | 3 x 750 mL | |||||
Product Variants SKU/UPC
- 2025 Norco Search A CUES: Silverton / S1: SKU: 0406115854 - UPC:
- 2025 Norco Search A CUES: Silverton / S2: SKU: 0406115855 - UPC:
- 2025 Norco Search A CUES: Silverton / S3: SKU: 0406115856 - UPC:
- 2025 Norco Search A CUES: Silverton / S4: SKU: 0406115857 - UPC:
- 2025 Norco Search A CUES: Silverton / S5: SKU: 0406115858 - UPC:
