2026 Santa Cruz Stigmata CC Apex-Kit

By Santa Cruz
$5,199.00 CAD

This product is only available for in-store pickup.

In stock at supplier warehouse - Usually ships within 5 business days. More info

58-26290-390-1-909-000001

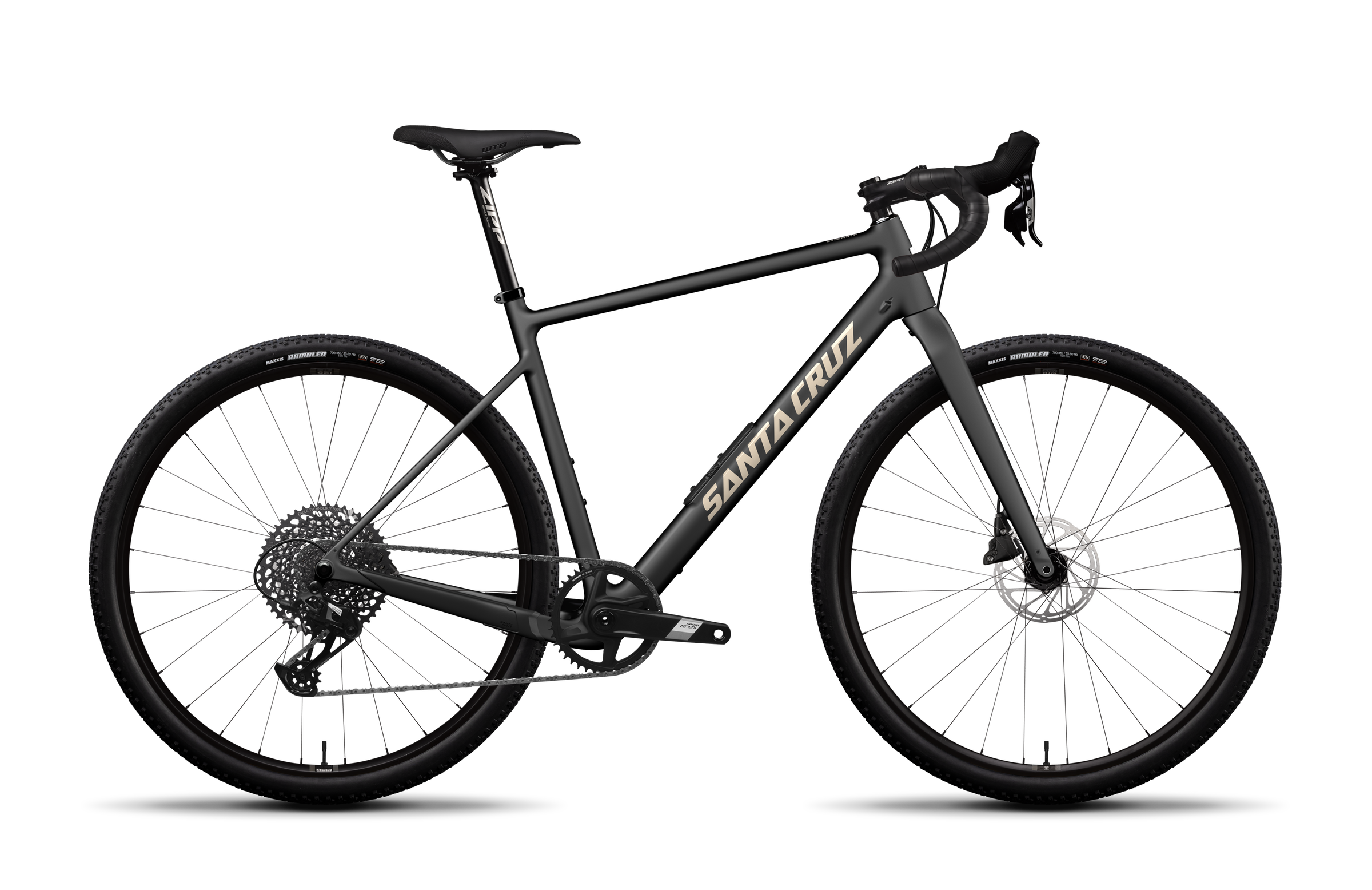

Color: Matte Carbon
Size
View details
Description

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Carbon CC
Frame Carbon CC Gravel
Weight 20.86lbs / 9.46kg
Wheel Size 700c
Suspension
Fork Carbon
Shock N/A
Drivetrain
Bottom Bracket SRAM DUB 68mm Road Wide BB
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM SX Eagle, 12spd
Chainguide N/A
Crankset SRAM Apex, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Rear Derailleur SRAM Apex Eagle, 12spd
Right Shifter SRAM Apex
Brakes
Brakes SRAM Apex
Front Rotor SRAM Centerline, Centerlock, 160mm
Rear Rotor SRAM Centerline, Centerlock, 160mm
Cockpit
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset FSA IS-2/47/42 ACB
Saddle WTB Silverado Medium, CroMo
Seatpost Zipp Service Course, 27.2 All Sizes: 350mm
Stem Zipp Service Course Stem All Sizes: 70mm
Wheels
Front Rim WTB ASYM i25 28h 700c
Front Hub DT Swiss 370, 12x100, Centerlock, 28h
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Rear Rim WTB ASYM i25 28h 700c
Rear Hub DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Valves Reserve Fillmore Valves
Specs
Bottom Bracket Shell Threaded 68mm
Rear Brake Mount 160mm FM
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Clamp On
Headset Integrated (IS41/52)
Max Chainring Size 42t (1x) | 50t (2x)
Max Tire Clearance 50mm (1x) | 45mm (2x)
Rear Spacing 142mm
Seat Clamp Diameter 31.8mm
UDH Compatible Yes
Water Bottle Mounts 3
Size Guide



X-Small

5'0"-5'3"

Small

5'3"-5'6"

Medium

5'6"-5'9"

Large

5'9"-6'0"

X-Large

6'0"-6'2"

XX-Large

6'2"-6'4"
Geometry
All units are in millimeters or degrees.
XS SM MD LG XL XXL
Reach 375 390 405 420 435 450
Stack 550 564 576 600 612 631
Head tube angle 69.5° 69.5° 69.5° 69.5° 69.5° 69.5°
Head Tube Length 90 105 120 145 160 180
Rear Center 423 423 423 423 423 423
Front Center 605 625 645 668 688 710
BB Height 278 278 280 280 282 282
BB Drop 78 78 76 76 74 74
Wheelbase 1023 1043 1063 1087 1108 1130
Top Tube Length 533 552 570 592 610 631
Seat Tube Length 450 455 485 515 545 575
Seat Tube Angle 74.0° 74.0° 74.0° 74.0° 74.0° 74.0°



Product Variants SKU/UPC
  • 2026 Santa Cruz Stigmata CC Apex-Kit: Matte Carbon / XS: SKU: 58-26290-390-1-909-000001 - UPC: 192219498362

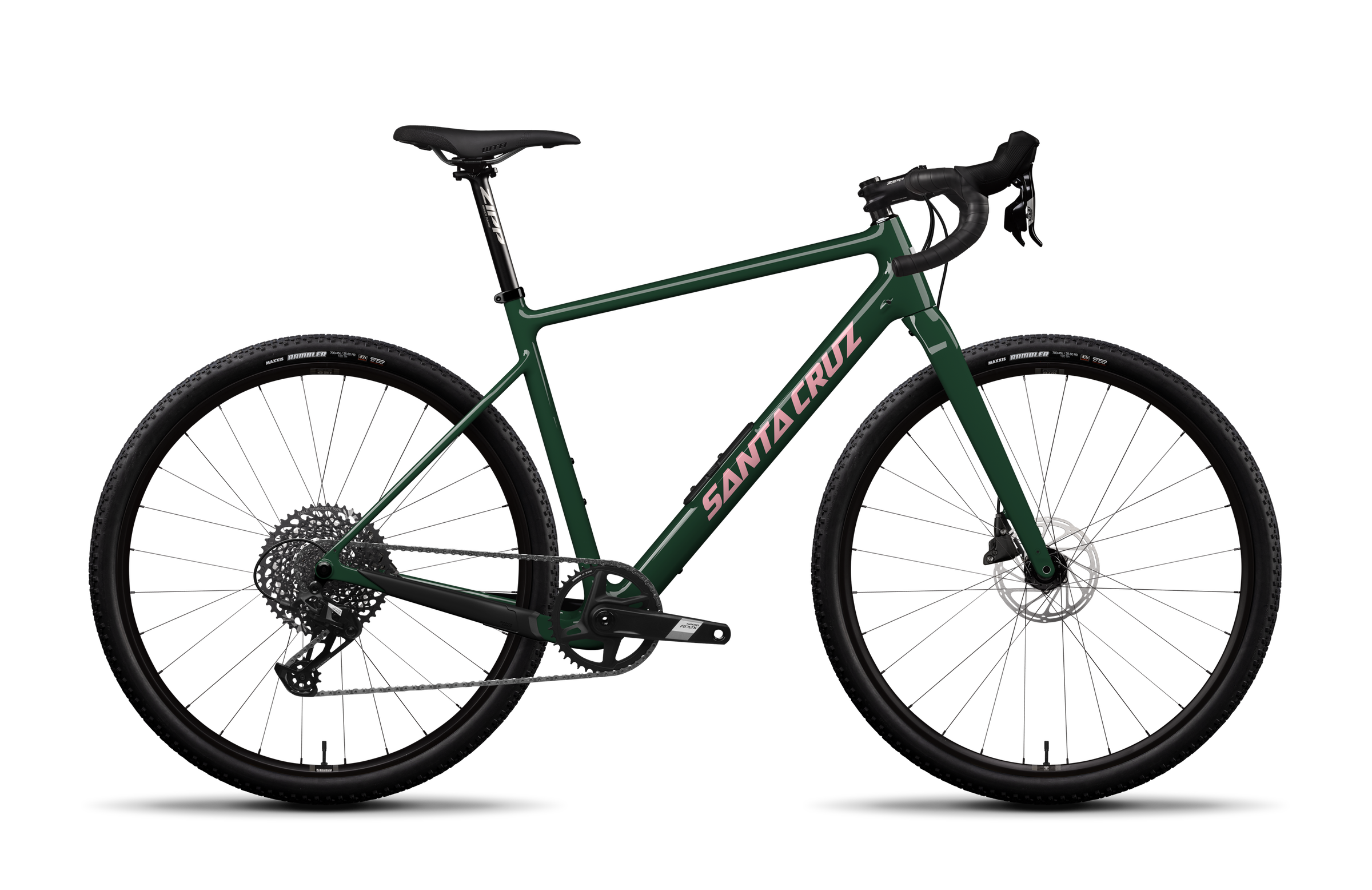

  • 2026 Santa Cruz Stigmata CC Apex-Kit: British Racing Green / XS: SKU: 58-26290-390-1-910-000001 - UPC: 192219498379
  • 2026 Santa Cruz Stigmata CC Apex-Kit: Matte Carbon / SM: SKU: 58-26290-390-2-909-000001 - UPC: 192219498386
  • 2026 Santa Cruz Stigmata CC Apex-Kit: British Racing Green / SM: SKU: 58-26290-390-2-910-000001 - UPC: 192219498393
  • 2026 Santa Cruz Stigmata CC Apex-Kit: Matte Carbon / MD: SKU: 58-26290-390-3-909-000001 - UPC: 192219498409
  • 2026 Santa Cruz Stigmata CC Apex-Kit: British Racing Green / MD: SKU: 58-26290-390-3-910-000001 - UPC: 192219498416
  • 2026 Santa Cruz Stigmata CC Apex-Kit: Matte Carbon / LG: SKU: 58-26290-390-4-909-000001 - UPC: 192219498423
  • 2026 Santa Cruz Stigmata CC Apex-Kit: British Racing Green / LG: SKU: 58-26290-390-4-910-000001 - UPC: 192219498430
  • 2026 Santa Cruz Stigmata CC Apex-Kit: Matte Carbon / XL: SKU: 58-26290-390-5-909-000001 - UPC: 192219498447
  • 2026 Santa Cruz Stigmata CC Apex-Kit: British Racing Green / XL: SKU: 58-26290-390-5-910-000001 - UPC: 192219498454
  • 2026 Santa Cruz Stigmata CC Apex-Kit: Matte Carbon / XXL: SKU: 58-26290-390-6-909-000001 - UPC: 192219498461
  • 2026 Santa Cruz Stigmata CC Apex-Kit: British Racing Green / XXL: SKU: 58-26290-390-6-910-000001 - UPC: 192219498478
