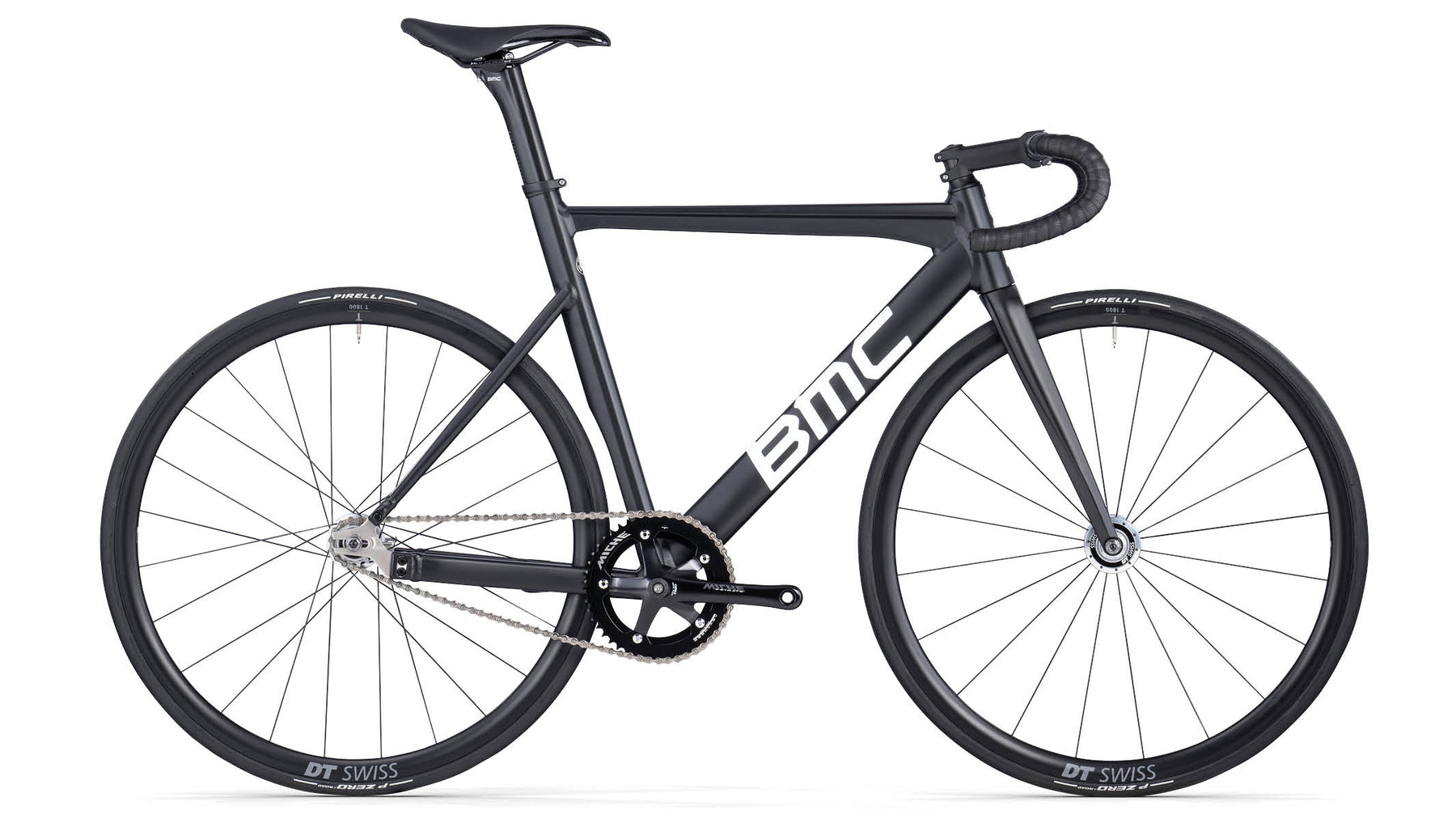

Trackmachine AL ONE is a versatile track bike, built tough for daily training and refined for competition. Comes with DT Swiss T 1800 and a full Miche drivetrain.
Frame
Trackmachine AL Premium Aluminium with Vmax Aero Design
Fork
Trackmachine Carbon subA Aero Technology
Stem
BMC RSM 01
Handlebar
BMC HB D4 03, 0,6
Alloy 6061 · Race Geometry
135 mm drop · 70 mm reach · 6° flare
Seatpost
Trackmachine Carbon Airfoil Seatpost
Saddle
Velo VL-1205 BMC
Crankset
Miche Advanced Pista
Chainring
48T
Cassette
Miche Pista Steel
Cassette Size
15T
Chain
Miche Pista 1/8"
Gearing
1-Speed Fixed
Bottom Bracket
MICHE Primato JIS 107–110 mm
Rims
DT Swiss T 1800 Classic · 32 mm
Hubs (Front / Rear)
DT Swiss 370
Tires
Pirelli P ZERO Road · Tube Type · 24 mm
Tubeless Information
Tubeless-ready rims · Non-tubeless clincher tires
Tire Clearance
23 mm (measured tire)
Weight (without pedals)
7.4 kg · Size M as pictured, with all accessories
ASTM Classification
Level 1
System Weight Limit
110 kg
General Product Safety Regulation (GPSR)
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
Color Code
blk wht cbn
Marketing Color
Black
Paint Direction
Cromax Z5999
HEX Display
#70707
LAB Color Scan
2, 0, 0
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <173 | 170-185 | >183 |
| Reach | 395 | 402 | 413 |
| Stack | 490 | 525 | 563 |
| Bar Drop | 135 | 135 | 135 |
| Bar Reach | 70 | 70 | 70 |
| Bar Width | 390 | 390 | 410 |
| BB Drop | 50 | 58 | 58 |
| Crank Length | 165 | 170 | 170 |
| Fork Length | 364 | 364 | 364 |
| Fork Rake | 43 | 43 | 43 |
| Front Center | 577 | 592 | 616 |
| Head Tube | 110 | 138 | 178 |
| Head Tube Angle | 73° | 73° | 73° |
| Rear Center | 390-420 | 390-420 | 390-420 |
| Seat Angle | 73.5° | 73.5° | 73.5° |
| Seat Tube | 520 | 550 | 585 |
| Seatpost Length | 320 | 320 | 320 |
| Seatpost Offset | 15 | 15 | 15 |
| Standover Height | 749 | 780 | 807 |
| Stem Angle | ±8 | ±8 | ±8 |
| Stem Length | 100 | 110 | 120 |
| Top Tube | 540 | 558 | 580 |
| Trail | 58 | 58 | 58 |
| Wheelbase | 956 | 975 | 999 |
