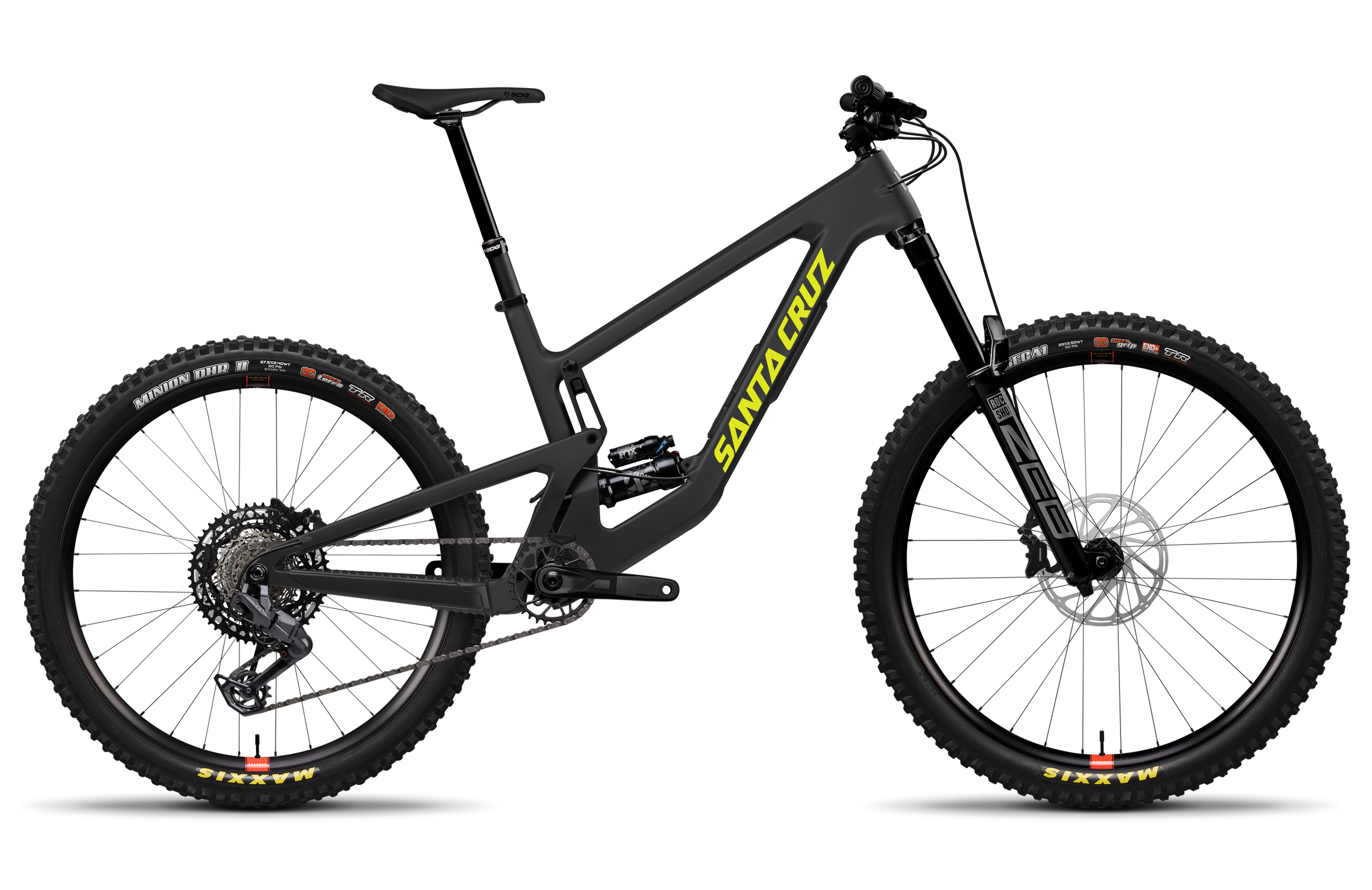

2026 Santa Cruz Nomad C 70-Kit

Name: 2026 Santa Cruz Nomad C 70-Kit
Brand: Santa Cruz
SKU: 58-26280-451-3-907-262401
Price: 6599.0 CAD
Availability: OutOfStock

By Santa Cruz

$6,599.00 CAD

Starting at $275/mo with Affirm.

This product is only available for in-store pickup.

58-26280-451-3-907-262401

Color: Matte Black

Size

SM MD LG XL XXL

Product variants

View details

Description
Specifications
Geometry

Description

Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.

FOX 38 Float Performance Fork
FOX Float X Performance Shock
SRAM 90 Eagle T-Type Drivetrain

Specifications

Frame & Suspension

Fork: RockShox Zeb Base, 170mm
Shock: FOX Float X Performance, 230x65

Drivetrain

Rear Derailleur: SRAM 70 Eagle T-Type, 12-speed
Shifter: SRAM 90 Eagle T-Type, 12-speed
Crankset: SRAM 70 Eagle DUB T-Type, 32t
Cassette: SRAM XS 1270 Eagle T-Type, 10-52t
Chain: SRAM 70 Eagle T-Type, Flattop, 12-speed
Bottom Bracket: SRAM DUB 73mm MTB Wide BB

Brakes

Front Brake: SRAM DB8
Front Rotor: SRAM Centerline, 200mm
Rear Rotor: SRAM Centerline, 200mm

Cockpit

Handlebars: Burgtec Alloy Bar
Stem: OneUp Enduro Stem, 42mm
Grips: Santa Cruz Bicycles House Grips
Headset: Cane Creek 10 IS Integrated Headset
Seatpost: SDG Tellis Dropper, 31.6mm
Saddle: SDG Bel-Air V3, Steel Rails

Wheels & Tires

Front Rim: Reserve 30|TR AL
Front Hub: SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Tire: Maxxis Assegai 29" x 2.5", 3C MaxxGrip, EXO+
Rear Rim: Reserve 30|HD AL
Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Tire: Maxxis Minion DHR II 27.5" x 2.4", 3C MaxxTerra, Double Down

Tech Specs

Headset Type: Integrated (IS41/52)
Seat Post Diameter: 31.6mm
Seat Clamp Diameter: 36.4mm
Rear Brake Mount: 200 PM
Bottom Bracket Shell: 73mm Threaded
Max Tire Clearance: 2.5"
Water Bottle Mounts: 1
Shock Size: 230mm x 65mm
Shock Bushing Size (Front/Rear): 30x8mm
Fork Offset: 44mm

Geometry

All units are in millimeters or degrees.

	S	M	L	XL	XXL
A. Reach (Hi/Lo)	430/427	455/452	475/472	495/492	520/517
B. Stack (Hi/Lo)	616/618	625/627	638/640	656/658	670/672
C. Head Tube Angle (Hi/Lo)	63.8/63.5	63.8/63.5	63.8/63.5	63.8/63.5	63.8/63.5
D. Seat Tube Angle (Hi/Lo)	77.2/77	77.4/77.2	77.9/77.6	77.8/77.5	77.7/77.5
E. Wheelbase (Hi/Lo)	1209/1209	1239/1240	1269/1270	1301/1302	1336/1337
F. Front Center (Hi/Lo)	770/770	799/799	826/826	855/855	886/886
G. Rear Center (Hi/Lo)	439/440	440/441	443/444	446/447	450/451
H. BB Height (Hi/Lo)	346/343	346/343	346/343	346/343	346/343
Bb drop front hi lo	27/30	27/30	27/30	27/30	27/30
Bb drop rear hi lo	8/11	8/11	8/11	8/11	8/11
J. Standover Height (Hi/Lo)	709/705	716/713	723/719	722/717	725/720
K. Head Tube Length	90/90	100/100	115/115	135/135	150/150
L. Seat Tube Length	380/380	405/405	430/430	460/460	500/500
M. Top Tube Length (Hi/Lo)	570/571	594/594	612/613	637/638	666/667

Product Variants SKU/UPC

2026 Santa Cruz Nomad C 70-Kit: Matte Black / SM: SKU: 58-26280-451-2-907-262401 - UPC: 192219511436
2026 Santa Cruz Nomad C 70-Kit: Gloss Coral / SM: SKU: 58-26280-451-2-908-262401 - UPC: 192219511443
2026 Santa Cruz Nomad C 70-Kit: Matte Black / MD: SKU: 58-26280-451-3-907-262401 - UPC: 192219511450
2026 Santa Cruz Nomad C 70-Kit: Gloss Coral / MD: SKU: 58-26280-451-3-908-262401 - UPC: 192219511467
2026 Santa Cruz Nomad C 70-Kit: Matte Black / LG: SKU: 58-26280-451-4-907-262401 - UPC: 192219511474
2026 Santa Cruz Nomad C 70-Kit: Gloss Coral / LG: SKU: 58-26280-451-4-908-262401 - UPC: 192219511481
2026 Santa Cruz Nomad C 70-Kit: Matte Black / XL: SKU: 58-26280-451-5-907-262401 - UPC: 192219511498
2026 Santa Cruz Nomad C 70-Kit: Gloss Coral / XL: SKU: 58-26280-451-5-908-262401 - UPC: 192219511504
2026 Santa Cruz Nomad C 70-Kit: Matte Black / XXL: SKU: 58-26280-451-6-907-262401 - UPC: 192219511511
2026 Santa Cruz Nomad C 70-Kit: Gloss Coral / XXL: SKU: 58-26280-451-6-908-262401 - UPC: 192219511528
