2026 Specialized S-Works Crux

By Specialized
$16,000.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

91426-0052
Color: Premium Fjord / Dolomite Metallic
Size
View details
Details

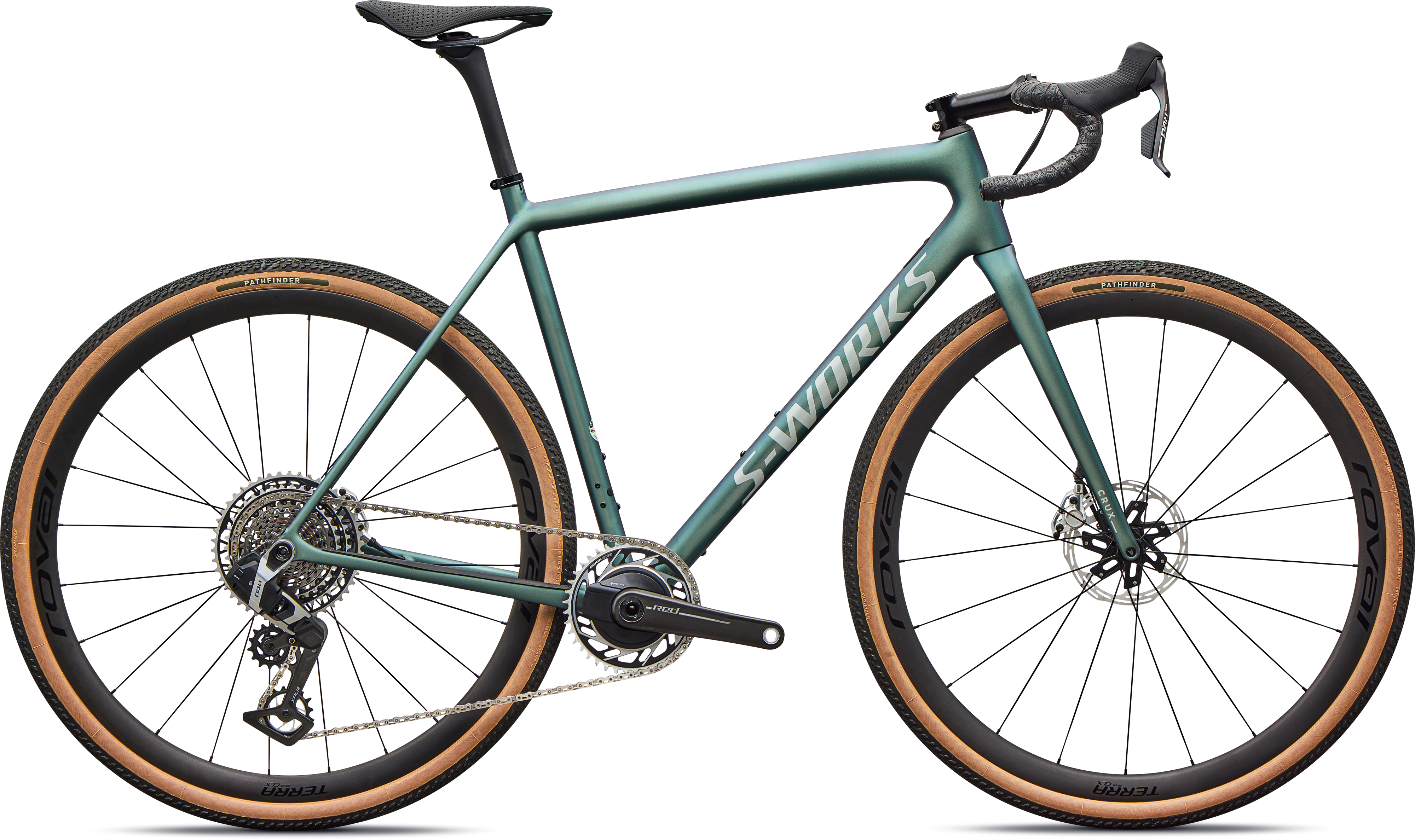

We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance and performance gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment.

With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build.
  • Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
  • Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.
Specs
Frameset
Frame
S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED AXS, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Bottom Bracket
SRAM DUB BSA 68 Wide
Shift Levers
SRAM RED AXS, hydraulic disc
Rear Derailleur
SRAM RED XPLR, 13sp
Chain
SRAM Red XPLR, 13sp
Cassette
SRAM RED XPLR, 13sp, 10-46t
Crankset
SRAM Red AXS Power Meter, 40t Chainring
Wheels & tires
Front Tire
Pathfinder 700x40, Tubeless Ready
Rear Tire
Pathfinder 700x40, Tubeless Ready
Inner Tubes
Presta, 700X32-50mm
Front Wheel
Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
Rear Wheel
Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
Cockpit
SeatPost
Roval Alpinist Carbon Seatpost
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Saddle
S-Works Power with Mirror
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Seat Binder
Specialized Alloy, 30.0mm, titanium bolt
Tape
Supacaz Super Sticky Kush
Product details
Product ID
223487
Weight
Weight Size
56
Weight
6.94 kg (15 lb, 4.8 oz)
Geometry
49 52 54 56 58 61
Crank Length 165 170 172.5 172.5 175 175
Handlebar Width 380 400 420 420 440 440
Stem Length 70 80 90 100 110 110
Saddle Width 155 155 143 143 143 143
Seatpost Length 300 300 300 360 360 360
Stack 530 547 560 578 598 621
Reach 375 382 388 397 405 415
Head Tube Length 100 115 130 147 167 190
Head Tube Angle 70.5 71.25 71.5 72 72.25 72.5
BB Height 284 284 286 286 286 286
BB Drop 74 74 72 72 72 72
Trail 74 69 67 64 62 60
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 50 50 50 50 50 50
Front Center 594 600 608 618 630 644
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1014 1023 1033 1045 1059
Top Tube Length, Horizontal 512 539 549 568 582 599
Bike Standover Height 749 772 794 816 841 866
Seat Tube Length 466 496 521 546 576 606
Seat Tube Angle 75.5 74 74 73.5 73.5 73.5
Product Variants SKU/UPC
  • 2026 Specialized S-Works Crux: Premium Fjord / Dolomite Metallic / 49: SKU: 91426-0049 - UPC: 196625261282
  • 2026 Specialized S-Works Crux: Premium Fjord / Dolomite Metallic / 52: SKU: 91426-0052 - UPC: 196625261220
  • 2026 Specialized S-Works Crux: Premium Fjord / Dolomite Metallic / 54: SKU: 91426-0054 - UPC: 196625260582
  • 2026 Specialized S-Works Crux: Premium Fjord / Dolomite Metallic / 56: SKU: 91426-0056 - UPC: 196625261053
  • 2026 Specialized S-Works Crux: Premium Fjord / Dolomite Metallic / 58: SKU: 91426-0058 - UPC: 196625260759
  • 2026 Specialized S-Works Crux: Premium Fjord / Dolomite Metallic / 61: SKU: 91426-0061 - UPC: 196625260780
