2027 Santa Cruz Nomad 7 XT Di2-Kit Coil

By Santa Cruz
$10,599.00 CAD

This product is available for in-store pickup only.

58-27322-481-3-941-232701

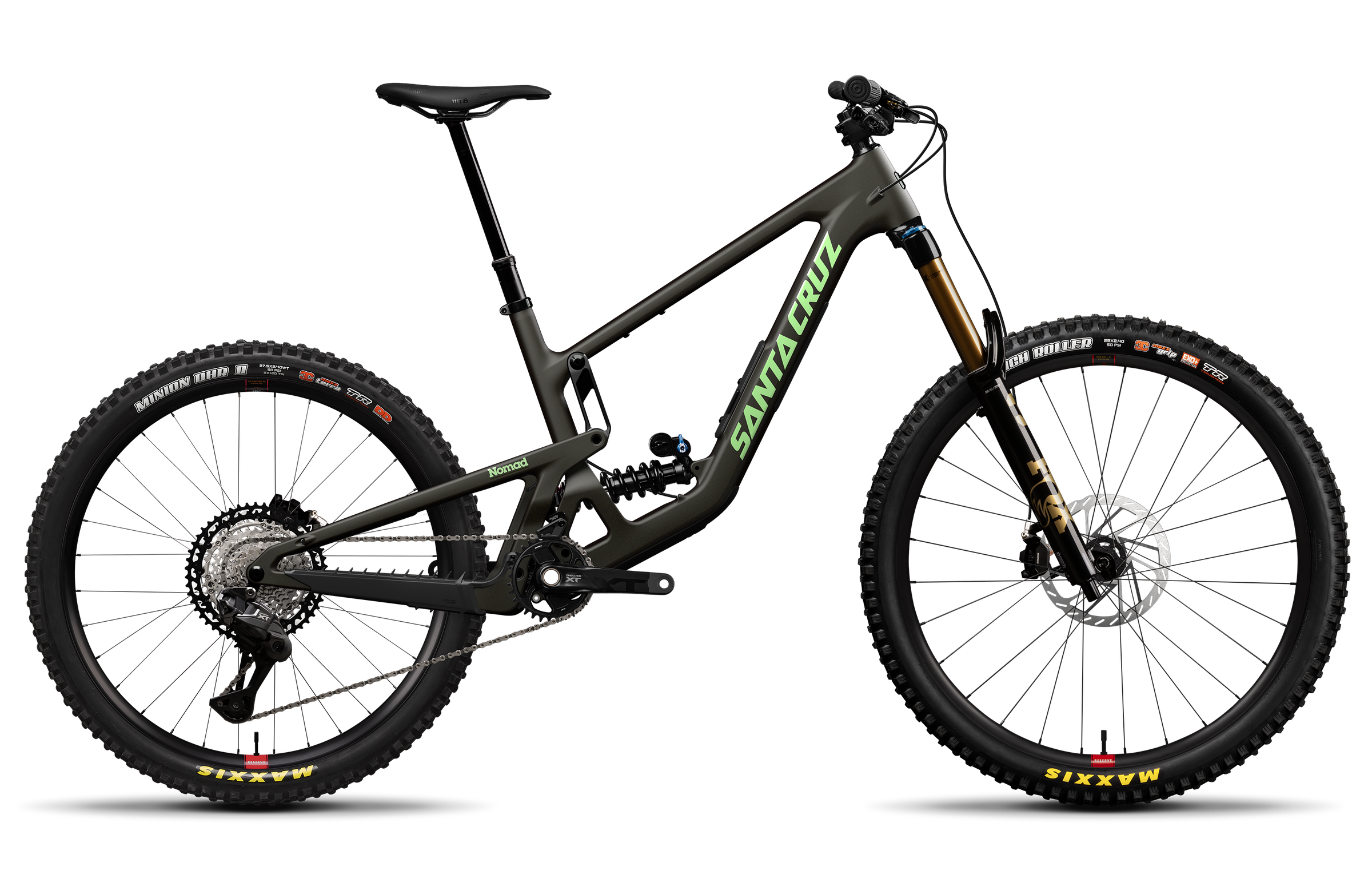

Color: Matte Metallic Earth
Size
View details
Description

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

  • Carbon CC Frame
  • Fox 38 Float Factory Fork
  • Fox DHX2 Factory
  • Shimano XT M8250 Di2 Drivetrain

LIGHTER IS BETTER

The new Nomad’s a bit lighter than before—86 grams, to be precise. A lot of that savings comes from the slimmed-down downtube, but we redesigned the layup throughout the frame. It’s not just weight savings for weight savings sake, though: reducing the amount of material in the downtube makes it more compliant, and leaves you feeling fresher at the end of a long descent. You’ll feel it in your hands and feet at the bottom, and feel it even more (less?) the next day.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame

Material

 Carbon CC

Frame

 Carbon CC MX 170mm Travel VPP™

Travel

 170mm

Weight

 34.54 lbs / 15.67 kg

Wheel Size

 MX
Suspension

Fork

 Fox 38 Float Factory, Grip X2, 170mm

Shock

 Fox DHX2 Factory S: 400lb, M: 450lb, L: 500lb, XL-XXL: 550lb
Drivetrain

Bottom Bracket

 Shimano MT801 Threaded

Cassette

 Shimamo XT M8200, 10-51t

Chain

 Shimano XT M8100, 12spd

Chainguide

 OneUp Chainguide

Crankset

 Shimano XT M8200, 32t S: 165mm, M-XXL: 170mm

Rear Derailleur

 Shimano XT M8250 Di2, SGS, 12spd

Right Shifter

 Shimano Deore XT M8250 Shift Switch w/ Wolf Tooth Shiftmount Adapter for MM
Brakes

Brakes

 SRAM Maven Silver

Front Rotor

 SRAM HS2 200mm

Rear Rotor

 SRAM HS2 200mm
Cockpit

Grips / Bar Tape

 Santa Cruz Bicycles House Grips

Handlebars

 OneUp Carbon Bar, 35mm S: 760mm, 20mm Rise, M-XXL: 800mm, 35mm Rise

Headset

 Cane Creek 50 IS Integrated Headset

Saddle

 WTB Silverado Medium Fusion, CroMo SL

Seatpost

 OneUp Dropper Post, 31.6 S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm

Stem

 OneUp Enduro Stem All Sizes: 42mm
Wheels

Front Rim

 Reserve 30|SL AL 6069

Front Hub

 DT Swiss 350, 15x110, 6-Bolt, 28h

Front Tire

 Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+

Rear Rim

 Reserve 30|HD AL 6069

Rear Hub

 DT Swiss 350 DEG DF, 12x148, MiscroSpline, 6-Bolt, 32h

Rear Tire

 Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down

Valves

 Reserve Fillmore Valves
Specs

Bottom Bracket Shell

 73mm Threaded

Rear Brake Mount

 Postmount 200mm

Chainguide Standard

 Integrated upper guide+2-bolt ISCG 05 bash mount

Chainline

 55mm

Downtube Storage

 Glovebox

Shock Length

 230mm

Fork Axle to Crown

 588mm

Fork Compatibility

 170-180mm

Fork Offset

 44

Headset

 Integrated (IS41/52)

Max Chainring Size

 36t

Max Rotor Size

 223mm

Rear Spacing

 148mm

Rear Travel

 170mm

Recommended Sag

 30%

Seat Clamp Diameter

 36.4

Seat Post Diameter

 31.6

Shock Bushing Size Front

 30x8

Shock Bushing Size Rear

 30x8

Shock Stroke

 65mm

Suspension System

 VPP™

UDH Compatible

 Yes

Water Bottle Mounts

 1

Geometry
All units are in millimeters or degrees.
S M L XL XXL
Reach (Hi/Lo) 435/433 455/453 475/473 495/493 520/518
Stack (Hi/Lo) 624/626 633/635 643/645 660/662 669/671
Head Tube Angle (Hi/Lo) 63.6°/63.3° 63.6°/63.3° 63.6°/63.3° 63.6°/63.3° 63.6°/63.3°
Head Tube Length 100 110 120 140 150
Rear Center (Hi/Lo) 438/439 441/442 444/445 447/448 451/452
Front Center (Hi/Lo) 781/780 805/805 830/830 858/858 888/888
BB Height (Hi/Lo) 346/342.5 346/342.5 346/342.5 346/342.5 346/342.5
BB Drop Front (Hi/Lo) 26.5/30 26.5/30 26.5/30 26.5/30 26.5/30
BB Drop Rear (Hi/Lo) 8/11.5 8/11.5 8/11.5 8/11.5 8/11.5
Wheelbase (Hi/Lo) 1219/1219 1246/1247 1276/1274 1305/1306 1339/1339
Top Tube Length (Hi/Lo) 569/569 587/586 604/605 627/628 651/652
Seat Tube Length 380 400 420 450 500
Seat Tube Angle (Hi/Lo) 78°/77.7° 78.2°/78.1° 78.6°/78.4° 78.7°/78.5° 78.9°/78.7°
Seat Tube Angle at Saddle Height (Hi/Lo) 77.4/77.1 at 680 77.4/77.1 at 730 77.4/77.1 at 780 77.4/77.1 at 830 77.4/77.1 at 870
Standover Height (Hi/Lo) 711/707 719/715 722/718 726/722 732/728
Product Variants SKU/UPC
  • 2027 Santa Cruz Nomad 7 XT Di2-Kit Coil: Matte Metallic Earth / SM: SKU: 58-27322-481-2-941-232701 - UPC:

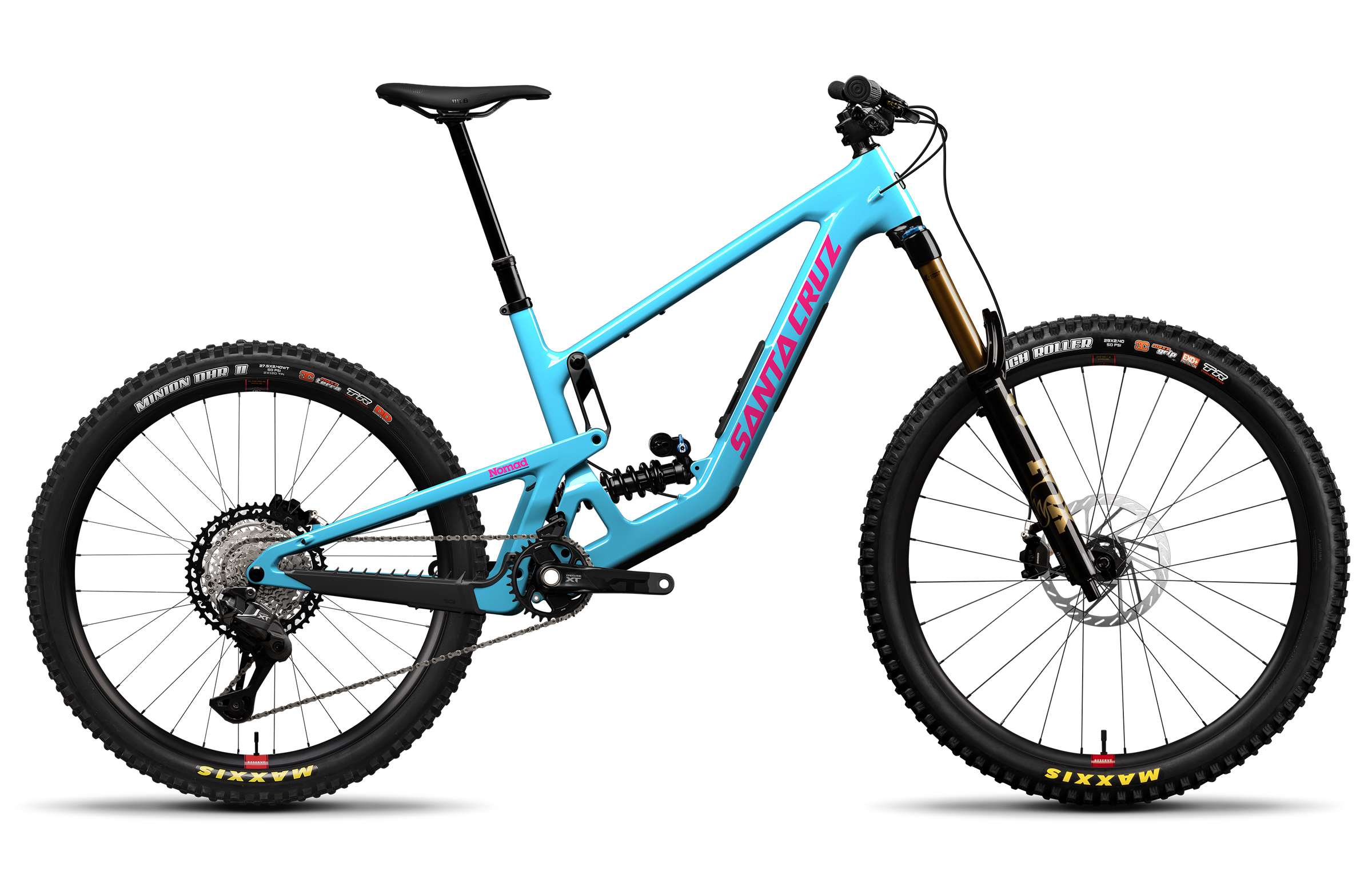

  • 2027 Santa Cruz Nomad 7 XT Di2-Kit Coil: Gloss Aqua Magenta / SM: SKU: 58-27322-481-2-942-232701 - UPC:
