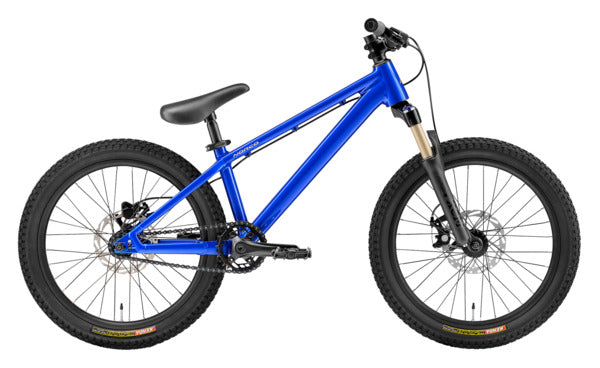

Norco Rampage 20

The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.

Seek new heights with the Youth Rampage 20.

Designed with a BMX mindset so you can ride hard and level up.

Details

• Smooth, seamless look for aluminum frame.
• Frame features that allow you to push your potential.
• Purpose-built for big air.
• Components custom-selected for reliability.
• Two wheel sizes and two models for the ideal ride.
• No Other Way Limited Lifetime Warranty.


Frameset

• Frame: Aluminum DJ 20"

• Fork: SR Suntour XCM Jr Air, 80mm travel, 9×100mm

Drivetrain

• Crankset: Prowheel 3-piece, 30T, 127mm

• Bottom Bracket: Square taper, 73mm shell, 122.5mm axle

• Cassette: Single speed, 13T

• Chain: KMC Z1 single speed, 1/2" × 3/32", natural black

Brakes

• Front Brake: Tektro MD-280, mechanical, resin pads

• Front Rotor: TR 160-24, 160mm, 6-bolt

• Rear Brake: Tektro HD-M286, hydraulic, resin pads

• Rear Rotor: TR 160-24, 160mm, 6-bolt

• Brake Levers: Tektro alloy

Components

• Handlebar: Norco 6061 alloy, 640mm width, 30mm rise

• Stem: Norco, 40mm length, 31.8mm clamp

• Seatpost: Integrated with saddle, 27.2mm ID, 200mm length

• Headset: Tapered 1-1/8"–1.5" (ZS44/28.6 | ZS56/40)

• Headset Spacers: 2 × 10mm, 1 × 5mm

• Saddle: Norco one-piece

• Grips: Norco JR single lock-on, 92mm length

• Pedals: FM Composite Jr flat pedals

• Seatpost Clamp: Norco alloy QR, 31.8mm ID

Wheels

• Front Hub: KT sealed bearing, 3/8" nutted axle, 32H, 6-bolt

• Rear Hub: KT sealed bearing, 3/8" nutted axle, 32H, 13T single-speed sprocket, 6-bolt

• Rims: XD-181 DW, 32H, 20" front/rear, 24.7mm internal width

• Front Tire: Kenda K-Rad, 20 × 2.35", wire bead

• Rear Tire: Kenda K-Rad, 20 × 2.35", wire bead

• Spokes/Nipples: Stainless steel, 14g
