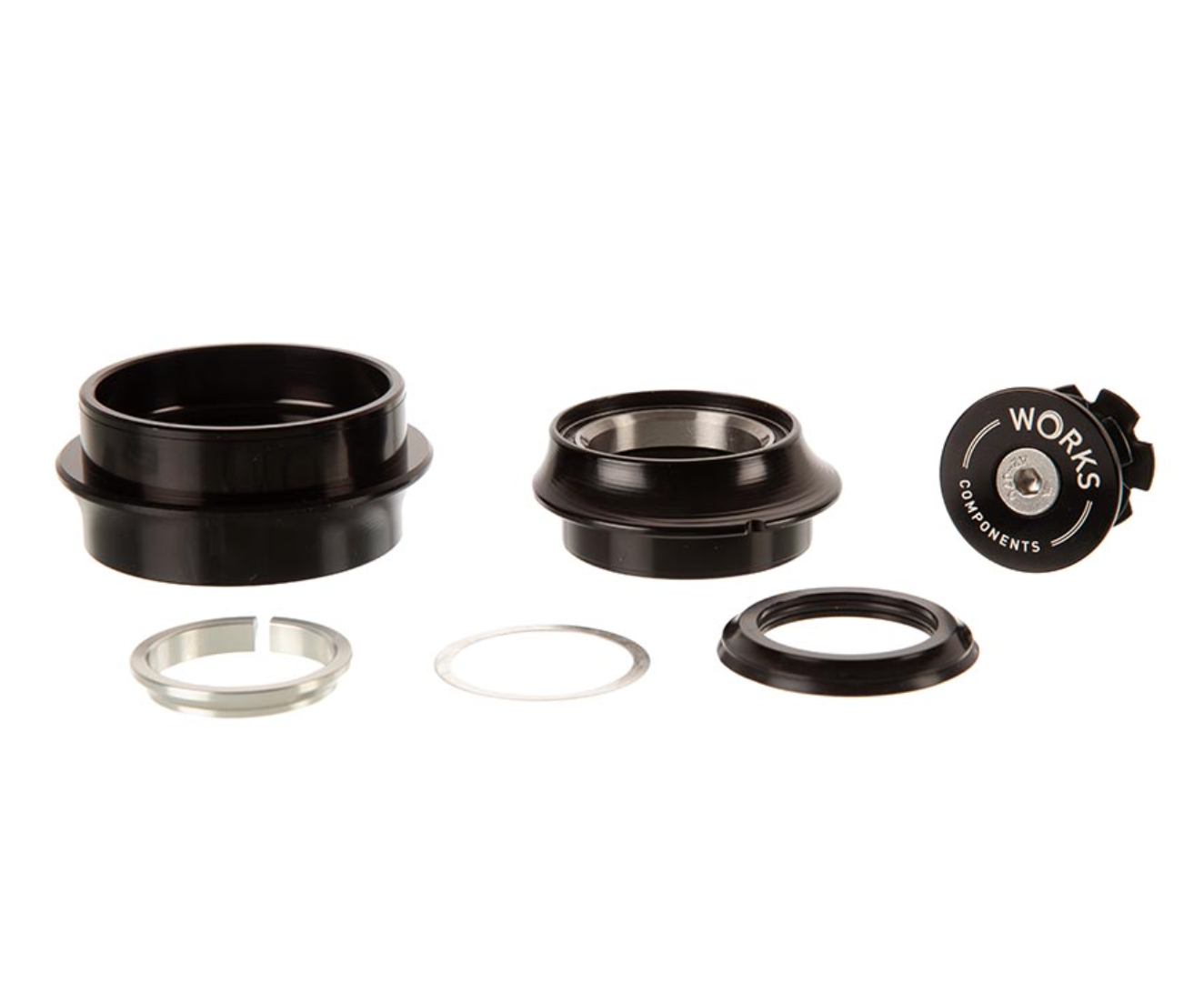

Works Components 5mm Reach Adjust Headset EC44 / EC56 - Tapered Steerer

By Works Components
$124.99 CAD
SKU: 150555-01

This item is in stock at the warehouse, and may take an additional 2 to 4 business days to process before shipping.

View details
  • This headset will allow you to alter your top-tube length by +/- 5mm.
  • Fits headtube internal diameter: Upper - 44mm: EC44
    Fits headtube internal diameter: Lower - 56mm: EC56
  • Upper cup insertion depth: 9mm
    Lower cup insertion depth: 14mm
  • Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 15mm
    Lower cup Stack height: 14mm
  • Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
    Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing
  • To suit tapered forks.
  • Proudly machined in the UK, anodised locally in black from 6082 T6 aluminium
  • Split type 7075-T6 aluminium crown race for simple, tool free installation

Product Variants SKU/UPC
  • Works Components 5mm Reach Adjust Headset EC44 / EC56 - Tapered Steerer: Default Title / : SKU: 150555-01 - UPC: 5060894513036
