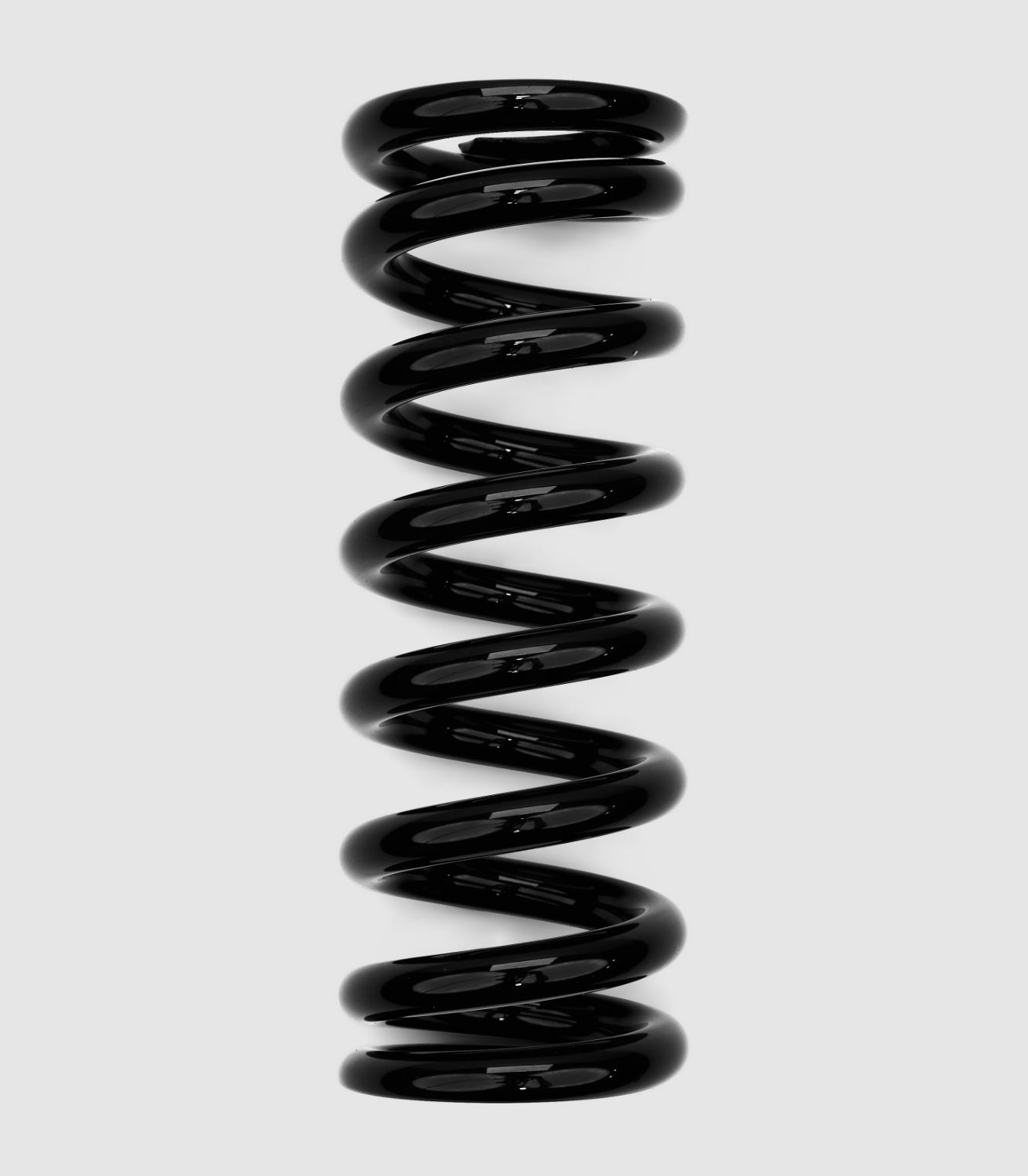

Fox Steel Coil Spring

$50.00 CAD

SKU: 039-03-013

loading inventory counts ...
Length
Spring Rate

All standard steel springs are black and are marked with their spring rate in lbs/in (in 50 lb increments) and the total travel of the spring itself. Standard black springs should only be paired with shocks having less travel than the travel marked on the spring itself.

  • All standard steel springs are black and are marked with their spring rate in lbs/in (in 50 lb increments) and the total travel of the spring itself. Standard black springs should only be paired with shocks having less travel than the travel marked on the spring itself.


*Only certain springs in this group will fit. Please see the longest spring that will fit your shock in the table below

Standard Steel Springs
SKU Part Description  Where used
2.3in/58mm-2.55in/65mm Travel Springs
 803-04-130 039-03-011 Spring: [4.285 TLG X 1.385 ID X 250 lbs/in, 2.500 Travel] Black 7.875inx2.25in, 185mm(T)x50mm, 185mm(T)x52.5mm, 185mm(T)x55mm, 210mmx50mm, 210mmx52.5mm, 210mmx55mm
 803-04-131 039-03-012 Spring: [4.344 TLG X 1.385 ID X 300 lbs/in, 2.500 Travel] Black
  039-03-013 Spring: [4.381 TLG X 1.385 ID X 350 lbs/in, 2.450 Travel] Black
 803-04-132 039-12-011 Spring: [4.990 TLG X 1.385 ID X 350 lbs/in, 2.450 Travel] Black
 803-04-133 039-03-014 Spring: [4.675 TLG X 1.385 ID X 400 lbs/in, 2.450 Travel] Black
 803-04-134 039-03-015 Spring: [4.723 TLG X 1.385 ID X 450 lbs/in, 2.370 Travel] Black
 803-04-135 039-03-016 Spring: [4.733 TLG X 1.385 ID X 500 lbs/in, 2.350 Travel] Black
 803-04-136 039-03-017 Spring: [4.776 TLG X 1.385 ID X 550 lbs/in, 2.350 Travel] Black
 803-04-137 039-03-018 Spring: [4.830 TLG X 1.385 ID X 600 lbs/in, 2.350 Travel] Black
 803-04-138 039-03-019 Spring: [4.954 TLG X 1.385 ID X 650 lbs/in, 2.300 Travel] Black
 803-04-140 039-03-009 Spring: [5.701 TLG X 1.385 ID X 700 lbs/in, 2.550 Travel] Black
 803-04-141 039-03-101 Spring: [5.280 TLG X 1.375 ID X 800 lbs/in, 2.300 Travel] Black
2.8in/71mm Travel Springs
 803-04-142 039-03-022 Spring: [4.924 TLG X 1.385 ID X 250 lbs/in, 2.800 Travel] Black 8.50inx2.50in, 205mm(T)x60mm, 205mm(T)x62.5mm, 205mm(T)x65mm, 230mmx57.5mm, 230mmx60mm, 230mmx62.5mm, 230mmx65mm
 803-04-143 039-03-001 Spring: [5.799 TLG X 1.385 ID X 350 lbs/in, 2.800 Travel] Black
 803-04-144 039-03-002 Spring: [5.459 TLG X 1.385 ID X 400 lbs/in, 2.800 Travel] Black
 803-04-145 039-03-003 Spring: [5.409 TLG X 1.385 ID X 450 lbs/in, 2.800 Travel] Black
 803-04-146 039-03-004 Spring: [5.728 TLG X 1.385 ID X 500 lbs/in, 2.800 Travel] Black
 803-04-147 039-03-005 Spring: [5.949 TLG X 1.385 ID X 550 lbs/in, 2.800 Travel] Black
 803-04-148 039-00-600 Spring: [5.750 TLG X 1.385 ID X 550 lbs/in, 2.800 Travel] Black
 803-04-149 039-03-007 Spring: [6.382 TLG X 1.385 ID X 600 lbs/in, 2.800 Travel] Black
 803-04-150 039-00-601 Spring: [5.750 TLG X 1.385 ID X 600 lbs/in, 2.800 Travel] Black
 803-04-151 039-03-008 Spring: [6.150 TLG X 1.385 ID X 650 lbs/in, 2.800 Travel] Black
 803-04-152 039-03-010 Spring: [6.402 TLG X 1.385 ID X 700 lbs/in, 2.800 Travel] Black
3.19in/81mm-3.25in/83mm Travel Springs
 803-04-153 039-09-010 Spring: [6.468 TLG X 1.385 ID X 250 lbs/in, 3.25 Travel] Black 8.75inx2.75in,    9.50inx3.00in, 225mm(T)x70mm,  225mm(T)x72.5mm, 225mm(T)x75mm, 250mmx70mm, 250mmx72.5mm, 250mmx75mm
 803-04-154 039-03-000 Spring: [6.126 TLG X 1.385 ID X 300 lbs/in, 3.240 Travel] Black
 803-04-155 039-09-000 Spring: [6.476 TLG X 1.385 ID X 300 lbs/in, 3.25 Travel] Black
 803-04-156 039-09-001 Spring: [6.689 TLG X 1.39 ID X 350 lbs/in, 3.25 Travel] Black
 803-04-157 039-09-002 Spring: [6.634 TLG X 1.385 ID X 400 lbs/in, 3.25 Travel] Black
 803-04-158 039-09-003 Spring: [6.760 TLG X 1.385 ID X 450 lbs/in, 3.25 Travel] Black
 803-04-159 039-00-603 Spring: [6.600 TLG X 1.385 ID X 500 lbs/in, 3.15 Travel] Black
 803-04-160 039-09-004 Spring: [6.909 TLG X 1.385 ID X 500 lbs/in, 3.25 Travel] Black
 803-04-161 039-00-604 Spring: [6.400 TLG X 1.385 ID X 550 lbs/in, 3.15 Travel] Black
 803-04-162 039-09-005 Spring: [6.929 TLG X 1.385 ID X 550 lbs/in, 3.25 Travel] Black
 803-04-163 039-09-006 Spring: [7.114 TLG X 1.385 ID X 600 lbs/in, 3.25 Travel] Black
 803-04-164 039-09-007 Spring: [6.815 TLG X 1.385 ID X 650 lbs/in, 3.19 Travel] Black
 803-04-165 039-09-008 Spring: [7.130 TLG X 1.385 ID X 700 lbs/in, 3.19 Travel] Black
3.64in/92mm-3.85in/98mm Travel Springs
 803-04-166 039-12-000 Spring: (T) [6.800 TLG X 1.385 ID X 150 lb/in X 3.85 Travel] Black 10.5inx3.5in
 803-04-167 039-12-001 Spring: (T) [7.000 TLG X 1.385 ID X 200 lb/in X 3.80 Travel] Black
 803-04-168 039-12-008 Spring: (T) [7.000 TLG X 1.385 ID X 225 lb/in X 3.80 Travel] Black
 803-04-169 039-12-002 Spring: (T) [7.200 TLG X 1.385 ID X 250 lb/in X 3.75 Travel] Black
 803-04-170 039-12-009 Spring: (T) [7.500 TLG X 1.385 ID X 275 lb/in X 3.75 Travel] Black
 803-04-171 039-12-003 Spring: (T) [7.750 TLG X 1.385 ID X 300 lb/in X 3.70 Travel] Black
 803-04-172 039-12-010 Spring: (T) [7.7550 TLG X 1.385 ID X 325 lb/in X 3.70 Travel] Black
 803-04-173 039-12-004 Spring: (T) [7.750 TLG X 1.385 ID X 350 lb/in X 3.70 Travel] Black
 803-04-174 039-12-005 Spring: (T) [7.750 TLG X 1.385 ID X 400 lb/in X 3.65 Travel] Black
 803-04-175 039-12-006 Spring: (T) [8.100 TLG X 1.385 ID X 450 lb/in X 3.65 Travel] Black
 803-04-176 039-12-007 Spring: (T) [8.250 TLG X 1.385 ID X 500 lb/in X 3.64 Travel] Black



*Only certain springs in this group will fit this shock size. Please see the longest spring that will fit your shock in the table above.
