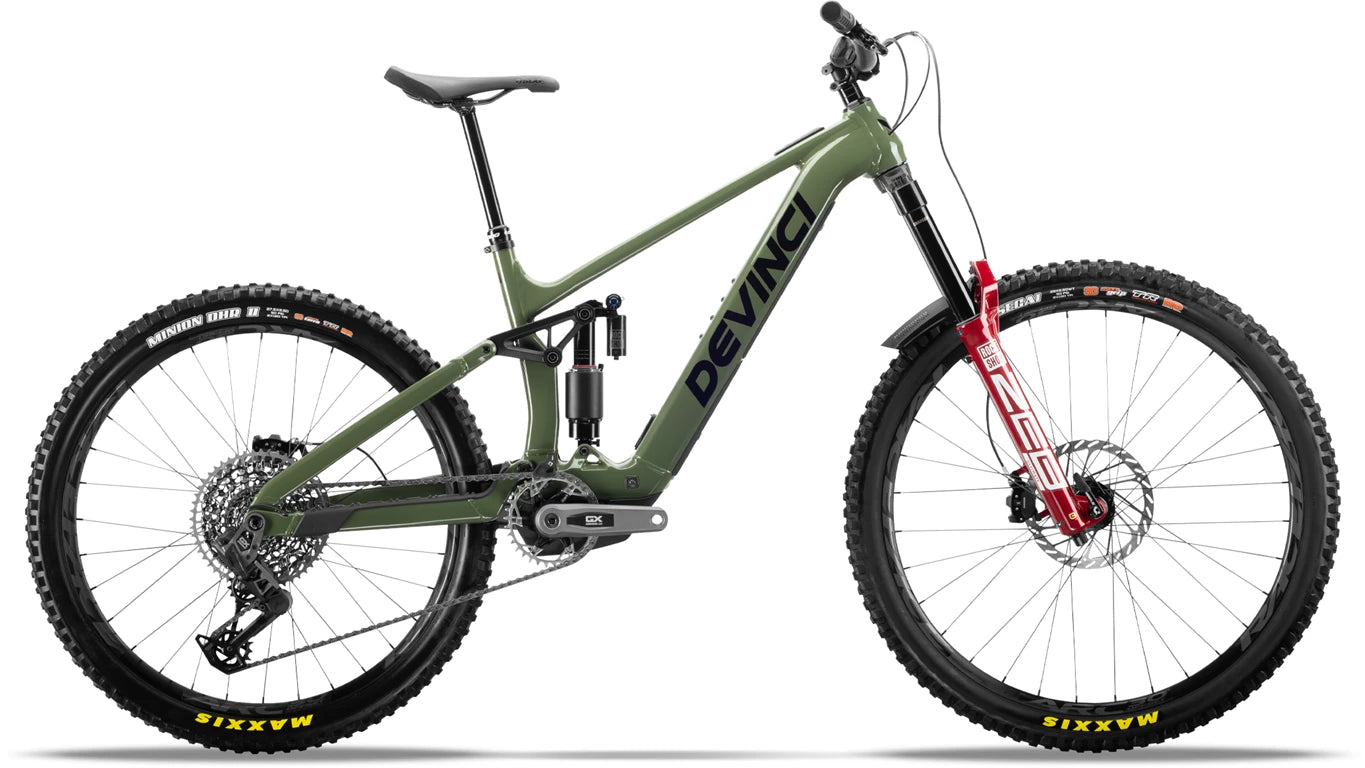

2026 Devinci E-Spartan Lite GX AXS

Light assist. Burly capability.

Big bike energy, now electrified. Tame the burly without holding back. The E-Spartan Lite is built to turn turbulence into confidence. Made in Canada and powered by German precision, its chassis hides Bosch’s Performance Line SX drive system and a 400Wh battery. With 165mm of rear travel and 170mm up front, a don’t-hold-back attitude, and Devinci’s lifetime warranty, the E-Spartan Lite is built to perform where it matters most…on burly territory.

E-Spartan Lite GX AXS 12s – Technical Specifications

Manufacturing:

• Handcrafted in Canada


Frame

• Frame: Aluminum Optimum G04, 165 mm travel

• Headset: FSA Orbit | 1.5 | Zero Stack

• Seat Clamp: Alloy CNC, 34.9 mm

Suspension

• Fork: RockShox Zeb Ultimate DB | 29" | 170 mm | 110×15 | 44 mm Offset

• Rear Shock: RockShox Vivid Ultimate | 205×65 T

Cockpit

• Handlebar: RaceFace ERA 35 | Clamp: 35 mm | Rise: 40 mm | Width: 800 mm

• Stem: RaceFace Turbine R35 | Clamp: 35 mm | Length: 40 mm | 0° rise

• Saddle: SDG Bel-Air Max eMTB

• Seatpost: SDG Tellis, 31.6 mm

• Seatpost Lever: SDG Tellis | Matchmaker | 1x Lever

• Grips: Devinci w/ lock-on

Brakes

• Front Brake: SRAM Maven Silver

• Rear Brake: SRAM Maven Silver

• Front Rotor: SRAM HS2, 200 mm

• Rear Rotor: SRAM HS2, 200 mm

Drivetrain

• Rear Derailleur: SRAM GX Eagle AXS | T-Type | 12-speed

• Shifter: SRAM AXS POD | 12-speed

• Crankarms: SRAM GX Bosch | 155 mm

• Chainring: SRAM XX Eagle, 34T Bosch eMTB

• Cassette: SRAM XS1275 | T-Type | 12-speed | 10–52T

• Chain: SRAM GX | T-Type | 12-speed

Wheels

• Front Rim: RaceFace ARC30 29 | 30 mm inner | Tubeless Ready

• Front Hub: RaceFace Vault | 6-bolt | TA 15×110 mm

• Rear Rim: RaceFace ARC30 27.5 | 30 mm inner | Tubeless Ready

• Rear Hub: RaceFace Vault | Boost 148×12 | XD driver | 6-bolt

• Spokes: Sapim Stainless 14G w/ Nylok

• Front Tire: Maxxis Assegai | 29×2.5 WT | 3C | DD | TR | MaxxGrip

• Rear Tire: Maxxis Minion DHR II | 27.5×2.5 WT | 3C | DD | TR | MaxxTerra

E-System

• Computer: Bosch System Controller BRC3100

• Drive Unit: Bosch Performance Line SX | 55 Nm | 600 W

• Battery: Bosch CompactTube 400 | 36 V | 400 Wh

RANGE

A full charge will get you approximately 2 hours of riding, 1000 meters of climbing, and an average range of 40 km. Using mainly the ECO mode, the battery will deliver up to 67 km of range. Using primarily the TURBO mode, the system will provide a range of approximately 28 kilometers. The average speed, the assist mode, the weather, the wind, the rider's weight, and the frequency of stops are all factors that play a role in the energy consumption of the battery. For a more accurate estimate of the available range, use the Bosch Range Assistant.

MODES

The Bosch system of the E-Troy Lite is programmed with the following assist modes: ECO, TOUR+, eMTB, and TURBO.

ECO: Low level support with maximum efficiency for the greatest range.

TOUR+: Smooth incremental support for energy-saving riding and a natural riding experience for longer rides.

eMTB: Providing targeted support for eMTB riding and delivering power exactly when it's needed for an optimal ride experience.

TURBO: Maximum power support even at high cadences on steep climbs.
