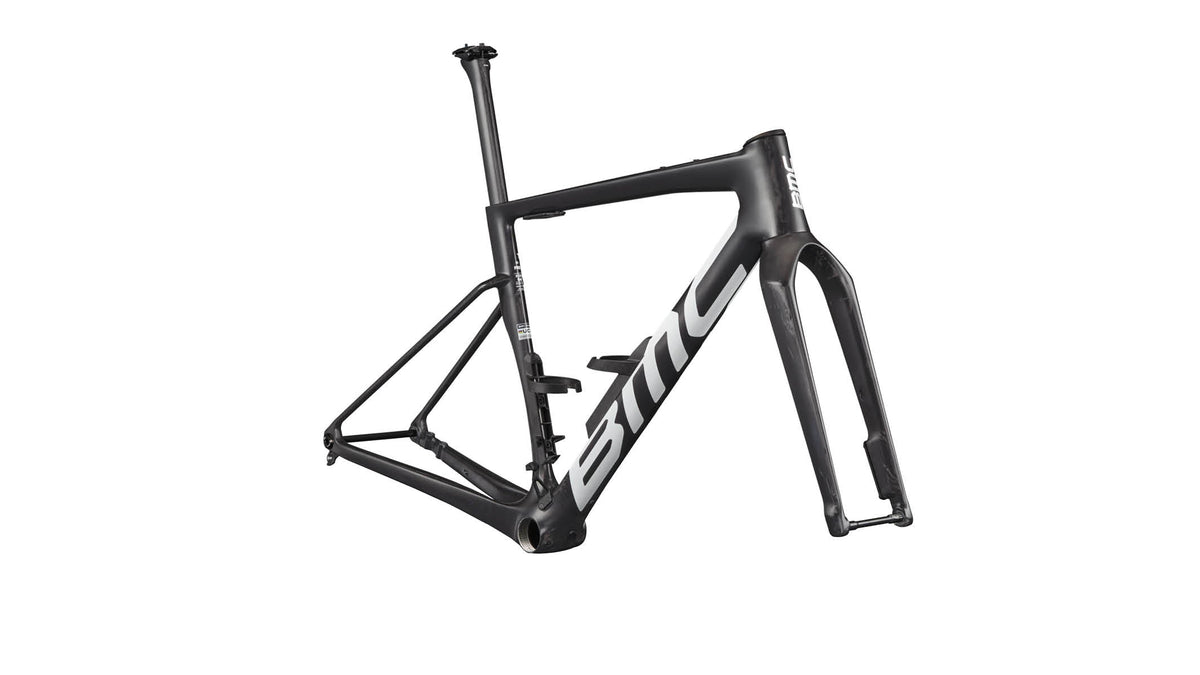

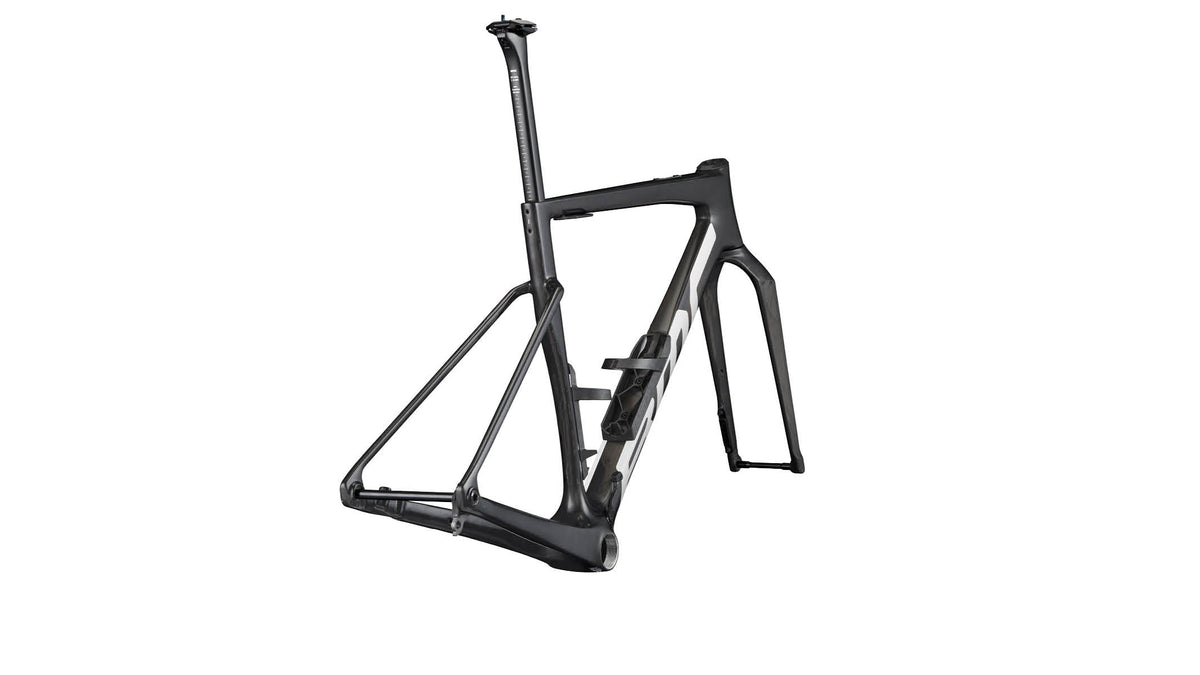

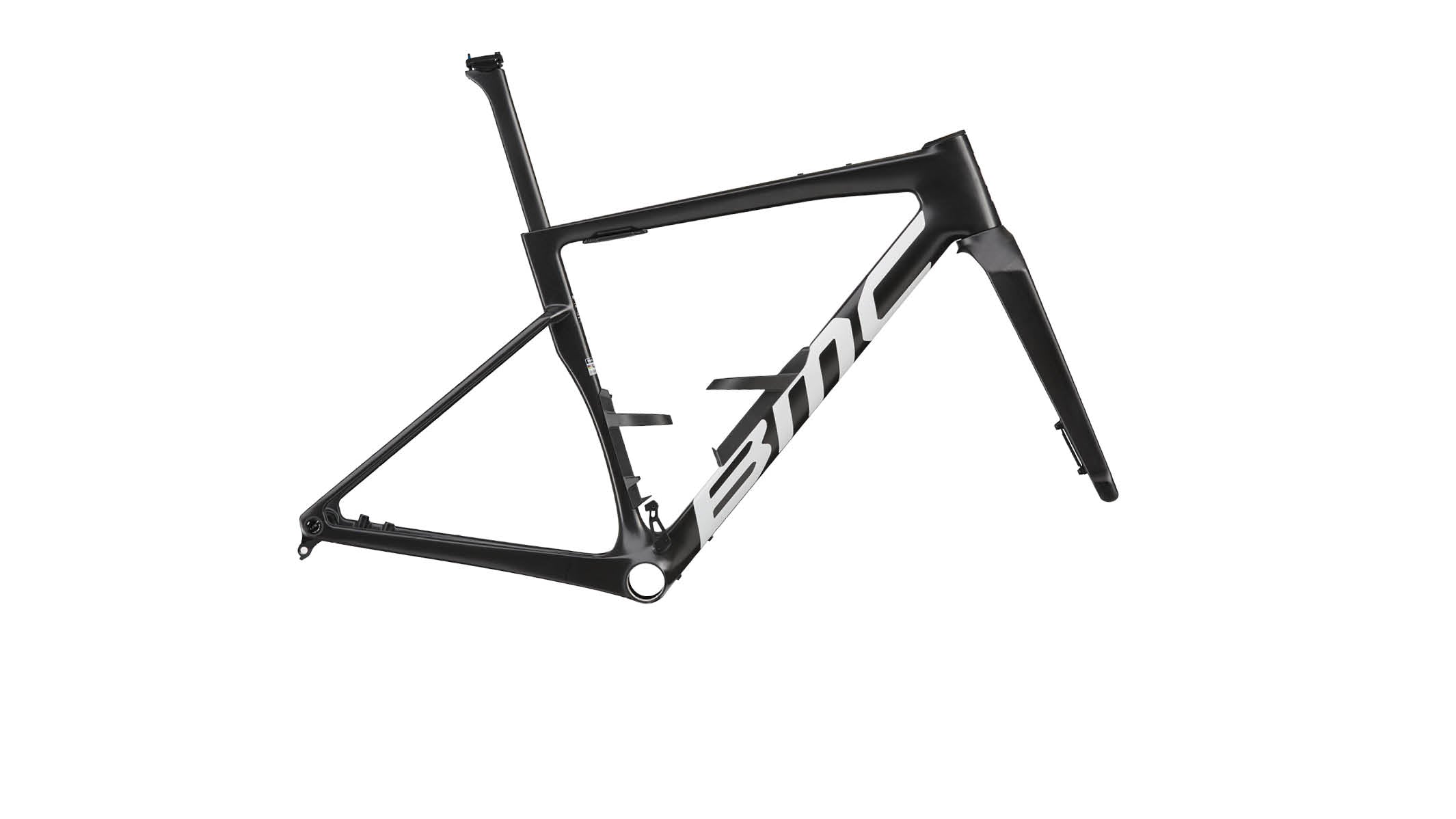

2027 BMC Kaius 01 Frameset

By BMC
$6,299.00 CAD

This product is available for in-store pickup only.

In stock at supplier warehouse - Usually ships within 5 business days. More info

30008128
Color: Lightweight Carbon VAR0
Size
View details
Description

When generation 1 of Kaius launched, the gravel world stood up and took notice. Made with racing as its sole purpose, it defined what gravel speed looked like. Gen 2 raises the bar again. With a 7% aerodynamic gain at 40 km/h, improved stability at speed, and the unmistakable ride feel of our 01 Premium Carbon, the Kaius 01 frameset is engineered for riders who want to build without compromise. 51mm tire clearance, refined compliance, and race-ready geometry give you a platform that stays fast when the course turns rough and the pace stays high. Supplied with frame, fork, and seatpost, the VAR0 frameset features a future-proof Full Mount / UDH interface, giving you total freedom when it comes to drivetrain choice. Finished in raw carbon with a light lacquer and removable decals, it’s ready for custom paint or left as-is for a stripped-back race aesthetic.

Technical Specifications

Frame

Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork

Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Seatpost

Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Rear Derailleur

Full Mount - UDH

Bottom Bracket

T47 85.5mm Road Wide

Rotor Size (F/R)

Rotor compatibility: 160mm front | 160mm rear

In the Box

Aerocore Bottle Cages | SRAM UDH derailleur hanger | SHIMANO Direct Mount derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Tire Clearance

52mm measured tire

Weight without Pedals

1855g | Size 54 as pictured with all accessories

ASTM Classification

Level 2

System Weight Limit

120kg

Specifications are subject to change.

Geometry
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 385 392 396 400 405 409
Stack 521 541 561 581 606 631
BB Drop 79 79 79 79 79 79
Fork Length 397 397 397 397 397 397
Fork Rake 50 50 50 45 45 45
Front Center 597 611 614 619 633 645
Head Tube 88 109 126 147 173 199
Head Tube Angle 70.8° 70.8° 70.8° 71.6° 71.6° 71.6°
Rear Center 425 425 425 425 425 425
Seat Angle 74.3° 74.3° 73.8° 73.8° 73.8° 73.8°
Seat Tube 429 449 471 485 509 533
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 0 0 10 10 10 10
Standover Height 739 758 779 795 815 838
Top Tube 531 544 559 569 587 598
Trail 72 72 72 72 72 72
Wheelbase 1010 1024 1027 1032 1045 1058
Product Variants SKU/UPC
  • 2027 BMC Kaius 01 Frameset: Lightweight Carbon VAR0 / 47: SKU: 30008128 - UPC: 7630906535219
  • 2027 BMC Kaius 01 Frameset: Lightweight Carbon VAR0 / 51: SKU: 30008129 - UPC: 7630906535202
  • 2027 BMC Kaius 01 Frameset: Lightweight Carbon VAR0 / 54: SKU: 30008130 - UPC: 7630906535196
  • 2027 BMC Kaius 01 Frameset: Lightweight Carbon VAR0 / 56: SKU: 30008131 - UPC: 7630906535189
  • 2027 BMC Kaius 01 Frameset: Lightweight Carbon VAR0 / 58: SKU: 30008132 - UPC: 7630906535271
  • 2027 BMC Kaius 01 Frameset: Lightweight Carbon VAR0 / 61: SKU: 30008133 - UPC: 7630906535363
