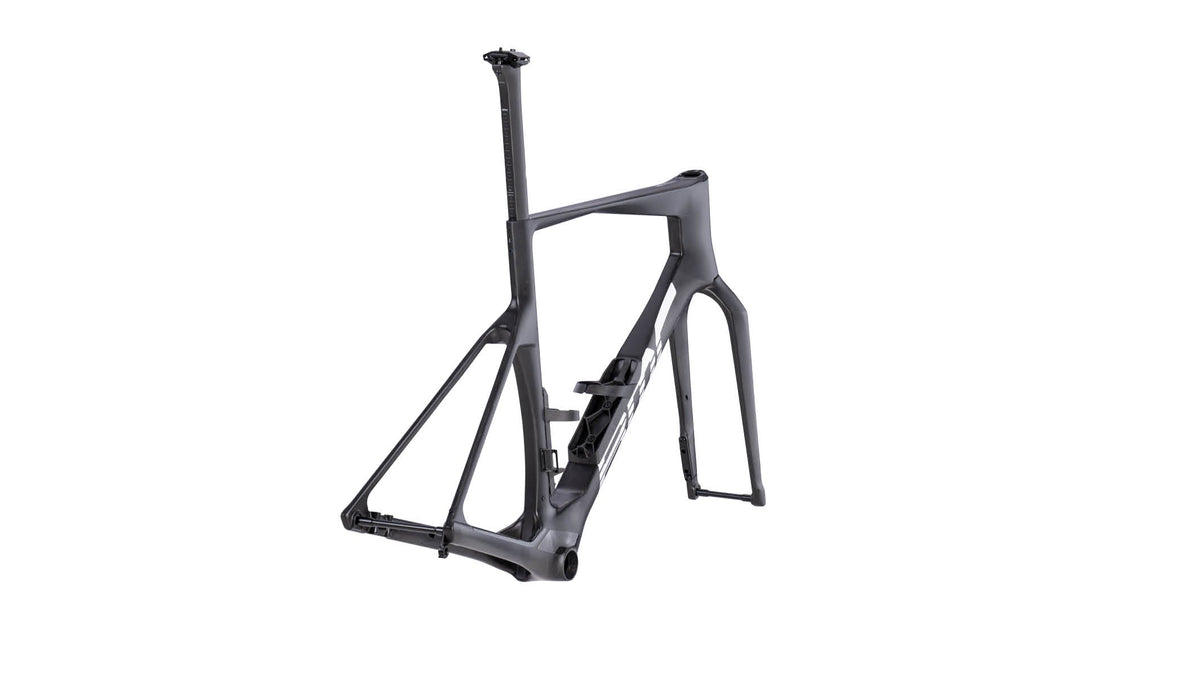

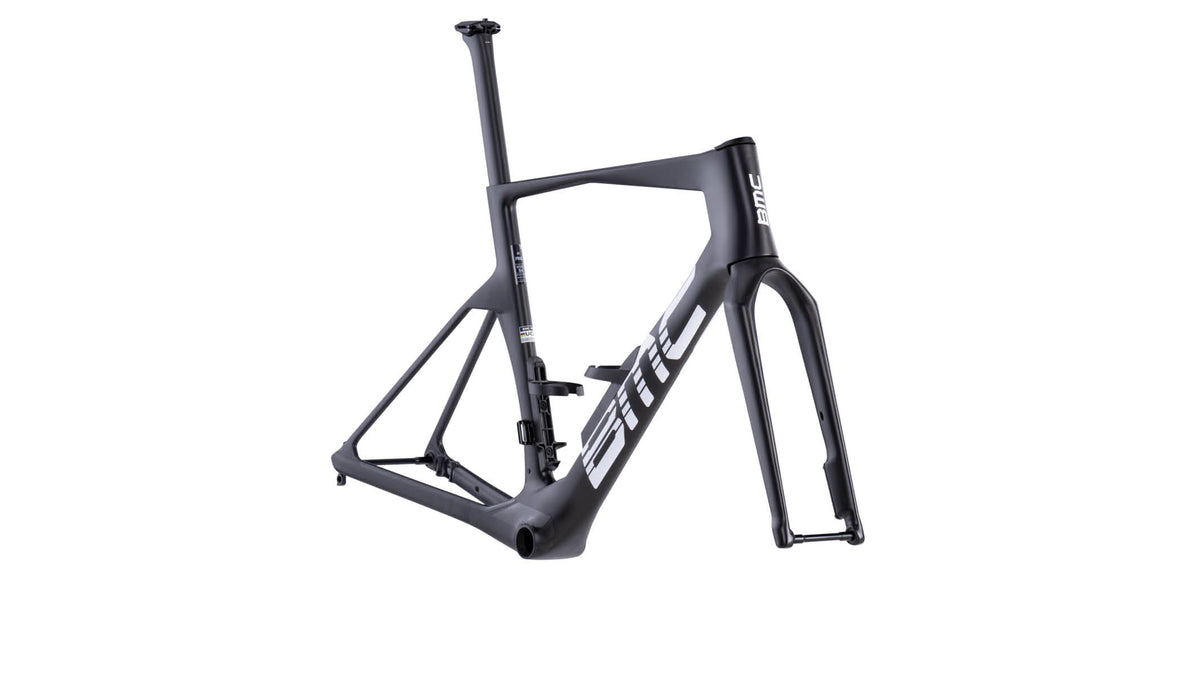

2027 BMC Teammachine R 01 Frameset

By BMC
$6,999.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

30008097

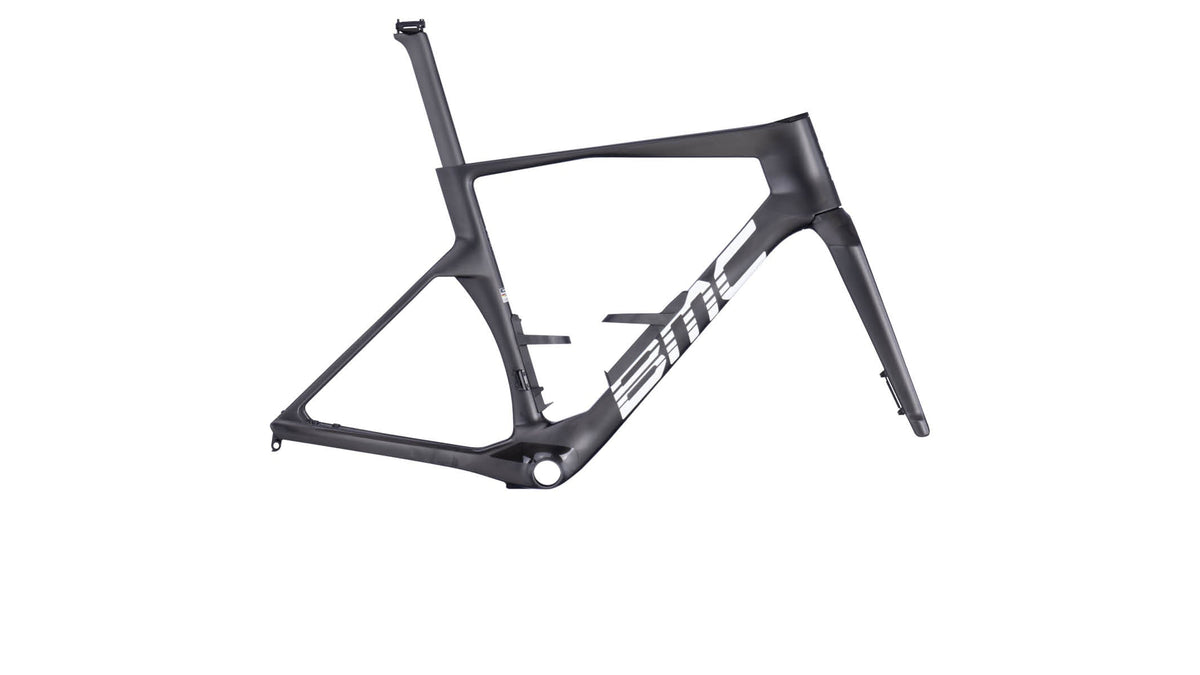

Color: Lightweight Carbon VAR0
Size
View details
Description

The Teammachine R VAR 0 distils race-winning performance to its essentials, leaving you with a pure platform for your own interpretation. Developed with Red Bull Advanced Technologies, it delivers the same time-saving aerodynamics, sprint-ready stiffness, confident handling, and controlled compliance as the complete Teammachine R. Finished in a light lacquer, the frameset can be ridden raw or given your dream finish. Call it a pro team of one: a lightweight, uncompromising race platform ready for climbs, cobbles, sprints, and corners alike. You bring the vision. The speed is already there.

Technical Specifications

Frame

Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork

Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Seatpost

Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61

Front Derailleur

Riveted derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline)

Rear Derailleur

BMC derailleur hangers: SHIMANO Direct Mount + SHIMANO or SRAM Direct Attachement (standard)

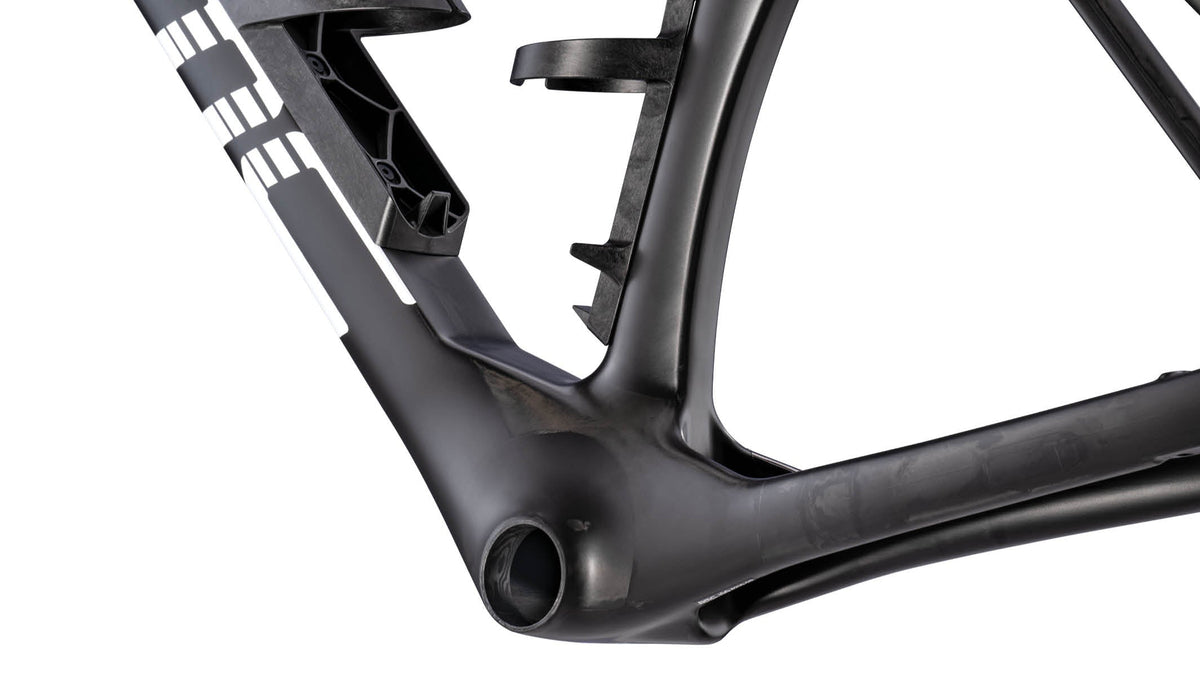

Bottom Bracket

Press-Fit 86.5mm Road

Rotor Size (F/R)

Rotor compatibility: 160mm front | 140mm or 160mm rear

In the Box

Aerocore Bottle Cages | Shimano Direct Mount derailleur hanger | Classic SRAM/Shimano derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Tire Clearance

30mm measured tire

Weight without Pedals

1780g | Size 54 as pictured with all accessories

ASTM Classification

Level 1

System Weight Limit

110kg

Specifications are subject to change.

Geometry
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 368 378 387 393 402 409
Stack 504 528 548 563 582 608
BB Drop 69 69 69 69 69 69
Fork Length 367 367 367 367 367 367
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 184 211
Head Tube Angle 71.5° 71.5° 72.3° 72.3° 72.3° 72.3°
Rear Center 410 410 410 410 410 410
Seat Angle 74° 74° 73.5° 73.5° 73° 73°
Seat Tube 418 463 499 519 541 570
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 0 0 10 10 10 10
Standover Height 721 755 781 799 813 836
Top Tube 515 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 999 1015 1030
Product Variants SKU/UPC
  • 2027 BMC Teammachine R 01 Frameset: Lightweight Carbon VAR0 / 47: SKU: 30008095 - UPC: 7630906534946
  • 2027 BMC Teammachine R 01 Frameset: Lightweight Carbon VAR0 / 51: SKU: 30008096 - UPC: 7630906534939
  • 2027 BMC Teammachine R 01 Frameset: Lightweight Carbon VAR0 / 54: SKU: 30008097 - UPC: 7630906534922
  • 2027 BMC Teammachine R 01 Frameset: Lightweight Carbon VAR0 / 56: SKU: 30008098 - UPC: 7630906534915
  • 2027 BMC Teammachine R 01 Frameset: Lightweight Carbon VAR0 / 58: SKU: 30008099 - UPC: 7630906534908
  • 2027 BMC Teammachine R 01 Frameset: Lightweight Carbon VAR0 / 61: SKU: 30008100 - UPC: 7630906534892

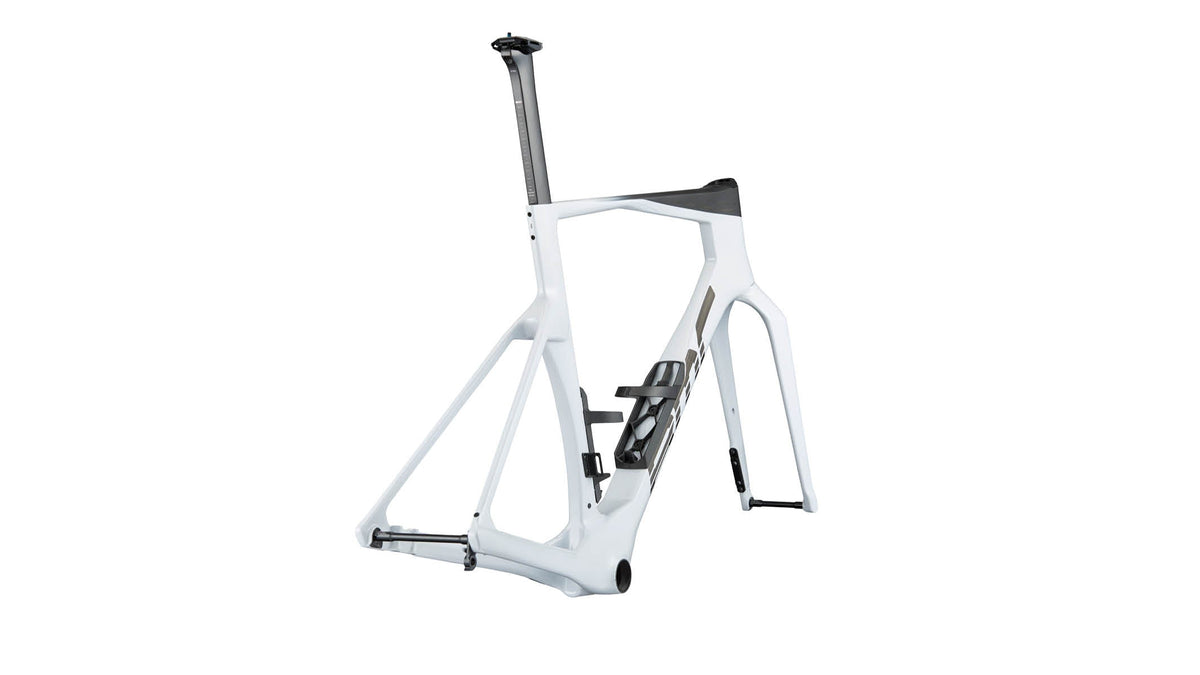

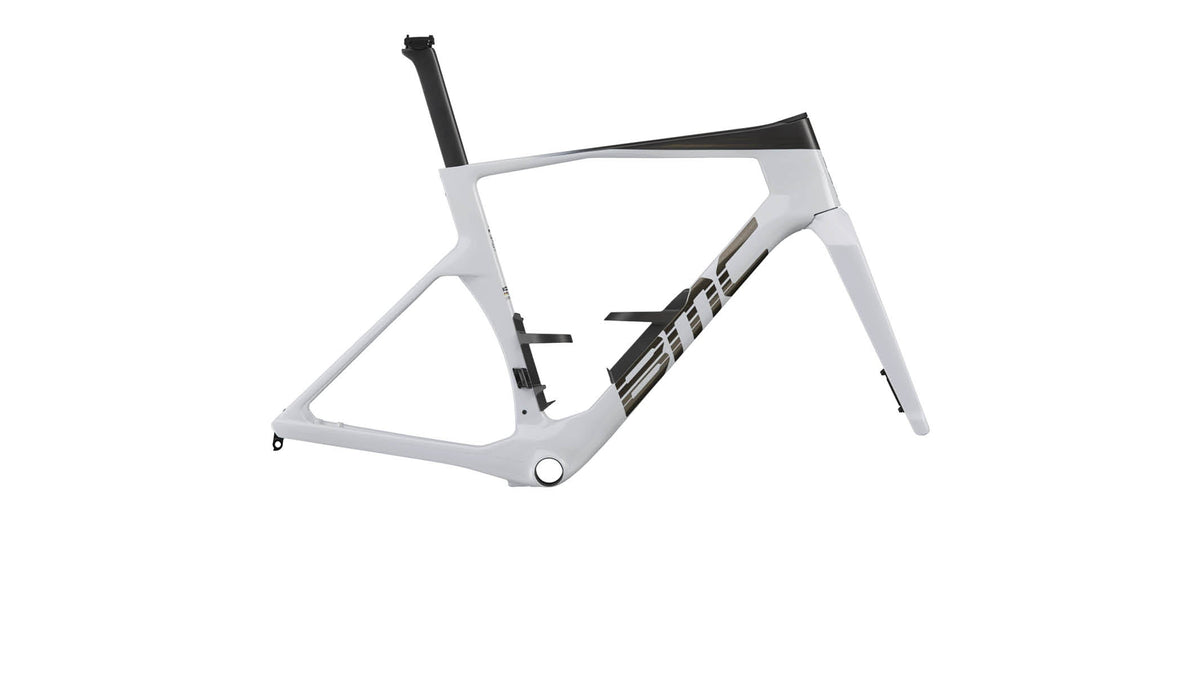

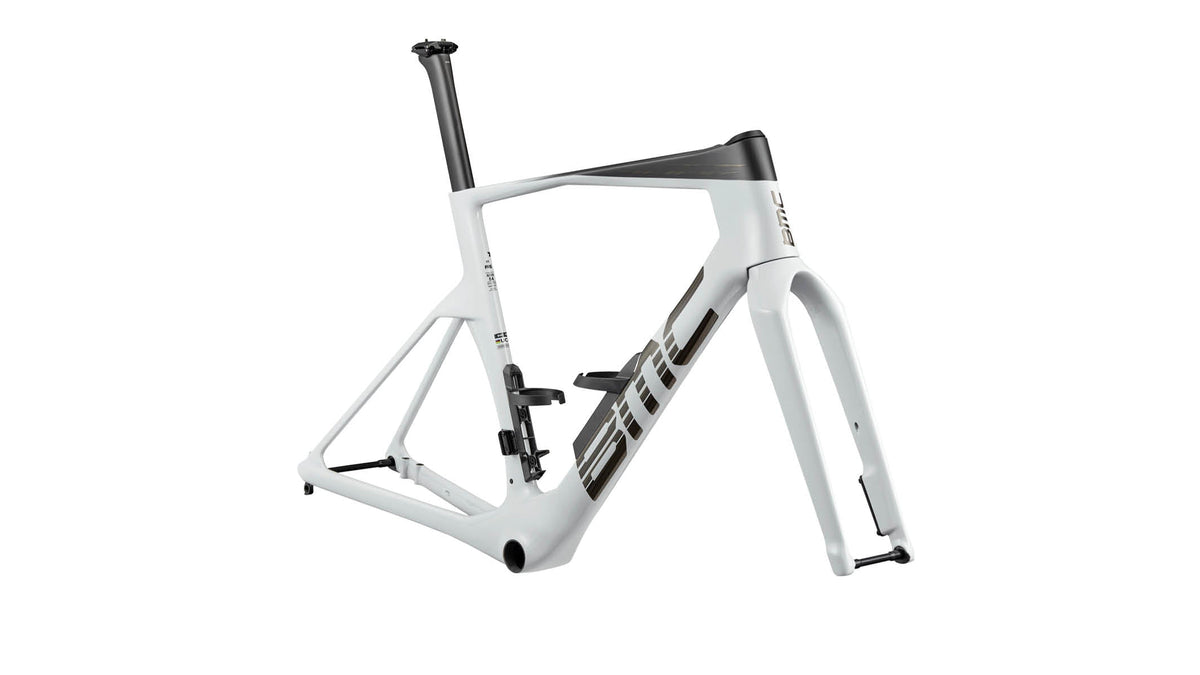

  • 2027 BMC Teammachine R 01 Frameset: Off-White / Carbon / 47: SKU: 30008107 - UPC: 7630906535028
  • 2027 BMC Teammachine R 01 Frameset: Off-White / Carbon / 51: SKU: 30008108 - UPC: 7630906535011
  • 2027 BMC Teammachine R 01 Frameset: Off-White / Carbon / 54: SKU: 30008109 - UPC: 7630906535004
  • 2027 BMC Teammachine R 01 Frameset: Off-White / Carbon / 56: SKU: 30008110 - UPC: 7630906534991
  • 2027 BMC Teammachine R 01 Frameset: Off-White / Carbon / 58: SKU: 30008111 - UPC: 7630906534984
  • 2027 BMC Teammachine R 01 Frameset: Off-White / Carbon / 61: SKU: 30008112 - UPC: 7630906535073

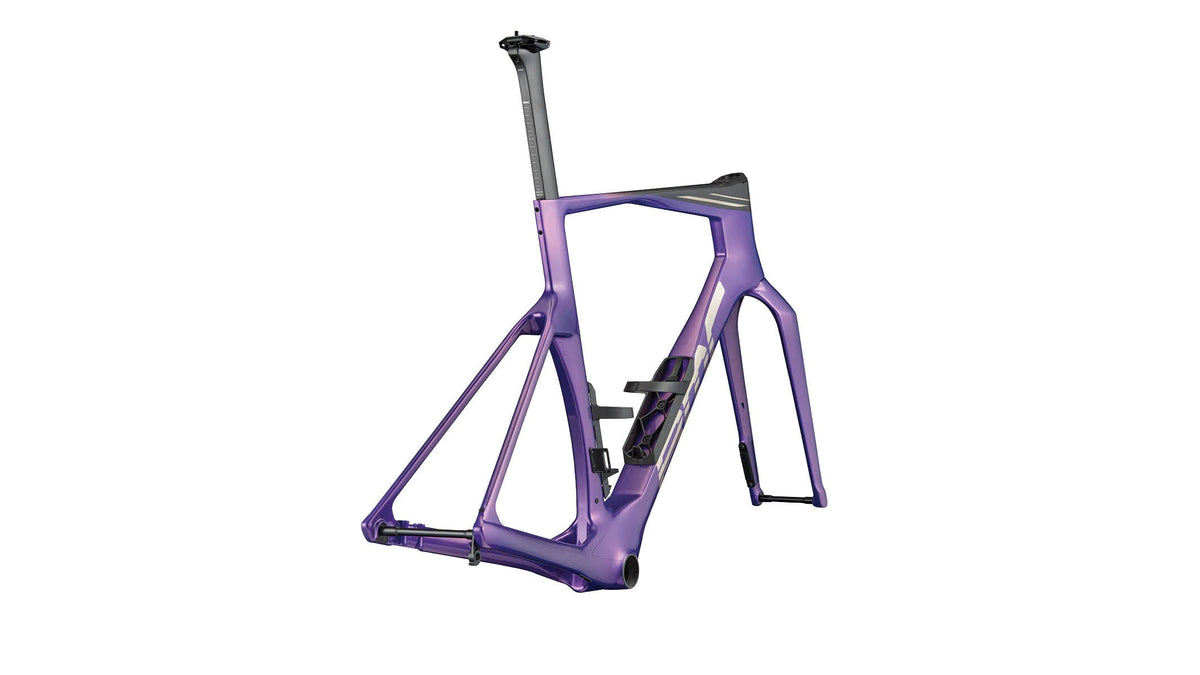

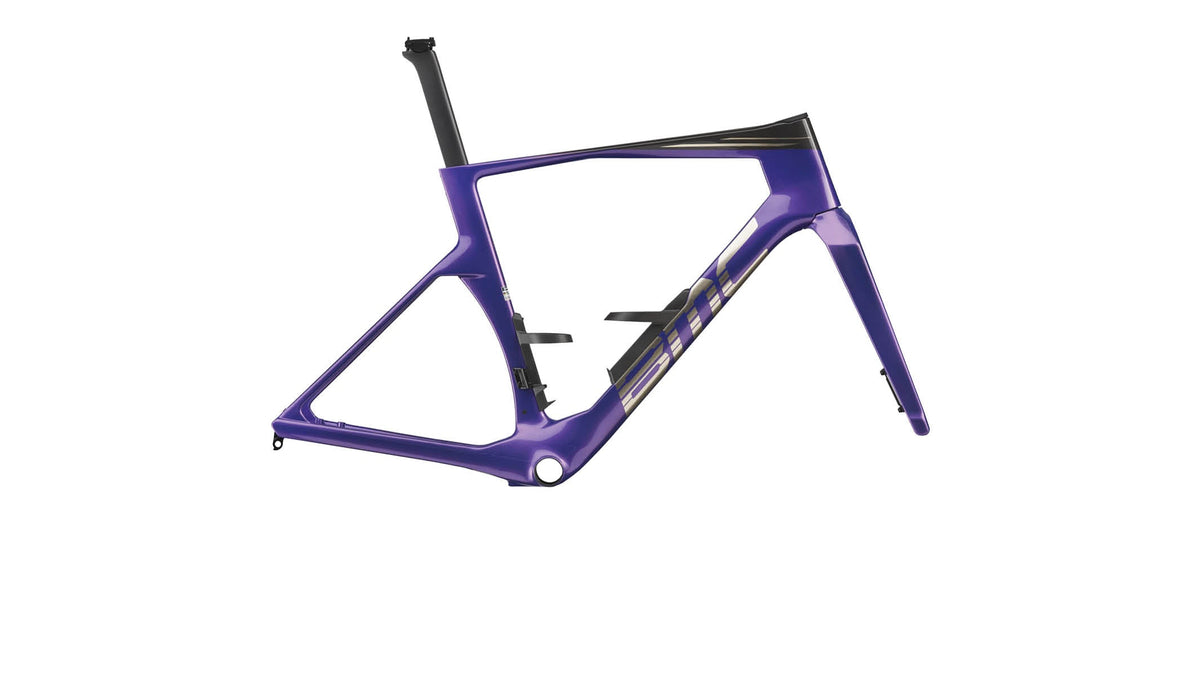

  • 2027 BMC Teammachine R 01 Frameset: Metallic Blue Purple / Carbon / 47: SKU: 30008113 - UPC: 7630906535165
  • 2027 BMC Teammachine R 01 Frameset: Metallic Blue Purple / Carbon / 51: SKU: 30008114 - UPC: 7630906535158
  • 2027 BMC Teammachine R 01 Frameset: Metallic Blue Purple / Carbon / 54: SKU: 30008115 - UPC: 7630906535141
  • 2027 BMC Teammachine R 01 Frameset: Metallic Blue Purple / Carbon / 56: SKU: 30008116 - UPC: 7630906535134
  • 2027 BMC Teammachine R 01 Frameset: Metallic Blue Purple / Carbon / 58: SKU: 30008117 - UPC: 7630906535127
  • 2027 BMC Teammachine R 01 Frameset: Metallic Blue Purple / Carbon / 61: SKU: 30008118 - UPC: 7630906535110

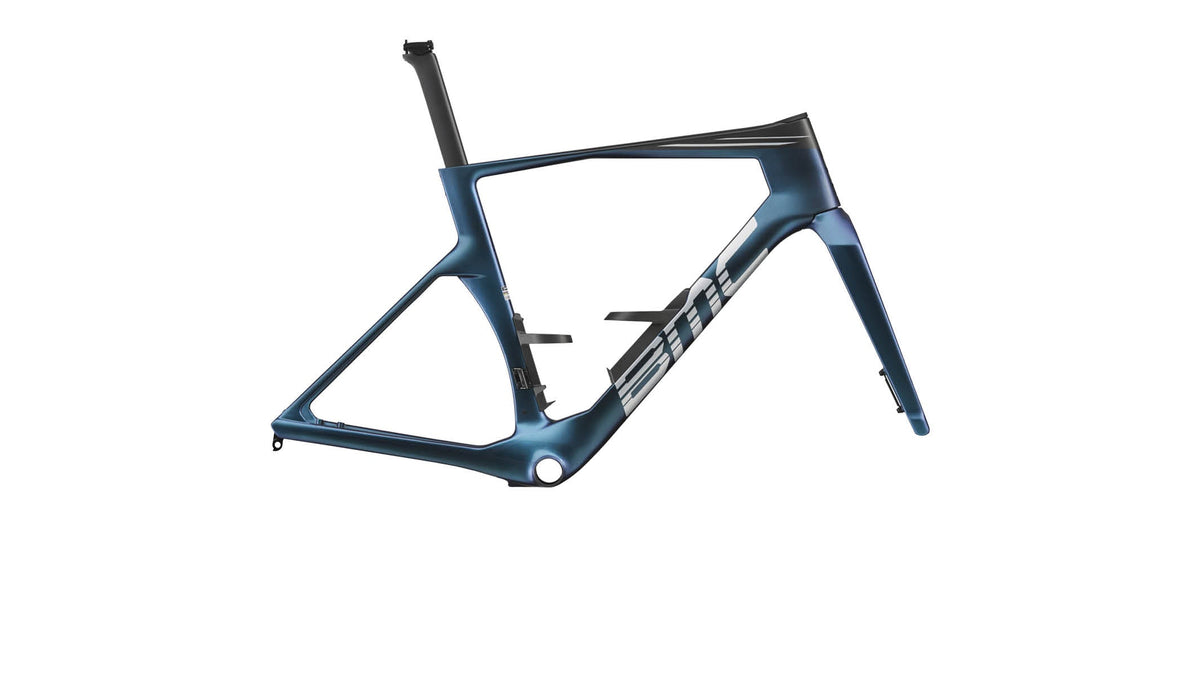

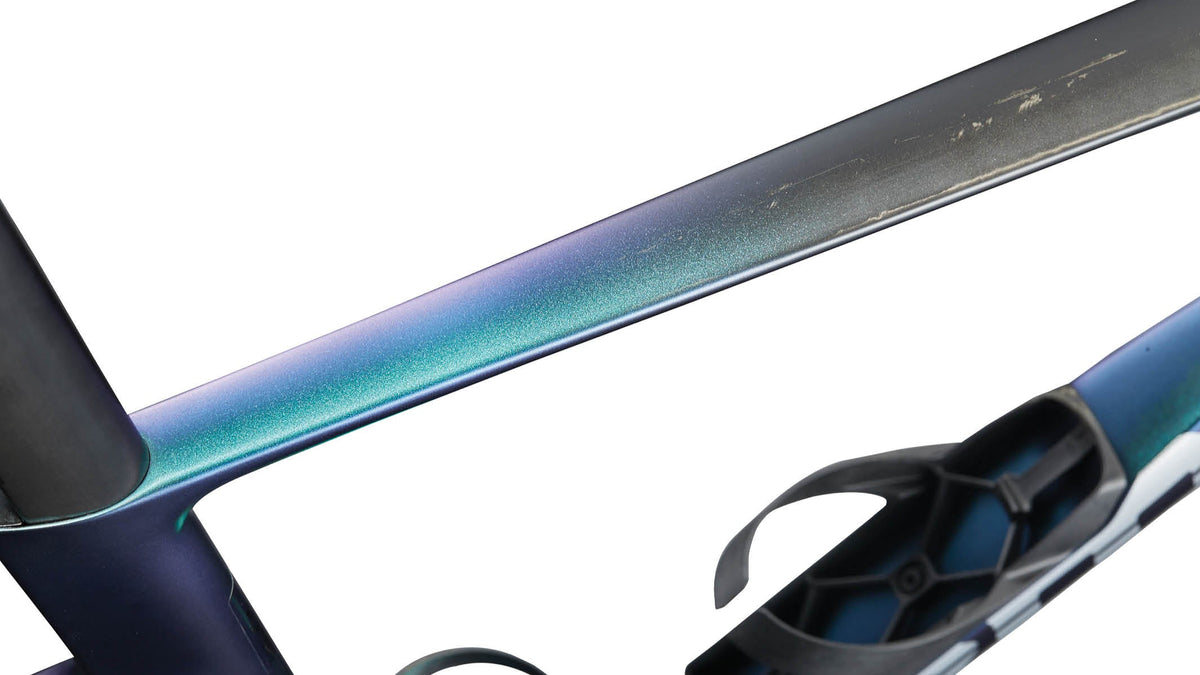

  • 2027 BMC Teammachine R 01 Frameset: Chameleon Petrol / Carbon / 61: SKU: 30008124 - UPC: 7630906535257
