Mondraker presents Anark and Kaoz, two completely different bikes that share one thing in common: the freedom and simplicity of riding bikes.
The campaign is structured as a two-round contest in which freeride and dirt jump go head-to-head in a duel fuelled with style, attitude and adrenaline. Inspired by the tension and aesthetics of a boxing ring, the narrative centres on a symbolic showdown between Sam Hockenhull and Sergio Layos, taking each rider out of their comfort zone to challenge the other in their own discipline.

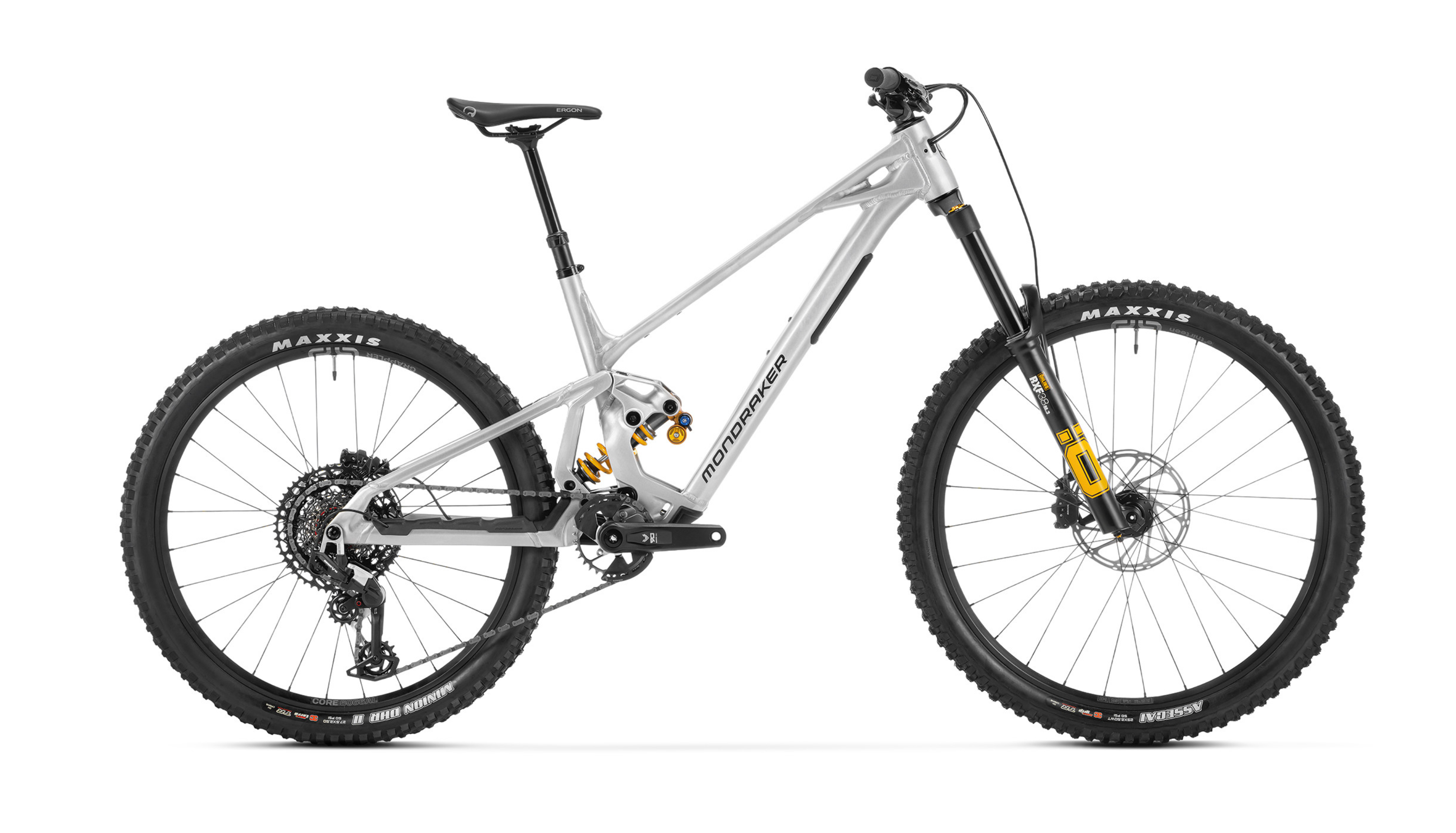

Get into your Shred State with ANARK.
Inspired by Summum, the new ANARK takes suspension capabilities and handling precision and combines them with the durability and rounded performance needed outside of the race tape. The result is a bike that you can still pedal uphill anywhere, anytime, but that really shines when the trail is pointing down.
Although ANARK can mix it up with race bikes, it really comes to life on uplift days or slamming in party laps in the bike park. Because it is not always about the sharpest lines to find milliseconds. Sometimes it is about turning the trail into a playground.
About going the long way round to hit that natural kicker on the edge of the trail. About jumping higher and going sideways. About speed for the thrill, rather than for the prize.
Full aluminium frame construction; the latest ZERO suspension kinematics and a mullet wheel size layout are designed for all-out hammering - yet ANARK still maintains a precise and playful ride that echoes back to its roots.
Find your flow in the rough; massage contours for speed; carve up those lips. And then do it all again.
The suspension kinematics inherited from SUMMUM combined with the responsiveness of ZENDIT - but in a lighter platform - give ANARK an unbeatable feel for bike park sessions and all-out riding days on the trails.
Next-level kinematic performance delivers a more sensitive initial stroke for maximum grip and a stable, planted feel built to handle aggressive riding at speed.
ANARK is more than just a mini Summum - it’s a perfect vessel for tackling all aggressive terrain, where fun is the priority.
-
Frame
Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Sizes
S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm
-
Rear shock
Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs
-
Fork
Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
-
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
-
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
-
Saddle
Ergon Enduro SPS20
Front brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
-
Rear brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
-
Rims
e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
-
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
-
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead
-
Crankset
Sram 90 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55
Rings
32T, Alloy, T-type
-
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
-
Rear derrailleur
Sram 90 Eagle, T-Type, 12s
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
-
Casette
Sram XS-1270, 10-52T, 12s
Weight
39,5 lbs
| Frame size | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 583 mm | 603 mm | 625 mm | 647 mm | 669 mm |
| C | Bottom bracket drop | -10 mm | -10 mm | -10 mm | -10 mm | -10 mm |
| D | Bottom bracket height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| E | Chainstay length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| H | Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| J | Wheelbase | 1241 mm | 1261 mm | 1285 mm | 1310 mm | 1334 mm |
| K | Headtube length | 110 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| L | Reach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| M | Stack | 644 mm | 644 mm | 653 mm | 662 mm | 671 mm |
Product Variants SKU/UPC
- 2027 Mondraker Anark XR: Raw Aluminum / SM: SKU: MO-010-26US079 - UPC: 8435803009776
- 2027 Mondraker Anark XR: Raw Aluminum / MD: SKU: MO-010-26US080 - UPC: 8435803009783
- 2027 Mondraker Anark XR: Raw Aluminum / M/L: SKU: MO-010-26US081 - UPC: 8435803009790
- 2027 Mondraker Anark XR: Raw Aluminum / LG: SKU: MO-010-26US082 - UPC: 8435803009806
- 2027 Mondraker Anark XR: Raw Aluminum / XL: SKU: MO-010-26US083 - UPC: 8435803009813
