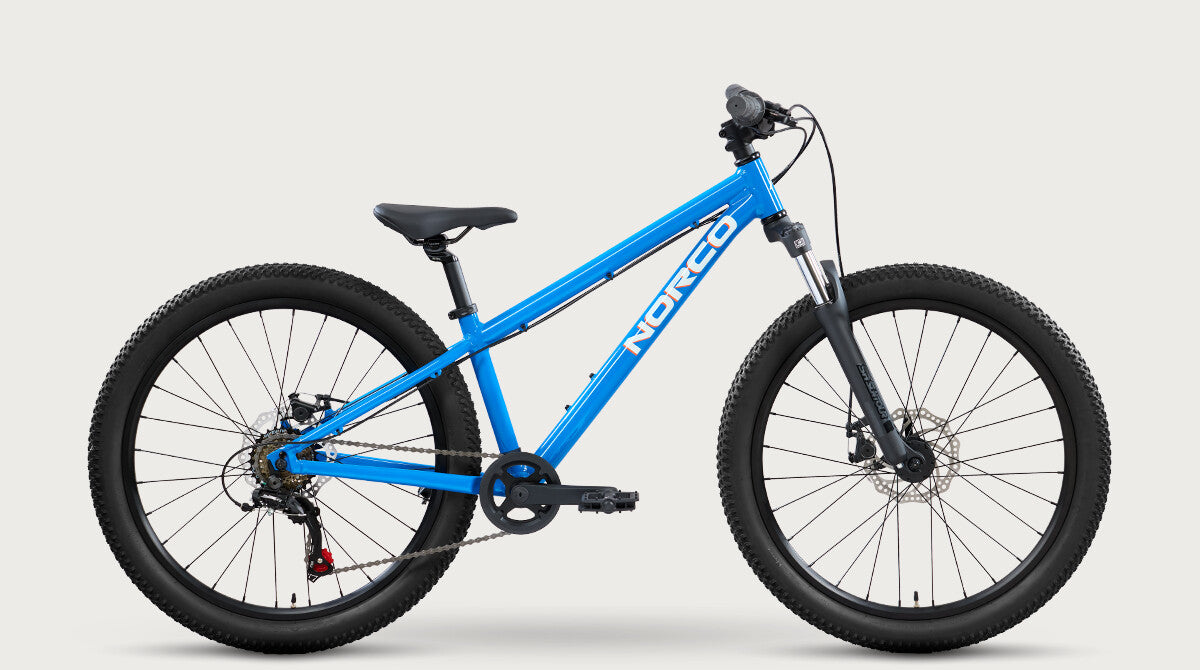

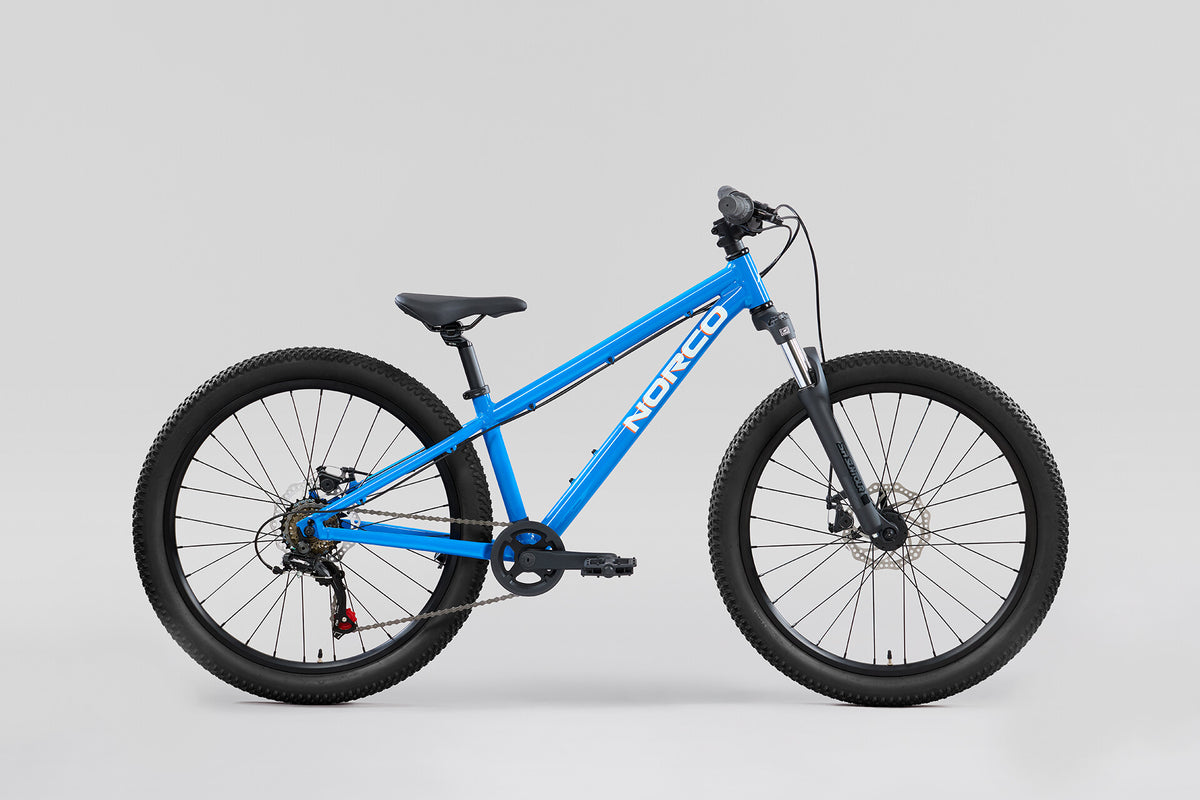

2027 Norco Storm 24

By Norco
$679.00 CAD
1240217454
Color: Blue
View details
Description

The durable and lightweight Storm 24 provides simple upkeep and operation to help young riders find the best line and stop on a dime.

Technical Specifications
Frameset

Fork

Sr Suntour XCT Coil w/Soft Spring and Preload, 80mm, 9x100mm QR

Drivetrain

Rear Shifter

Shimano SL-RV200-6R, 6sp, gripshift

Rear Derailleur

Shimano TZ-500, 6sp, Direct mount

Crankset

Alloy 3pc, 140mm, 28T Narrow Wide

Bottom Bracket

Sealed Bearing , ST 68mm

Cassette

Shimano MF-TZ500-6, 14T-28T, 6sp, Freewheel

Chain

KMC Z6

Brakes

Front Brake

C-Star, resin Pads, Mechanical Disc

Front Brake Rotor

160mm, 6-Bolt

Rear Brake

C-Star, resin Pads, Mechanical Disc

Rear Brake Rotor

160mm, 6-Bolt

Brake Levers

C-Star Alloy Jr. levers w/reach adjust

Components

Handlebar

Alloy Jr. Riser, 640mm, 30mm Rise

Stem

Alloy 45mm Length, 31.8mm Clamp

Seatpost

Norco Alloy 27.2mm, 250mm

Headset

External Cup Ball Bearing, 1-1/8" EC 34

Saddle

Norco Jr XC, Steel Rail

Grips

Norco Youth , 115mm Length

Pedals

Jr. MTB Flat, 9/16

Seatpost Clamp

Norco Alloy Boled, 31.8mm ID

Wheels

Front Hub

Formula DC-1420, 9x100mm QR, 28h, 6-bolt

Rear Hub

Formula XDS-2003, 9x135mm QR, Freewheel, 28h, 6-bolt

Rims

Aluminum DW, 28h, 24" MTB

Front Tire

CY Trail, 24x2.25, Wire

Rear Tire

CY Trail, 24x2.25, Wire

Geometry
Wheel Size 24"
Reach 360
Stack 484
Head Tube Angle 67.5
Seat Tube Length 305
Effective Seat Tube Angle 71
Rear Centre Length 385
Bottom Bracket Drop 47
Bottom Bracket Height 260
Horizontal Top Tube 527
Wheelbase 967
Head Tube Length 108
Crank Length 152
Product Variants SKU/UPC
  • 2027 Norco Storm 24: Blue / : SKU: 1240217454 - UPC: 058817774157
  • 2027 Norco Storm 24: Peach / : SKU: 1240227454 - UPC: 058817774195
