Product Variants SKU/UPC
- AIMA Big Sur Sport 26" E-Bike: Matte Black / SM: SKU: 930001-01-S - UPC:
- AIMA Big Sur Sport 26" E-Bike: Matte Black / MD: SKU: 930001-01-M - UPC:

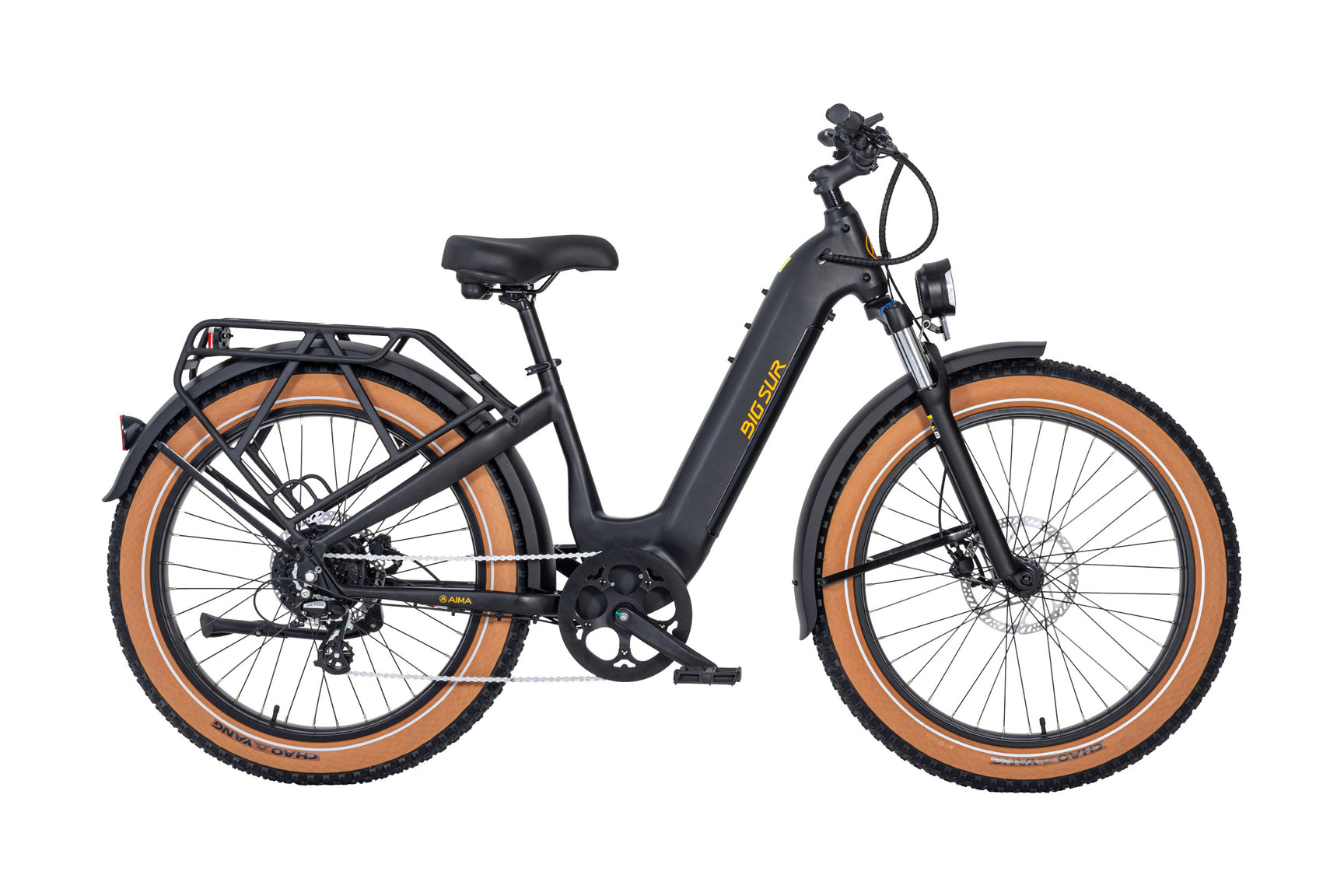

Big Sur is a 26 x 4” fat tire all-terrain e-bike, equipped with a powerful 750W Bafang rear hub motor. A specially-designed big headlight, extra-large 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification make Big Sur one of the safest e-bikes on the market. Sporting a bigger 52T crankset for stability at speed and a custom AIMA Comfort XL seat, Big Sur provides riders with a remarkably comfortable and smooth riding experience.
MODEL
Big Sur
MOTOR
750W, 48V Brushless Rear Hub Motor
THROTTLE
Throttle on Demand
DISPLAY
Color LCD, Smart Easy-to-Read Display with Backlight
SPEED
Up to 20 MPH Pedal Assist, 20 MPH Throttle
BATTERY
Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells
REAR RACK
MIK HD
SENSOR
Torque Sensor
PEDAL ASSIST
5 PAS Levels
CHARGER
48V 3 Amp Fast Charger, about 5 Hours to a Full Charge
RANGE
30 to 60 Miles
FRAME
6061 Single-Butted Aluminum Alloy Frame with Internal Battery
WEIGHT
82 lbs. (Battery included)
PEDALS
9/16" Alloy Platform
FORK
Suspension Fork, 80mm travel, lockout
WEIGHT LIMIT
400 lbs.
KICKSTAND
Aluminum Alloy Kickstand
CRANKSET
170mm w/ 52T Chainring
SHIFTER
Shimano 8 Speed
CASSETTE
8 Speed, 11-34T
BRAKES
Tektro Hydraulic Disc Brakes, 203 mm Rotors
CHAIN
130 Link, 8 Speed
RIM
Double Wall Aluminum Alloy
SPOKES
Black Stainless 12G Front / 12G Rear
TUBES
Butyl Rubber
HUBS
Front Aluminum Alloy Disc Hub
TIRES
26" x 4"
SADDLE
AIMA Comfort, 280mm*270mm Saddle
SEATPOST
Aluminum Alloy, 30.4mm 2-Bolt Clamp
STEM
Threadless, 31.8mm, 7° Rise, 75mm Length
SEAT CLAMP
34.9mm Quick Release
HANDLEBARS
Aluminum Alloy Double Wall, 31.8mm, 680mm
HEADSET
Sealed Bearing Headset
GRIPS
Ergonomic Comfort
