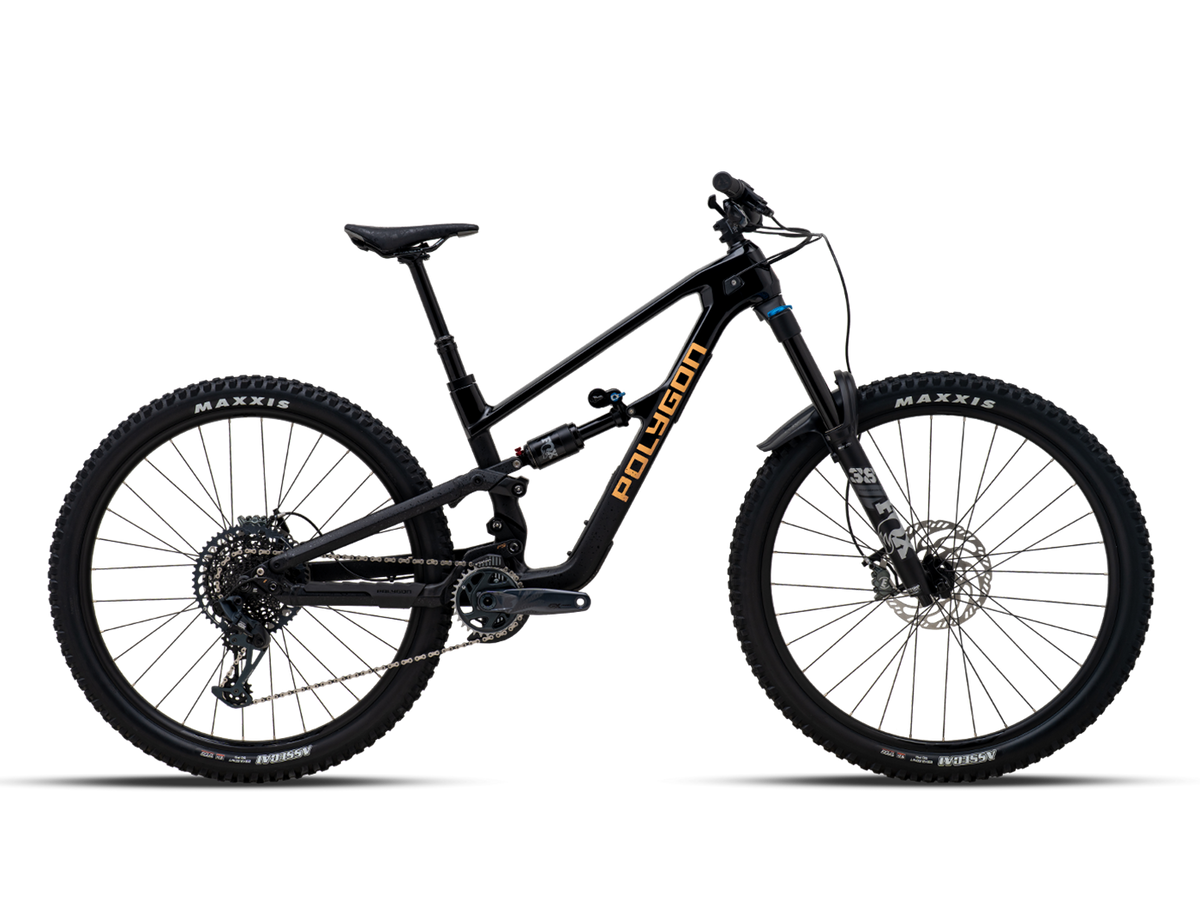

2026 Polygon Collosus N8 CB

By Polygon
$5,699.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503354001
Color: Black
Size
View details
Description

COLLOSUS N: Enduro, Evolved. Built for Racing, Refined for Riding

Enduro | 170mm Travel | ACX Carbon & ALX Alloy | 29" Wheels

The Polygon COLLOSUS N is our ultimate enduro mountain bike. Developed over two seasons by the PFR team on the EDR circuit, we've refined every detail and link to ensure this long-travel MTB climbs efficiently and descends with total authority. At the heart of the COLLOSUS N is our Independent Floating Suspension (IFS) 6-bar platform, designed to separate braking forces from suspension movement. Combined with a metric shock and modern geometry, our flip-chip dropouts allow you to switch seamlessly between the raw speed of a full 29er or the flickable handling of a mullet setup.
Technical Specifications

Frameset

  • Frameset: ACX & ALX ENDURO 170mm TRAVEL
  • Fork: FOX 38 FLOAT PERFORMANCE, 170mm TRAVEL
  • Rear Shock: FOX FLOAT X2, E2E: 230x65mm
  • Size: S, M, L, XL
  • Frame Color: SOLID BLACK
  • Decal Color: BRUSHED GOLD

Drivetrain

  • Shifter: SRAM GX SL-GX-1-A2, 1x12-SPEED TRIGGER
  • Crank: SRAM GX EAGLE, 32T
  • Cassette: SRAM GX EAGLE XG 1275 10-52T
  • Rear Derailleur: SRAM GX EAGLE GX-1-B2
  • BB: SRAM DUB BSA THREADED
  • Chain: SRAM GX EAGLE
  • Pedal: ALLOY FLAT W/ REPLACEABLE PIN

Cockpit

  • Saddle: LINC XTENT, CR-MO ø7mm
  • Seatpost: TRANZ X JD-YSP39KL, 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)
  • Handlebar: RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
  • Handlestem: RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree
  • Headset: FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: POLYGON MT6 TUBELESS READY
  • Wheel Size: 29"
  • Tire: MAXXIS ASSEGAI 29"x2.5" (622-63)
  • Rim: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY
  • Hub: F: NOVATEC D791SB BOOST 15x110mm 32H 6B / R: NOVATEC D462SB BOOST 12x148mm 32H 6B FOR XD
  • Spokes: F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: MAGURA MT7 W/ HC3 LEVER
  • Brake Caliper: MAGURA MT7 HYDRAULIC DISC
  • Rotor: MAGURA MDR-C, 203mm 6B
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 70 70 70 70
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 100 105 110 120
Head Tube Angle (E) 63.5 63.5 63.5 63.5
Effective Top Tube (F) 583.6 604.6 626.4 647.7
Bb Height (G) 353 353 353 353
Bb Offset (H) 27 27 27 27
Chainstay Length (I) 435 435 435 435
Wheelbase (J) 1221.7 1244 1266.2 1290.7
Frame Reach (K) 440 460 480 500
Frame Stack (L) 625.5 630 634.5 643.4
Standover Height (M) 710 716 717 720
Seatpost Insertion Depth 225 235 250 265
Product Variants SKU/UPC
  • 2026 Polygon Collosus N8 CB: Black / SM: SKU: 503354001 - UPC:
  • 2026 Polygon Collosus N8 CB: Black / MD: SKU: 503354002 - UPC:
  • 2026 Polygon Collosus N8 CB: Black / LG: SKU: 503354003 - UPC:
  • 2026 Polygon Collosus N8 CB: Black / XL: SKU: 503354004 - UPC:
