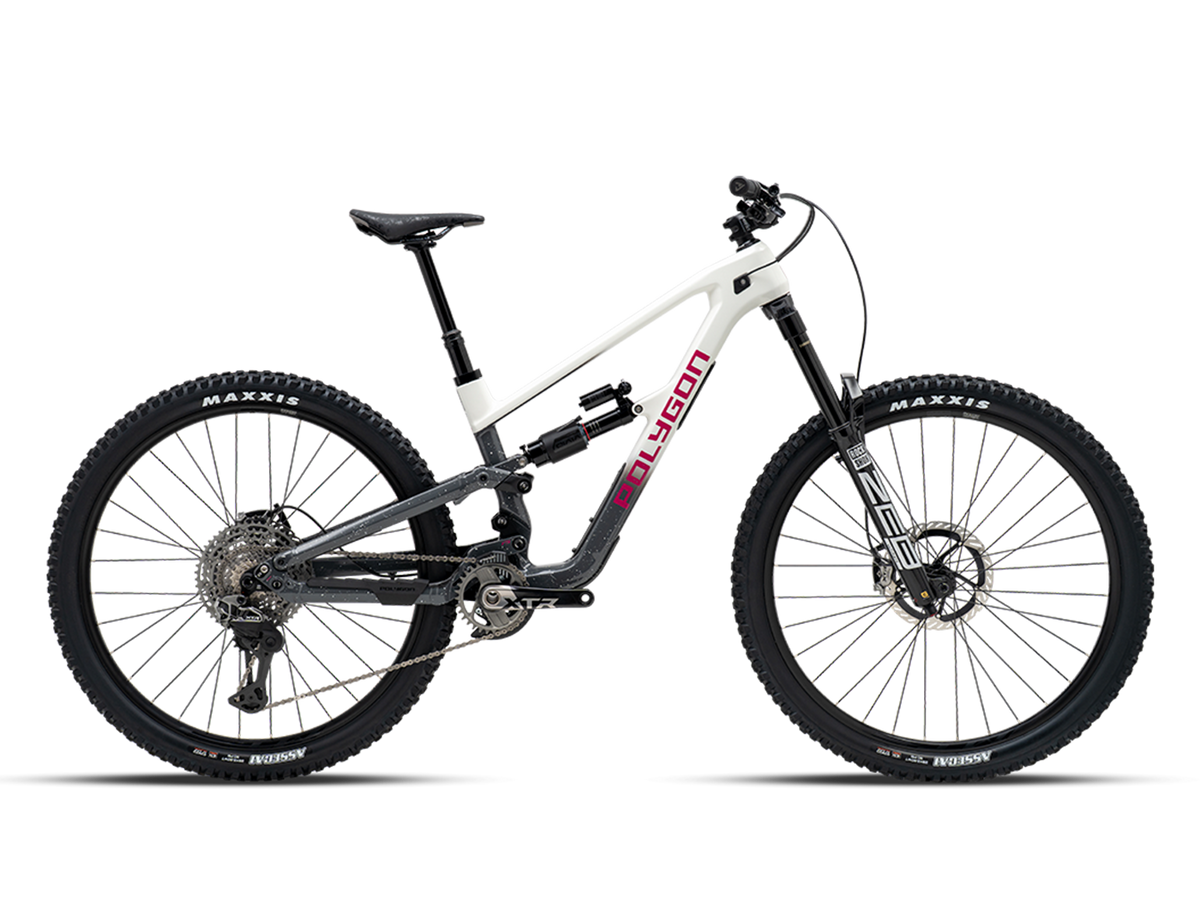

2026 Polygon Collosus N9 Di2 CB

By Polygon
$7,699.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503352001
Color: White
Size
View details
Description

COLLOSUS N: Enduro, Evolved. Built for Racing, Refined for Riding

Enduro | 170mm Travel | ACX Carbon & ALX Alloy | 29" Wheels

The Polygon COLLOSUS N is our ultimate enduro mountain bike. Developed over two seasons by the PFR team on the EDR circuit, we've refined every detail and link to ensure this long-travel MTB climbs efficiently and descends with total authority. At the heart of the COLLOSUS N is our Independent Floating Suspension (IFS) 6-bar platform, designed to separate braking forces from suspension movement. Combined with a metric shock and modern geometry, our flip-chip dropouts allow you to switch seamlessly between the raw speed of a full 29er or the flickable handling of a mullet setup.
Technical Specifications

Frameset

  • Frameset: ACX & ALX ENDURO 170mm TRAVEL
  • Fork: ROCKSHOX ZEB ULTIMATE, 170mm TRAVEL
  • Rear Shock: ROCKSHOX VIVID SELECT+, E2E: 230x65mm
  • Size: S, M, L, XL
  • Frame Color: OFF WHITE GREY
  • Decal Color: BURGUNDY BLACK

Drivetrain

  • Shifter: SHIMANO XTR DI2 SW-M9250 I-SPEC EV, 1x12-SPEED
  • Crank: SHIMANO XTR FC-M9220, 32T
  • Cassette: SHIMANO XTR CS-M9200 10-51T
  • Rear Derailleur: SHIMANO XTR DI2 RD-M9250
  • BB: SHIMANO SM-BB93
  • Chain: SHIMANO XTR CN-M9100
  • Pedal: ALLOY FLAT W/ REPLACEABLE PIN

Cockpit

  • Saddle: LINC XTENT
  • Seatpost: TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)
  • Handlebar: RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
  • Handlestem: RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree
  • Headset: FSA NO.57E W/ SEALED BEARING ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: POLYGON MT6 TUBELESS READY
  • Wheel Size: 29"
  • Tire: MAXXIS ASSEGAI 29"x2.5" (622-63)
  • Rim: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY
  • Hub: F: SHIMANO XT HB-M8110-B BOOST 15x110mm 32H CL / R: SHIMANO DEORE XT FH-M8110-B BOOST 12x148mm 32H CL FOR MICRO SPLINE
  • Spokes: F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: SHIMANO XTR BL-M9220
  • Brake Caliper: SHIMANO XTR BL-M9220
  • Rotor: SHIMANO CL-900, 203mm
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 70 70 70 70
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 100 105 110 120
Head Tube Angle (E) 63.5 63.5 63.5 63.5
Effective Top Tube (F) 583.6 604.6 626.4 646.7
Bb Height (G) 353 353 353 353
Bb Offset (H) 27 27 27 27
Chainstay Length (I) 435 435 434 435
Wheelbase (J) 1221.7 1244 1266.2 1290.7
Frame Reach (K) 440 460 480 500
Frame Stack (L) 625.5 630 634.5 643.4
Standover Height (M) 710 716 717 720
Seatpost Insertion Depth 225 235 250 265
Product Variants SKU/UPC
  • 2026 Polygon Collosus N9 Di2 CB: White / SM: SKU: 503352001 - UPC:
  • 2026 Polygon Collosus N9 Di2 CB: White / MD: SKU: 503352002 - UPC:
  • 2026 Polygon Collosus N9 Di2 CB: White / LG: SKU: 503352003 - UPC:
  • 2026 Polygon Collosus N9 Di2 CB: White / XL: SKU: 503352004 - UPC:
