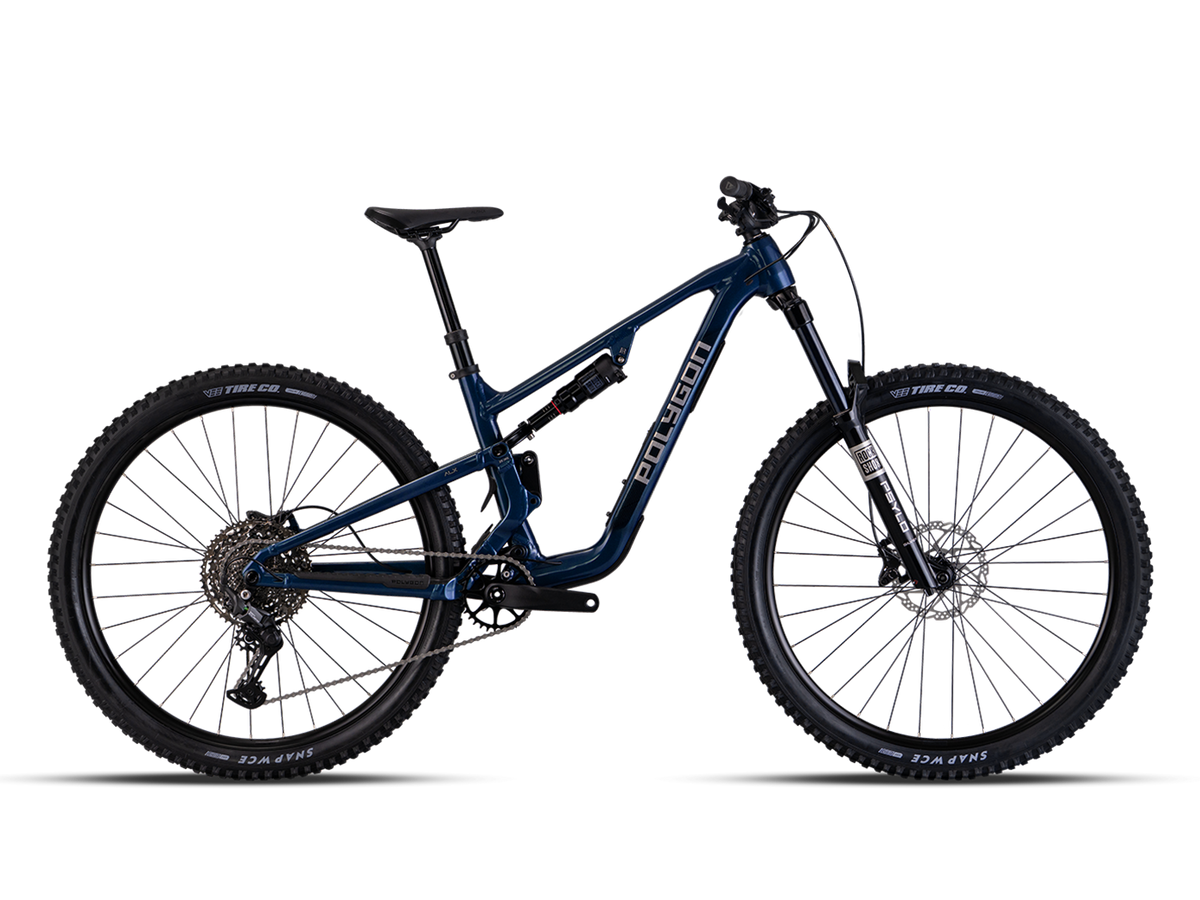

2026 Polygon Collosus T5

By Polygon
$2,499.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503685001
Color: Blue
Size
View details
Description

COLLOSUS T: Modern Trail Bike Design

Trail | 160mm/140mm Travel | ALX Alloy | 29" or MX Wheels

Meet your match with the new COLLOSUS T Series. Sitting between the trail orientated SISKIU T, and the enduro focused COLLOSUS N, it's an aggressive trail platform that fills the gap. Now available in ACX carbon and ALX alloy - making it accessible to more riders than ever before
Technical Specifications

Frameset

  • Frameset: ALX TRAIL
  • Fork: ROCKSHOX PSYLO SILVER RC 160mm
  • Rear Shock: ROCKSHOX DELUXE SELECT, E2E: 210x55mm
  • Size: S, M, L, XL

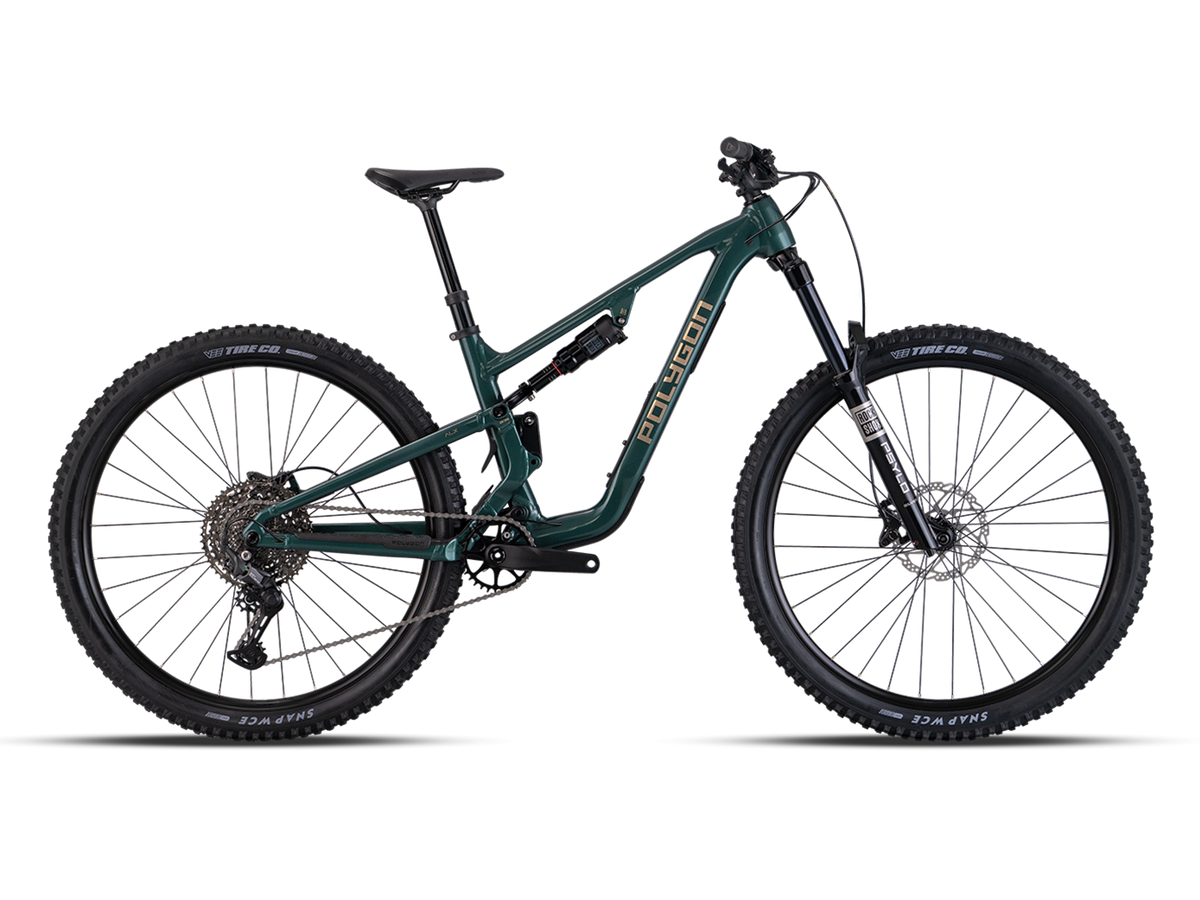

  • Frame Color: GREEN / BLUE
  • Decal Color: BROWN / SILVER

Drivetrain

  • Shifter: SHIMANO CUES SL-U6000-11R, 11-SPEED TRIGGER
  • Crank: SAMOX RAC61C CL55, 32T
  • Cassette: SHIMANO CUES CS-LG400-11, 11-50T
  • Rear Derailleur: SHIMANO CUES RD-U6000-GS DIRECT ATTACH
  • BB: SAMOX EB2401C BSA THREADED 73mm
  • Chain: KMC XGLIDE
  • Pedal: ALLOY FLAT PEDAL W/ REPLACEABLE PIN & REFLECTOR

Cockpit

  • Saddle: FIZIK TERRA ALPACA X5
  • Seatpost: DROPPER POST XFUSION MANIC LC 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 432mm (S, M) / 474mm (L, XL)
  • Handlebar: POLYGON XPERT, W: 780mm, BB: 35mm, R/D: 30mm, B: 9degree
  • Handlestem: POLYGON XPERT, E: 35mm, BB: 35mm, R/D: 0degree
  • Headset: FSA NO.76 ALLOY TOP COVER, THREADLESS, ZS 51/28.6 | ZS 59/40

Wheel & Tire

  • Wheel Set: POLYGON MT6 TUBELESS READY
  • Tire: VEE SNAP WCE 29"x2.35"
  • Rim: ALLOY DOUBLE WALL H: 18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL READY
  • Hub: F: SHIMANO HB-TC-500 BOOST 15x110mm 32H CL, R: SHIMANO FH-TC500 BOOST 12x148mm 32H CL FOR SPROCKET
  • Spokes: F: 14G STAINLESS NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE, R: 14G STAINLESS NDS:292mm DS:290mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: SHIMANO BL-M4100
  • Brake Caliper: SHIMANO MT420 HYDRAULIC DISC
  • Rotor: SHIMANO SM-RT54, 180mm CL
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 71 71 71 71
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 90 95 105 120
Head Tube Angle (E) 64.5 64.5 64.5 64.5
Effective Top Tube (F) 572 598 621 646
Bb Height (G) 338 338 338 338
Bb Offset (H) 38 38 38 38
Chainstay Length (I) 430 430 435 435
Wheelbase (J) 1192 1219 1248 1274
Frame Reach (K) 440 465 485 505
Frame Stack (L) 613 618 627 640
Standover Height (M) 706 713 720 718
Seatpost Insertion Depth 220 230 240 255
Product Variants SKU/UPC
  • 2026 Polygon Collosus T5: Green / SM: SKU: 503684001 - UPC:
  • 2026 Polygon Collosus T5: Green / MD: SKU: 503684002 - UPC:
  • 2026 Polygon Collosus T5: Green / LG: SKU: 503684003 - UPC:
  • 2026 Polygon Collosus T5: Green / XL: SKU: 503684004 - UPC:
  • 2026 Polygon Collosus T5: Blue / SM: SKU: 503685001 - UPC:
  • 2026 Polygon Collosus T5: Blue / MD: SKU: 503685002 - UPC:
  • 2026 Polygon Collosus T5: Blue / LG: SKU: 503685003 - UPC:
  • 2026 Polygon Collosus T5: Blue / XL: SKU: 503685004 - UPC:
