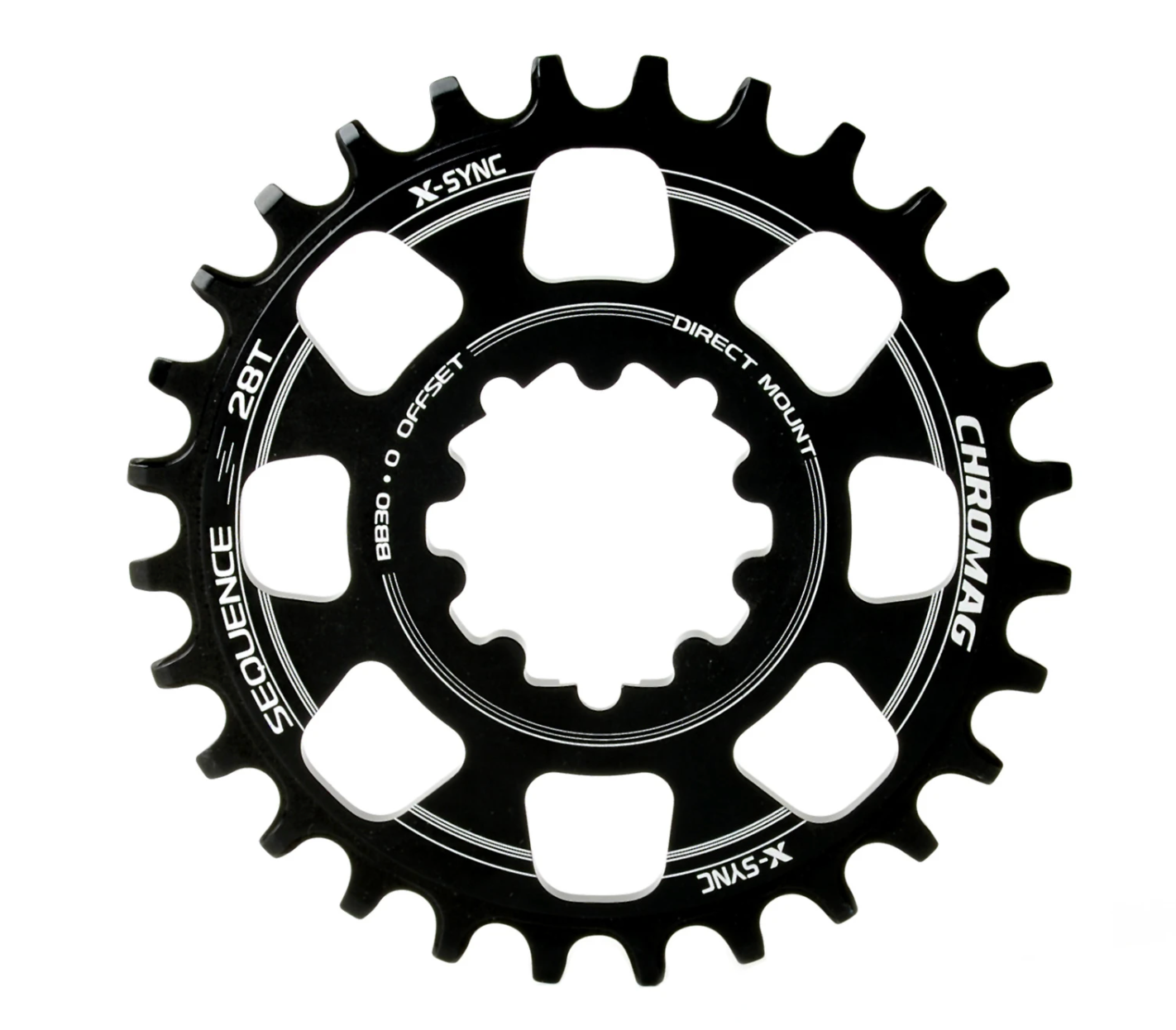

Chromag Sequence Chainring BB30

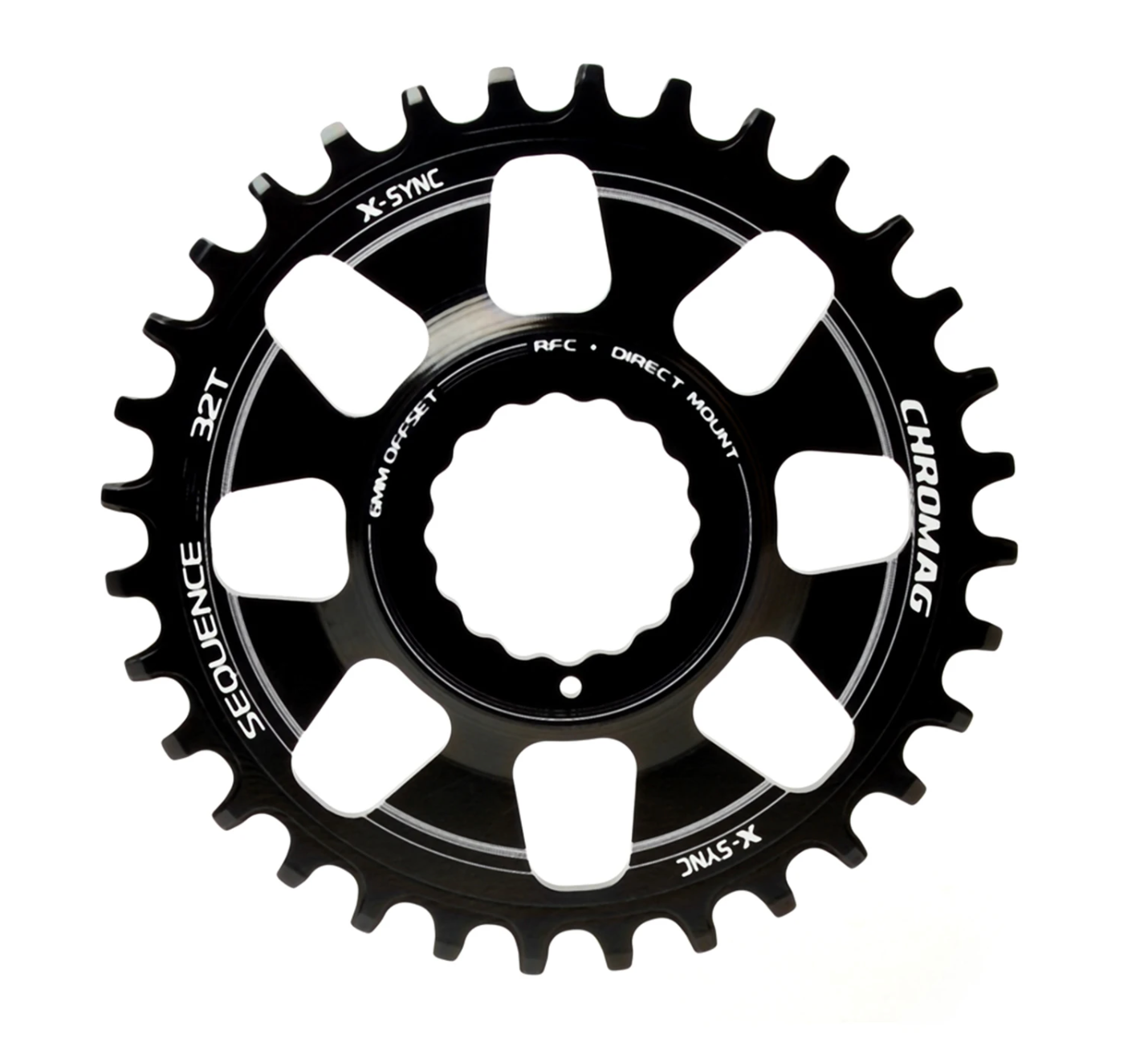

Chromag Sequence Chainring RFC

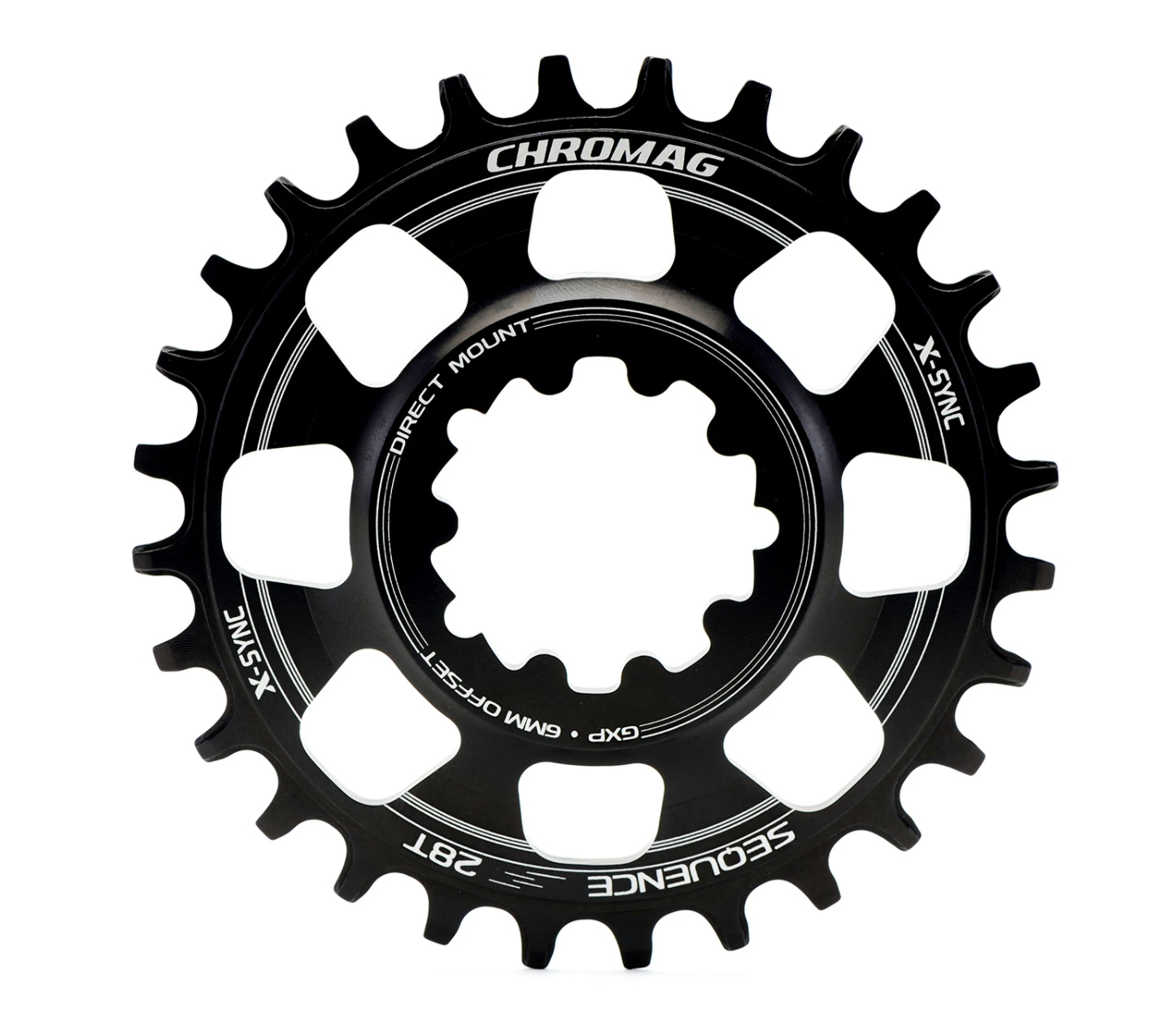

Chromag Sequence Chainring GXP

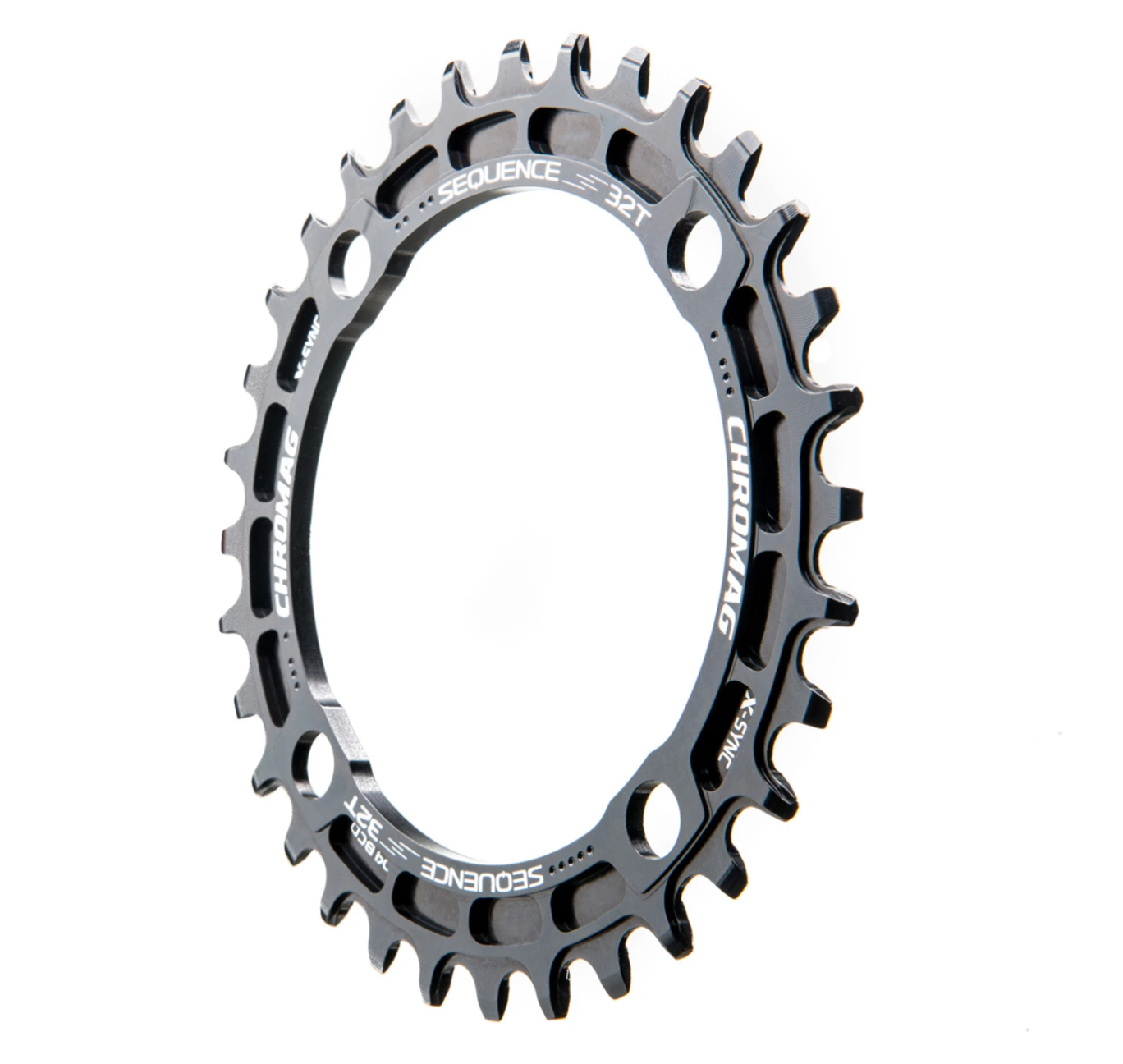

Chromag Sequence Chainring 104

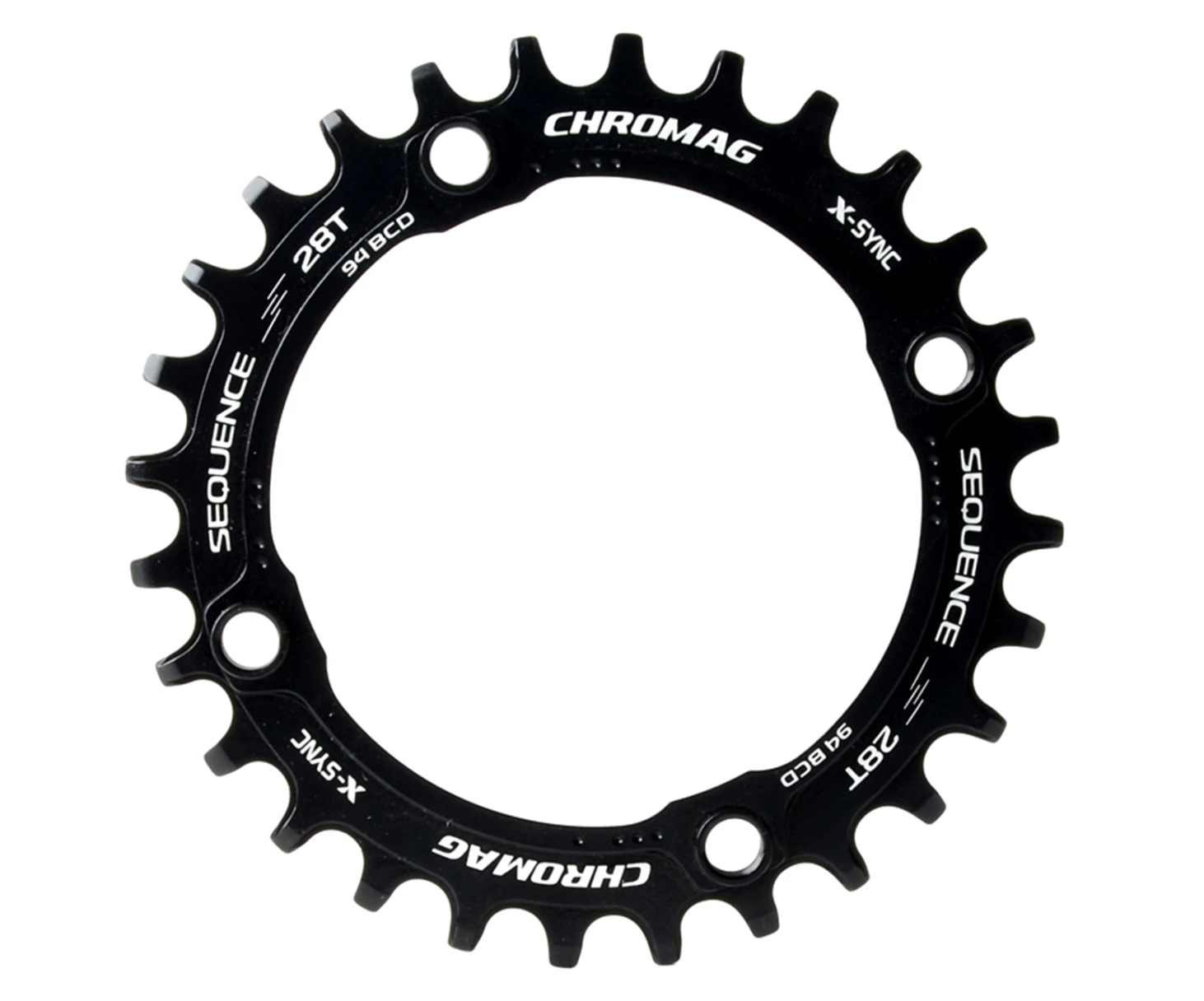

Chromag Sequence Chainring 94

Chromag Sequence X-Sync Chainring

By Chromag
$80.00 CAD
SKU: CR151-001-002
Mount Type
Tooth Count
View details

The Sequence chainring uses the official X-SYNC technology licensed from SRAM for unmatched chain retention. Chromag is the only mtb company officially authorized to produce chainrings with X-SYNC Technology. So now, no matter what kind of mountain bike you have, you can have the peace of mind that your chain will stay put, and you can give your bike a little extra flair with the timeless Chromag styling.



MOUNT STYLE OFFSET COMPATIBILITY INDICATION
104 BCD Cranks with 4 bolts with 104mm diameter-spacing      N/A Sram, Shimano, Raceface and others made around 2000-2014 Measure distance across opposite chainring tab-holes
Look for spec info on your current crank or ring
94 BCD Cranks with 4 bolts with 94mm diameter-spacing      N/A Sram cranks after 2013 Measure distance across opposite chainring tab-holes
Look for spec info on your current crank or ring
Direct Mount
SRAM GXP		 Sram cranks with direct mount spider - using GXP BB     6mm XX1, X01, X9, X7, S2210, S1400, GX, NX Look for direct mount interface with 3 bolts on inside of spider Look for GXP logo on the crank
Direct Mount
SRAM Boost		 Sram cranks with direct mount spider - using boost spacing     3mm XX1, X01, GX, NX Look for boost logo or 3mm offset on inside of chainring
Direct Mount
SRAM BB30		 Sram cranks with direct mount spider - using BB-30 BB     0mm XX1, X01, X9, X7, S2210, S1400, GX, NX Look for direct mount interface with 3 bolts on inside of spider, look for BB30 logo on the crank
RFC RaceFace cranks with cinch system     6mm NEXT SL, Six C, Turbine, fatbike Look for cinch logo on the crank



  • Official SRAM X-SYNC technology. Complies with SRAM warranty standards for compatibility with all SRAM X-SYNC drivetrain.
  • Chamfered mud-clearing recesses at the base of the teeth provide the best possible performance in muddy conditions.
  • CNC Machined from 7075T6 aluminum for the best durability.
  • Available for 104/94 BCD crank spider patterns and Direct Mount options.
  • 7075-T6 aluminum
  • Anodized Black with laser etch
  • CNC machined in Whistler, BC.
  • 30/32/34/36 tooth (104 BCD)
  • 28/30 tooth (94 BCD)
  • 28/30/32 tooth (Direct Mount RFC)
  • 28/30/32 tooth (Direct Mount GXP)
  • 28/30 tooth (Direct Mount BB30)
  • 28/30/32 tooth (Direct Mount Boost)
  • 104 BCD is the most popular crank arm spacing design (refer to manufacturers specifications to check for compatibility).
  • Direct mount rings work with SRAM S1400, S2200, S2210, X9 XO and XX1 crank arms.
  • Direct Mount Sequence rings are available for with GXP and BB30 bottom brackets as well as Race Face Cinch cranks.



  • Official SRAM X-SYNC technology. Complies with SRAM warranty standards for compatibility with all SRAM X-SYNC drivetrain.
  • Chamfered mud-clearing recesses at the base of the teeth provide the best possible performance in muddy conditions.
  • CNC Machined from 7075T6 aluminum for the best durability.
  • Available for 104/94 BCD crank spider patterns and Direct Mount options.
  • 7075-T6 aluminum
  • Anodized Black with laser etch
  • CNC machined in Whistler, BC.
  • 30/32/34/36 tooth (104 BCD)
  • 28/30 tooth (94 BCD)
  • 28/30/32 tooth (Direct Mount RFC)
  • 28/30/32 tooth (Direct Mount GXP)
  • 28/30 tooth (Direct Mount BB30)
  • 28/30/32 tooth (Direct Mount Boost)
  • 104 BCD is the most popular crank arm spacing design (refer to manufacturers specifications to check for compatibility).
  • Direct mount rings work with SRAM S1400, S2200, S2210, X9 XO and XX1 crank arms.
  • Direct Mount Sequence rings are available for with GXP and BB30 bottom brackets as well as Race Face Cinch cranks.
Product Variants SKU/UPC
  • Chromag Sequence X-Sync Chainring: 104 / 30t: SKU: CR151-001-001 - UPC: 826974004628
  • Chromag Sequence X-Sync Chainring: 104 / 32t: SKU: CR151-001-002 - UPC: 826974004635
  • Chromag Sequence X-Sync Chainring: 104 / 34t: SKU: CR151-001-003 - UPC: 826974004642
  • Chromag Sequence X-Sync Chainring: 104 / 36t: SKU: CR151-001-004 - UPC: 826974005335
  • Chromag Sequence X-Sync Chainring: 94 / 30t: SKU: CR151-001-012 - UPC: 826974005427
  • Chromag Sequence X-Sync Chainring: BB30 / 30t: SKU: CR151-001-022 - UPC: 826974005441
  • Chromag Sequence X-Sync Chainring: BB30 / 28t: SKU: CR151-001-021 - UPC: 826974005434
  • Chromag Sequence X-Sync Chainring: Boost / 30t: SKU: CR151-001-052 - UPC: 826974009722
  • Chromag Sequence X-Sync Chainring: Boost / 32t: SKU: CR151-001-053 - UPC: 826974009739
  • Chromag Sequence X-Sync Chainring: Boost / 28t: SKU: CR151-001-051 - UPC: 826974009715
  • Chromag Sequence X-Sync Chainring: GXP / 30t: SKU: CR151-001-032 - UPC: 826974005021
  • Chromag Sequence X-Sync Chainring: GXP / 32t: SKU: CR151-001-033 - UPC: 826974005328
  • Chromag Sequence X-Sync Chainring: GXP / 28t: SKU: CR151-001-031 - UPC: 826974004659
  • Chromag Sequence X-Sync Chainring: Race Face / 30t: SKU: CR151-001-042 - UPC: 826974005878
  • Chromag Sequence X-Sync Chainring: Race Face / 32t: SKU: CR151-001-043 - UPC: 826974005885
  • Chromag Sequence X-Sync Chainring: Race Face / 28t: SKU: CR151-001-041 - UPC: 826974005861
  • Chromag Sequence X-Sync Chainring: Race Face Boost / 30t: SKU: CR151-001-062 - UPC: 826974023261
  • Chromag Sequence X-Sync Chainring: Race Face Boost / 28t: SKU: CR151-001-061 - UPC: 826974023254
