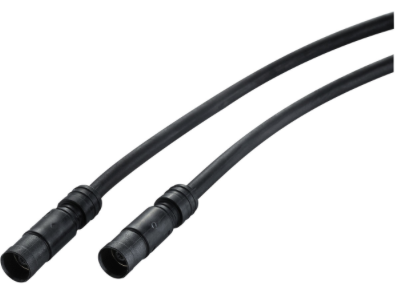

Shimano DI2 E-Tube Electric Wire
Shimano DI2 E-Tube Electric Wire
Shimano DI2 E-Tube Electric Wire

DI2 E-Tube Electric Wire

By Shimano
$37.49 CAD
SKU: IEWSD50L50
Size

This item is in stock at the warehouse, and may take an additional 3 to 10 business days to process before shipping.

View details

Super stress free operation, thanks to Di2 technology. Digital operation reduces the chance of human error and continuous durability. New designed thin electronic wire and connector E-tube transmits interactive signals and power supply to each parts Water-resistant connector Length: 150~1400mm



  • E-Tube wires, compatible with Di2 groups (except DA 7970) and STePS bikes
  • Compatible with both internal or external routing
  • 4 to 6 electric wires are required to complete the system, read below
  • Junction B to FD/JCT B to battery: 2 wires needed; suggested lengths: -01/300mm, -02/350mm or -03/400mm
  • JCT B to RD: 1 wire needed; suggested length: 600mm
  • JCT B to handlebar area with SM-EW90 Junction A: 1 wire needed; suggested length: 1000mm
  • Alternative: JCT B to handlebar area with internal EW-RS910 Jct A: 1 wire needed from Jct B to EW-JC200 2-port junction or EW-WU111 wireless module, suggested length 1000mm, plus 1 wire from EW-JC200/EW-WU111 to EW-RS910, suggested length from 400 to 600mm
  • SM-EW90 JCT A to shifters: 2 wires (1 per shifter), lengths from 300mm to 400mm, or 1 y-split EW-JC130 cable
  • Alternative: EW-RS910 JCT A to shifters: 1 y-split EW-JC130 cable
Product Variants SKU/UPC
  • DI2 E-Tube Electric Wire: 500MM / : SKU: IEWSD50L50 - UPC: 689228828124
  • DI2 E-Tube Electric Wire: 150MM / : SKU: IEWSD50L15 - UPC: 689228995697
  • DI2 E-Tube Electric Wire: 300MM / : SKU: IEWSD50L30 - UPC: 689228690127
  • DI2 E-Tube Electric Wire: 1000MM / : SKU: IEWSD50L100 - UPC: 689228690103
  • DI2 E-Tube Electric Wire: 750MM / : SKU: IEWSD50L75 - UPC: 689228828155
  • DI2 E-Tube Electric Wire: 1400MM / : SKU: IEWSD50L140 - UPC: 689228828056
  • DI2 E-Tube Electric Wire: 950MM / : SKU: IEWSD50L95 - UPC: 689228828179
  • DI2 E-Tube Electric Wire: 350MM / : SKU: IEWSD50L35 - UPC: 689228828087
  • DI2 E-Tube Electric Wire: 800MM / : SKU: IEWSD50L80 - UPC: 689228995680
  • DI2 E-Tube Electric Wire: 200MM / : SKU: IEWSD50L20 - UPC: 689228995659
  • DI2 E-Tube Electric Wire: 1200MM / : SKU: IEWSD50L120 - UPC: 689228834392
  • DI2 E-Tube Electric Wire: 650MM / : SKU: IEWSD50L65 - UPC: 689228828148
  • DI2 E-Tube Electric Wire: 250MM / : SKU: IEWSD50L25 - UPC: 689228946200
  • DI2 E-Tube Electric Wire: 600MM / : SKU: IEWSD50L60 - UPC: 689228690141
  • DI2 E-Tube Electric Wire: 1600MM / : SKU: IEWSD50L160 - UPC: 689228338555
  • DI2 E-Tube Electric Wire: 400MM / : SKU: IEWSD50L40 - UPC: 689228828094
  • DI2 E-Tube Electric Wire: 700MM / : SKU: IEWSD50L70 - UPC: 689228690165
  • DI2 E-Tube Electric Wire: 850MM / : SKU: IEWSD50L85 - UPC: 689228995666

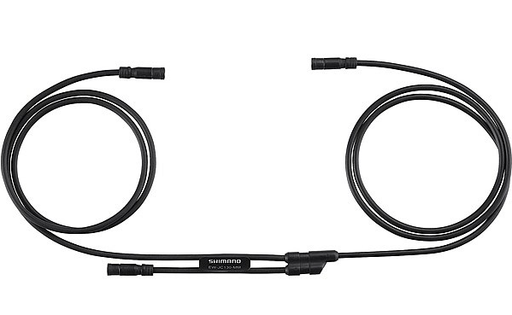

  • DI2 E-Tube Electric Wire: Y-Split M/M / : SKU: IEWJC130MM - UPC: 689228764170
  • DI2 E-Tube Electric Wire: 550MM / : SKU: IEWSD50L55 - UPC: 689228828131
  • DI2 E-Tube Electric Wire: Y-Split S/S / : SKU: IEWJC130SS - UPC: 689228764163
