2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV

By Santa Cruz
$8,549.00 CAD

This product is only available for in-store pickup.

In stock at supplier warehouse - Usually ships within 5 business days. More info

58-26290-414-2-909-003602

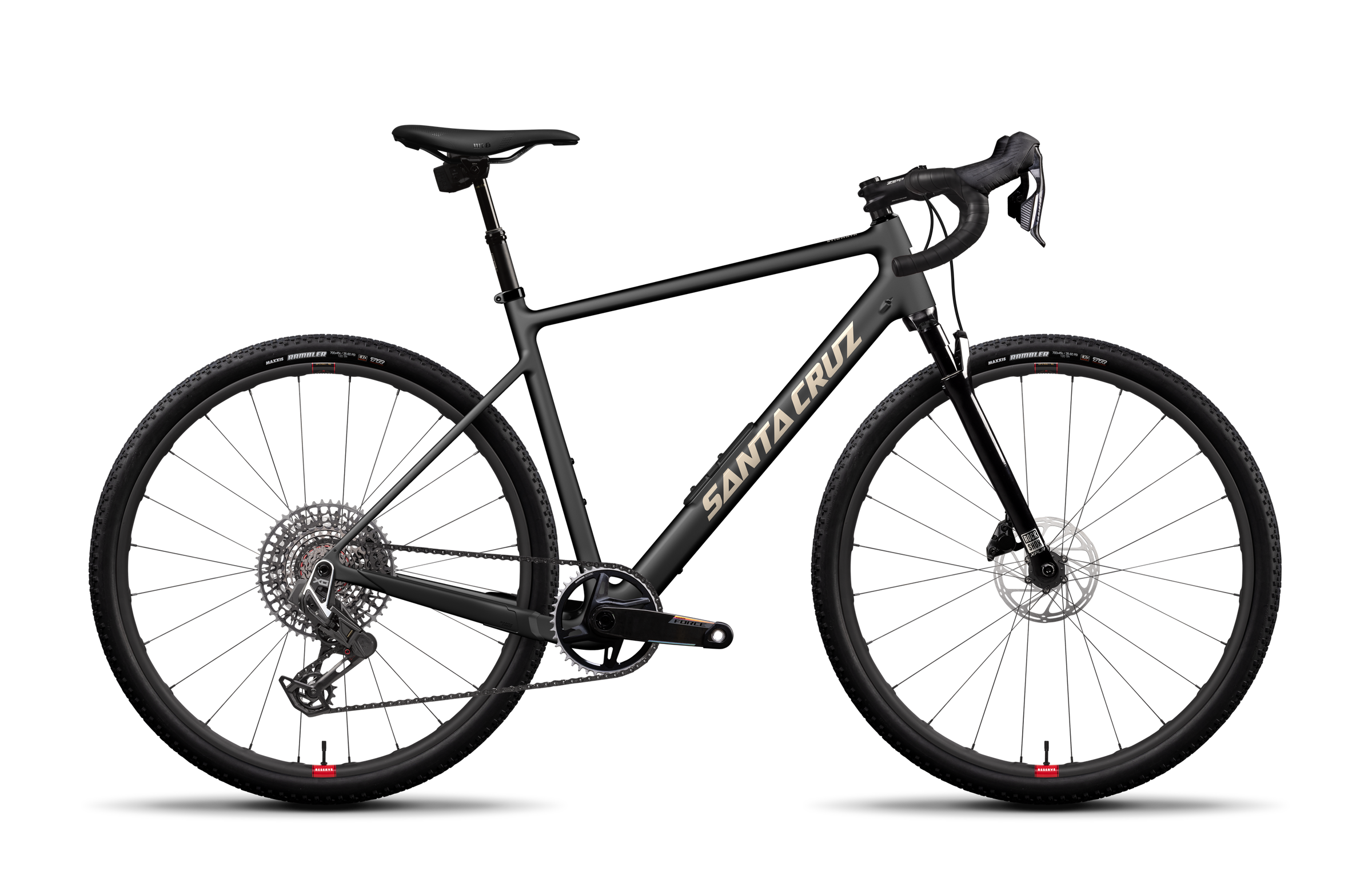

Color: Matte Carbon
Size
View details
Description

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Carbon CC
Frame Carbon CC Gravel
Weight 23lbs / 10.43kg
Wheel Size 700c
Suspension
Fork RockShox Rudy Ultimate XPLR, 40mm
Shock N/A
Drivetrain
Bottom Bracket SRAM DUB 68mm Road Wide BB
Cassette SRAM X0 1295 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset SRAM Force XPLR, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter SRAM Force AXS
Brakes
Brakes SRAM Force
Front Rotor SRAM Centerline, Centerlock, 160mm
Rear Rotor SRAM Centerline, Centerlock, 160mm
Cockpit
Grips / Bar Tape Velo Bar Tape
Handlebars Zipp Service Course SL-70 XPLR Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost RockShox Reverb AXS XPLR, 27.2 XS/S: 50mm, M/L/XL/XXL: 75mm
Stem Zipp Service Course Stem All Sizes: 70mm
Wheels
Front Rim Reserve 25|GR
Front Hub DT Swiss 350, 12x100, Centerlock, 24h
Front Tire Maxxis Rambler, 700x45c, DC, EXO
Rear Rim Reserve 25|GR
Rear Hub DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
Rear Tire Maxxis Rambler, 700x45c, DC, EXO
Valves Reserve Fillmore Valves
Specs
Bottom Bracket Shell Threaded 68mm
Rear Brake Mount 160mm FM
Fork Axle to Crown 430mm
Fork Compatibility 40mm
Fork Offset 45mm
Front Derailleur Mount Clamp On
Headset Integrated (IS41/52)
Max Chainring Size 42t (1x) | 50t (2x)
Max Tire Clearance 50mm (1x) | 45mm (2x)
Rear Spacing 142mm
Seat Clamp Diameter 31.8mm
UDH Compatible Yes
Water Bottle Mounts 3
Size Guide



X-Small

5'0"-5'3"

Small

5'3"-5'6"

Medium

5'6"-5'9"

Large

5'9"-6'0"

X-Large

6'0"-6'2"

XX-Large

6'2"-6'4"
Geometry
All units are in millimeters or degrees.
XS SM MD LG XL XXL
Reach 375 390 405 420 435 450
Stack 550 564 576 600 612 631
Head tube angle 69.5° 69.5° 69.5° 69.5° 69.5° 69.5°
Head Tube Length 90 105 120 145 160 180
Rear Center 423 423 423 423 423 423
Front Center 605 625 645 668 688 710
BB Height 278 278 280 280 282 282
BB Drop 78 78 76 76 74 74
Wheelbase 1023 1043 1063 1087 1108 1130
Top Tube Length 533 552 570 592 610 631
Seat Tube Length 450 455 485 515 545 575
Seat Tube Angle 74.0° 74.0° 74.0° 74.0° 74.0° 74.0°


Product Variants SKU/UPC
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: Matte Carbon / XS: SKU: 58-26290-414-1-909-003602 - UPC: 192219498492

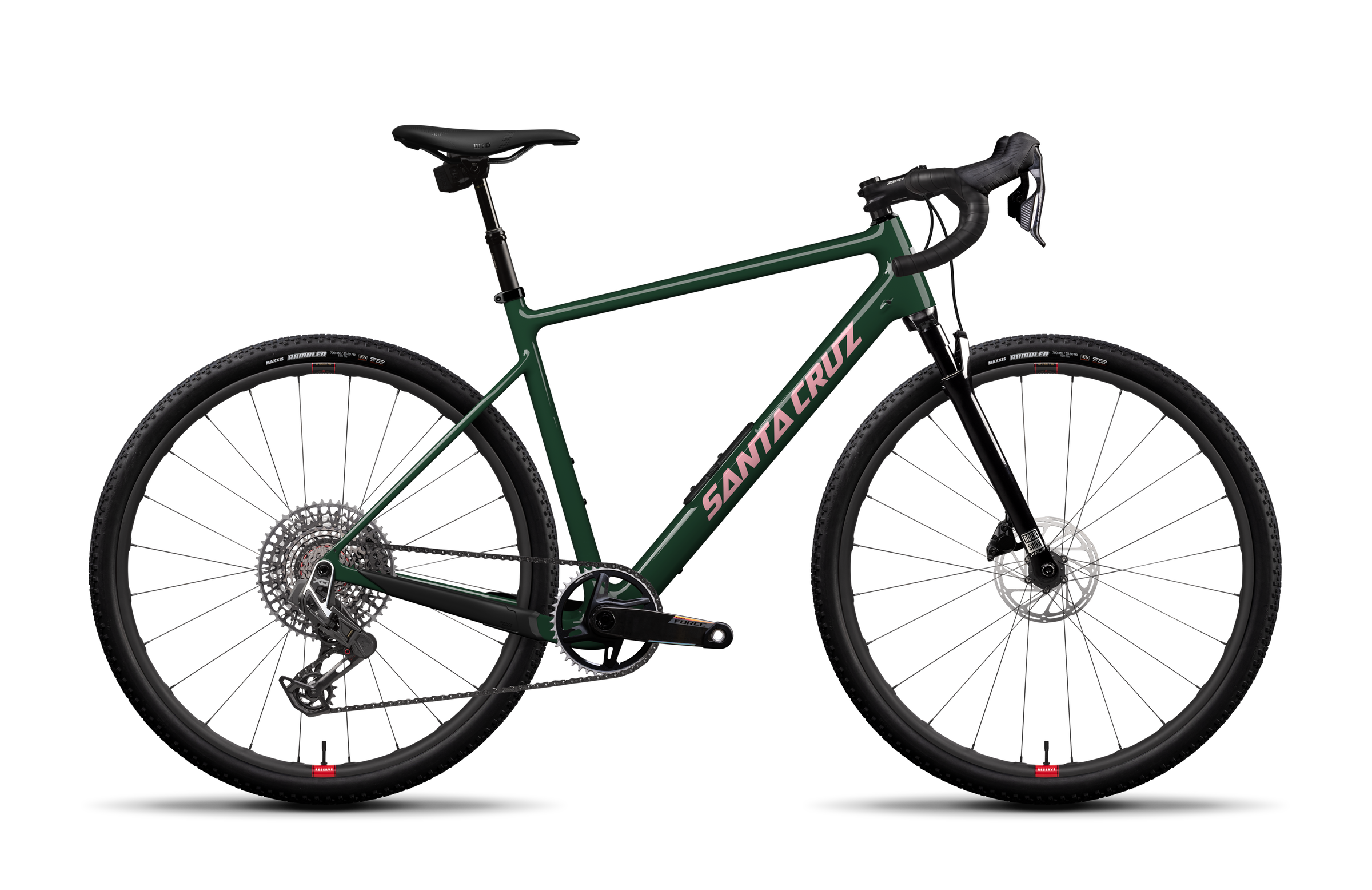

  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: British Racing Green / XS: SKU: 58-26290-414-1-910-003602 - UPC: 192219498515
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: Matte Carbon / SM: SKU: 58-26290-414-2-909-003602 - UPC: 192219498539
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: British Racing Green / SM: SKU: 58-26290-414-2-910-003602 - UPC: 192219498553
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: Matte Carbon / MD: SKU: 58-26290-414-3-909-003602 - UPC: 192219498577
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: British Racing Green / MD: SKU: 58-26290-414-3-910-003602 - UPC: 192219498591
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: Matte Carbon / LG: SKU: 58-26290-414-4-909-003602 - UPC: 192219498614
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: British Racing Green / LG: SKU: 58-26290-414-4-910-003602 - UPC: 192219498638
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: Matte Carbon / XL: SKU: 58-26290-414-5-909-003602 - UPC: 192219498652
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: British Racing Green / XL: SKU: 58-26290-414-5-910-003602 - UPC: 192219498676
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: Matte Carbon / XXL: SKU: 58-26290-414-6-909-003602 - UPC: 192219498690
  • 2026 Santa Cruz Stigmata CC Force 1x AXS-Kit Rudy RSV: British Racing Green / XXL: SKU: 58-26290-414-6-910-003602 - UPC: 192219498713
