2026 Santa Cruz Vala CC XX AXS-Kit RSV

By Santa Cruz
$17,399.00 CAD

This product is only available for in-store pickup.

In stock at supplier warehouse - Usually ships within 5 business days. More info

58-26304-367-3-858-254202-01

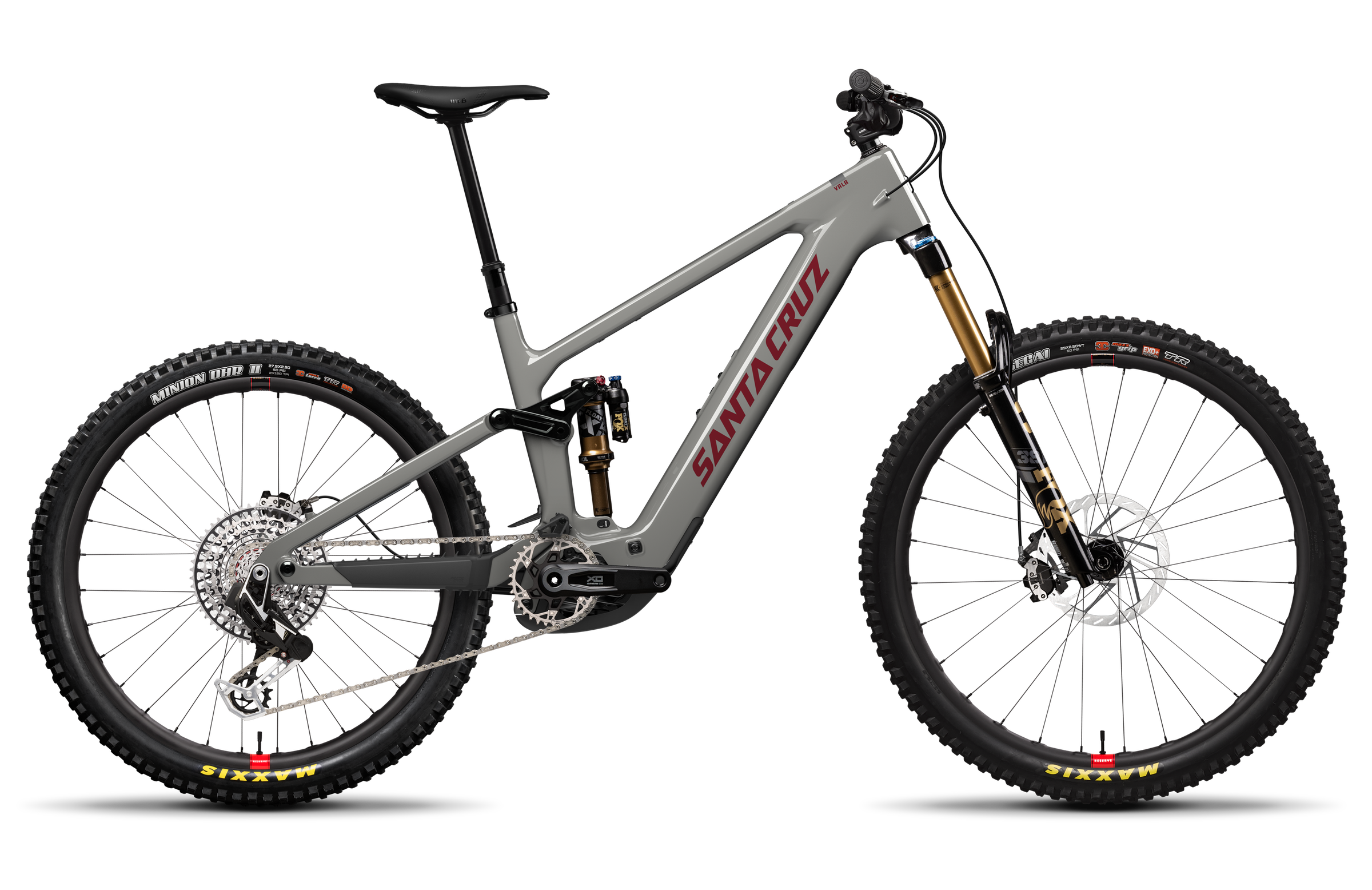

Color: Gloss Grey
Size
View details
Description

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Carbon CC
Frame Carbon CC MX 150mm Travel, 4-Bar
Travel 150mm
Weight 46.6lbs / 21.13kg
Wheel Size MX
Suspension
Fork FOX 38 Factory, Grip X2, 160mm
Shock FOX Float X Factory, 205x60
Drivetrain
Bottom Bracket N/A
Cassette SRAM XX 1297 Eagle T-Type, 10-52t
Chain SRAM XX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Crankset SRAM X0 Eagle Cranks, 160mm
Rear Derailleur SRAM XX Eagle AXS T-Type, 12spd
Brakes
Brakes SRAM Maven Ultimate
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Carbon Bar
Headset Chris King DropSet 3 Integrated Headset
Saddle WTB Silverado Medium Fusion, Stainless
Seatpost RockShox Reverb AXS
Stem Burgtec Enduro MK3 Machined, 42mm
Wheels
Front Rim Reserve 30|HD Carbon
Front Hub Industry Nine Hydra 2, 15x110, 6-Bolt 28h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim Reserve 30|HD Carbon
Rear Hub Industry Nine Hydra 2, 12x148, XD, 6-Bolt 28h
Rear Tire Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown
Valves Reserve Fillmore Valves
Ebike
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance CX BDU38
Specs
Bottom Bracket Shell EMTB
Rear Brake Mount 200mm PM
Shock Length 205mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount No Compatibility
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 151mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Stroke 60mm
Suspension System Four-bar
UDH Compatible Yes
Water Bottle Mounts 1
Geometry

High Setting

All units are in millimeters or degrees.
S M L XL XXL
Reach 435 460 480 500 525
Stack 623 632 641 655 668
Head tube angle 64.2° 64.2° 64.2° 64.2° 64.2°
Head Tube Length 110 120 130 145 160
Rear Center 439 440 443 446 450
Front Center 771 800 825 851 883
BB Height 344 344 344 344 344
BB Drop Front 28 28 28 28 28
BB Drop Rear 11 11 11 11 11
Wheelbase 1210 1240 1268 1297 1333
Top Tube Length 573 601 622 645 673
Seat Tube Length 380 400 420 460 500
Seat Tube Angle 77.5° 77.5° 77.5° 77.5° 77.5°



Low Setting

All units are in millimeters or degrees.
S M L XL XXL
Reach 432 456 477 497 522
Stack 625 635 643 657 670
Head tube angle 63.9° 63.9° 63.9° 63.9° 63.9°
Head Tube Length 110 120 130 145 160
Rear Center 439 440 443 446 450
Front Center 771 800 825 851 883
BB Height 340 340 340 340 340
BB Drop Front 32 32 32 32 32
BB Drop Rear 15 15 15 15 15
Wheelbase 1210 1240 1268 1297 1333
Top Tube Length 573 601 622 645 673
Seat Tube Length 380 400 420 460 500
Seat Tube Angle 77.2° 77.2° 77.2° 77.2° 77.2°
 Size Guide

Small

5'1"-5'5"Reach: 435mm

Medium

5'5"-5'9"Reach: 460mm

Large

5'9"-6'1"Reach: 480mm

X-Large

6'0"-6'4"Reach: 500mm

XX-Large (Carbon Only)

6'4"-6'7"Reach: 525mm
Product Variants SKU/UPC
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Gloss Grey / SM: SKU: 58-26304-367-2-858-254202-01 - UPC: 192219516523

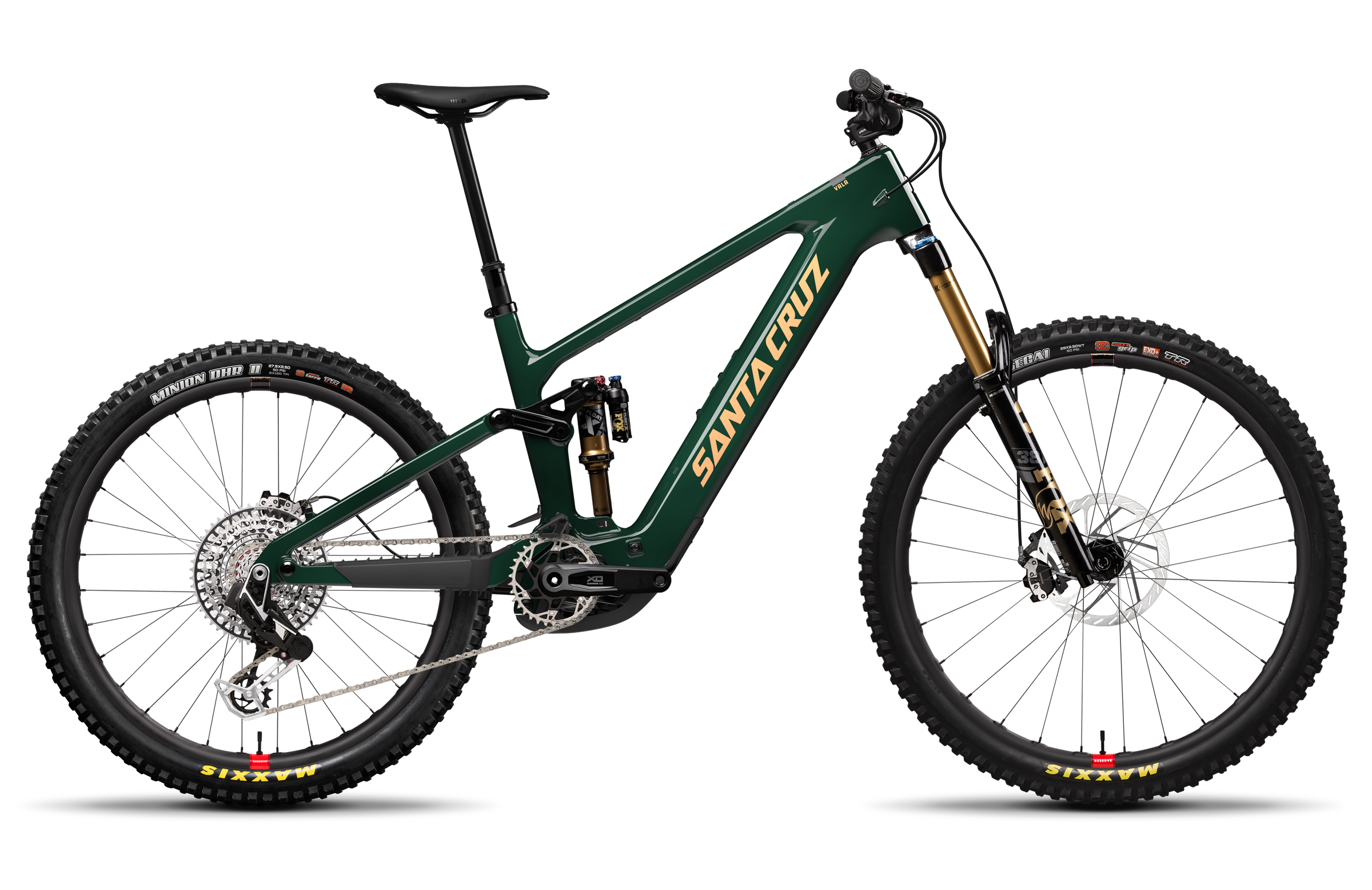

  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Midnight Green / SM: SKU: 58-26304-367-2-859-254202-01 - UPC: 192219516561
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Gloss Grey / MD: SKU: 58-26304-367-3-858-254202-01 - UPC: 192219516608
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Midnight Green / MD: SKU: 58-26304-367-3-859-254202-01 - UPC: 192219516646
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Gloss Grey / LG: SKU: 58-26304-367-4-858-254202-01 - UPC: 192219516684
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Midnight Green / LG: SKU: 58-26304-367-4-859-254202-01 - UPC: 192219516721
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Gloss Grey / XL: SKU: 58-26304-367-5-858-254202-01 - UPC: 192219516769
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Midnight Green / XL: SKU: 58-26304-367-5-859-254202-01 - UPC: 192219516806
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Gloss Grey / XXL: SKU: 58-26304-367-6-858-254202-01 - UPC: 192219514673
  • 2026 Santa Cruz Vala CC XX AXS-Kit RSV: Midnight Green / XXL: SKU: 58-26304-367-6-859-254202-01 - UPC: 192219514710
