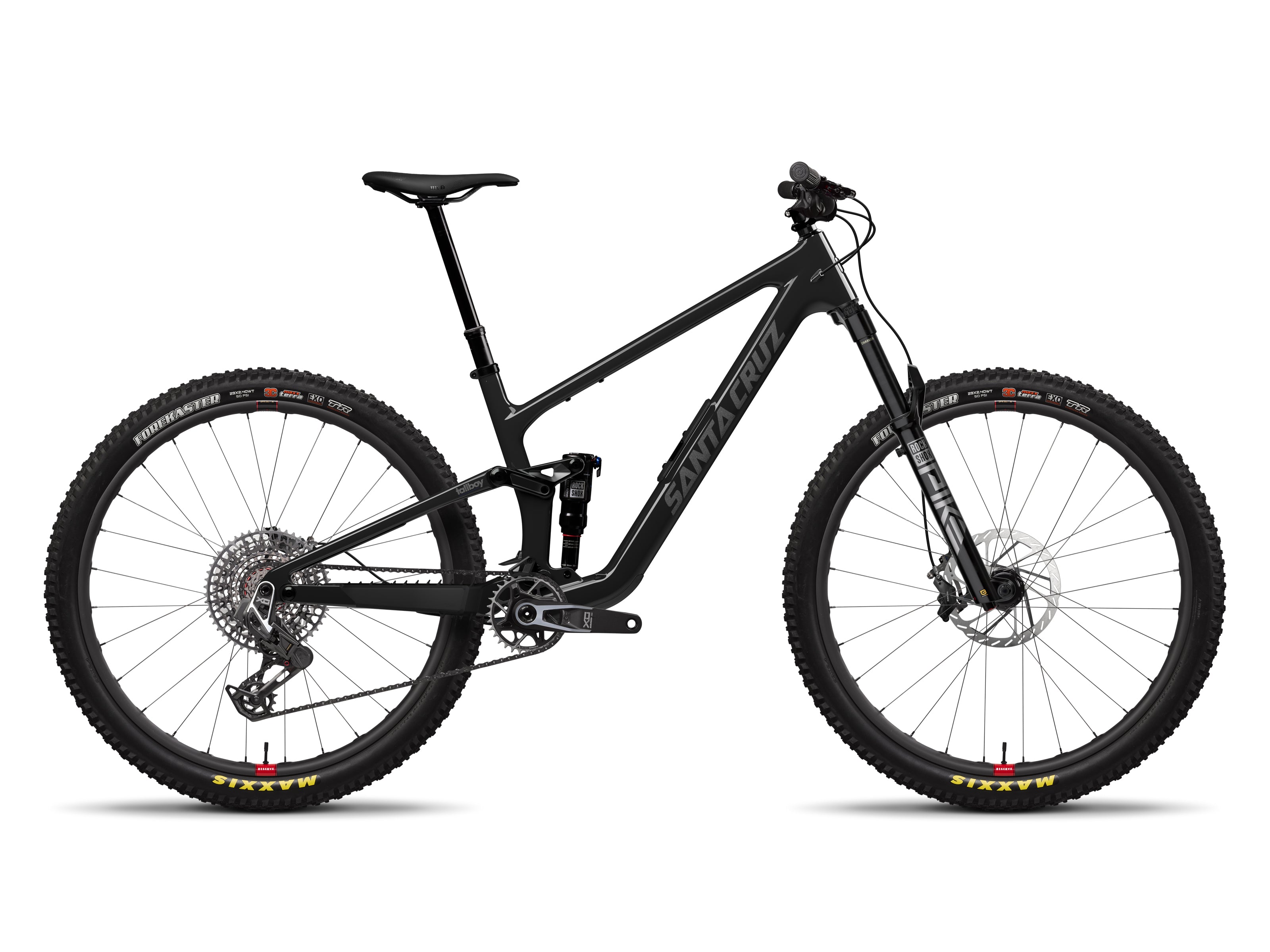

2027 Santa Cruz Tallboy X0 AXS-Kit RSV

$12,199.00 CAD

This product is available for in-store pickup only.

Color: Gloss Carbon
Size
Description

The Tallboy is a short-travel bike with long legs. Our perennial 29-inch bike has gone on a diet and bulked up the amount of travel to fit the kind of rider looking to maximize power hours or just ride all the hours. It’s light and efficient enough to climb with the best of them, yet punches way above its weight class as soon as the trail turns down. Excellent suspension, big wheels, thoroughly-tuned carbon layup and rock-solid reliability let you go as hard as you want.

Technical Specifications

Frame

Carbon CC 29" 130mm Travel 4-Bar

Travel (mm)

130mm

Frame Material

Carbon CC

Wheel Size

29"

Weight

29.2 lbs / 13.24 kg

Battery Charger

SRAM eTap Powerpack 1 Battery

Bottom Bracket

SRAM DUB 73mm MTB Wide BB

Brakes

SRAM Motive Silver

Cassette

SRAM X0 1295 Eagle T-Type, 10-52t

Chain

SRAM X0 Eagle T-Type, Flattop, 12spd

Chainguide

OneUp Chainguide

Crankset

SRAM X0 Eagle DUB T-Type, 32t
XS-S: 165mm, M-XXL: 170mm

Fork

RockShox Pike Ultimate, 140mm

Front Hub

DT Swiss 350, 15x110, 6-Bolt, 28h

Front Rim

Reserve 30|SL Carbon

Front Rotor

SRAM HS2 200mm

Front Tire

Maxxis Forekaster 29"x2.4", MaxxTerra, EXO

Grips / Bar Tape

Santa Cruz Bicycles House Grips

Handlebars

OneUp Carbon Bar, 35mm
XS-M: 760mm, 20mm Rise, L-XXL: 800mm, 35mm Rise

Headset

Cane Creek 50 IS Integrated Headset

Rear Derailleur

SRAM X0 Eagle AXS T-Type, 12spd

Rear Hub

DT Swiss 350 DEG DF, 12x148, XD, 6-Bolt, 28h

Rear Rim

Reserve 30|SL Carbon

Rear Rotor

SRAM HS2 180mm

Rear Shock

RockShox Deluxe Ultimate, 185x50

Rear Tire

Maxxis Forekaster 29"x2.4", MaxxTerra, EXO

Right Shifter

SRAM AXS Pod Controller Rocker

Saddle

WTB Silverado Medium Fusion, CroMo SL

Seatpost

OneUp Dropper Post, 31.6
XS: 120mm, S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm

Stem

RaceFace Turbine SL
All Sizes: 40mm

Valves

Reserve Fillmore Valves

Headset Headtube

Integrated (IS41/52)

Fork Axle To Crown

554

Fork Offset

44

Fork Compatibility

140-150

Suspension System

4-Bar

Rear Travel

130mm

Recommended Sag

30%

Eye To Eye Length

185

Stroke

50

Shock Mounting Hardware Upper

Trunnion

Shock Mounting Hardware Lower

25x8

Bb Shell

73mm Threaded

Chainline

55

Max Chainring Size

34

Chainguide Standard

Integrated upper guide

Derailleur Hanger

UDH

UDH Compatible

Yes

Rear Spacing

148mm

Brake Mount

Postmount 180mm

Max Rotor Size

203mm

Max Tire Size

2.4"

Seatpost Diameter

31.6

Seat Clamp

36.4

Water Bottle Mounts

1

Downtube Storage

Glovebox

Rear Brake Mount

180mm

Specifications are subject to change.

Geometry
Standard Geometry
XS S M L XL XXL
Reach (Hi/Lo) 410/407 435/432 455/452 475/472 495/492 520/517
Stack (Hi/Lo) 601/603 610/612 624/626 633/635 646/649 660/662
Head Tube Angle (Hi/Lo) 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8°
Head Tube Length 90 100 115 125 140 155
Rear Center (Hi/Lo) 435/435.5 435/435.5 435/435.5 438/438.5 440/440.5 444/444.5
Front Center (Hi/Lo) 721/721 750/750 777/776 801/801 827/827 858/858
BB Height (Hi/Lo) 336/333 336/333 336/333 336/333 336/333 336/333
BB Drop (Hi/Lo) 36/39 36/39 36/39 36/39 36/39 36/39
Wheelbase (Hi/Lo) 1156/1156 1185/1186 1212/1212 1239/1239 1267/1267 1302/1303
Top Tube Length (Hi/Lo) 542/542 569/570 596/596 616/616 637/638 666/666
Seat Tube Length (Hi/Lo) 360/370 380/380 400/400 420/430 450/450 500/500
Seat Tube Angle (Hi/Lo) 77.6°/77.3° 77.6°/77.3° 77.3°/77° 77.4°/77.2° 77.5°/77.3° 77.5°/77.3°
Seat Tube Angle at Saddle Height (Hi/Lo) 77.4/77.1 at 640 77/76.8 at 680 76.5/76.3 at 730 76.5/76.3 at 780 76.5/76.3 at 830 76.5/76.3 at 870
Standover Height (Hi/Lo) 699/695 703/699 718/714 728/725 742/739 758/755
