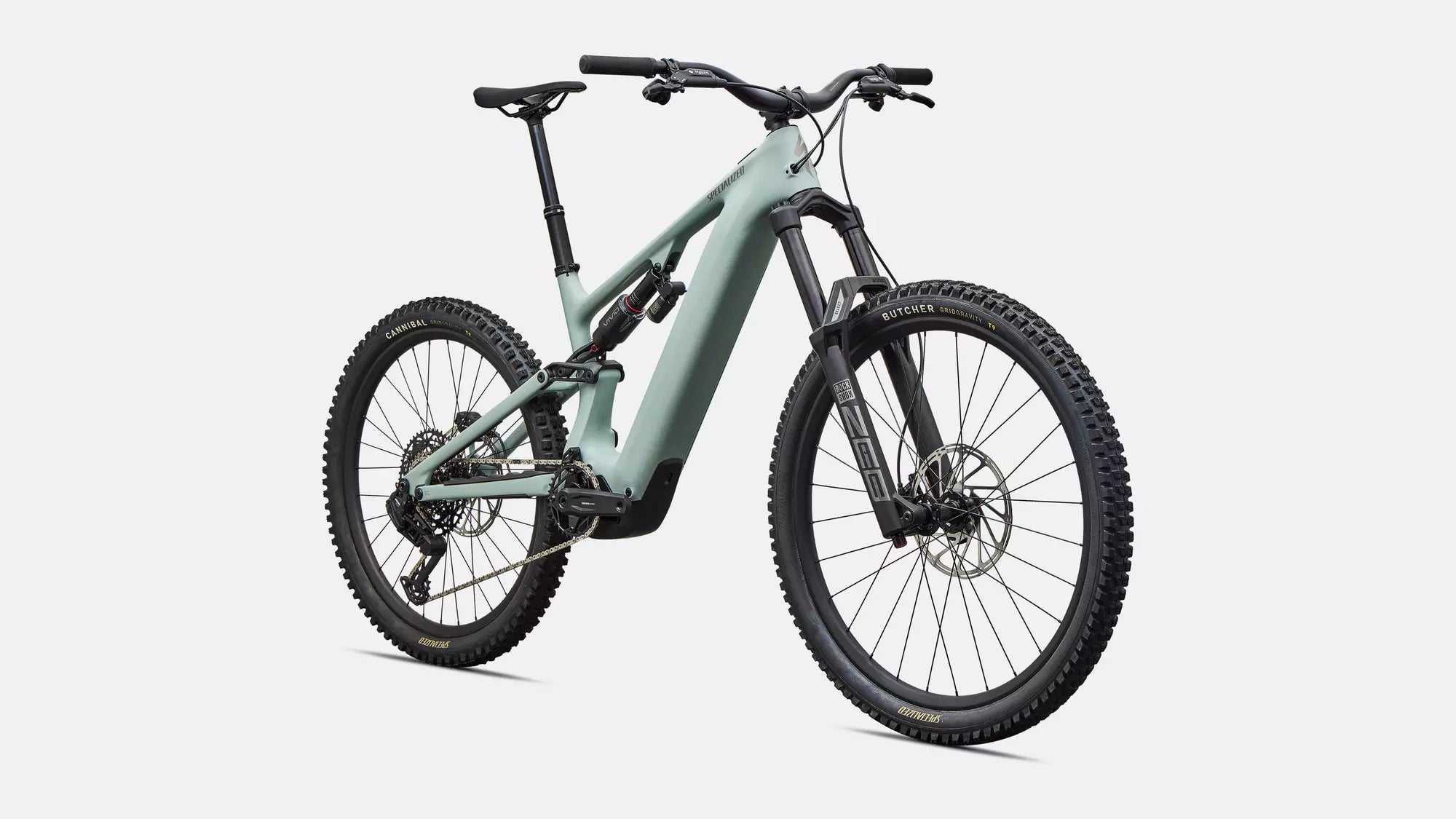

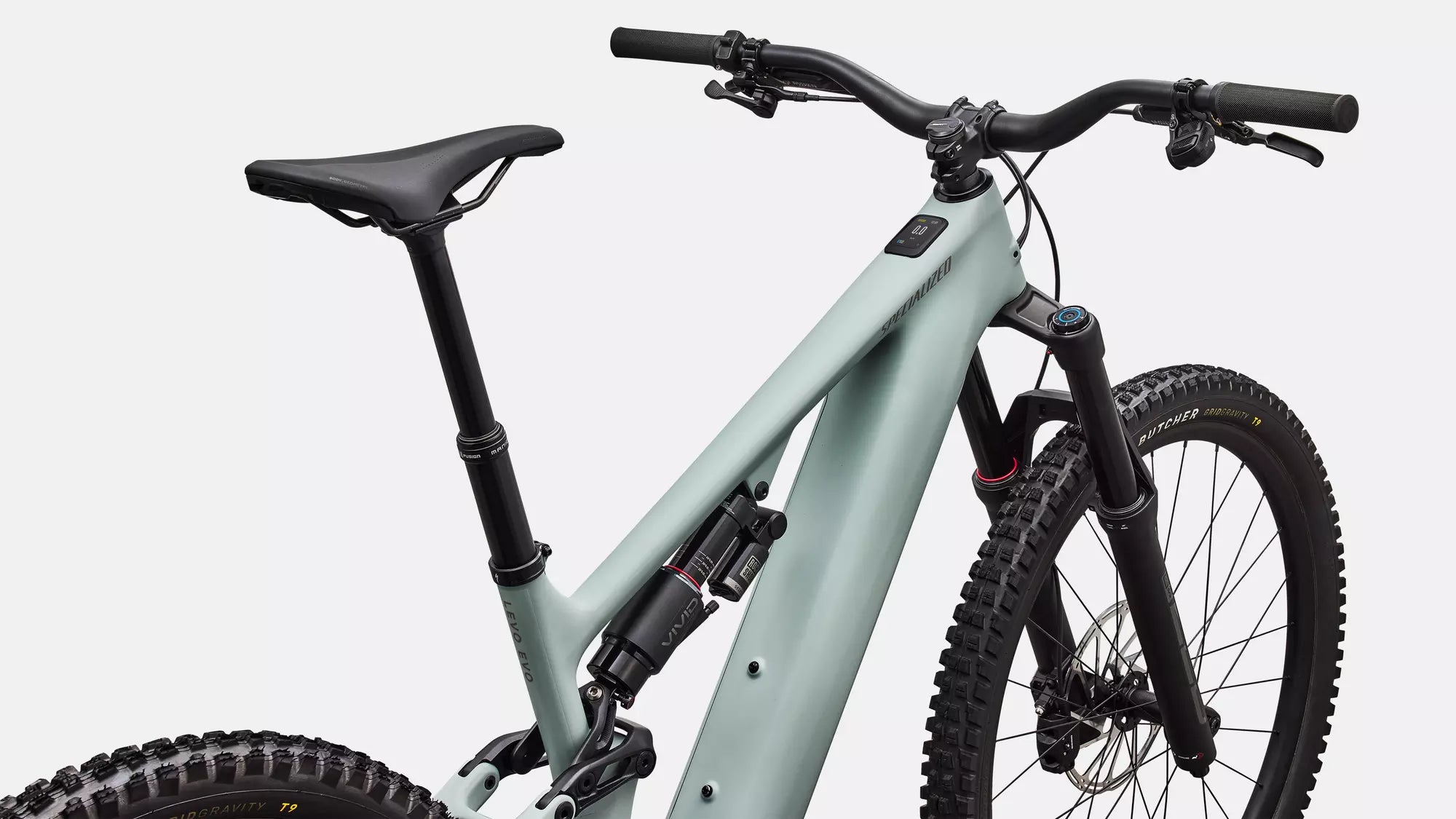

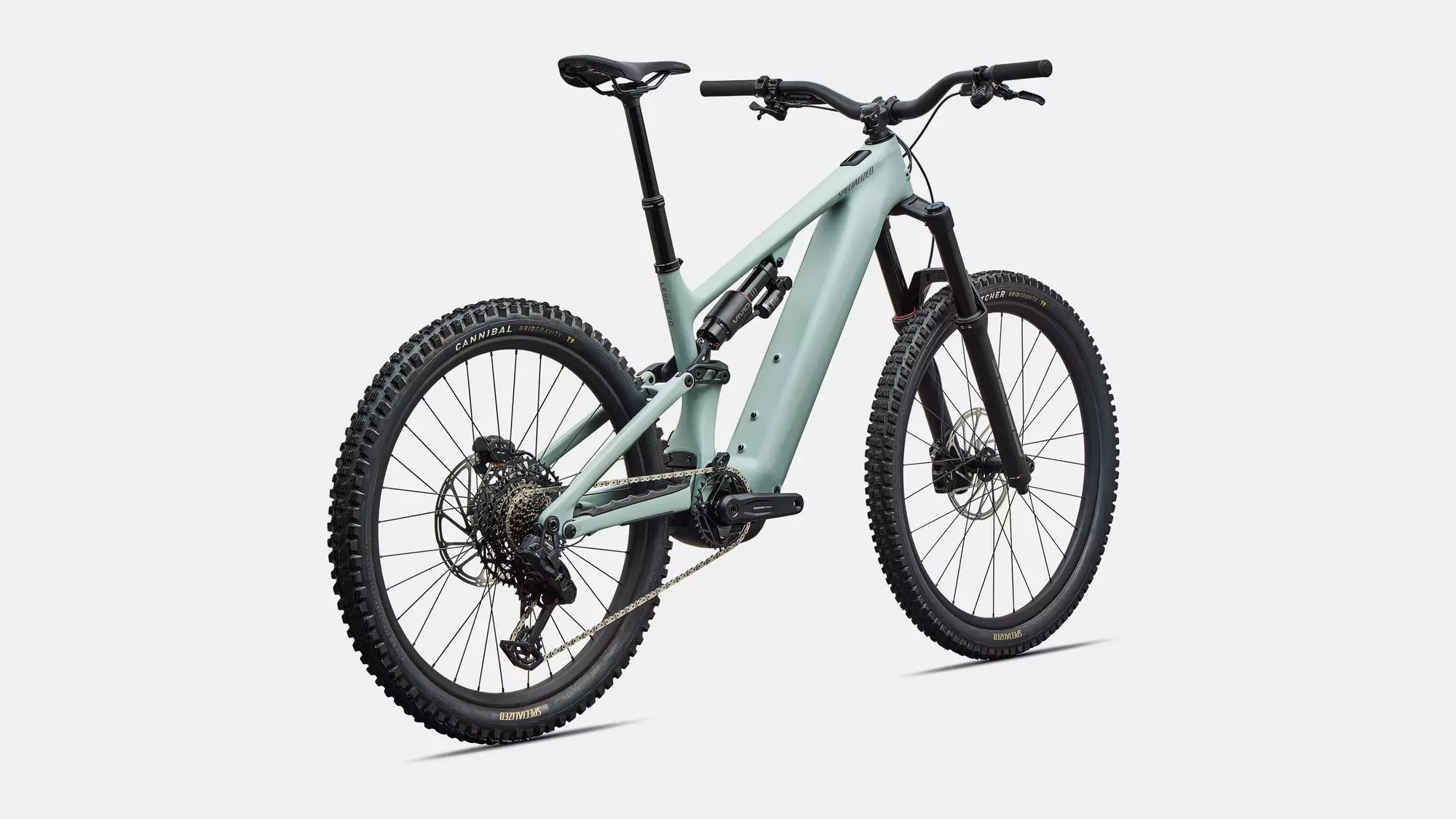

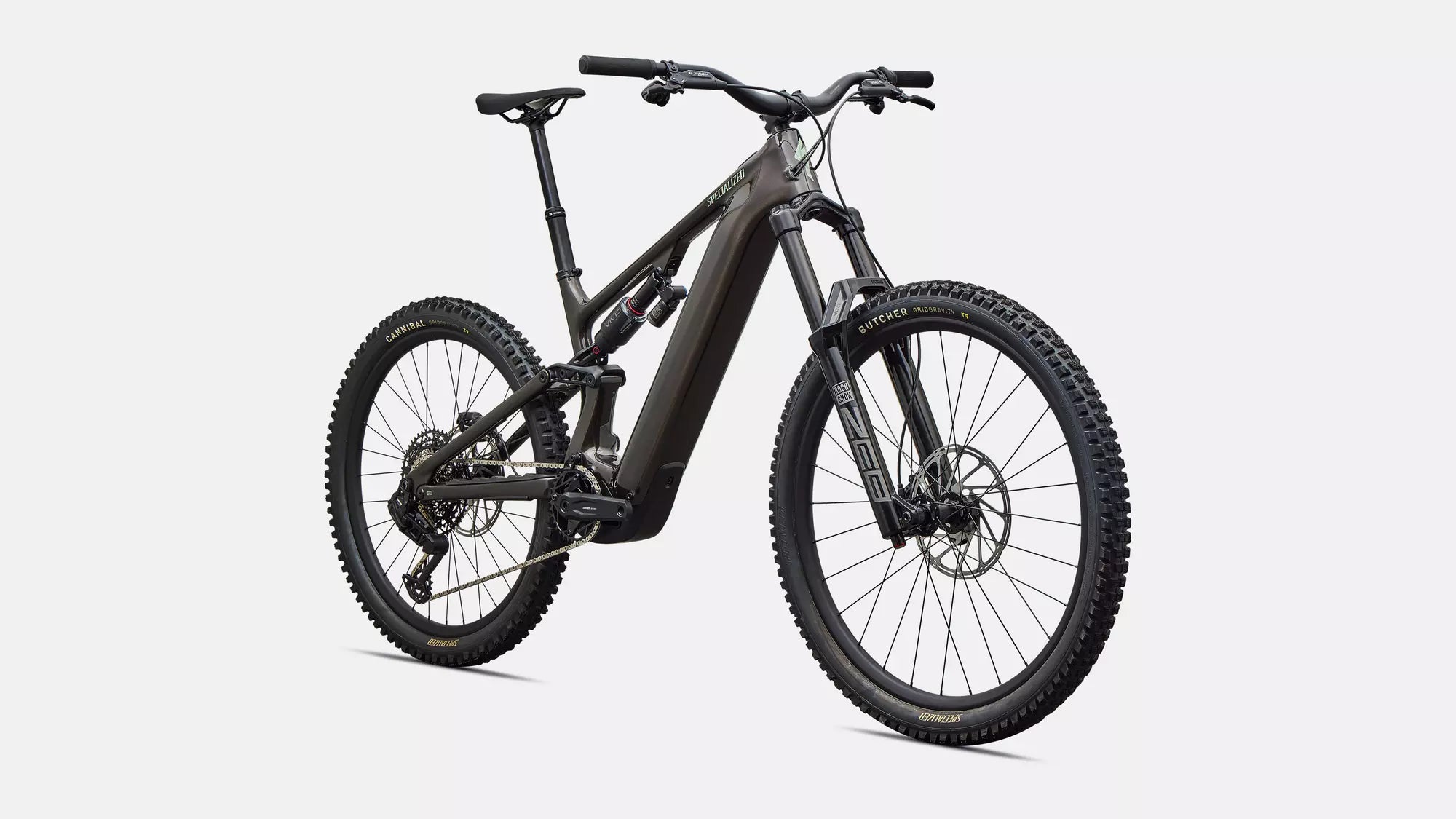

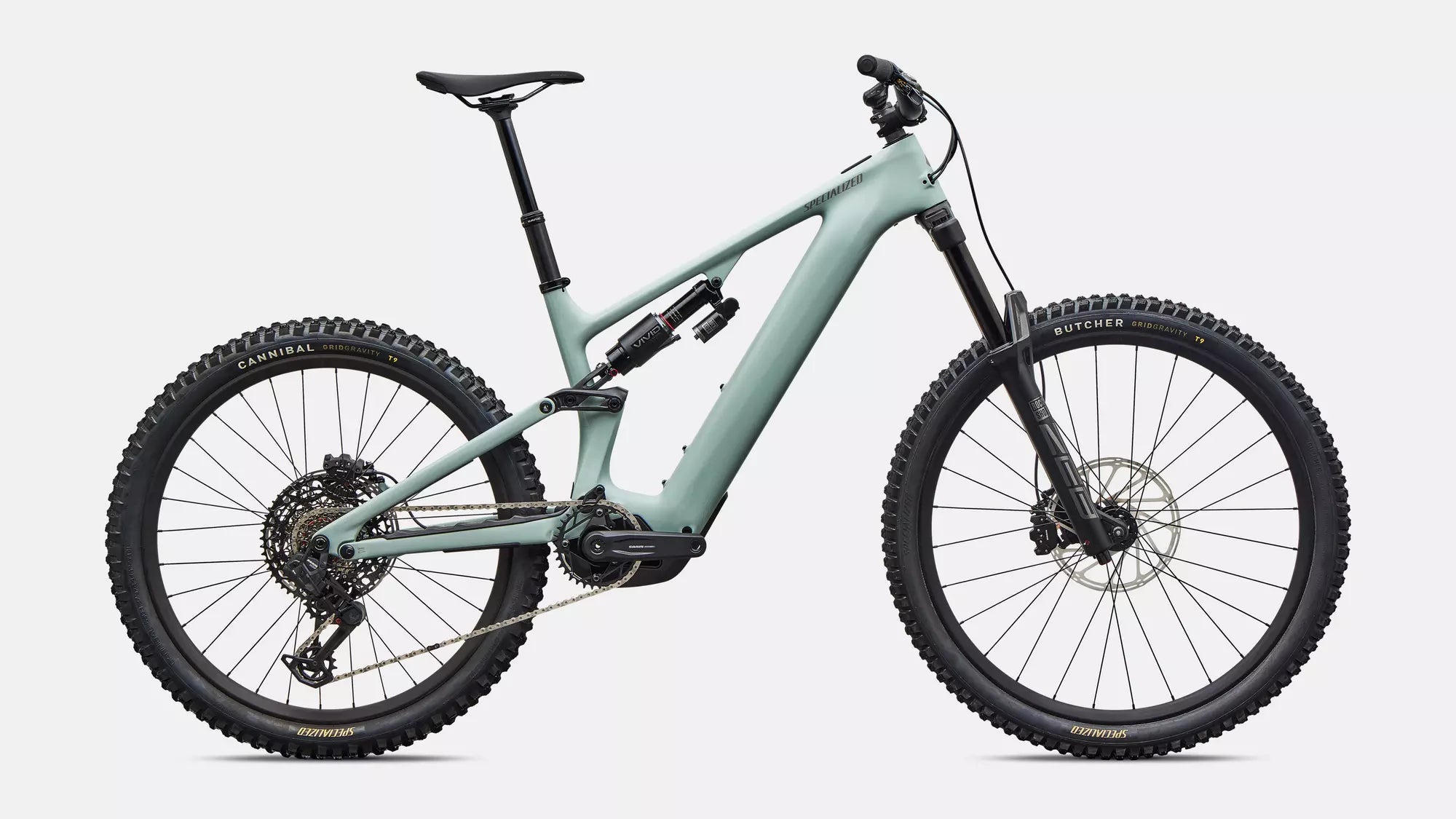

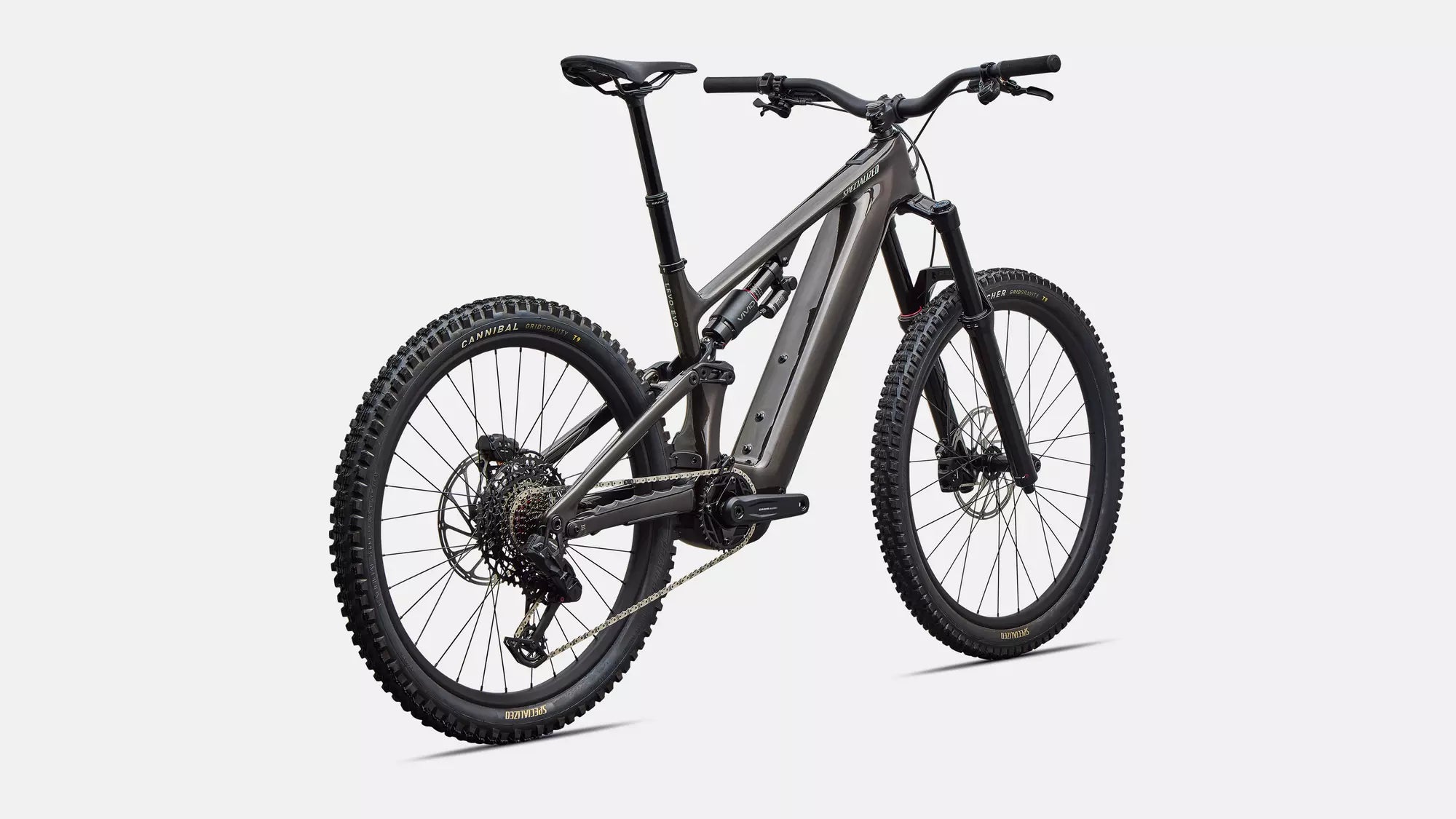

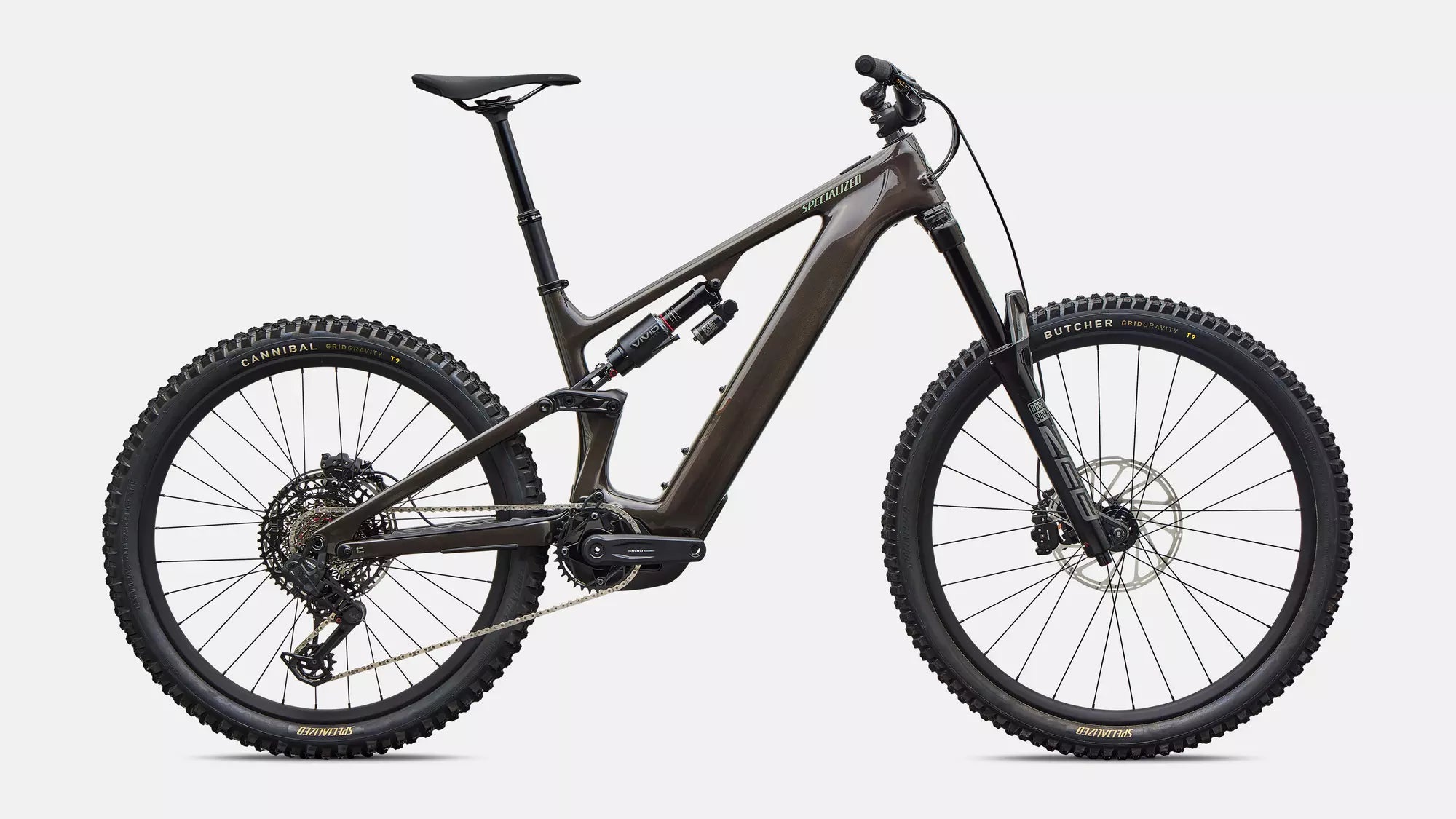

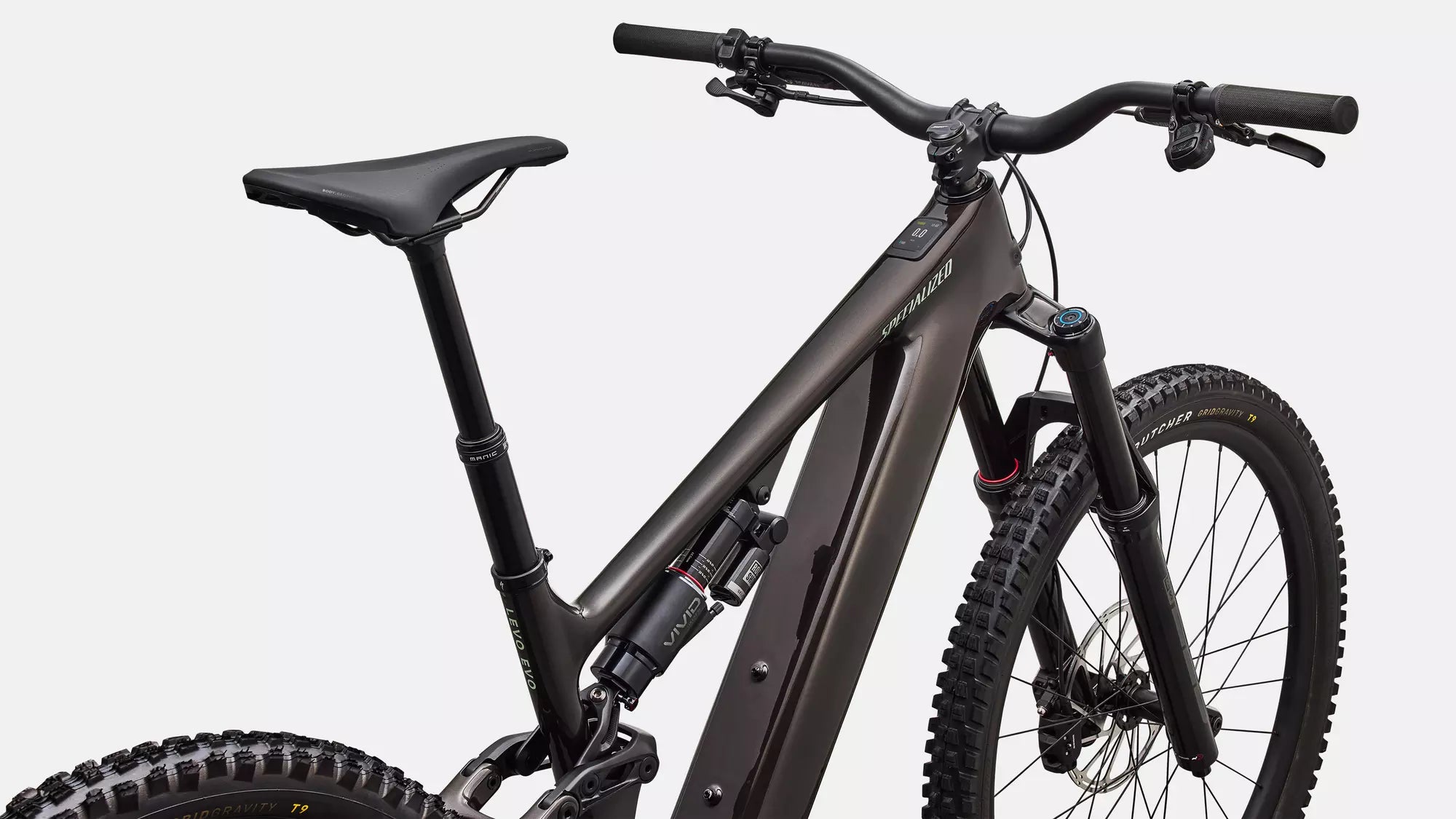

2027 Specialized Levo 4 EVO Comp

By Specialized
$11,500.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

95227-5002
Color: Gloss Warm Smoke / Pistachio
Size
View details
Description

Levo 4 EVO Comp

SuperNatural Power, Capability, and Range

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential.
This is Electric Enduro.

Technical Specifications
E-Bike

Motor

Specialized 3.1 Motor, 105Nm torque, 810W power

Battery

840Wh battery

UI/Remote

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Charger

Specialized 4amp charger
Frameset

Frame

Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Seat Binder

Alloy, 38.6mm
Suspension

Rear Shock

All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust

Fork

All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Brakes

Front Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain

Shift Levers

SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur

SRAM S1000 Eagle AXS

Cassette

SRAM 12-speed,10-52t

Chain

SRAM GX Eagle Transmission 12-Speed Flattop Chain

Crankset

SRAM S1000 Alloy crank, ISIS interface, 155mm length

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires

Rims

Specialized Alloy Rims

Front Hub

Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Rear Hub

Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb

Spokes

DT Swiss Elemental

Front Tire

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Rear Tire

Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Inner Tubes

Standard, Presta Valve
Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise

Grips

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails 155/143

SeatPost

Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories

SWAT

SWAT Internal downtube storage
Product Details

Product ID

294787

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight

Weight

25.16 kg (55 lb, 7.5 oz)

Weight Size

S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry
S2 S3 S4 S5 S6
Crank Length 155mm 155mm 155mm 155mm 155mm
Handlebar Width 780mm 800mm 800mm 800mm 800mm
Stem Length 40mm 40mm 40mm 40mm 40mm
Saddle Width 155mm 143mm 143mm 143mm 143mm
Seatpost Length 125mm 170mm 200mm 200mm 200mm
Stack 625mm 633mm 646mm 659mm 675mm
Reach 425mm 445mm 470mm 495mm 525mm
Headtube Length 95mm 103mm 117mm 132mm 149mm
Headtube Angle 63.6° 63.6° 63.6° 63.6° 63.6°
BB Height 356mm 356mm 356mm 356mm 356mm
BB Drop 24mm 24mm 24mm 24mm 24mm
Trail 139mm 139mm 139mm 139mm 139mm
Fork Length (full) 597mm 597mm 597mm 597mm 597mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Center 773mm 797mm 828mm 859mm 897mm
Chainstay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1208mm 1232mm 1263mm 1294mm 1331mm
Top-tube Length (horizontal) 580mm 602mm 630mm 658mm 691mm
Bike Standover Height 764mm 765mm 763mm 768mm 771mm
Seat Tube Length 390mm 405mm 425mm 445mm 465mm
Seat Tube Angle 76° 76° 76° 76° 76°
Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
Max Seatpost Insertion 274mm 289mm 313mm 337mm 357mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm
