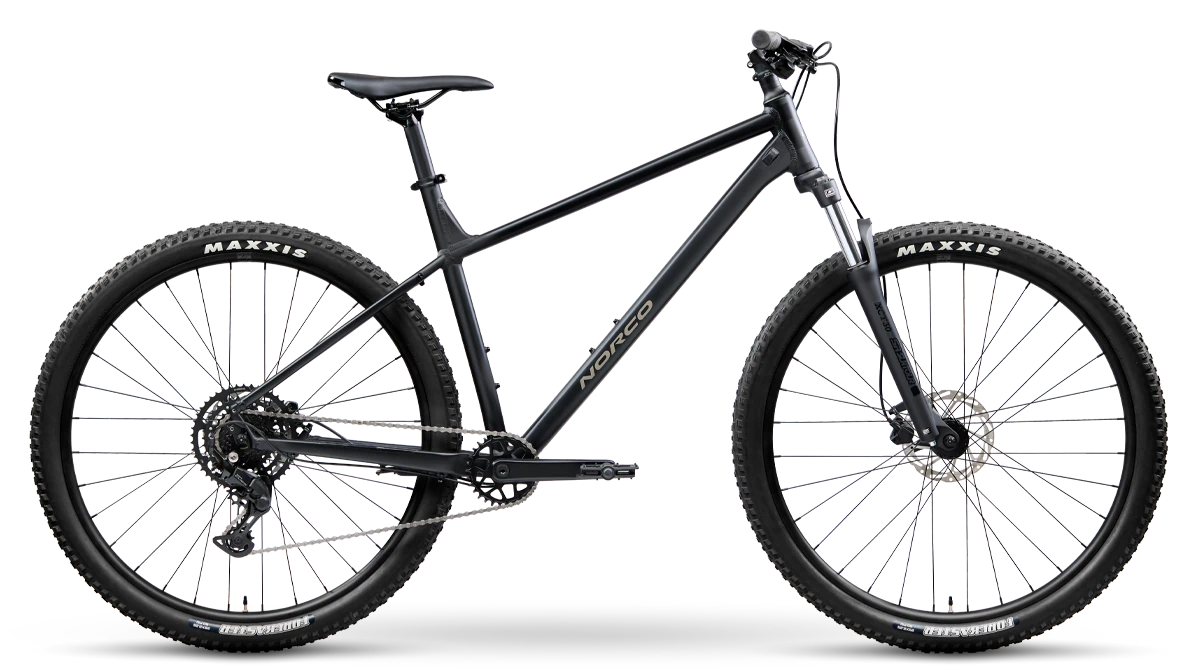

The Storm 100 features a progressive off-road design and features that’ll help you discover your favourite way to ride.
It’s built for off-road adventure, but the lightweight aluminum Storm 100 is more than happy to lead a double life on city streets and park paths.
Frameset
Frame: Aluminum | Smooth Welding | 10x135mm QR
Fork: Suntour XCT-30 DS Coil | 100mm Travel | 46mm Offset | 9x100mm QR
Drivetrain
Rear Shifter: Shimano CUES SL-U4000 | 9-Speed
Rear Derailleur: Shimano CUES RD-U4000 | 9-Speed | GS
Crankset: Prowheel Alloy | 30T
170mm (S–M), 175mm (L–XXL)
Bottom Bracket: Cartridge | ST 73mm | 113mm Axle Length
Cassette: Shimano CUES CS-LG300-9 | 11–46T | 9-Speed
Chain: KMC CUES XGlide | 9/10/11-Speed Compatible
Brakes
Front Brake: Tektro HD-M275 | Resin Pads
Rear Brake: Tektro HD-M275 | Resin Pads
Front Rotor: Tektro | 160mm | 6-Bolt
Rear Rotor: Tektro | 160mm | 6-Bolt
Brake Levers: Tektro HD-M275
Components
Handlebar: 6061 Alloy DB
750mm (S) | 780mm (M–XXL) | 30mm Rise
Stem: Alloy | 50mm Length | 31.8mm Clamp
Seatpost: Alloy | 31.6mm
300mm (S), 400mm (M–XXL)
Headset: Zero Stack | 1-1/8" Steer
ZS44/28.6 (Top) | ZS44/30 (Bottom)
Headset Spacers: 3 x 10mm
Saddle: Norco XC | Steel Rails
Grips: DDK Lock-On | 139mm Length
Pedals: Nylon Flat Pedals
Seatpost Clamp: Norco Alloy QR | 34.9mm Inner Diameter
Wheels
Front Hub: Formula DC-1420 | 9x100mm QR | 32h | 6-Bolt
Rear Hub: Formula DC-1422 | 10x135mm QR | HG | 32h | 6-Bolt
Rims: DP 27 | 27mm Inner Width | 32h
Spokes/Nipples: Stainless Steel | 14g
Front Tire: Maxxis Forekaster | 29x2.25"
Size S: 27.5x2.25" | Wire Bead
Rear Tire: Maxxis Forekaster | 29x2.25"
Size S: 27.5x2.25" | Wire Bead
Weight
Weight: 15.27 kg / 33.6 lbs
Size Measured: Large
