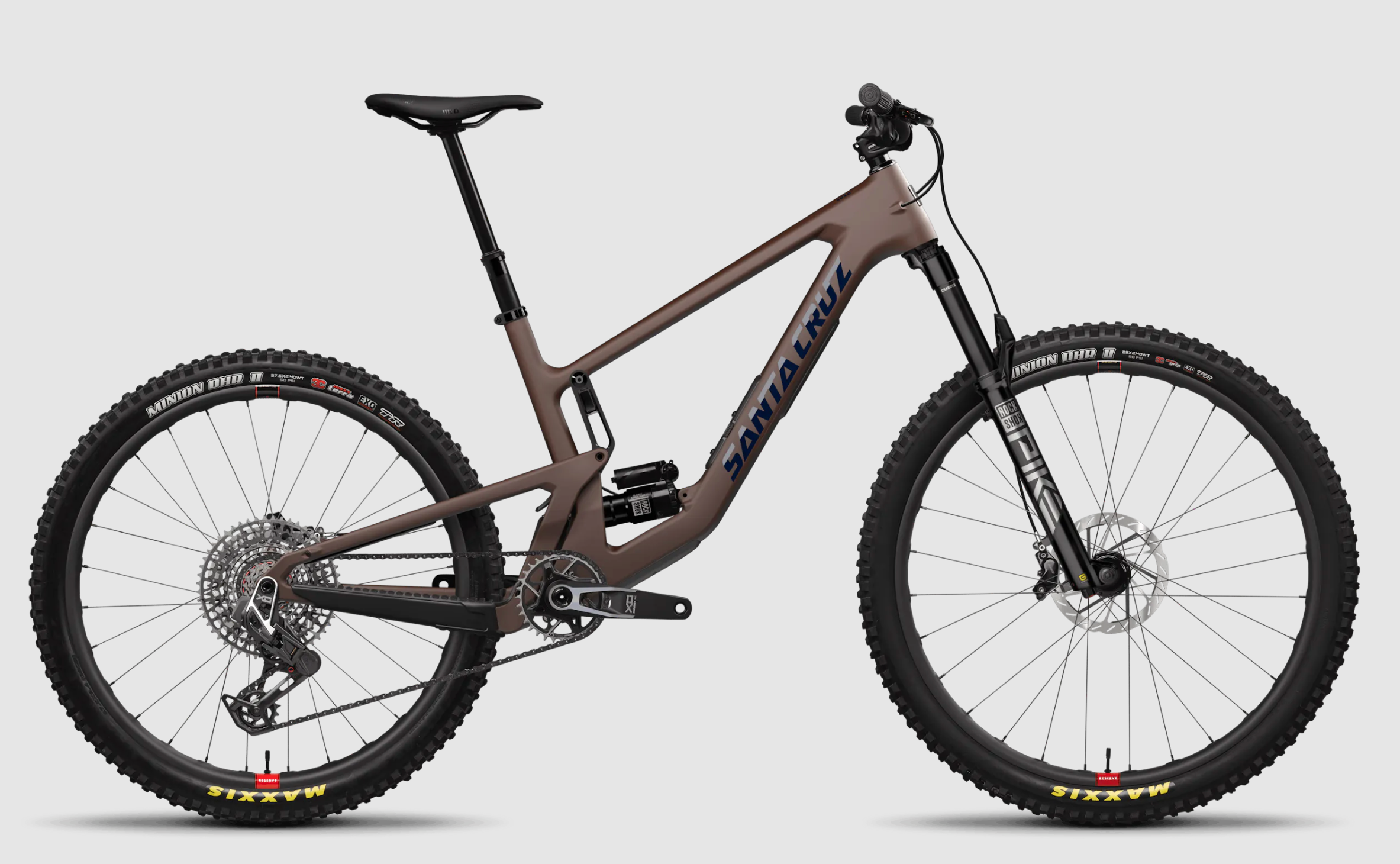

2025 Santa Cruz 5010 CC X0 AXS-Kit RSV

Name: 2025 Santa Cruz 5010 CC X0 AXS-Kit RSV
Brand: Santa Cruz
SKU: 58-25284-351-1-840-262502
Price: 11799.0 CAD
Availability: OutOfStock

By Santa Cruz

$11,799.00 CAD

Starting at $492/mo with Affirm.

This product is only available for in-store pickup.

58-25284-351-1-840-262502

Color: Gloss Light Blue

Size

XS SM MD LG XL XXL

Product variants

View details

Description
KEY FEATURES:
SPECS
GEOMETRY
FRAME SIZING

Description

THE BEST HANDLING TRAIL BIKE EVER

The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

KEY FEATURES:

MIXED WHEELS

The mixed wheel configuration of a 29-inch wheel up front provides traction and stability, while the 27.5" rear wheel allows for quick back wheel steering and lifting.

SRAM EAGLE TRANSMISSION - STRONGER, BETTER SHIFTING, WIRELESSLY

The next generation SRAM Eagle Transmission specced on our CC-carbon models is a radically robust, fully integrated and interdependent wireless transmission. Built around the universal constant of the wheel axle itself, the Full Mount hangerless attachment creates a far stronger connection to the frame and the super strong derailleur provides unprecedented strength. Shifting under load is made possible due to a combination of X-SYNC technology and cassette mapping, creating seamless shifts even during your hardest power output. The new AXS Pods are extremely ergonomic and highly customizable, so shifting gears is light and intuitive. It's simply the most advanced transmission and nearly as tough as the mountain itself.

VPP™

VPP™ suspension can be optimized to strike the right balance between pedaling efficiency and all-out bump chomping prowess. That means wherever you see "VPP™" you know it's tuned to perform exactly how it should for the purpose it's designed for.

SPECS

Material: Carbon CC
Travel: 130mm
Wheel Size: MX
Rear Shock: RockShox Super Deluxe Ultimate, 210x50
Fork: RockShox Pike Ultimate, 140mm
Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter: SRAM AXS Pod Bridge
Cassette: SRAM X0 Eagle T-Type, 10-52t
Chain: SRAM X0 Eagle T-Type, Flattop, 12spd
Bottom Bracket: SRAM DUB 73mm MTB Wide BB
Headset: Cane Creek 40 IS Integrated Headset
Rear Tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Front Tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
Front Hub: Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h
Front Rim: Reserve 30|SL 29"
Rear Hub: Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h
Rear Rim: Reserve 30|HD 27.5"
Front Rotor: SRAM HS2 180mm
Rear Rotor: SRAM HS2 180mm
Brakes: SRAM Code Silver Stealth
Crankset: SRAM X0 Eagle DUB T-Type Crankset, 32t
Handlebars: Santa Cruz 35 Carbon Bar, 800mm
Stem: Burgtec Enduro MK3, 42mm
Saddle: WTB
Seatpost: OneUp V2 Dropper Post, 31.6
Grips: Santa Cruz Bicycles House Grips
Battery Charger: SRAM eTap Powerpack 1 Battery

GEOMETRY

All units are in millimeters or degrees.

	XS	S	M	L	XL	XXL
Reach \| hi/lo	410/406	434/431	459/456	479/476	499/496	524/521
Stack \| hi/lo	599/601	608/610	622/624	631/633	649/651	662/664
Head Tube Angle \| hi/lo	65.2/64.9	65.2/64.9	65.2/64.9	65.2/64.9	65.2/64.9	65.1/64.9
Seat Tube Length	370	380	405	430	460	500
Front Center \| hi/lo	719/718	748/748	779/779	803/803	832/832	863/863
BB Height \| hi/lo	338/335	338/335	338/334	338/334	338/334	338/335
BB Drop (front) \| hi/lo	35/38	35/38	35/38	35/38	35/38	35/38
BB Drop (rear) \| hi/lo	16/19	16/19	16/19	16/19	16/19	16/19
Wheelbase \| hi/lo	1147/1147	1178/1178	1212/1213	1239/1240	1271/1271	1305/1306
Rear Center \| hi/lo	428/429	430/431	433/434	436/437	439/440	442/443
Head Tube Length	90	100	115	125	145	160
Top Tube Length \| hi/lo	544/544	570/571	598/599	624/625	645/646	673/674
Seat Tube Angle \| hi/lo	77.4/77.1	77.4/77.1	77.4/77.1	77.1/76.8	77.3/77	77.3/77.1
Standover Height \| hi/lo	694/688	703/698	706/700	708/703	711/706	717/712

FRAME SIZING

5010 5 Size Chart If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

The 5010 is available in sizes extra small - extra extra large (XS-XXL).

Personal Preference

A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.

Body Dimension

Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.

Product Variants SKU/UPC

2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Gloss Light Blue / XS: SKU: 58-25284-351-1-840-262502 - UPC: 192219435640
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Gloss Light Blue / SM: SKU: 58-25284-351-2-840-262502 - UPC: 192219435688
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Gloss Light Blue / MD: SKU: 58-25284-351-3-840-262502 - UPC: 192219435725
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Gloss Light Blue / LG: SKU: 58-25284-351-4-840-262502 - UPC: 192219435763
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Gloss Light Blue / XL: SKU: 58-25284-351-5-840-262502 - UPC: 192219435800
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Gloss Light Blue / XXL: SKU: 58-25284-351-6-840-262502 - UPC: 192219435848
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Matte Brown / XS: SKU: 58-25284-351-1-839-262502 - UPC: 192219435626
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Matte Brown / SM: SKU: 58-25284-351-2-839-262502 - UPC: 192219435664
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Matte Brown / MD: SKU: 58-25284-351-3-839-262502 - UPC: 192219435701
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Matte Brown / LG: SKU: 58-25284-351-4-839-262502 - UPC: 192219435749
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Matte Brown / XL: SKU: 58-25284-351-5-839-262502 - UPC: 192219435787
2025 Santa Cruz 5010 CC X0 AXS-Kit RSV: Matte Brown / XXL: SKU: 58-25284-351-6-839-262502 - UPC: 192219435824
