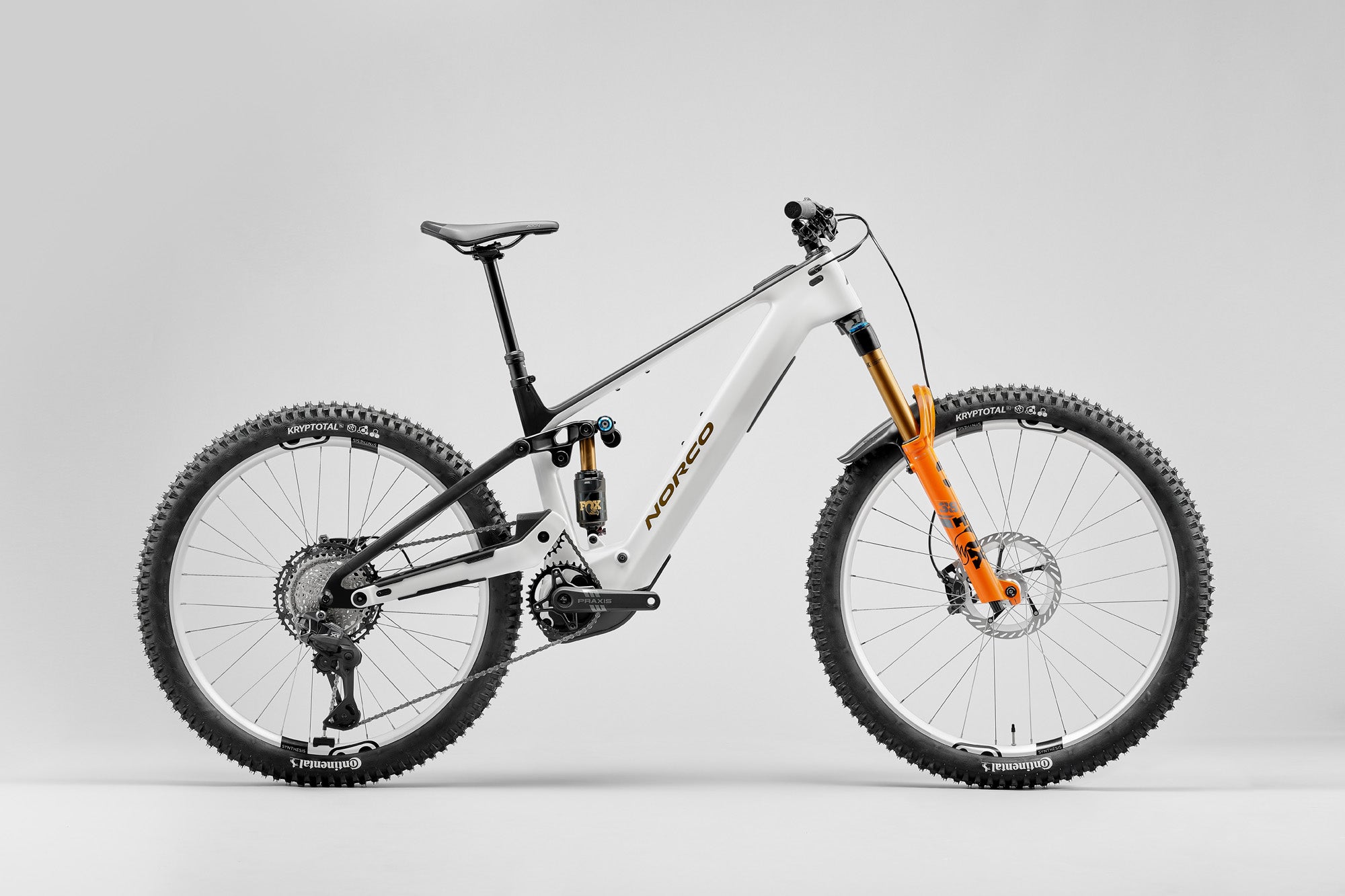

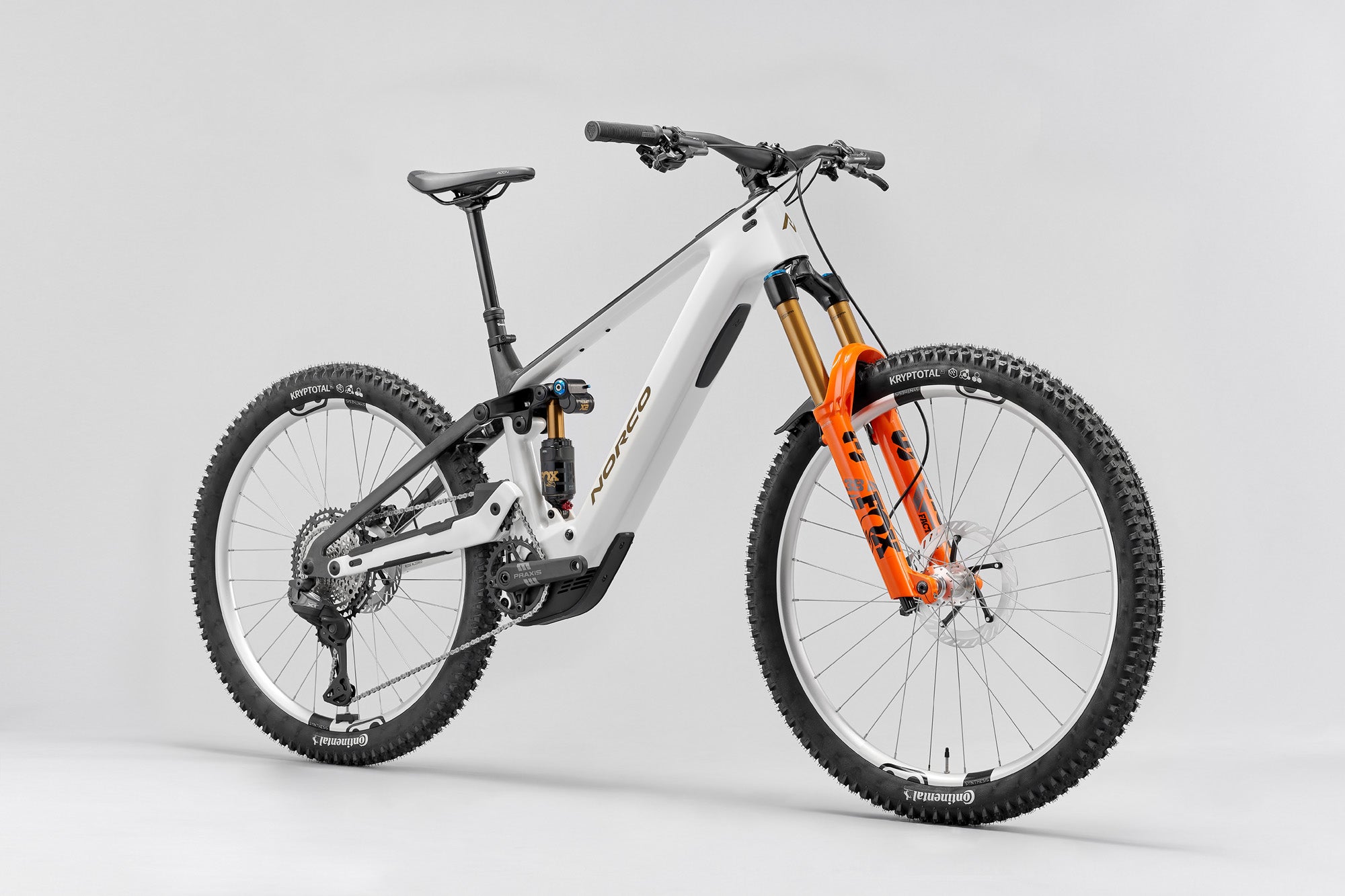

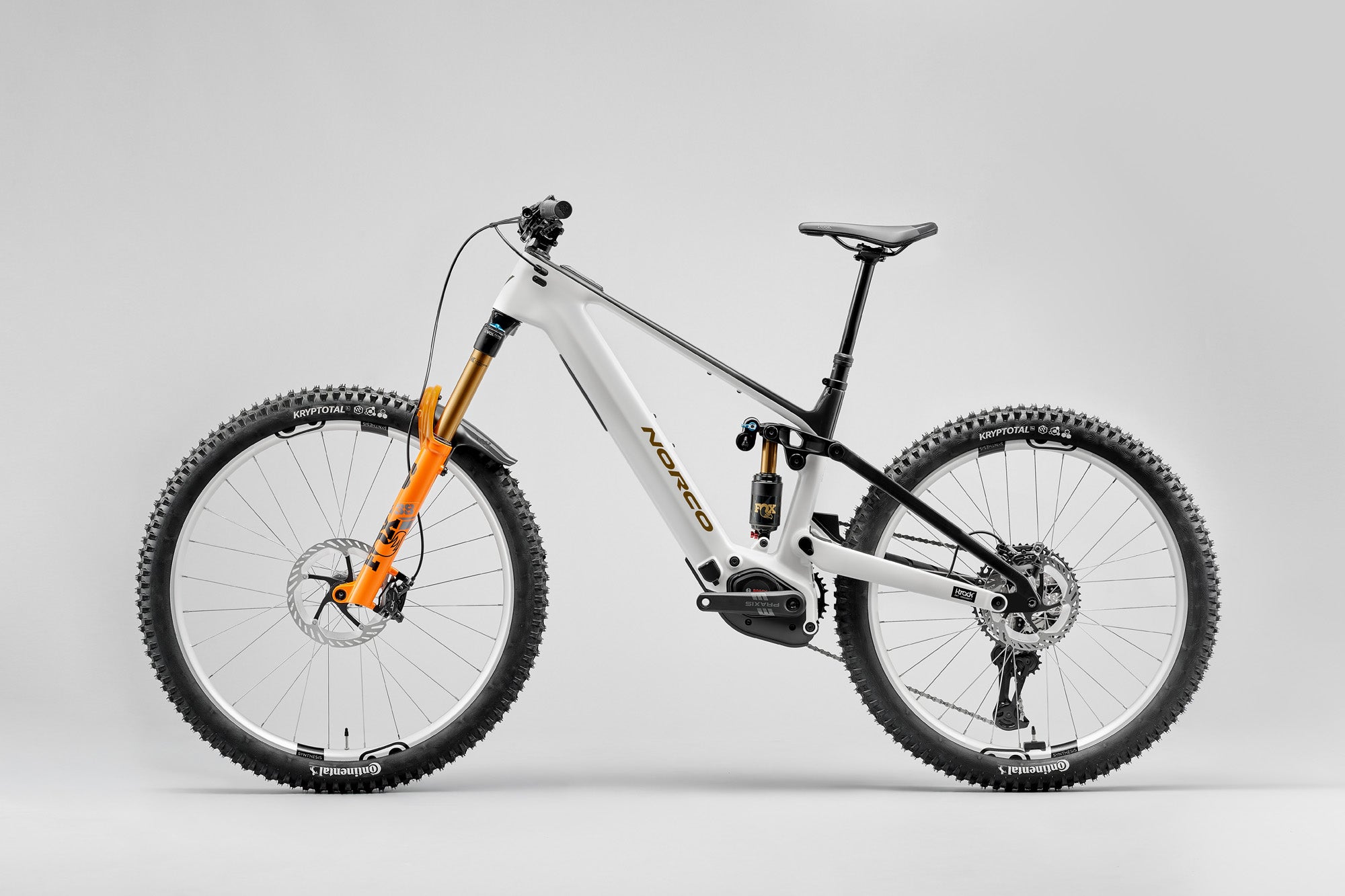

2026 Norco Range VLT CX C1

With 170/160 mm of travel, Range VLT CX C1 is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor — it’s the anti-shuttle, enduro rig for people who live for the descents.

A low-weight, full-power VLT with the newest Bosch technology, made to charge the steeps all day.

The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.

The VPS_HP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

Details

• A more powerful drive system that's lighter, quieter, and more natural feeling than ever before
• Balanced geometry for maximum control and handling
• VPS_HP suspension platform - High pivot flow to eat up rough terrain with confidence
• Bombproof components – spec'd for the toughest trails
• Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
• No Other Way Limited Lifetime Warranty

Frameset

Frame
Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

Fork
Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offset, Fender Included

Rear Shock
Fox Factory Float X2, 205x65mm TR, HSC/LSC, HSR/LSR, 2-Position Adjust

Drivetrain

Rear Shifter
Shimano Deore XT SW-M8250-IR, 12-Speed

Rear Derailleur
Shimano Deore XT RD-M8250, SGS, 12-Speed

Crankset
Praxis HD Aluminum Bosch Cranks, 34T, 160mm

Bottom Bracket
Bosch BES3 DU

Cassette
Shimano Deore XT CS-M8200-12, 10–51T, 12-Speed

Chain
Shimano Deore XT CN-M8100, 12-Speed

Brakes

Front Brake
Shimano XT M8220, 4-Piston, Metallic Pads

Front Brake Rotor
Shimano RT-MT905, 203mm, 6-Bolt

Rear Brake
Shimano XT M8220, 4-Piston, Metallic Pads

Rear Brake Rotor
Shimano RT-MT905, 180mm, 6-Bolt

Brake Levers
Shimano XT BL-M8200

Components

Handlebar
Norco 6061 DB Alloy, 800mm, 25mm Rise

Stem
Norco Alloy, 40mm Length, 35mm Clamp

Seatpost
TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm
150mm (S2) · 170mm (S3) · 200mm (S4 & S5)

Headset
FSA No.55 Sealed Bearing, 1 1/8" – 1.8" Tapered
(ZS44/28.6 | ZS56/40)

Saddle
Fizik Terra Aidon X5

Grips
WTB Wavelength, 130mm Length

Wheels

Front Hub
Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt

Rear Hub
Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt

Rims
Crank Bros. Synthesis Alloy
Front: 31.5mm, 28h · Rear: 29.5mm, 32h
29"/27.5" F/R

Front Tire
Continental Kryptotal-F, Enduro, Soft, 29 x 2.4", Foldable

Rear Tire
Continental Kryptotal-R, Enduro, Soft, 27.5 x 2.4", Foldable

Spokes/Nipples
Sapim D-Light (Front) · Sapim Race (Rear)

Electric Components

Drive Unit
Bosch Performance Line CX, 100 Nm / 750W

Battery
Bosch PowerTube 800 Wh
