2026 Norco Range VLT CX C2
In stock at supplier warehouse - Usually ships within 5 business days. More info
- Description
- Specs
- Geometry
- Sizing

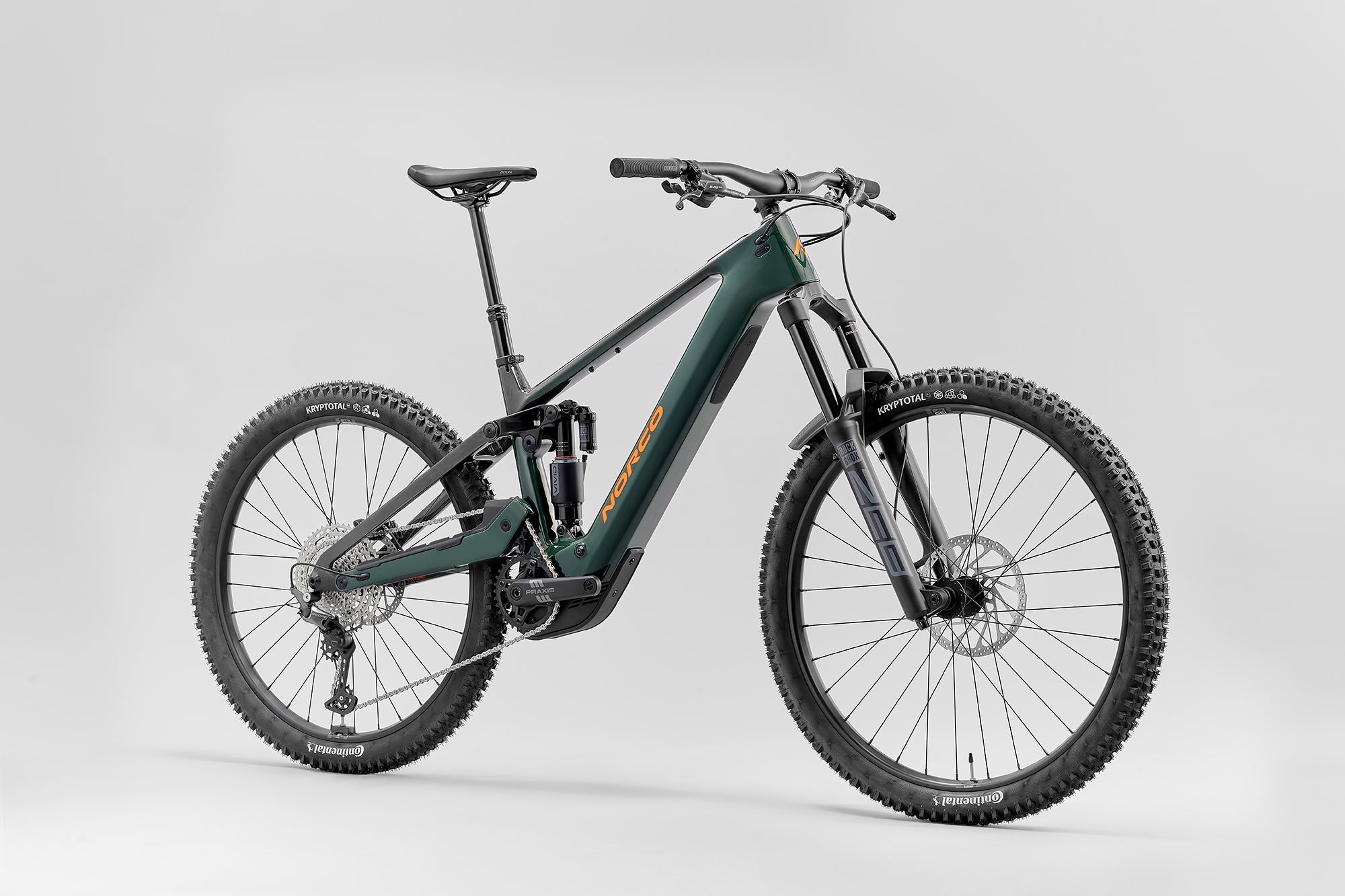

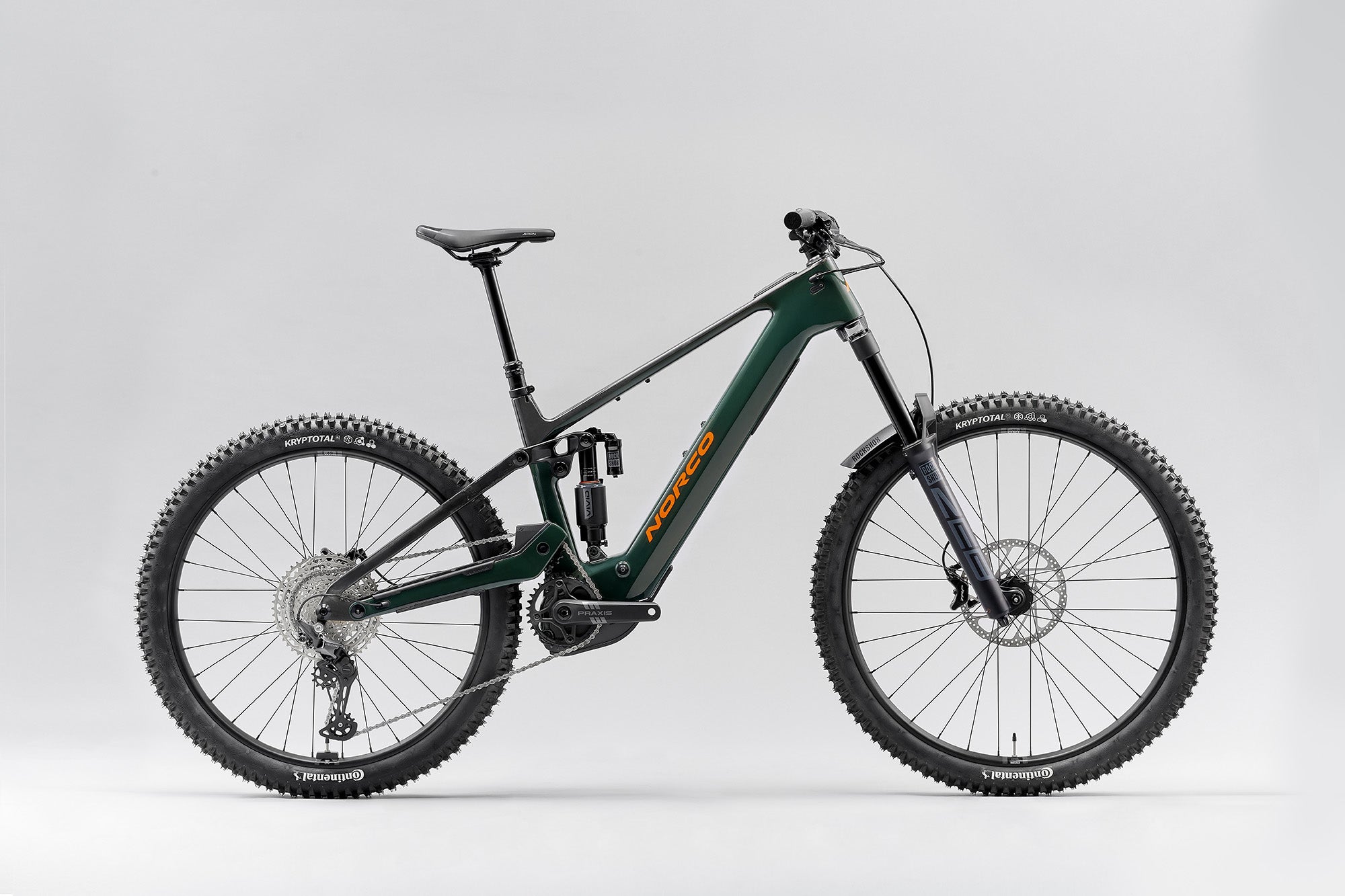

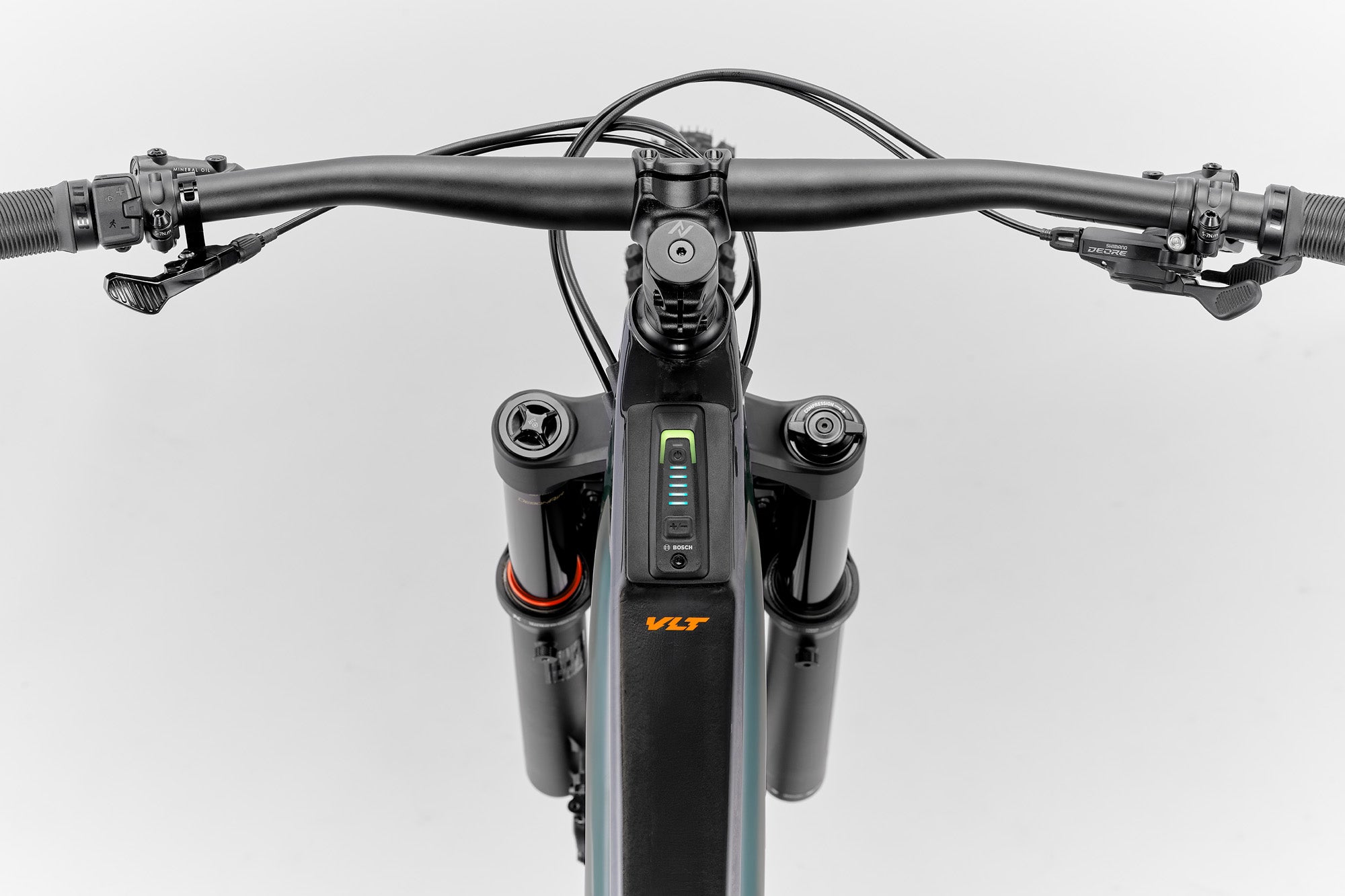

2026 Range VLT CX C2
With 170/160 mm of travel, Range VLT CX C2 is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor — it’s the anti-shuttle, enduro rig for people who live for the descents.
A low-weight, full-power VLT with the newest Bosch technology, made to charge the steeps all day.
The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.
The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.
Details
- A more powerful drive system that's lighter, quieter, and more natural feeling than ever before
- Balanced geometry for maximum control and handling
- VPSHP suspension platform - High pivot flow to eat up rough terrain with confidence
- Bombproof components – spec'd for the toughest trails
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
- No Other Way Limited Lifetime Warranty
Frameset
Frame
Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork
RockShox ZEB Base, 170mm Travel, 44mm Offset, Fender Included
Rear Shock
RockShox Vivid Air Base, 205x65mm TR
Drivetrain
Rear Shifter
Shimano Deore SL-M6100-R, 12-Speed
Rear Derailleur
Shimano Deore RD-M6100, 12-Speed
Crankset
Praxis HD Aluminum Bosch Cranks, 34T, 160mm
Bottom Bracket
Bosch BDU38
Cassette
Shimano Deore CS-M6100-12, 10–51T, 12-Speed
Chain
Shimano Deore XT CN-M8100, 12-Speed
Brakes
Front Brake
TRP Slate EVO, Organic Pads
Front Brake Rotor
TRP 203mm, 2.3mm Thickness, 6-Bolt
Rear Brake
TRP Slate EVO, Organic Pads
Rear Brake Rotor
TRP RS01E, 180mm, 2.3mm Thickness, 6-Bolt
Brake Levers
TRP Slate EVO
Components
Handlebar
Norco 6061 DB Alloy, 800mm, 25mm Rise
Stem
Norco Alloy, 40mm Length, 35mm Clamp
Seatpost
TranzX YSP23KL, 31.6mm
150mm (S2) · 170mm (S3) · 200mm (S4 & S5)
Headset
FSA No.55 Sealed Bearing, 1 1/8" – 1.8" Tapered
(ZS44/28.6 | ZS56/40)
Saddle
Fizik Terra Aidon X5
Grips
WTB Wavelength, 130mm Length
Wheels
Front Hub
Bear Pawls BMB-003, 15x110mm Boost, 32h, 6-Bolt
Rear Hub
Bear Pawls BMB-007, 12x148mm Boost, HG, 32h, 6-Bolt
Rims
WTB ST i30, 30mm, 32h, 29"/27.5" F/R
Front Tire
Continental Kryptotal-F, Enduro, Soft, 29 x 2.4", Foldable
Rear Tire
Continental Kryptotal-R, Enduro, Soft, 27.5 x 2.4", Foldable
Spokes/Nipples
Sapim Sprint DB
Electric Components
Drive Unit
Bosch Performance Line CX, 100 Nm / 750W
Battery
Bosch PowerTube 800 Wh
Product Variants SKU/UPC
- 2026 Norco Range VLT CX C2: Sage Slate / Raw / S2: SKU: 0283815155 - UPC:
- 2026 Norco Range VLT CX C2: Sage Slate / Raw / S3: SKU: 0283815156 - UPC:
- 2026 Norco Range VLT CX C2: Sage Slate / Raw / S4: SKU: 0283815157 - UPC:
- 2026 Norco Range VLT CX C2: Sage Slate / Raw / S5: SKU: 0283815158 - UPC:
