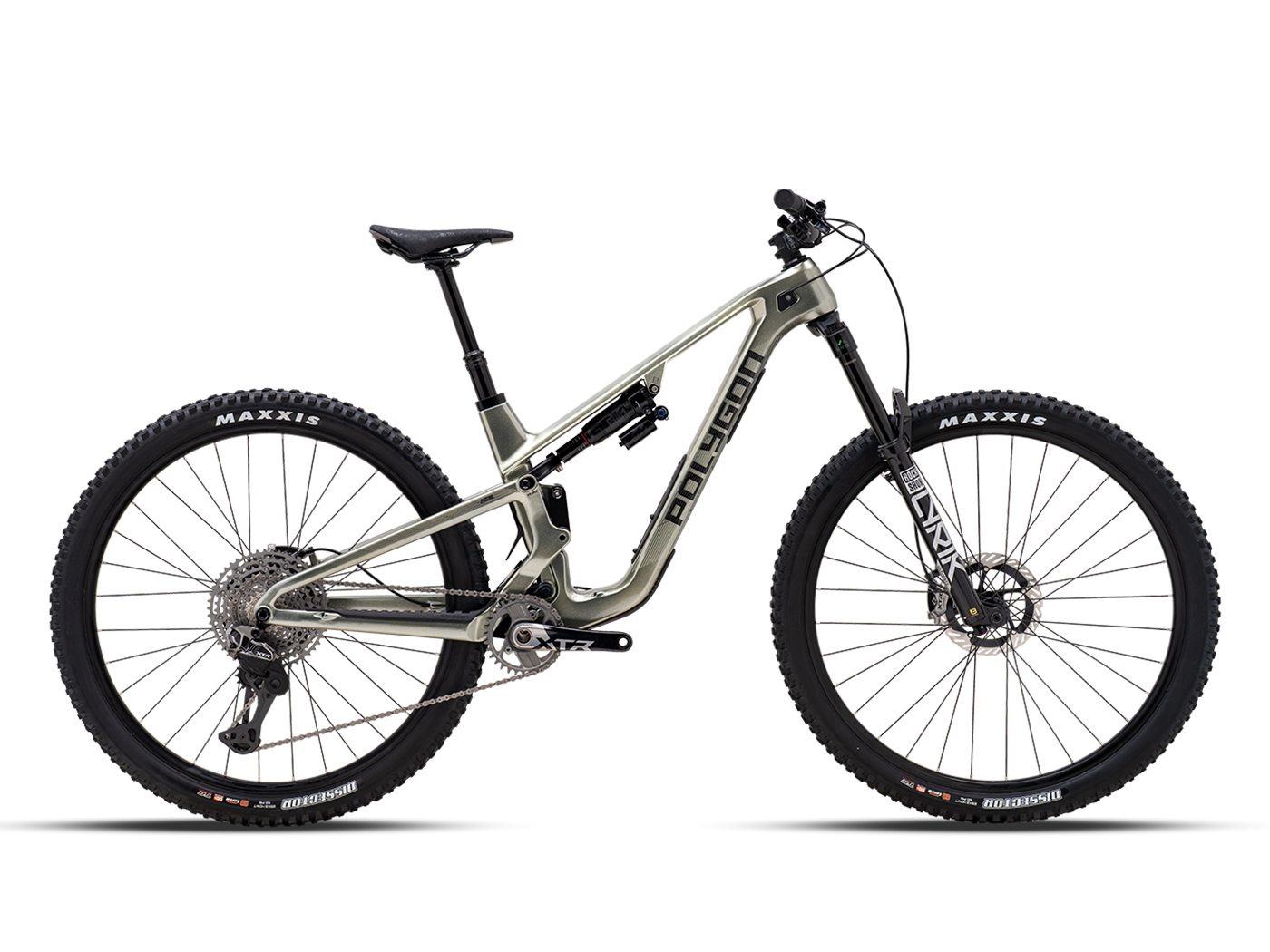

2026 Polygon Collosus T9 Di2 CB

By Polygon
$7,699.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503436001
Color: Silver
Size
View details
Description

COLLOSUS T: Modern Trail Bike Design

Trail | 160mm/140mm Travel | ACX Carbon | 29" or MX Wheels

Meet your match with the new COLLOSUS T Series. Sitting between the trail orientated SISKIU T, and the enduro focused COLLOSUS N, it's an aggressive trail platform that fills the gap. Now available in ACX carbon and ALX alloy - making it accessible to more riders than ever before.
Technical Specifications

Frameset

  • Frameset: ACX TRAIL 140mm TRAVEL
  • Fork: ROCKSHOX LYRIK ULTIMATE 160mm TRAVEL
  • Rear Shock: ROCKSHOX SUPER DELUXE SELECT+, E2E: 210x55mm
  • Size: S, M, L, XL
  • Frame Color: METALIC TITAN SILVER
  • Decal Color: BLACK

Drivetrain

  • Shifter: SHIMANO XTR DI2 SW-M9250 I-SPEC EV, 1x12-SPEED
  • Crank: SHIMANO XTR M9220, 32T
  • Cassette: SHIMANO XTR M9200, 10-51T
  • Rear Derailleur: SHIMANO XTR DI2 M9250, SHADOW ES
  • BB: SHIMANO BB93, 73mm
  • Chain: SHIMANO XTR M9100
  • Pedal: ALLOY FLAT W/ REPLACEABLE PIN

Cockpit

  • Saddle: XTENT
  • Seatpost: DROPPER POST TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL
  • Handlebar: RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree
  • Handlestem: RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree
  • Headset: FSA NO.76 ALLOY TOP COVER, THREADLESS ZS 51/28.6 | ZS 59/40

Wheel & Tire

  • Wheel Set: POLYGON MT6 TUBELESS READY
  • Wheel Size: 29"
  • Tire: MAXXIS DISSECTOR 29"x2.40"
  • Rim: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY
  • Hub: F: SHIMANO XT HB-M8110-B BOOST 15x110mm 32H CL / R: SHIMANO DEORE XT FH-M8110-B BOOST 12x148mm 32H CL FOR MICRO SPLINE
  • Spokes: F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: SHIMANO XTR M9220
  • Brake Caliper: SHIMANO XTR M9220, HYDRAULIC DISC
  • Rotor: SHIMANO CL900, 180mm
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 71 71 71 71
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 90 95 105 120
Head Tube Angle (E) 64.5 64.5 64.5 64.5
Effective Top Tube (F) 572 598 621 645
Bb Height (G) 338 338 338 338
Bb Offset (H) 38 38 38 38
Chainstay Length (I) 430 430 435 435
Wheelbase (J) 1192 1219 1248 1274
Frame Reach (K) 440 465 485 505
Frame Stack (L) 613 618 627 640
Standover Height (M) 687 691 704 704
Seatpost Insertion Depth 250 260 250 260
Product Variants SKU/UPC
  • 2026 Polygon Collosus T9 Di2 CB: Silver / SM: SKU: 503436001 - UPC:
  • 2026 Polygon Collosus T9 Di2 CB: Silver / MD: SKU: 503436002 - UPC:
  • 2026 Polygon Collosus T9 Di2 CB: Silver / LG: SKU: 503436003 - UPC:
  • 2026 Polygon Collosus T9 Di2 CB: Silver / XL: SKU: 503436004 - UPC:
