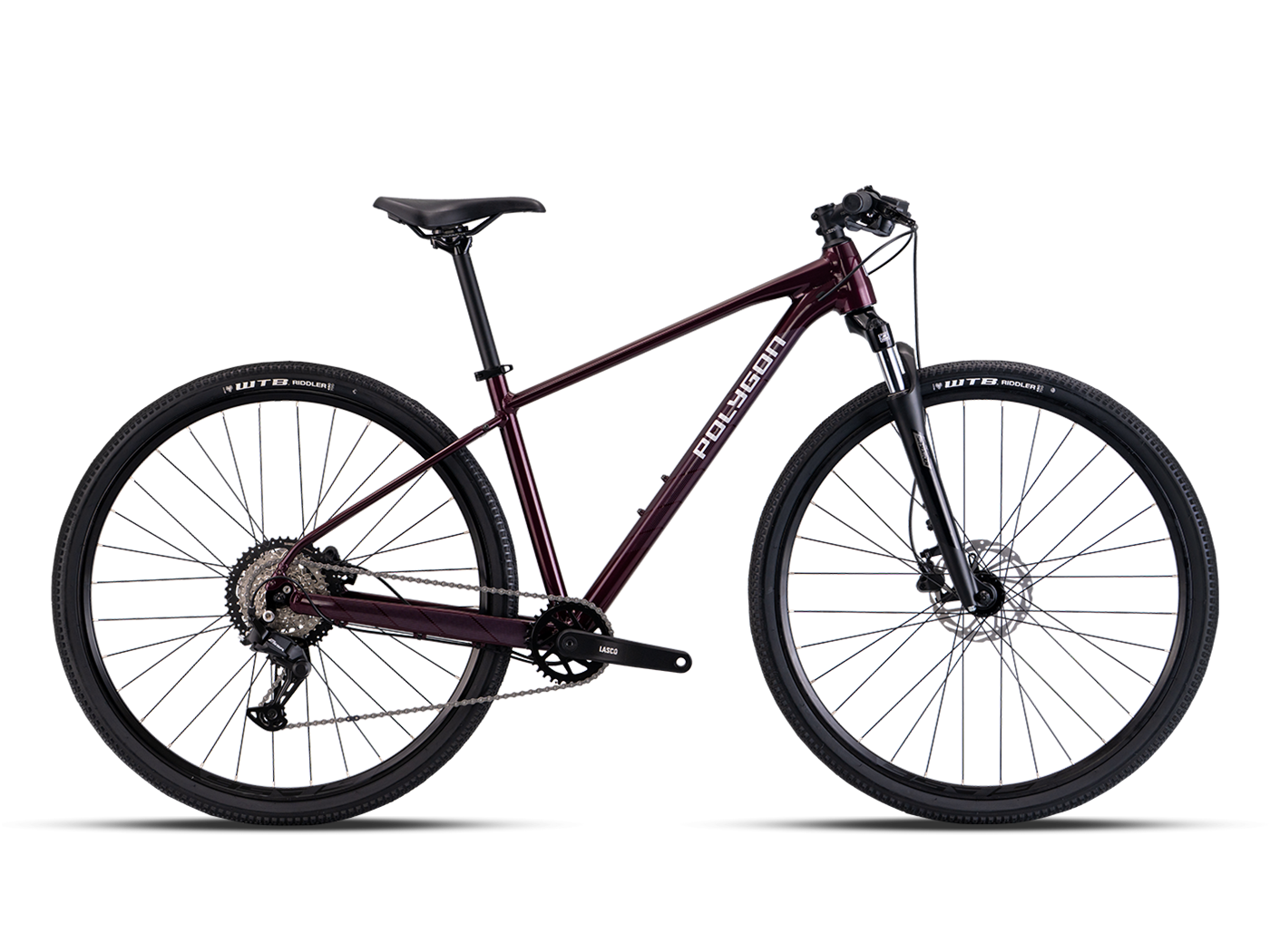

2026 Polygon Heist 2

By Polygon
$759.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503755003
Color: Purple
Size
View details
Description

HEIST: For Urban Adventures

Hybrid | ALX Alloy frame | 3 Available Builds

The Polygon Heist is your all-access past to urban adventures. It's a city hybrid that’s fast enough to win the sprint to the office and tough enough to take the dirt path home. Whether you're hopping curbs, dodging traffic, or exploring hidden gravel trails, the Heist turns every ride into a playground.
Technical Specifications

Frameset

  • Frameset: ALX HYBRID 700C
  • Fork: SUNTOUR NEX 63MM TRAVEL, COIL SPRING, PRELOAD ADJUSTER
  • Size: S, M, L, XL
  • Frame Color: PURPLE
  • Decal Color: SILVER BLACK

Drivetrain

  • Shifter: SHIMANO ALTUS SL-M315, 1x8 SPEED, RAPID FIRE SHIFTER
  • Crank: PROWHEEL C10Y-NW 36T
  • Cassette: SHIMANO ACERA CS-HG400, 11-45T
  • Rear Derailleur: SHIMANO ESSA RD-U2000
  • BB: SQUARE BB 68X119mm
  • Chain: KMC Z-8.3
  • Pedal: PP PEDAL

Cockpit

  • Saddle: SELLE ROYAL A059H, RAIL: STEEL ø7mm
  • Seatpost: POLYGON SPORT BB INTERFACE, DxL: 27.2 x 350mm
  • Handlebar: POLYGON SPORT, W: 680mm, BB: 31.8mm, R/D: 0mm, B: 6degree
  • Handlestem: POLYGON SPORT FRONT RIM, E: 75mm, BB: 31.8mm, R/D: 10degree
  • Headset: ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/30

Wheel & Tire

  • Wheel Set: ALLOY WHEELS
  • Tire: KENDA K-1172 700X45C
  • Rim: F: ALLOY DOUBLE WALL H: 20mm W: 21mm 32H FOR TYRE 622, R: ALLOY DOUBLE WALL H: 20mm W: 21mm 32H FOR TYRE 622
  • Hub: F: ALLOY HUB QR M9x100mm 32H, R: ALLOY HUB QR M9X135mm 32H
  • Spokes: F: 14G STAINLESS NDS: 290mm DS: 290mm 12MM NIPPLE BRASS, R: 14G STAINLESS NDS: 290mm DS: 290mm 12MM NIPPLE BRASS

Brake

  • Brake Lever: TEKTRO HD-M280
  • Brake Caliper: TEKTRO HD-M280
  • Rotor: TEKTRO TR-160-52 160mm
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 405 432 470 516
Seat Tube Angle (B) 74 74 74 74
Effective Seat Tube Angle (C) 74 74 74 74
Head Tube Length (D) 90 99 100 110
Head Tube Angle (E) 71 71 71 71
Effective Top Tube (F) 556 579 599 622
Bb Height (G) 294 294 294 294
Bb Offset (H) 70 70 70 70
Chainstay Length (I) 440 440 440 440
Wheelbase (J) 1050 1073 1093 1116
Frame Reach (K) 384 405 425 445
Frame Stack (L) 597 607 607 616
Standover Height (M) 697 711 737 777
Product Variants SKU/UPC
  • 2026 Polygon Heist 2: Purple / SM: SKU: 503755001 - UPC:
  • 2026 Polygon Heist 2: Purple / MD: SKU: 503755002 - UPC:
  • 2026 Polygon Heist 2: Purple / LG: SKU: 503755003 - UPC:
  • 2026 Polygon Heist 2: Purple / XL: SKU: 503755004 - UPC:
