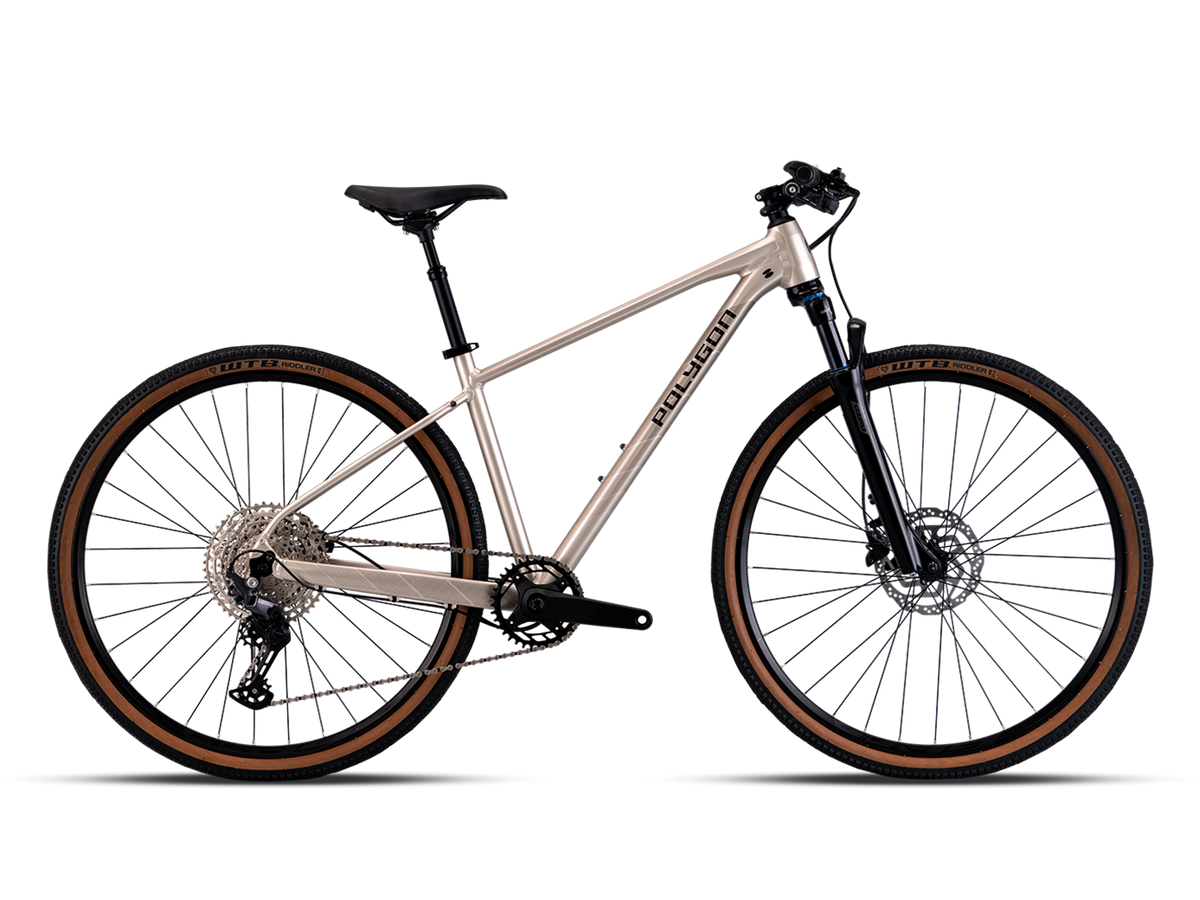

2026 Polygon Heist 7

By Polygon
$1,159.00 CAD
503757001
Color: Cream
Size
View details
Description

HEIST: For Urban Adventures

Hybrid | ALX Alloy frame | 3 Available Builds

The Polygon Heist is your all-access past to urban adventures. It's a city hybrid that’s fast enough to win the sprint to the office and tough enough to take the dirt path home. Whether you're hopping curbs, dodging traffic, or exploring hidden gravel trails, the Heist turns every ride into a playground.
Technical Specifications

Frameset

  • Frameset: ALX HYBRID 700C
  • Fork: SUNTOUR NVX32-5TA 63MM TRAVEL, AIR SPRING, HYDRAULIC SPEED LOCKOUT
  • Size: S, M, L, XL
  • Frame Color: CREAM
  • Decal Color: BLACK

Drivetrain

  • Shifter: SHIMANO DEORE SL-M6100, 1x12 SPEED, RAPID FIRE SHIFTER
  • Crank: PROWHEEL DMG-FD04S 36T
  • Cassette: SHIMANO DEORE CS-M6100, 10-51T
  • Rear Derailleur: SHIMANO DEORE RD-M6100
  • BB: PROWHEEL 2-PIECES FEATURES :
  • Chain: KMC-X12
  • Pedal: PP PEDAL

Cockpit

  • Saddle: SELLE ROYAL A059H, RAIL: STEEL ø7mm
  • Seatpost: ALLOY SUSPENSION SEATPOST, DxL: 27.2x340mm
  • Handlebar: POLYGON SPORT, W: 680mm, BB: 31.8mm, R/D: 0mm, B: 6degree
  • Handlestem: POLYGON SPORT, E: 75mm, BB: 31.8mm, R/D: ADJUSTABLE
  • Headset: ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

  • Wheel Set: ALLOY WHEELS
  • Tire: WTB RIDDLER 700X45C
  • Rim: F: SHIMANO QC 400 M9X100mm 32H, R: ALLOY DOUBLE WALL H: 20mm W: 21mm 32H FOR TYRE 622
  • Hub: F: SHIMANO QC 400 M9X100mm 32H, R: SHIMANO QC 500 MICROSPLINE M9X135mm 32H
  • Spokes: F: 14G STAINLESS NDS: 290mm DS: 292mm 12MM NIPPLE BRASS, R: 14G STAINLESS NDS: 292mm DS: 290mm 12MM NIPPLE BRASS

Brake

  • Brake Lever: SHIMANO MT200
  • Brake Caliper: SHIMANO MT200
  • Rotor: SHIMANO SM-RT10 180mm
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 405 432 470 516
Seat Tube Angle (B) 74 74 74 74
Effective Seat Tube Angle (C) 74 74 74 74
Head Tube Length (D) 90 100 100 110
Head Tube Angle (E) 71 71 71 71
Effective Top Tube (F) 556 579 599 622
Bb Height (G) 294 294 294 294
Bb Offset (H) 70 70 70 70
Chainstay Length (I) 440 440 440 440
Wheelbase (J) 1050 1073 1093 1116
Frame Reach (K) 385 405 425 445
Frame Stack (L) 597 607 607 616
Standover Height (M) 696 711 737 777
Product Variants SKU/UPC
  • 2026 Polygon Heist 7: Cream / SM: SKU: 503757001 - UPC:
  • 2026 Polygon Heist 7: Cream / MD: SKU: 503757002 - UPC:
  • 2026 Polygon Heist 7: Cream / LG: SKU: 503757003 - UPC:
  • 2026 Polygon Heist 7: Cream / XL: SKU: 503757004 - UPC:
