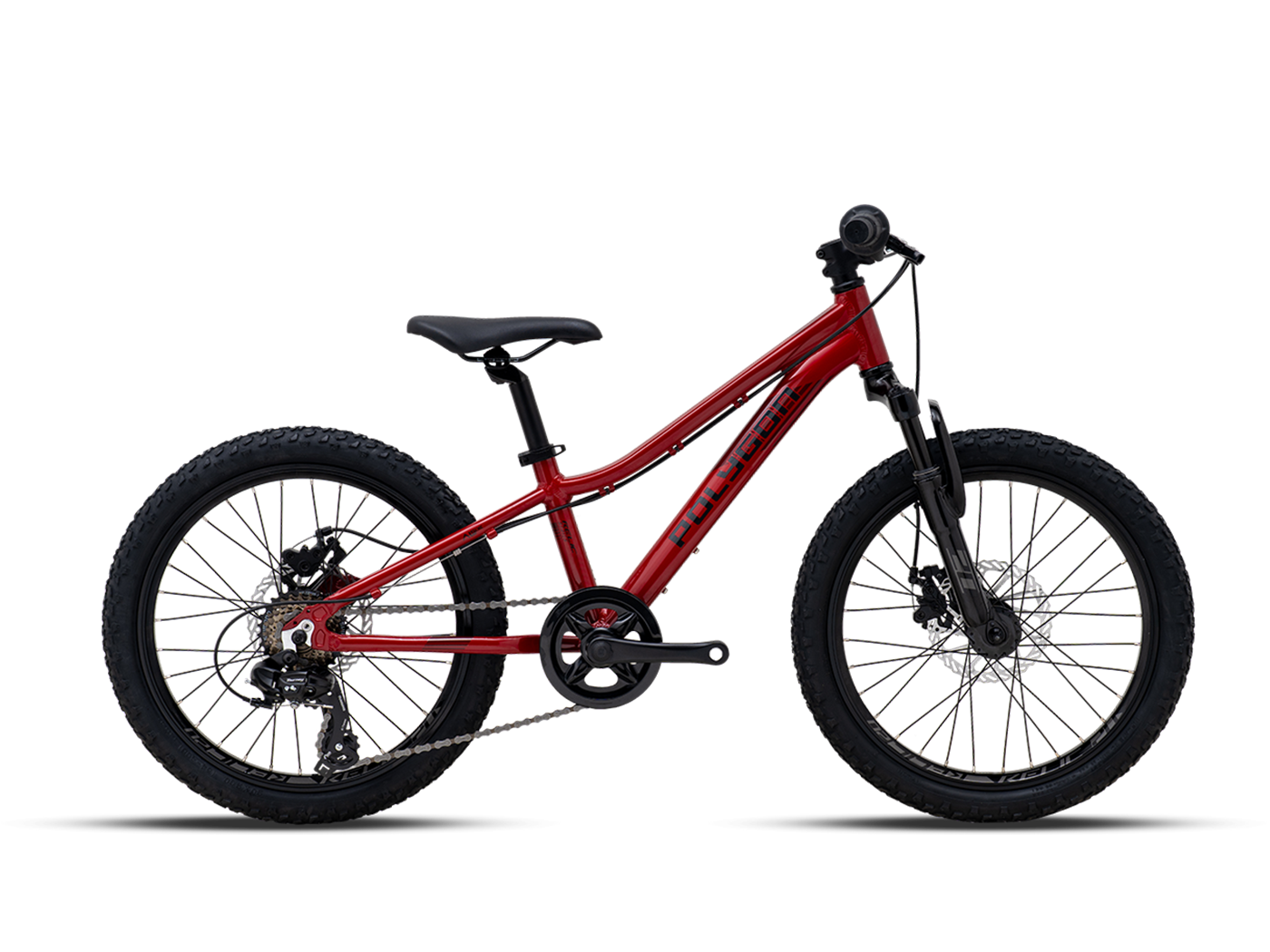

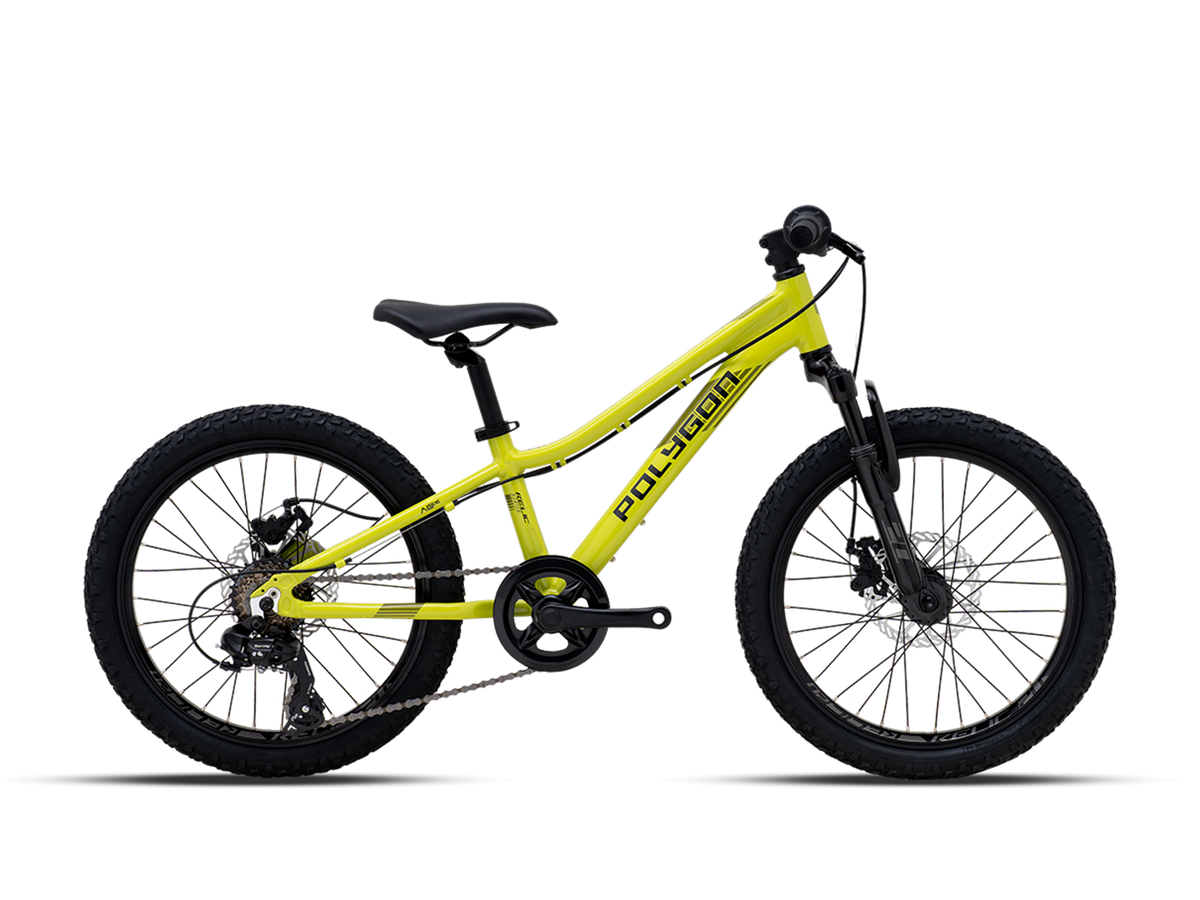

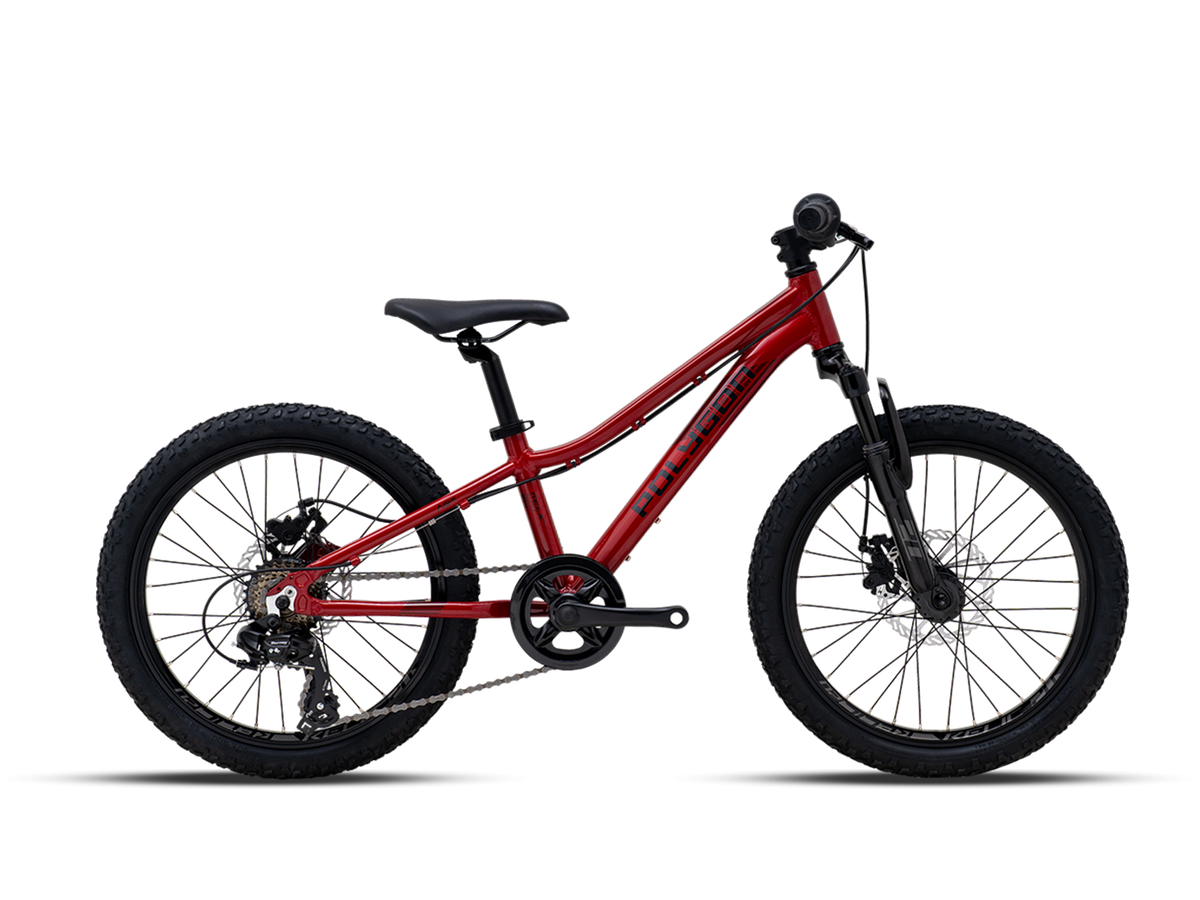

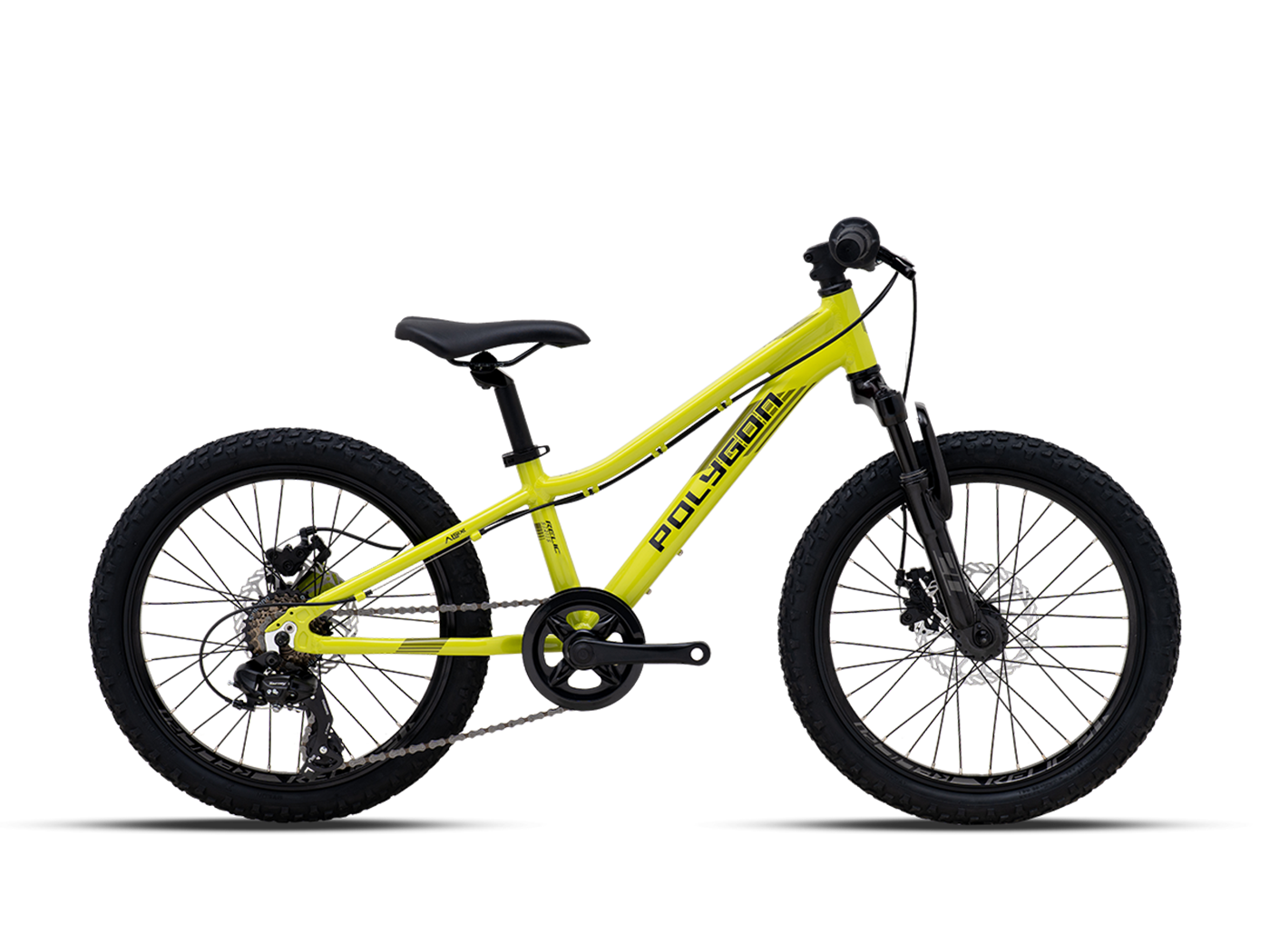

2026 Polygon Relic20

By Polygon
$419.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

503255001
Color: Green
Size
View details
Description

RELIC 20: Adventure Starts Here

Junior | 80mm Suspension | ALX Alloy | 20" Wheels

The Polygon RELIC 20 is perfect for aspiring riders who are ready to move on from a balance bike or a single-speed. It's the ideal first "real" bike for those with smaller hands but big imaginations. Built with a lightweight frame and sleek lines, it gives younger explorers the confidence to keep up with the big kids and start carving their own path.
Technical Specifications

Frameset

  • Frameset: AL6 RIGID FRAME
  • Fork: SUSPENSION FORK 40mm TRAVEL
  • Size: ALL SIZE
  • Frame Color: RED / LIME GREEN
  • Decal Color: BLACK

Drivetrain

  • Shifter: REVO SHIFTER 1x7 SPEED
  • Crank: ALLOY 32T W/ DOUBLE CHAIN GUARD
  • Cassette: SHIMANO MF-TZ500 14-28T
  • Rear Derailleur: SHIMANO TOURNEY RD-TY300 DIRECT ATTACH
  • BB: 5-PIECE 68x124mm
  • Chain: KMC HV500
  • Pedal: PP PEDAL W/ REFLECTOR

Cockpit

  • Saddle: POLYGON SADDLE, STEEL ø 7mm
  • Seatpost: ALLOY SEATPOST, DxL: 27.2 x 300mm
  • Handlebar: STEEL HANDLEBAR, W: 560mm, BB: 25.4mm, R/D: 20mm, B: 6degree
  • Handlestem: ALLOY HANDLE STEM, EXT: 40mm, BB: 25.4mm, R/D: 7degree
  • Headset: EXTERNAL CUP (EC) CARTRIDGE BEARING FOR NORMAL HEAD TUBE

Wheel & Tire

  • Wheel Set: ALLOY DOUBLE WALL, 32H
  • Wheel Size: 20"
  • Tire: DELI 20"x2.00"
  • Rim: 406-21 32H FOR TYRE 406-20/35
  • Hub: F: JOYTECH D761DSE ALLOY QRx100mm 32H 6-BOLTS / R: JOYTECH D242DSE ALLOY QRx135mm 32H 6-BOLTS
  • Spokes: F: 14G STEEL NDS:182mm DS:184mm W/ 12mm BRASS NIPPLE / R: 14G STEEL NDS:184mm DS:182mm W/ 12mm BRASS NIPPLE

Brake

  • Brake Lever: TEKTRO TS-325A
  • Brake Caliper: ALLOY MECHANICAL DISC BRAKES
  • Rotor: 160mm 6-BOLTS
Geometry
All Size
Height (cm) 110-125
Seat Tube Length (A) 254
Seat Tube Angle (B) 72
Effective Seat Tube Angle (C) 72
Head Tube Length (D) 100
Head Tube Angle (E) 70
Effective Top Tube (F) 450
Bb Height (G) 237
Bb Offset (H) 20
Chainstay Length (I) 370
Wheelbase (J) 864.7
Frame Reach (K) 304.9
Frame Stack (L) 446.6
Standover Height (M) 475.5
Product Variants SKU/UPC
  • 2026 Polygon Relic20: Green / OS: SKU: 503255001 - UPC:
  • 2026 Polygon Relic20: Red / OS: SKU: 503255002 - UPC:
