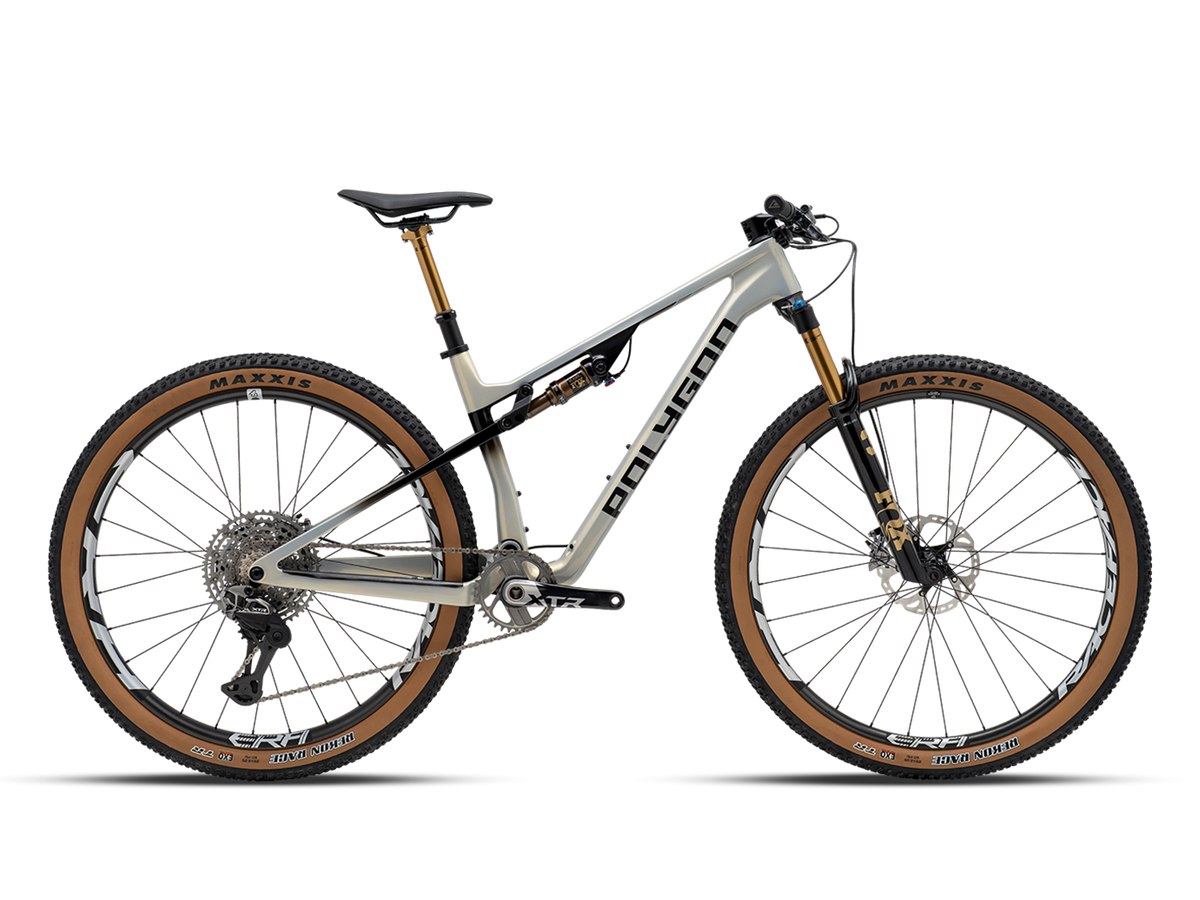

2026 Polygon Syncline DR9 CB

By Polygon
$9,999.00 CAD
503445001
Color: White
Size
View details
Description

SYNCLINE DR: Modern XC Design Ready for Riding & Racing

Cross-Country | 120mm/110mm Travel | ACX Carbon | 29" Wheels

Cross-country riding has evolved, and the SYNCLINE DR is our definitive response. By pairing a featherweight ACX carbon construction with aggressive, gravity-influenced geometry, we've created a modern evolution of the XC race bike. Designed for the new era of technical courses and high-speed down-country riding, the SYNCLINE DR is fast, light and incredibly capable.
Technical Specifications

Frameset

  • Frameset: ACX XC 110mm TRAVEL
  • Fork: FOX 34 SL FACTORY SERIES 120mm TRAVEL
  • Rear Shock: FOX FLOAT SL FACTORY SERIES, E2E: 165x40mm
  • Size: S, M, L, XL
  • Frame Color: WHITE SILVER
  • Decal Color: BLACK

Drivetrain

  • Shifter: SHIMANO XTR Di2 M9250 I-SPEC EV, 1x12 SPEED
  • Crank: SHIMANO XTR M9200, 34T
  • Cassette: SHIMANO XTR M9200, 10-51T
  • Rear Derailleur: SHIMANO XTR Di2 M9250
  • BB: SHIMANO BB93
  • Chain: SHIMANO XTR M9100

Cockpit

  • Saddle: FIZIK TERRA ARGO X7, R: CR-MO ø 7mm
  • Seatpost: FOX TRANSFER SL FACTORY SERIES 120mm TRAVEL, DxL: 31.6x455mm
  • Handlebar: FSA KFX FLAT CARBON, W: 760mm, BB: 31.8mm, R/D:-
  • Handlestem: FSA KFX 2-BOLT, E: 70mm, BB: 31.8m, R/D: -20degree
  • Headset: FSA NO.69/59/SRS/DUAL, S.H.I.S. IS 52/28.6 | IS 52/40

Wheel & Tire

  • Wheel Set: RACE FACE ERA CARBON
  • Tire: MAXXIS REKON RACE 29"x2.35"
  • Rim: RACE FACE ERA CARBON 622-30 28H W/ TUBELESS READY RIM TAPE
  • Hub: F: RACE FACE VAULT 415 THRU AXLE 15x110mm 28H CENTER-LOCK / R: RACE FACE VAULT 424 THRU AXLE 12x148mm 28H CENTER-LOCK
  • Spokes: F: STAINLESS NDS:305mm DS:305mm W/ 12mm NIPPLE, R: STAINLESS NDS:301mm DS:305mm W/ 12mm NIPPLE

Brake

  • Brake Lever: SHIMANO XTR M9200
  • Brake Caliper: SHIMANO XTR M9200
  • Rotor: SHIMANO RT86, R:160mm / F:180mm
Geometry
S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 384 432 470 510
Seat Tube Angle (B) 74.75 74.75 74.75 74.75
Effective Seat Tube Angle (C) 71.2 71.2 71.2 71.2
Head Tube Length (D) 95 105 115 125
Head Tube Angle (E) 67.5 67.5 67.5 67.5
Effective Top Tube (F) 570 599 625 653
Bb Height (G) 334.5 334.5 334.5 334.5
Bb Offset (H) 38 38 38 38
Chainstay Length (I) 440 440 440 440
Wheelbase (J) 1217.7 1188.9 1160 1131
Frame Reach (K) 410 435 460 485
Frame Stack (L) 587 601 606 615
Standover Height (M) 725 726 725 725
Product Variants SKU/UPC
  • 2026 Polygon Syncline DR9 CB: White / SM: SKU: 503445001 - UPC:
  • 2026 Polygon Syncline DR9 CB: White / MD: SKU: 503445002 - UPC:
  • 2026 Polygon Syncline DR9 CB: White / LG: SKU: 503445003 - UPC:
  • 2026 Polygon Syncline DR9 CB: White / XL: SKU: 503445004 - UPC:
