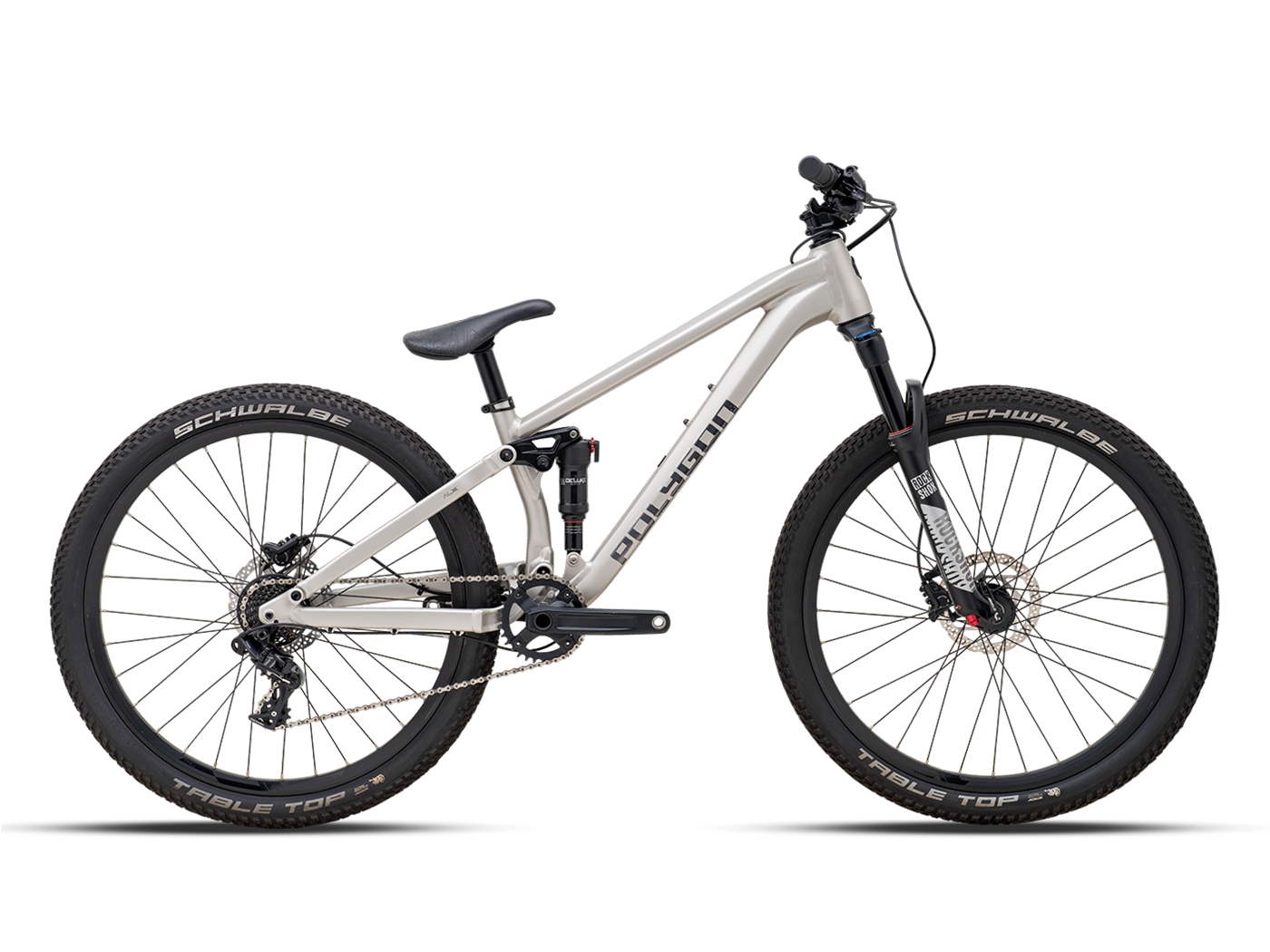

2026 Polygon Trid ZZ

TRID ZZ: Podium Proven, Athlete Designed - the choice for slopestyle and freestyle MTB riders

Dual Suspension | 26 Inch Wheels | ALX Alloy

Developed with slopestyle icon Sam Reynolds, the TRID ZZ is proven on the world's biggest slopestyle courses and is equally at home on dirt jumps or the local pump track. The custom-designed ALX alloy frame features a 69-degree tapered head tube, 426mm reach, and a low 331mm BB height that inspires confidence when stomping massive tricks. The ultra-low standover keep things snappy and precise. Whether you're learning your first barspin or sending a 50-foot step-down, the TRID ZZ is built for riders who are serious about progression.

Frameset

• Frameset: AL6 SLOPE STYLE
• Fork: ROCKSHOX PIKE AIR 100MM TRAVEL
• Rear Shock: ROCKSHOX DELUXE SELECT, E2E: 190mm
• Size: ALL SIZE
• Frame Color: SILVER
• Decal Color: GREY GLOSS

Drivetrain

• Shifter: SRAM GX-DH, 7-SPEED TRIGGER
• Crank: SAMOX TAF15
• Cassette: SRAM PG-720 11-25T
• Rear Derailleur: SRAM GX-DH
• BB: BSA THREADED 68/73mm
• Chain: KMC X-11
• Pedal: ONE PIECE ALLOY BODY

Cockpit

• Saddle: BLACK, PIVOTAL
• Seatpost: DxL: 30.9 x 200mm
• Handlebar: ALLOY HANDLEBAR, W: 760mm, BB: 31.8mm, R/D: 38mm, B: 10degree
• Handlestem: ALLOY STEM, EXT: 40mm, BB: 31.8mm, R/D: 0degree
• Headset: FSA SEALED BEARING, ZS 44/28.6 | ZS 56/40

Wheel & Tire

• Wheel Set: ALLOY WHEELS
• Wheel Size: 26"
• Tire: VEE TIRE XCV 26"x2.25 559-57
• Rim: 559x25C 32H FOR TYRE 559-44/76 W/ EYELET
• Hub: F: NOVATEC D041SB-15 15x100mm 32H 6B / R: FORMULA DCL-360 12x142mm 32H 6B FOR SPROCKET
• Spokes: F: 14G STAINLESS NDS:256mm DS:258mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:258mm DS:258mm W/ 12mm BRASS NIPPLE

Brake

• Brake Lever: SHIMANO MT501
• Brake Caliper: SHIMANO HYDRAULIC DISC BRAKE
• Rotor: SMRT56

	All Size
Height (cm)	172-185
Seat Tube Length (A)	330
Seat Tube Angle (B)	70
Effective Seat Tube Angle (C)	75
Head Tube Length (D)	120
Head Tube Angle (E)	69
Effective Top Tube (F)	575
Bb Height (G)	331
Bb Offset (H)	8
Chainstay Length (I)	400
Wheelbase (J)	1079.1
Frame Reach (K)	425
Frame Stack (L)	558.5
Standover Height (M)	649
