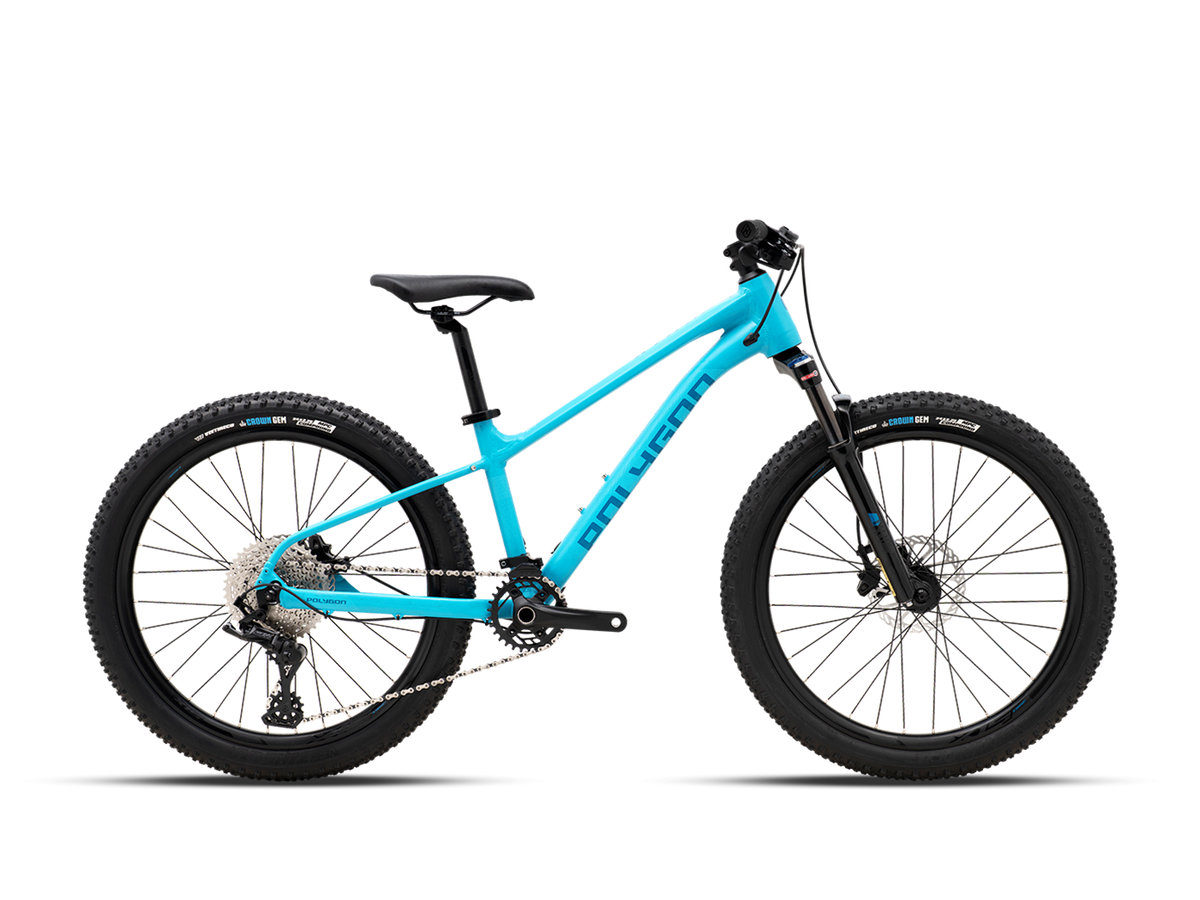

2026 Polygon Xtrada24

By Polygon
$899.00 CAD
502930001
Color: Blue
Size
View details
Description

XTRADA 24: Real Trails, Real Confidence

Junior | 80mm Suspension | ALX Alloy | 24" Wheels

The Polygon XTRADA 24 is the perfect platform for building confidence and heading on off-road adventures. The design is specifically for the ergonomics and power of younger riders, and we've added youth-specific components that prioritize ease of use and total riding comfort. By matching the bike’s proportions to a developing rider’s reach and weight, the XTRADA 24 removes the struggle of handling a heavy machine and replaces it with how a bike should feel.
Technical Specifications

Frameset

  • Frameset: ALX JUNIOR HARDTAIL
  • Fork: SUNTOUR XCR AIR 80mm TRAVEL
  • Frame Color: AQUA MARINE
  • Decal Color: SKY BUE - DEEP BLUE

Drivetrain

  • Shifter: MICROSHIFT SL-M9505 10-SPEED TRIGGER
  • Crank: PROWHEEL CHARM 30T, CRANK ARM: 140mm
  • Cassette: SUNRACE CSMS3 10-SPEED 11-42T
  • Rear Derailleur: MICROSHIFT RD-M6205GM 10-SPEED
  • BB: PROWHEEL 2 PIECE, THREADED BSA 73mm
  • Chain: KMC X10 10-SPEED
  • Pedal: ALLOY FLAT

Cockpit

  • Saddle: BLACK, STEEL ø7mm
  • Seatpost: ENTITY EXPERT, 27.2x350mm
  • Handlebar: ENTITY EXPERT, W: 640mm, BB: 31.8mm, R/D: 20mm, B: 6 degree
  • Handlestem: ENTITY EXPERT, EXT: 45mm, BB: 31.8mm, R/D: 3 degree
  • Headset: ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/30

Wheel & Tire

  • Wheel Set: ALLOY DOUBLE WALL
  • Wheel Size: 24"
  • Tire: VEE TIRE CROWN GEM 24"x2.25" 507x57
  • Hub: F: FORMULA DC-20 QRx100mm 32H 6B / R: FORMULA DC-1422 QRx135mm 32H 6B FOR CASSETE SPROCKET
  • Spokes: F: STAINLESS 14G NDS:232mm DS:234mm / R: STAINLESS 14G NDS:232mm DS:230mm

Brake

  • Brake Lever: CLARKS M2 JR
  • Brake Caliper: CLARKS M2 JR HYDRAULIC DISC
  • Rotor: CLARKS 160mm 6B
Geometry
All Size
Height (cm) 127-142
Seat Tube Length (A) 321
Seat Tube Angle (B) 75
Effective Seat Tube Angle (C) 75
Head Tube Length (D) 90
Head Tube Angle (E) 65
Effective Top Tube (F) 490
Bb Height (G) 288
Bb Offset (H) 30
Chainstay Length (I) 400
Wheelbase (J) 1028.28
Frame Reach (K) 345
Frame Stack (L) 540.5
Standover Height (M) 582.3
Product Variants SKU/UPC
  • 2026 Polygon Xtrada24: Blue / OS: SKU: 502930001 - UPC:
