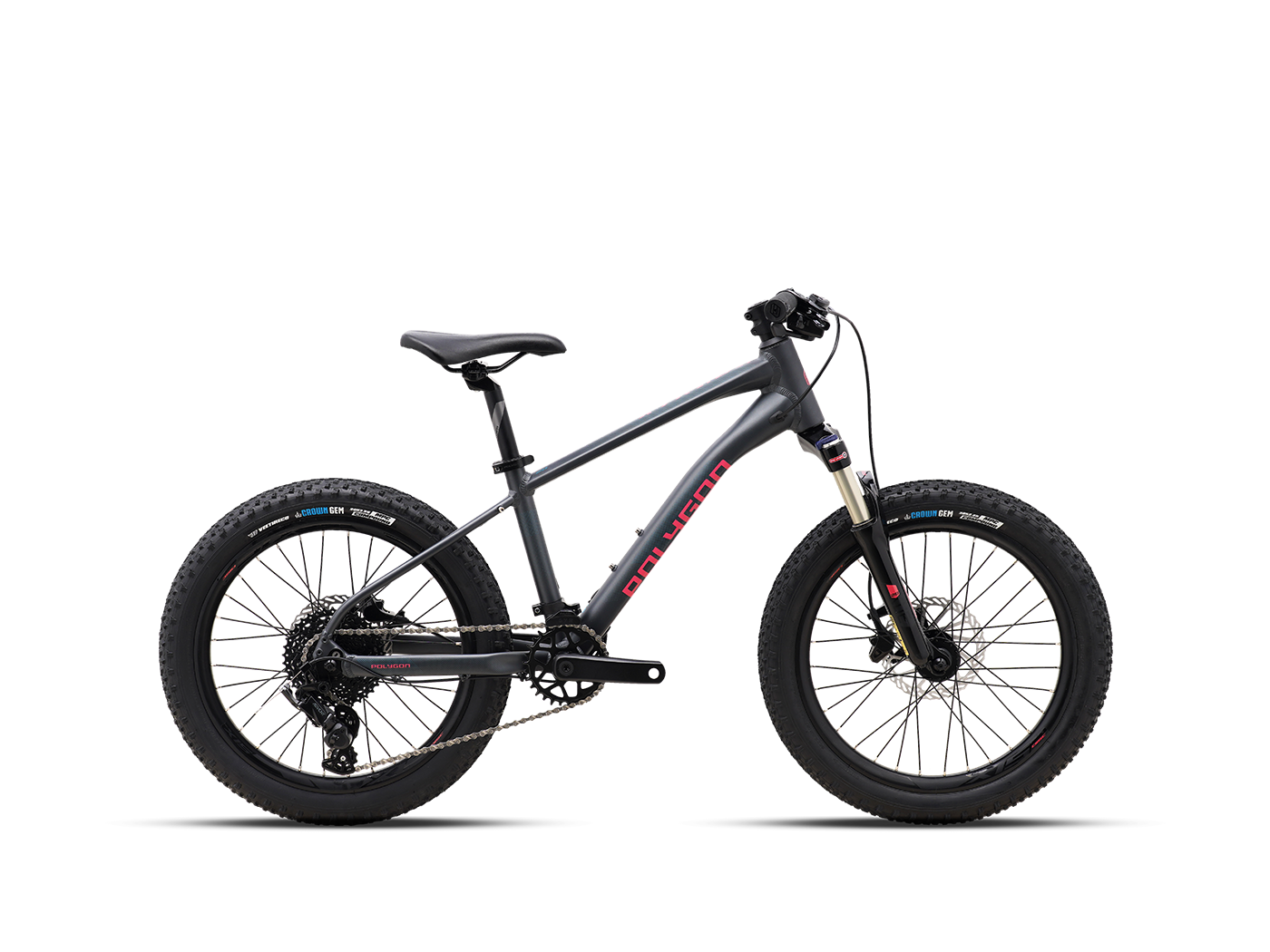

2026 Polygon Xtrada20

By Polygon
$799.00 CAD
502929001
Color: Charcoal
Size
View details
Description

XTRADA 20: Adventure Starts Here

Junior | 80mm Suspension | ALX Alloy | 20" Wheels

The Polygon XTRADA 20 is the perfect platform for building confidence and heading on off-road adventures. The design is specifically for the ergonomics and power of younger riders, and we've added youth-specific components that prioritize ease of use and total riding comfort. By matching the bike’s proportions to a developing rider’s reach and weight, the XTRADA 20 removes the struggle of handling a heavy machine and replaces it with how a bike should feel.
Technical Specifications

Frameset

  • Frameset: ALX JUNIOR
  • Fork: SUNTOUR XCM Jr AIR 80mm TRAVEL
  • Frame Color: CHARCOAL
  • Decal Color: RED

Drivetrain

  • Shifter: MICROSHIFT SL-M6195 9-SPEED TRIGGER
  • Crank: PROWHEEL C10Y-NW 30T
  • Cassette: MICROSHIFT CS-H093 9-SPEED 11-38T
  • Rear Derailleur: MICROSHIFT RD-M6195 9-SPEED
  • BB: 2PCS W/ CARTRIDGE SEALED BEARING & 122,5mm SQUARE AXLE
  • Chain: KMC X9 9-SPEED
  • Pedal: ALLOY FLAT

Cockpit

  • Saddle: BLACK W/ CLAMP
  • Seatpost: ENTITY EXPERT
  • Handlebar: ENTITY EXPERT, W: 580mm, BB: 31.8mm, R/D: 20mm, B: 6 degree
  • Handlestem: ENTITY EXPERT, EXT: 45mm, BB: 31.8mm, R/D: 3 degree
  • Headset: ZERO STACK W/ CAGED BEARING, ZS 44/28.6mm / ZS 44/28.6mm

Wheel & Tire

  • Wheel Set: ALLOY DOUBLE WALL
  • Wheel Size: 20"
  • Tire: VEE TIRE CROWN GEM 20"x2.25" 507x57
  • Rim: ALLOY DOUBLE WALL AV H:23mm 406x30 32H FOR TIRE 406-54/76
  • Hub: F: FORMULA DC-20 QRx100mm 32H 6B / R: FORMULA DC-1422 QRx135mm 32H 6B
  • Spokes: STAINLESS 14G

Brake

  • Brake Lever: TEKTRO HD-J285
  • Brake Caliper: TEKTRO HD-J285 HYDRAULIC DISC
  • Rotor: TEKTRO 160mm 6B
Product Variants SKU/UPC
  • 2026 Polygon Xtrada20: Charcoal / OS: SKU: 502929001 - UPC:
