2025 Norco Sight VLT CX C1

By Norco Bikes Canada
$13,299.00 CAD
0283215156
Color: Raw Black / Habitat Moss
Size
View details
Description

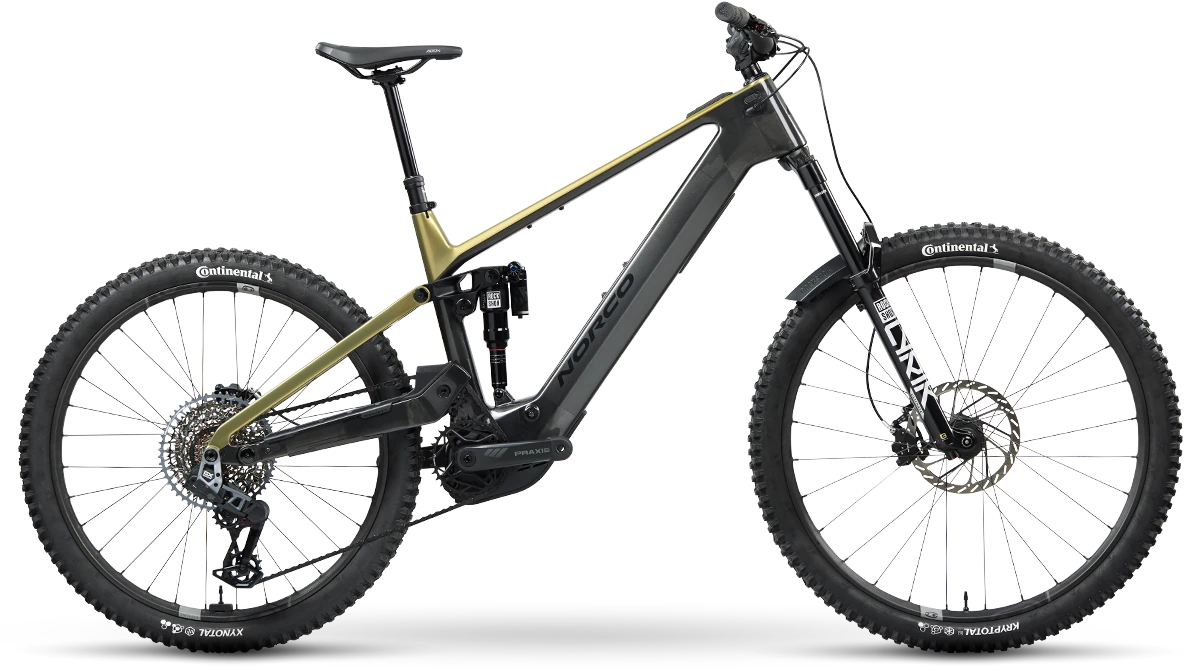

2025 Sight VLT CX C1

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.

New Bosch eMTB technology for a powerful lightweight package featuring VPSHP suspension.

The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.

The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

Details
Specifications

Frameset

  • Frame: Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

  • Fork: RockShox Lyrik Ultimate RC2, 160mm Travel, 44mm Offset, E-MTB Rated, Fender Included

  • Rear Shock: RockShox Super Deluxe Ultimate, 205x60mm TR

Drivetrain

  • Rear Shifter: SRAM AXS POD Controller, Discrete Clamp

  • Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-speed

  • Crankset: Praxis Carbon Bosch, 34T, 165mm

  • Bottom Bracket: Bosch BES3 DU

  • Cassette: SRAM 1275 Eagle T-Type, 10-52T, 12-speed

  • Chain: SRAM GX Eagle T-Type, 12-speed

Brakes

  • Front Brake Rotor: SRAM HS2, 200mm, 2mm thickness, 6-bolt

  • Rear Brake: SRAM Maven Silver, Organic Pads

  • Rear Brake Rotor: SRAM HS2, 180mm, 2mm thickness, 6-bolt

  • Brake Levers: SRAM Maven Silver

Components

  • Handlebar: OneUp Carbon, 800mm, 35mm Rise

  • Stem: Norco Alloy, 40mm Length, 35mm Clamp

  • Seatpost: TranzX YSI08FL RAD+ Travel Adjust Dropper, 31.6mm

    • 125mm (S1)

    • 150mm (S2)

    • 170mm (S3)

    • 200mm (S4, S5)

  • Headset: FSA No.55 Sealed Bearing, 1 1/8"–1.5" Tapered (ZS44/28.6 | ZS56/40)

  • Saddle: Fizik Terra Aidon X5

  • Grips: WTB Wavelength, 130mm Length

  • Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID

Wheels

  • Front Hub: Crank Bros. Synthesis Carbon Enduro, 15x110mm Boost, 32h, 6-bolt

  • Rear Hub: Crank Bros. Synthesis Carbon Enduro, 12x148mm Boost, XD, 32h, 6-bolt

  • Rims: Crank Bros. Synthesis Carbon Enduro

    • Front: 31.5mm, 28h

    • Rear: 29.5mm, 32h

    • Wheel Size: 29" Front / 27.5" Rear

  • Front Tire: Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable

  • Rear Tire: Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable

  • Spokes/Nipples: Sapim D-Light (front), Sapim Race (rear)

Electric Components

  • Drive Unit: Bosch Performance Line CX

  • Battery: Bosch PowerTube 800Wh

  • Switch: Bosch BRC 3300 Mini Remote, 22.2mm

  • Power Button: Bosch BRC 3100 System Controller

Weight

  • Total Weight: 21.7 kg (48 lbs)

  • Weight Size: S3

Additional Features

  • Feature 1: Bosch Smart System Rim Magnet

  • Feature 2: Bosch PowerMore 250 Range Extender (Not Included)

Geometry
Sight VLT CX Gen 4 (NEW)
2 3 4 5
Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
Travel (mm front/mm rear) 160/150
Reach 447.5 472.5 497.5 522.5
Stack 627 636 645 654
HTA Head Tube Angle 64
OS Fork Offset 44
ST Seat Tube Length 395 415 445 475
STA Effective Seat Tube Angle 77.25 77.5 77.75 78
RC Rear Centre Length 432 436 440 444
RC Rear Centre Length at Sag 441 445 449 453
BB Bottom Bracket Drop 25/5
BBH Bottom Bracket Height 349
HTT Horizontal Top Tube 589 613 637 661
WB Wheelbase 1222 1255 1289 1322
SOH Standover 701 711 714 729
HT Head Tube Length 115 125 135 145
Trail 133
Recommended Seatpost Drop 150 170 200
Maximum Post Insertion 250 270 300 330
Stem Length 40
Crank Length 165
Tire Size 2.35" – 2.6"
Water Bottle Compatible 1 x 620 mL 1 x 750 mL
Product Variants SKU/UPC
  • 2025 Norco Sight VLT CX C1: Raw Black / Habitat Moss / SZ2: SKU: 0283215155 - UPC: 058817716683
  • 2025 Norco Sight VLT CX C1: Raw Black / Habitat Moss / SZ3: SKU: 0283215156 - UPC: 058817716706
  • 2025 Norco Sight VLT CX C1: Raw Black / Habitat Moss / SZ4: SKU: 0283215157 - UPC: 058817716720
  • 2025 Norco Sight VLT CX C1: Raw Black / Habitat Moss / SZ5: SKU: 0283215158 - UPC: 058817716744
