Norco Sight VLT CX C3

By Norco Bikes Canada
$8,649.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

0284015155
Color: Raw Black / Ice White
Size
View details
Description

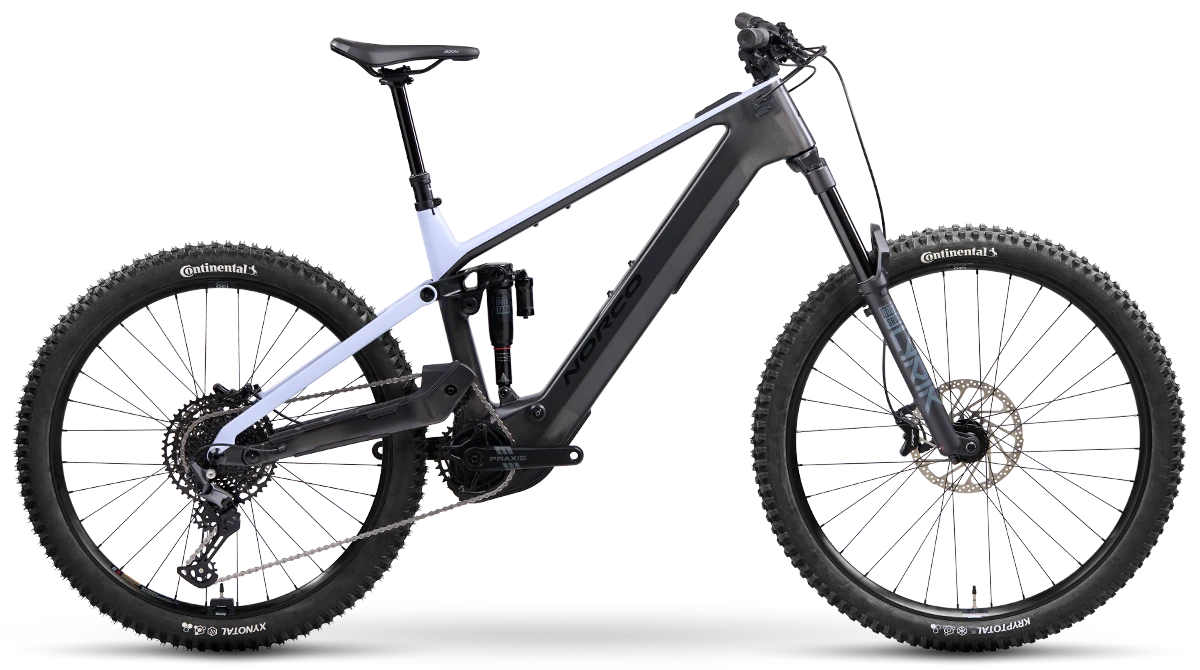

2025 Sight VLT CX C3

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.

New Bosch eMTB technology for a powerful lightweight package featuring VPSHP suspension.

The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.

The VPSHP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

Details
Specifications

Frameset

  • Frame: Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

  • Fork: RockShox Lyrik Select, 160mm Travel

  • Rear Shock: RockShox Super Deluxe Select, 205x60mm TR

Drivetrain

  • Rear Shifter: Shimano Deore SL-M6100-R, 12-speed

  • Rear Derailleur: Shimano Deore RD-M6100, 12-speed

  • Crankset: Praxis HD Aluminum Bosch Cranks, 34T, 165mm

  • Bottom Bracket: Bosch BDU38

  • Cassette: Shimano Deore CS-M6100-12, 10-51T, 12-speed

  • Chain: Shimano Deore CN-M6100, 12-speed

Brakes

  • Front Brake: TRP Slate EVO, Metallic Pads

  • Front Brake Rotor: TRP RS01E, 203mm, 2.3mm Thickness, 6-bolt

  • Rear Brake: TRP Slate EVO, Metallic Pads

  • Rear Brake Rotor: TRP RS01E, 180mm, 2.3mm Thickness, 6-bolt

  • Brake Levers: TRP Slate EVO

Components

  • Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise

  • Stem: Norco Alloy, 40mm Length, 35mm Clamp

  • Seatpost: TranzX YSP23 Dropper, 31.6mm

    • 125mm (S1)

    • 150mm (S2)

    • 170mm (S3)

    • 200mm (S4, S5)

  • Headset: FSA No.55 Sealed Bearing, 1 1/8"–1.5" Tapered (ZS44/28.6 | ZS56/40)

  • Saddle: Fizik Terra Aidon X5

  • Grips: WTB Wavelength, 130mm Length

  • Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID

Wheels

  • Front Hub: Bear Pawls BMB-013, 15x110 Boost, 32h, 6-bolt

  • Rear Hub: Bear Pawls BMB-007, 12x148 Boost, HG, 32h, 6-bolt

  • Rims: WTB ST i30, 30mm Width, 32h

    • Wheel Size: 29" Front / 27.5" Rear

  • Front Tire: Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable

  • Rear Tire: Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable

  • Spokes/Nipples: Sapim Sprint DB Spokes

Electric Components

  • Drive Unit: Bosch Performance Line CX BDU38

  • Battery: Bosch PowerTube 800Wh

  • Switch: Bosch BRC 3300 Mini Remote, 22.2mm

  • Power Button: Bosch BRC 3100 System Controller

Weight

  • Total Weight: 22.67 kg (50 lbs)

  • Weight Size: S3

Additional Features

  • Feature 1: Bosch Smart System Rim Magnet

  • Feature 2: Bosch PowerMore 250 Range Extender (Not Included)

Geometry
Sight VLT CX Gen 4 (NEW)
2 3 4 5
Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
Travel (mm front/mm rear) 160/150
Reach 447.5 472.5 497.5 522.5
Stack 627 636 645 654
HTA Head Tube Angle 64
OS Fork Offset 44
ST Seat Tube Length 395 415 445 475
STA Effective Seat Tube Angle 77.25 77.5 77.75 78
RC Rear Centre Length 432 436 440 444
RC Rear Centre Length at Sag 441 445 449 453
BB Bottom Bracket Drop 25/5
BBH Bottom Bracket Height 349
HTT Horizontal Top Tube 589 613 637 661
WB Wheelbase 1222 1255 1289 1322
SOH Standover 701 711 714 729
HT Head Tube Length 115 125 135 145
Trail 133
Recommended Seatpost Drop 150 170 200
Maximum Post Insertion 250 270 300 330
Stem Length 40
Crank Length 165
Tire Size 2.35" – 2.6"
Water Bottle Compatible 1 x 620 mL 1 x 750 mL





Product Variants SKU/UPC
  • Norco Sight VLT CX C3: Raw Black / Ice White / SZ2: SKU: 0284015155 - UPC: 058817717031
  • Norco Sight VLT CX C3: Raw Black / Ice White / SZ3: SKU: 0284015156 - UPC: 058817717062
  • Norco Sight VLT CX C3: Raw Black / Ice White / SZ4: SKU: 0284015157 - UPC: 058817717086
  • Norco Sight VLT CX C3: Raw Black / Ice White / SZ5: SKU: 0284015158 - UPC: 058817717093
