2026 Santa Cruz Bronson C GX AXS-Kit

By Santa Cruz
$9,249.00 CAD

This product is only available for in-store pickup.

In stock at supplier warehouse - Usually ships within 5 business days. More info

58-26313-335-2-904-243001

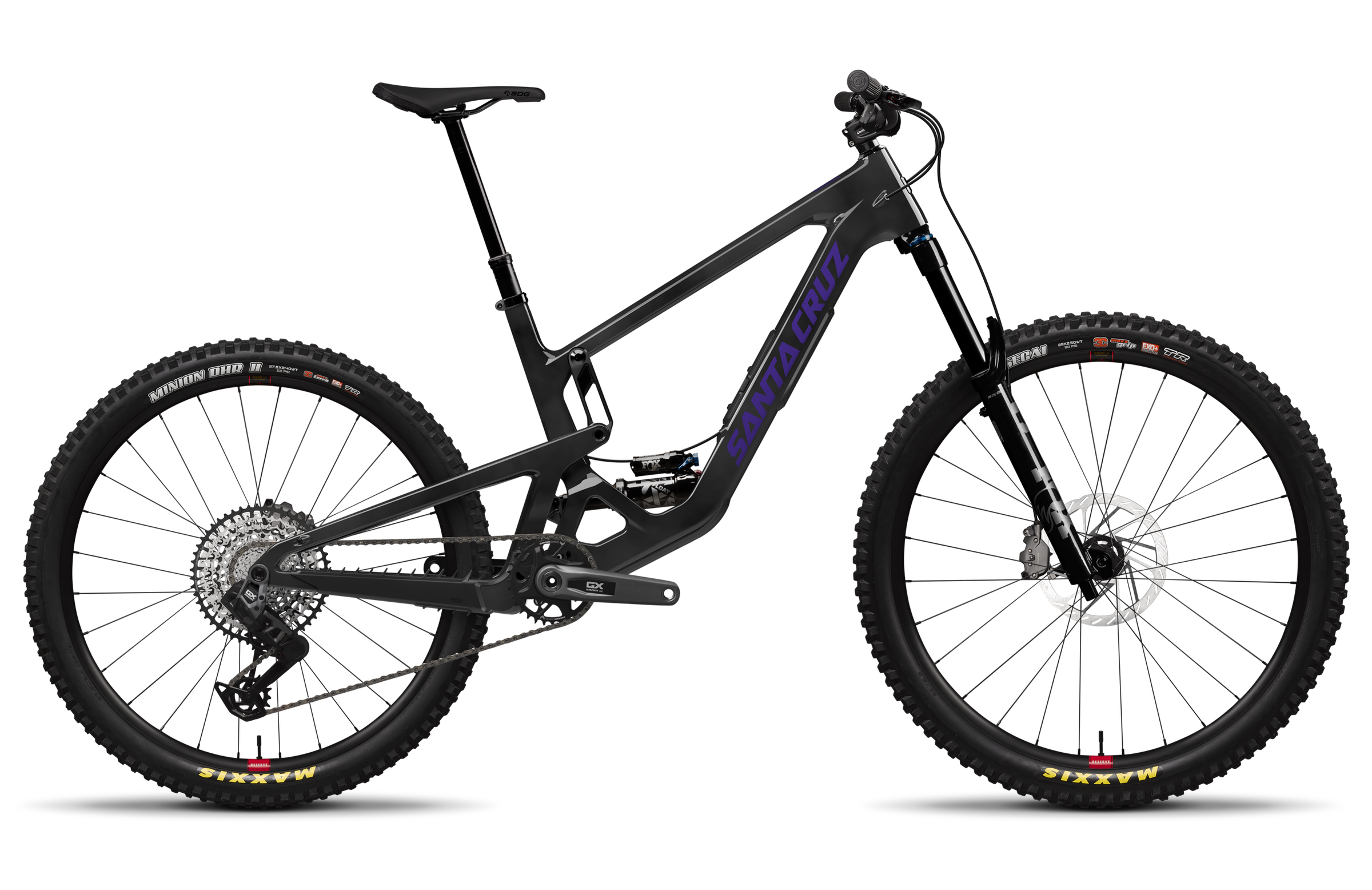

Color: Gloss Carbon
Size
View details
Description

When you can only have one bike, and your mission is to ride that bike into oblivion, then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Carbon C
Frame Carbon C MX 150mm Travel VPP™
Travel 150mm
Weight 33.21lbs / 15.06kg
Wheel Size MX
Suspension
Fork FOX 36 Float Performance Elite, Grip X2, 160mm
Shock FOX Float X Performance Elite, 230x57.5
Drivetrain
Bottom Bracket SRAM DUB 73mm MTB Wide BB
Cassette SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide N/A
Crankset SRAM GX Eagle DUB T-Type Crankset, 32t All Sizes: 170mm
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Controller
Brakes
Brakes SRAM Maven Bronze
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 180mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Carbon Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise
Headset Cane Creek 50 IS Integrated Headset
Saddle SDG Bel-Air V3 Lux-Alloy Atmos
Seatpost OneUp Dropper Post, 31.6 S: 150mm, M: 180m, L/XL: 210mm, XXL: 240mm
Stem OneUp Enduro Stem All Sizes: 42mm
Wheels
Front Rim RaceFace ARC 30 -or- Reserve 30|SL AL 6069
Front Hub DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tire Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim RaceFace ARC 30 -or- Reserve 30|SL AL 6069
Rear Hub DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Tire Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Valves Reserve Fillmore Valves
Specs
Bottom Bracket Shell Threaded 73mm
Rear Brake Mount 180mm PM
Chainguide_standard ISCG05
Shock Length 230mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount None
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 150mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Mounting Hardware Lower 30x8
Shock Mounting Hardware Upper 40x10
Shock Stroke 57.5mm
Suspension System VPP
UDH Compatible Yes
Water Bottle Mounts 1



Size Guide



Small

5'1"-5'5"Reach: 435mm

Medium

5'5"-5'9"Reach: 460mm

Large

5'9"-6'1"Reach: 480mm

X-Large

6'1"-6'4"Reach: 500mm

XX-Large

6'4"-6'7"Reach: 525mm
Geometry


All units are in millimeters or degrees.
s m l xl xxl
Reach (Hi/Lo) 435/432 460/457 480/478 500/498 525/523
Stack (Hi/Lo) 623/625 632/634 641/643 659/661 668/670
Head Tube Angle (Hi/Lo) 64.2°/63.9° 64.2°/63.9° 64.2°/63.9° 64.2°/63.9° 64.2°/63.9°
Head Tube Length (Hi/Lo) 110 120 130 150 160
Rear Center (Hi/Lo) 437 439 442 445 448
Front Center (Hi/Lo) 771 800 825 853 883
BB Height (Hi/Lo) 344/341 344/341 344/341 344/341 344/341
BB Drop Front (Hi/Lo) 29/32 29/32 29/32 29/32 29/32
BB Drop Rear (Hi/Lo) 10/13 10/13 10/13 10/13 10/13
Wheelbase (Hi/Lo) 1208 1240 1267 1299 1331
Top Tube Length (Hi/Lo) 572 595 614 636 662
Seat Tube Length (Hi/Lo) 380 405 430 460 500
Seat Tube Angle (Hi/Lo) 77.6°/77.3° 77.9°/77.6° 78.2°/77.9° 78.3°/78° 78.4°/78.1°
Standover Height (Hi/Lo) 721 723 725 727 731
Product Variants SKU/UPC
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Gloss Carbon / SM: SKU: 58-26313-335-2-904-243001 - UPC: 192219503523

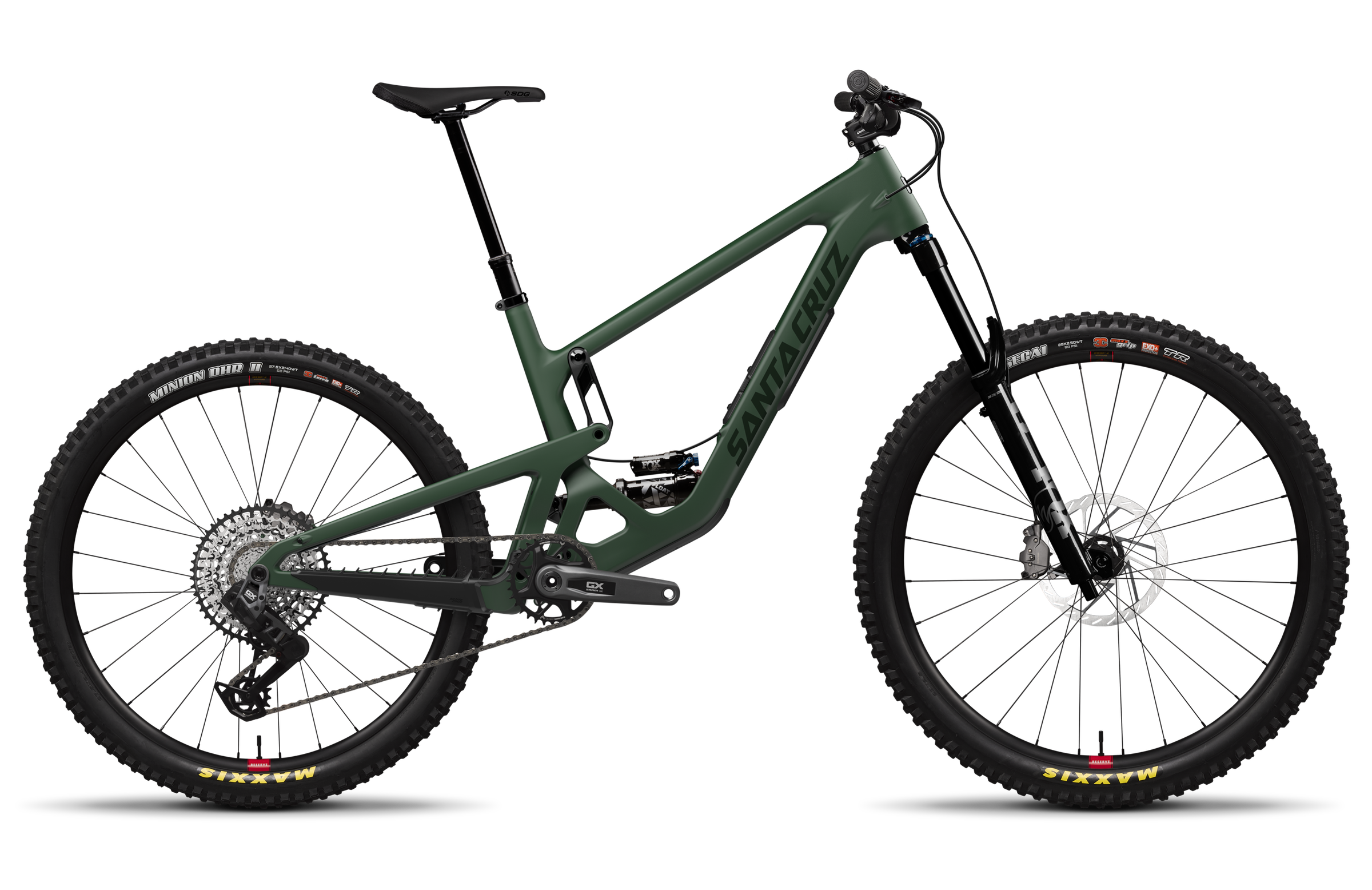

  • 2026 Santa Cruz Bronson C GX AXS-Kit: Matte Poblano Green / SM: SKU: 58-26313-335-2-905-243001 - UPC: 192219503530
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Gloss Carbon / MD: SKU: 58-26313-335-3-904-243001 - UPC: 192219503547
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Matte Poblano Green / MD: SKU: 58-26313-335-3-905-243001 - UPC: 192219503554
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Gloss Carbon / LG: SKU: 58-26313-335-4-904-243001 - UPC: 192219503561
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Matte Poblano Green / LG: SKU: 58-26313-335-4-905-243001 - UPC: 192219503578
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Gloss Carbon / XL: SKU: 58-26313-335-5-904-243001 - UPC: 192219503585
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Matte Poblano Green / XL: SKU: 58-26313-335-5-905-243001 - UPC: 192219503592
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Gloss Carbon / XXL: SKU: 58-26313-335-6-904-243001 - UPC: 192219503608
  • 2026 Santa Cruz Bronson C GX AXS-Kit: Matte Poblano Green / XXL: SKU: 58-26313-335-6-905-243001 - UPC: 192219503615
