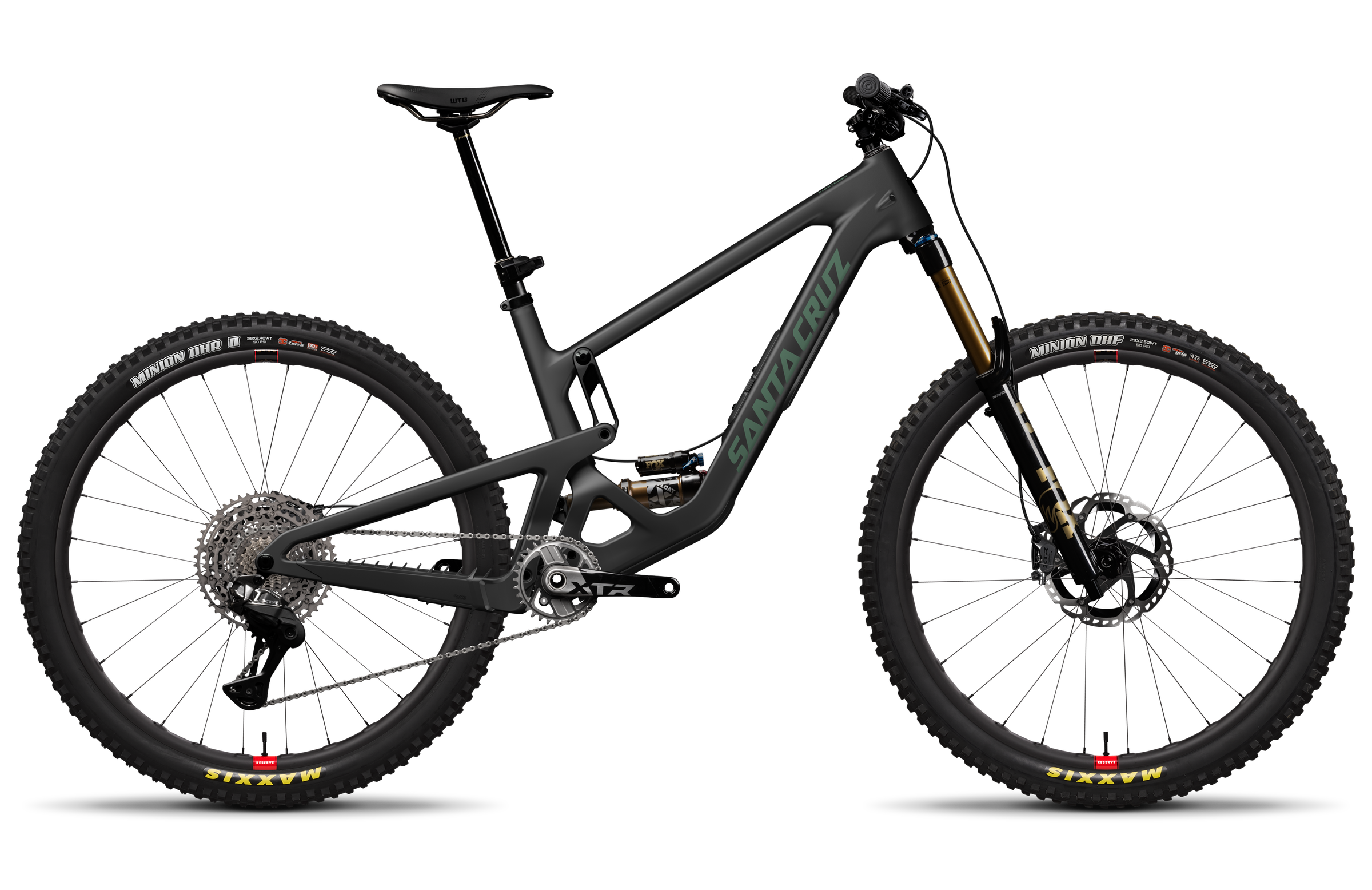

2026 Santa Cruz Hightower CC XTR-Kit RSV

By Santa Cruz
$15,549.00 CAD

This product is only available for in-store pickup.

In stock at supplier warehouse - Usually ships within 5 business days. More info

58-26312-123-3-902-253102
Color: Matte Black
Size
View details
Description

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material Carbon CC
Frame Carbon CC 29" 150mm Travel VPP™
Travel 150mm
Weight 31.95lbs / 14.49kg
Wheel Size 29"
Suspension
Fork FOX 36 Float Factory, Grip X2, 160mm
Shock FOX Float X Factory, 230x57.5
Drivetrain
Bottom Bracket Shimano XTR Threaded
Cassette Shimano XTR 9200, 10-51t
Chain Shimano XTR 9100, 12spd
Chainguide N/A
Crankset Shimano XTR M9220, 32t All Sizes: 170mm
Rear Derailleur Shimano XTR Di2 M9250, SGS, 12spd
Right Shifter Shimano XTR M9250 Shift Switch
Brakes
Brakes Shimano XTR 9220
Front Rotor Shimano MT905, 203mm
Rear Rotor Shimano MT905, 180mm
Cockpit
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Santa Cruz Carbon Bar S: 35x800mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise
Headset Chris King DropSet 3 Integrated Headset
Saddle WTB Silverado Medium Fusion, Stainless
Seatpost RockShox Reverb AXS S: 150mm, M: 175mm, L/XL: 200, XXL: 225mm
Stem Industry Nine A35 All Sizes: 40mm
Wheels
Front Rim Reserve 30|HD Carbon
Front Hub Industry Nine Hydra 2, 15x110, 6-Bolt 28h
Front Tire Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO
Rear Rim Reserve 30|HD Carbon
Rear Hub Industry Nine Hydra 2, 12x148, MicroSpline, 6-Bolt 28h
Rear Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+
Valves Reserve Fillmore Valves
Specs
Bottom Bracket Shell Threaded 73mm
Rear Brake Mount 180mm PM
Chainguide_standard ISCG05
Shock Length 230mm
Fork Axle to Crown 571mm
Fork Offset 44mm
Front Derailleur Mount None
Headset Integrated (IS41/52)
Max Chainring Size 36t
Max Rotor Size 220mm
Max Tire Clearance 2.5"
Rear Spacing 148mm
Rear Travel 150mm
Recommended Sag 30%
Seat Clamp Diameter 36.4mm
Shock Mounting Hardware Lower 30x8
Shock Mounting Hardware Upper 40x10
Shock Stroke 57.5mm
Suspension System VPP
UDH Compatible Yes
Water Bottle Mounts 1



Geometry
All units are in millimeters or degrees.
S M L XL XXL
Reach (Hi/Lo) 435/432 460/457 480/477 500/497 525/522
Stack (Hi/Lo) 623/625 632/634 641/643 659/661 668/670
Head Tube Angle (Hi/Lo) 64.2°/63.9° 64.2°/63.9° 64.2°/63.9° 64.2°/63.9° 64.2°/63.9°
Head Tube Length (Hi/Lo) 110 120 130 150 160
Rear Center (Hi/Lo) 434 436 439 442 445
Front Center (Hi/Lo) 771 800 825 853 883
BB Height (Hi/Lo) 344/341 344/341 344/341 344/341 344/341
BB Drop Front (Hi/Lo) 29/32 29/32 29/32 29/32 29/32
BB Drop Rear (Hi/Lo) 29/32 29/32 29/32 29/32 29/32
Wheelbase (Hi/Lo) 1206 1237 1264 1296 1328
Top Tube Length (Hi/Lo) 572 595 614 636 662
Seat Tube Length (Hi/Lo) 380 405 430 460 500
Seat Tube Angle (Hi/Lo) 77.6°/77.3° 77.9°/77.6° 78.2°/77.9° 78.3°/78° 78.4/°78.1°
Standover Height (Hi/Lo) 721 723 725 727 731
Sizing


Small 5'1"-5'5"Reach: 435mm

Medium

5'5"-5'9"Reach: 460mm

Large

5'9"-6'1"Reach: 480mm

X-Large

6'1"-6'4"Reach: 500mm

XX-Large

6'4"-6'7"Reach: 525mm
Product Variants SKU/UPC
  • 2026 Santa Cruz Hightower CC XTR-Kit RSV: Matte Black / SM: SKU: 58-26312-123-2-902-253102 - UPC: 192219503028
  • 2026 Santa Cruz Hightower CC XTR-Kit RSV: Matte Black / MD: SKU: 58-26312-123-3-902-253102 - UPC: 192219503042
  • 2026 Santa Cruz Hightower CC XTR-Kit RSV: Matte Black / LG: SKU: 58-26312-123-4-902-253102 - UPC: 192219503066
  • 2026 Santa Cruz Hightower CC XTR-Kit RSV: Matte Black / XL: SKU: 58-26312-123-5-902-253102 - UPC: 192219503080
  • 2026 Santa Cruz Hightower CC XTR-Kit RSV: Matte Black / XXL: SKU: 58-26312-123-6-902-253102 - UPC: 192219503103
