2025 Norco Fluid FS A3

By Norco
$2,499.00 CAD

In stock at supplier warehouse - Usually ships within 5 business days. More info

0650416914
Color: Black Tusk
Size
View details
Description

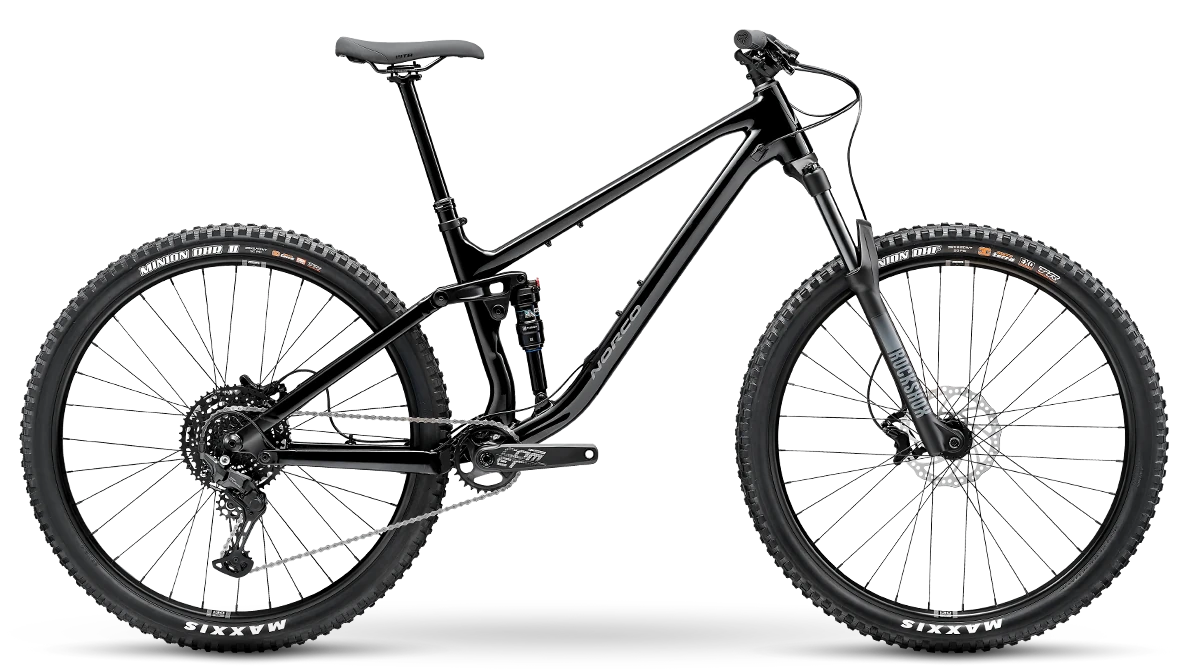

2025 Fluid FS A3

The Norco Fluid FS A3 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and most recently, Bicycling Magazine’s Best Value Trail Bike.

Get everything out of the trail that you put into it.

The Fluid FS A3's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.



Specs

Frameset
• Frame: 6061 Alloy, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
• Fork: RockShox Recon RL, 140mm, 29"
• Rear Shock: X-Fusion 02 Pro R AV, 130mm

Drivetrain
• Rear Shifter: Shimano CUES 10 SL-U6000 Rapidfire Plus
• Rear Derailleur: Shimano CUES RD-U6020, 10-Speed
• Crankset: FSA Comet 1X DM, 30T
• Bottom Bracket: FSA MegaExo
• Cassette: Shimano CUES LG-400, 10-Speed, 11–48T
• Chain: Shimano LG-500

Brakes
• Front Brake: Tektro HD-M535, 4-Piston, 180mm
• Front Brake Rotor: Tektro TR180-22, 180mm
• Rear Brake: Tektro HD-M535, 4-Piston, 180mm
• Rear Brake Rotor: Tektro TR180-22, 180mm
• Brake Levers: Tektro HD-M535

Components
• Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise
• Stem: Norco 6061 Alloy, 40mm Length, 35mm Clamp
• Seatpost: TranzX YSI34, 34.9mm
• Headset: Zero Stack Sealed Cartridge Bearings, Tapered
• Headset Spacer: 1 x 10mm
• Saddle: Norco Trail Saddle
• Grips: Propalm Pro Grips
• Pedals: VP Nylon Flat Pedals
• Seatpost Clamp: Norco Alloy Nutted Clamp

Wheels
• Front Hub: Formula DC-511, 110x15, 32H
• Rear Hub: Formula DC-3248, 148x12, 32H
• Rims: WTB ST 29", 32H
• Front Tire: Continental Kryptotal Trail, 29" x 2.4"
• Rear Tire: Continental Xynotal Trail, 29" x 2.4"
• Front Hub Skewer: SR Suntour TA
• Rear Hub Skewer: 148mm x 12mm TA
• Spokes/Nipples: Stainless Steel, 14g, Black

Geometry
Fluid FS Aluminum
S M L XL XXL
Wheel Size 29" 29" 29" 29" 29"
Travel (mm front/mm rear) 140/130
Reach 420 450 480 510 540
Stack 617 626 635 644 653
HTA Head Tube Angle 65
OS Fork Offset 44
ST Seat Tube Length 360 390 410 460 510
STA Effective Seat Tube Angle 76 76.3 76.7 77 77.3
RC Rear Centre Length 425 430 435 440 445
BB Bottom Bracket Drop 30
BBH Bottom Bracket Height 348
HTT Horizontal Top Tube 574 602 630 659 687
WB Wheelbase 1166 1205 1245 1284 1323
SOH Standover 678 690 699 736 767
HT Head Tube Length 110 120 130 140 150
Trail 128
Recommended Seatpost Drop 150 170 200
Maximum Post Insertion 250 270 300
Stem Length 40
Crank Length 175
Tire Size 2.4" – 2.6"
Water Bottle Compatible 1 x 750 mL 1 x 750 mL and 1 x 620 mL
Product Variants SKU/UPC
  • 2025 Norco Fluid FS A3: Black Tusk / SM (29): SKU: 0650416914 - UPC: 058817739002
  • 2025 Norco Fluid FS A3: Black Tusk / MD (29): SKU: 0650416915 - UPC: 058817739019
  • 2025 Norco Fluid FS A3: Black Tusk / LG (29): SKU: 0650416916 - UPC: 058817739026
  • 2025 Norco Fluid FS A3: Black Tusk / XL (29): SKU: 0650416917 - UPC: 058817739033
  • 2025 Norco Fluid FS A3: Black Tusk / XXL (29): SKU: 0650416918 - UPC: 058817739040
