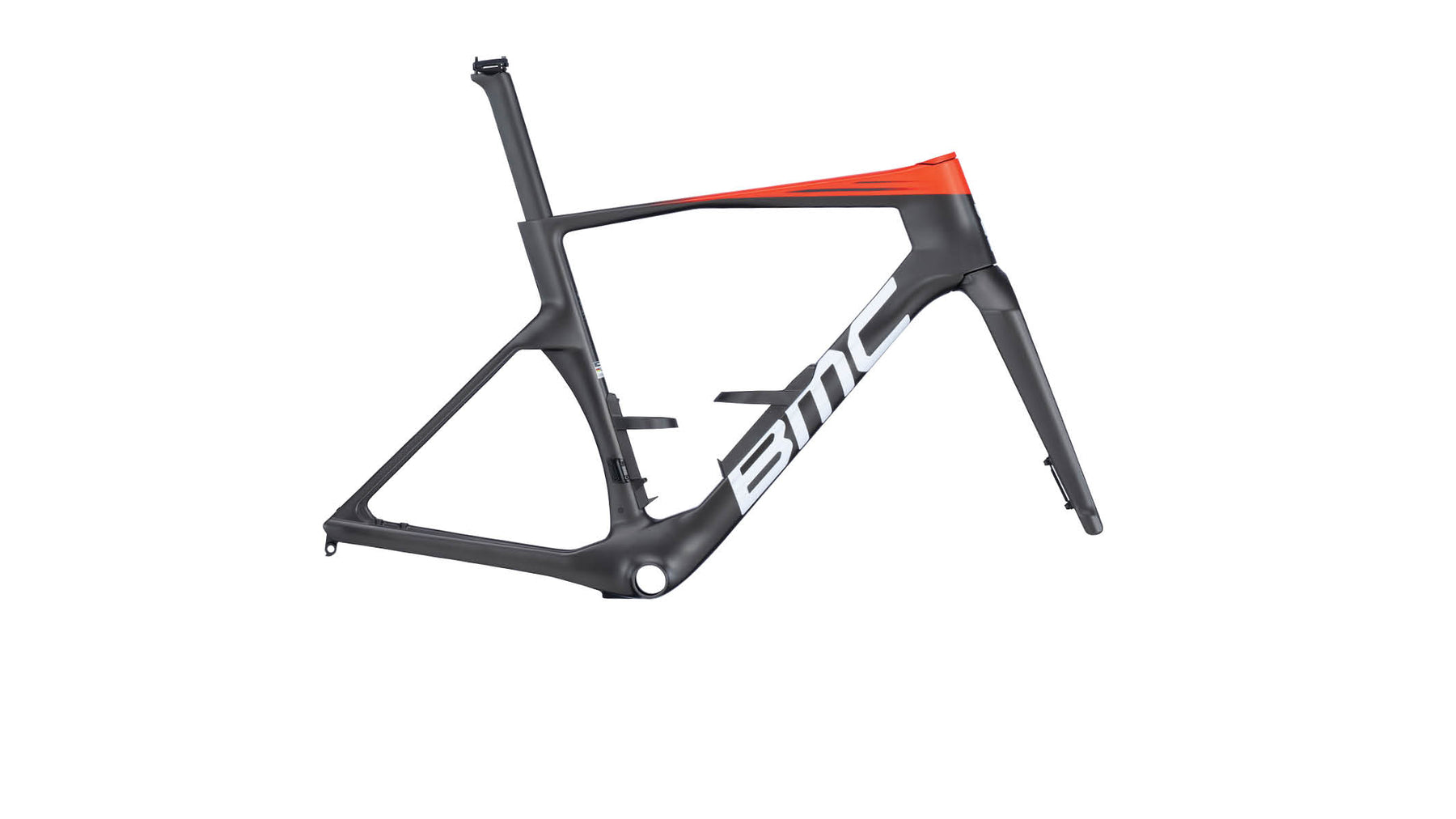

2026 BMC Teammachine R 01 Frameset

By BMC
$6,999.00 CAD

This item is in stock at the warehouse, and will require additional time to process before shipping. Learn more

SKU: 30006862
Color: Carbon / Neon Red
Size
View details

From dreams to racing: Build your carbon road bike and conquer your ultimate racing goals with precision and speed, whether in the mountains or on tarmac.

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Accessories

In the Box:
Aerocore Bottle Cages | Shimano Direct Mount RD hanger and Classic SRAM/Shimano RD hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers)

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
1.8kg | Size 54 with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 368 378 387 393 402 409
Stack 504 528 548 563 582 608
BB Drop 69 69 69 69 69 69
Fork Length 367 367 367 367 367 367
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 185 211
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 74 74 73.5 73.5 73 73
Seat Tube 418 463 499 519 541 570
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Standover Height 721 755 781 799 813 836
Top Tube 522 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 999 1015 1030
Product Variants SKU/UPC
  • 2026 BMC Teammachine R 01 Frameset: Carbon / Neon Red / 47: SKU: 30006859 - UPC:
  • 2026 BMC Teammachine R 01 Frameset: Carbon / Neon Red / 51: SKU: 30006860 - UPC:
  • 2026 BMC Teammachine R 01 Frameset: Carbon / Neon Red / 54: SKU: 30006861 - UPC:
  • 2026 BMC Teammachine R 01 Frameset: Carbon / Neon Red / 56: SKU: 30006862 - UPC:
  • 2026 BMC Teammachine R 01 Frameset: Carbon / Neon Red / 58: SKU: 30006863 - UPC:
  • 2026 BMC Teammachine R 01 Frameset: Carbon / Neon Red / 61: SKU: 30006864 - UPC:
